Side 1/4
Key Features:
Powered bi-amplified full-range
loudspeaker with JBL DrivePack®tech-
nology for portable or installed use
2200 watts peak output power,
1100 watts continuous
15-inch Differential Drive®
low-frequency driver for extended
low-frequency output
60° x 40° coverage
Stylized and ergonomically designed
powder-coated die cast aluminum
handles
Six 3-inch fly track suspension points
and twelve M10 fittings (optional
detachable flying fittings and forged
eye bolt kits available)
Optional DPAN or DPCN (CobraNet™)
digital audio input modules available
Applications:
High-impact audio/visual
presentations
Theatrical sound design
Houses of Worship
Sound reinforcement rental companies
Live performance venues
Performing arts centers
Corporate learning centers
Themed entertainment venues
The VP7315/64DP is a powered 15"
3-way integrated loudspeaker system
featuring 2200 watts of peak output
power, 1100 watts continuous, and
onboard digital signal processing.
Designed in cooperation with Crown
International, the JBL DrivePack®DP-2
features leading-edge technology such
as patented high efficiency Class-I
power amplifier technology. Network
control and monitoring is optionally
available via System Architect software.
VP7315/64DP transducers are JBL’s
2265G 15" diameter Differential Drive®
woofer, CMCD-82 mid-range driver
and the JBL 2452H-SL large format 1.5"
exit compression driver. The mid-fre-
quency and high frequency drivers are
coupled to a JBL PT-K64-MHF
Progressive Transition (PT) Waveguide
for excellent 60° x 40° pattern control,
smooth frequency response, and low
distortion. Easily rotated for horizontal
or vertical system orientation.
Specifications:
Frequency
Response (+/-3 dB): 43 Hz - 18 kHz
Frequency Range (-10 dB): 34 Hz - 20 kHz
Coverage Pattern: 60° x 40° rotatable waveguide
Directivity Factor (Q): 15.85
Directivity Index (DI): 12 dB
Maximum Peak Output1 : 138 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2265G, 381 mm (15 in) dia., 76 mm (3 in) Dual Coil
neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
Mid/High Frequency Section:
Mid Frequency: JBL CMCD-82H, 200 mm (8 in) Dual Coil Differential
Drive®transducer
High Frequency: JBL2452H-SL, 100mm (4 in) titanium damped diaphragm,
1.5 in. exit.
Waveguide: JBL PT-K64-MHF
Bandpass Nominal Impedance: 8 ohms
System:
DP2 Internal Amplification Output
(at nominal load): 2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink
noise into rated load impedance): 750LF/350HF Watts
DP2 Output Section: 2-Channel, Class I
Audio Input connector: XLR with loop-through
Network control connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module. See page 2 For input
module specifications.
System Management: DSP based limiters for mechanical and thermal protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-thru: Neutrik PowerCon
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch. Internally
braced. Black DuraFlex™ finish.
Suspension System: 6 standard air-cargo 3 in. track and 12 M10 fittings.
Grille: 14 Gauge Black powder-coated perforated steel with foam
backing.
Dimensions (H x W x D): 914.4 x 528.3 x 624.8 mm
36 x 20.8 x 24.6 in.
Net Weight: 44 kg (97 lb
s.)
1Measured with IEC shaped noise in free field conditions.
VP7315/64DP
VP7315/64DP-AN (Optional network input module)
VP7315/64DP-CN (Optional network input module with digital audio)
Powered 15"
3-Way Integrated
Loudspeaker System
VP7315/64DP Powered 15" 3-Way Integrated Loudspeaker System

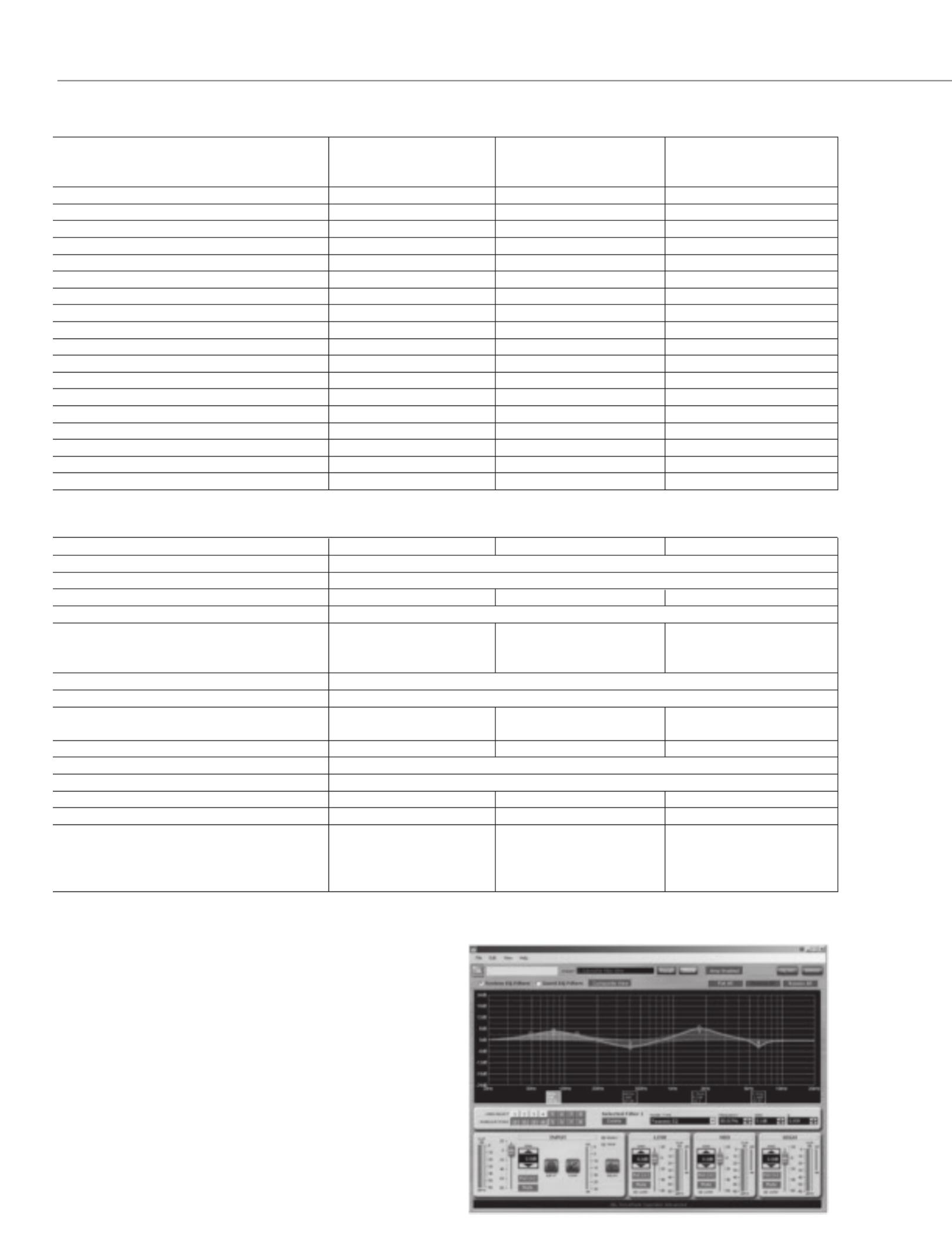

Input module characteristics and options
Features
Description DPIP DPAN DPCN
(standard input module) (optional HiQnet network (optional HiQnet network
input module) input module) input module; digital audio)
HiQNet Compliant No Yes Yes
Network Communication No 100MB Ethernet 100MB Ethernet
Network Connections N/A RJ-45, CAT5 RJ-45, CAT5
Audio signal format Analog Analog Digital with analog backup
CobraNet™ digital audio over ethernet No No Yes
Level Controls Attenuator, 16dB range Network Controllable Network Controllable
Remote Load Monitoring No Yes Yes
User Assignable Filters No 16 16
User Accessible Delays No Yes Yes
Noise Generator No Pink, White Pink, White
Sine Wave Generator No Continous, Burst Continuous, Burst
User Assignable Filter Types None 9 9
Error Reporting No Yes, via software Yes, via software
Digital Speaker Setting Presets 2, fixed 10, user assignable 10, user assignable
Polarity Reverse No Yes, via software Yes, via software
Listen Bus line level remote monitor No No Yes
Firmware upgrades via network No Yes Yes
Mute No Remote via network Remote via Network
JBL DrivePack®Software Control Panel
With optional HiQnet-compatible input modules installed, JBL
DrivePack systems can be remotely controlled and monitored
using HiQnet System Architect™ software. A Windows-based
application, it provides an intuitive, unified platform for system
configuration and operation of JBL DrivePack-equipped systems
and any other HiQnet-compliant audio devices in the signal
chain. HiQnet System Architect enables the unified layout of on-
screen product control surfaces, and simple preset configuration
of an entire system across multiple brands and product classes.
Advanced remote control and diagnostic capabilities, custom
control panel creation, and the recall of presets on all connected
HiQnet devices are included. In addition, the application
enables a user to copy / paste like parameter values from, and
to, multiple products across the HiQnet network.
HiQnet System Architect is available for download at
harmanpro.com.
Specifications
Analog Audio Input Connectors XLR, female XLR, female XLR, female
Input Type Electronically Balanced, RF Filtered
Signal Loop-through XLR, male, passive pass-through
Input Impedance 20K Ohms Bal 20K Ohms Bal 20K Ohms Bal
Polarity (+) voltage on XLR pin 2 yields (+) LF pressure
Input Sensitivity at 1m 0 dBu: 122 dB spl 0 dBu: 122 dB spl 0 dBu: 122 dB spl
0 dBV: 120 dB spl 0 dBV: 120 dB spl 0 dBV: 120 dB spl
(Input attenuator set at 0 dB) (Internal sensitivity set to +4dBu) (Internal sensitivity set to +4 dBu)
Max Input Level +23 dBu
Frequency Response 20 Hz – 20K Hz ± 0.5 dB
DSP Processing dbx Type IV analog-to- 24 Bit conversion, 32 bit 24 Bit conversion, 32 bit
digital conversion circuitry floating point processing floating point processing
Dynamic Range (20-20 KHz) > 107 dB (A Weighted) > 110 dB (A Weighted) > 110 dB (A Weighted)
THD+N (20-20 KHz), rated power < 0.5%
Crosstalk > 60 dB @ 1kHz
User Programmable Signal Delay N/A 2 seconds 2 seconds
Front Panel Controls Gain, Sub Filter Enable Enable ALT Preset Enable ALT Preset
Front Panel Indicators Signal/clip, ready, thermal, Signal/clip, ready, thermal, Signal/clip, ready, thermal,
fault, sub filter on/off fault, alt. preset select, fault, alt. preset select,
Network: activity, link Network: acivity, link,
CobraNet conductor
