Because Whirlpool Corporation policy includes a continuous
commitment to improve our products, we reserve the right to
change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details,
see Installation Instructions packed with product. Specifications
subject to change without notice.
"Y INTRTTO
FFIGRTR
DETAILED PLANNING DIMENSIONS GUIDE
(BASE UNIT REQUIRES SUITE-COORDINATING FULL HEIGHT PANEL KIT OR CUSTOM
PANELS AND HANDLES)
JB36NXFXRE, JB36NXFXLE – 35
3
⁄4" (W) x 82⁄" (H) x 24" (depth without door panels/
handles)
BASE UNIT + FULL HEIGHT PANEL KIT = FINISHED REFRIGERATOR
Easily transform these overlay refrigerators into one of our signature kitchen suite designs with one of our suite-
coordinating stainless steel panel kits. To do so, you must order one of the overlay base units (left column) and one
of the suite-coordinating panel kits. The kits include refrigerator and freezer door panels, air grille and pre-installed
handles.
Base Unit
Model Number
Coordinating Stainless Full Height Panel Kits
RISE™
Stainless
NOIR™
Stainless
Bottom-Freezer
JB36NXFXRE
JB36NXFXLE
JBBFR36NHL
JBBFL36NHL
JBBFR36NHM
JBBFL36NHM
OPTIONAL ACCESSORIES FOR CUSTOM OVERLAY DESIGNS
ARMOIRE-STYLE DOOR PANEL KIT
W10663562 – 36" – Obsidian Interior
For use with fully integrated and
flush refrigerators
Enables installation and proper
venting of full height custom
door panels (not included) that
hide the top panel
Includes left and right grille
brackets and machine
compartment cover
RISE™ STAINLESS HANDLE KIT
W11231245 – Bottom-Freezer
For use with Custom Overlay fully
integrated built-in refrigerators
NOIR™ STAINLESS HANDLE KIT
W11194767 – Bottom-Freezer
For use with Custom Overlay fully
integrated built-in refrigerators
W11356540A
2
"Y INTRTTO
FFIGRTR
DETAILED PLANNING DIMENSIONS GUIDE
(BASE UNIT REQUIRES SUITE-COORDINATING FULL HEIGHT PANEL KIT OR CUSTOM
PANELS AND HANDLES)
JB36NXFXRE, JB36NXFXLE – 35
3
⁄4" (W) x 82⁄" (H) x 24" (depth without door panel/
handles)
Because Whirlpool Corporation policy includes a continuous
commitment to improve our products, we reserve the right to
change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details,
see Installation Instructions packed with product. Specifications
subject to change without notice.

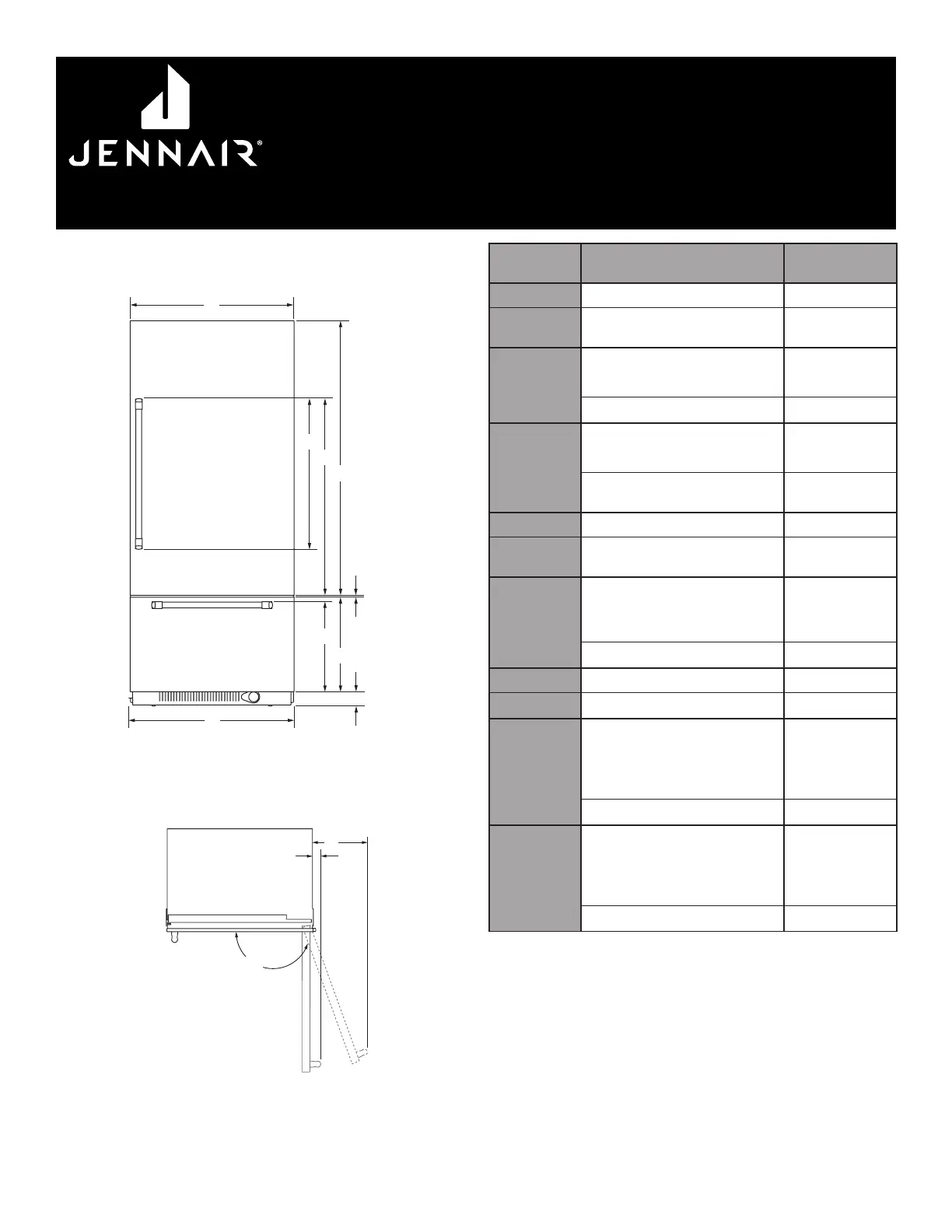

PRODUCT DIMENSIONS
DIMENSION DESCRIPTION
JB36NXFXRE
JB36NXFXLE
A Width of door 35¾" (90.8 cm)
B
Overall width (including vinyl
side trims)
35¾" (90.8 cm)
C
Height of door handle
RISE™ Stainless 40⁄" (103.8 cm)
NOIR™ Stainless
40⁄" (103.2 cm)
D
Height to top of door handle
RISE™ Stainless 49⁄" (126 cm)
NOIR™ Stainless
47⁄"
(121.8 cm)
E Height of door 59⁄" (150.5 cm)
F
Space between door and
drawer
1/8" (0.3 cm)
G
Height to top of drawer
handle
RISE™ Stainless 19⁄" (49.1 cm)
NOIR™ Stainless
19⁄" (49.2 cm)
H Height of drawer 20⁄" (52.1 cm)
I
Height of bottom grille
3" (7.6 cm)
J
Width from side of
refrigerator to handle – door
fully open 110°
RISE™ Stainless 13⁄" (34.2 cm)
NOIR™ Stainless
12⁄" (32.8 cm)
K
Width from side of
refrigerator to handle – door
open 90°
RISE™ Stainless 2⁄" (6.1 cm)
NOIR™ Stainless
1⁄" (4.1 cm)
A
B
C
D
E
F
G
H
I
FRONT VIEW
J
K
110º
TOP VIEW
