LGA1366

LGA115X

LGA775

LGA1366

LGA115X

LGA775

Thermal Grease

Intel Bracket

AMD Bracket

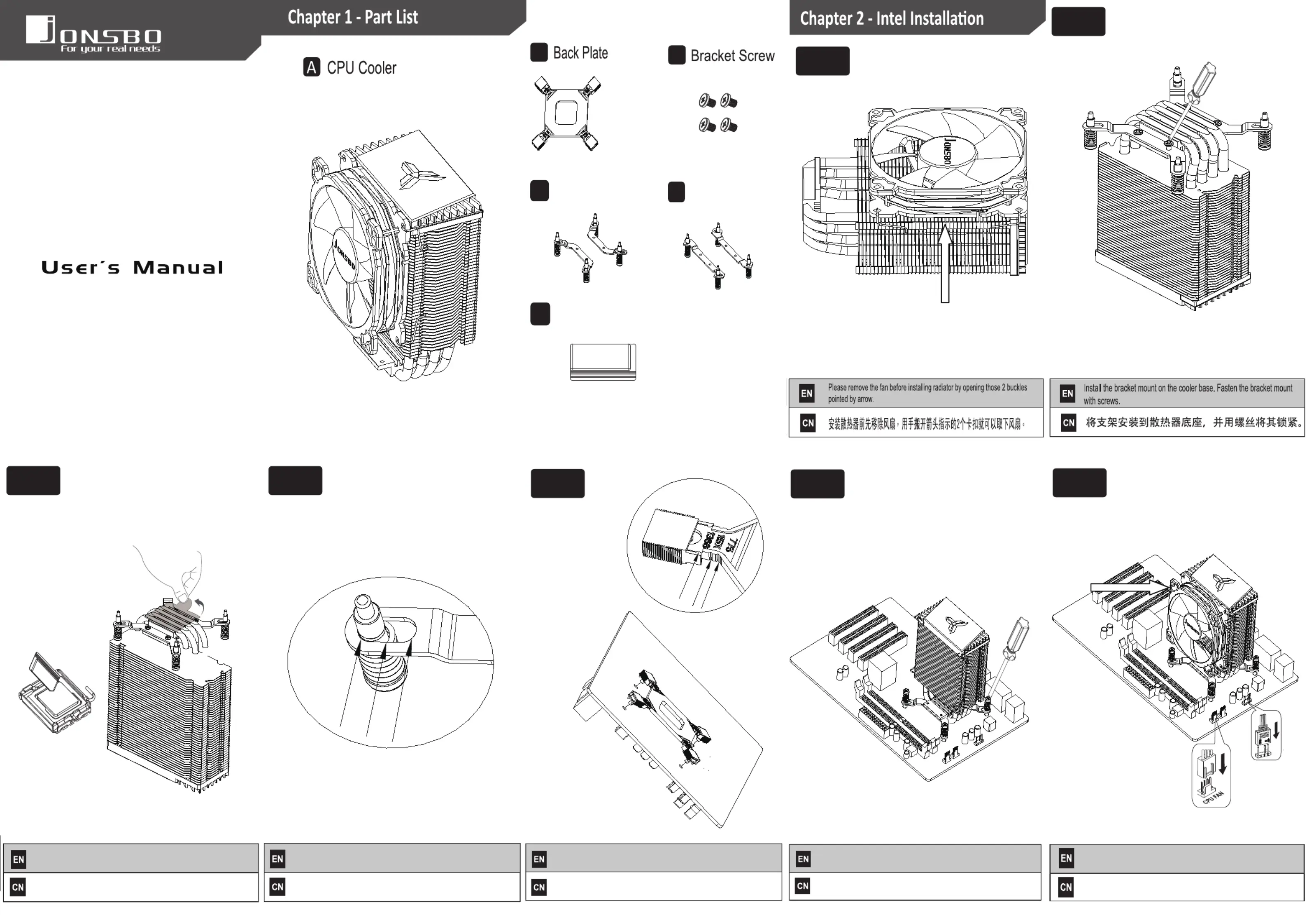

Step1

Step2

Step3

Step4

Step5

Step6

Step7

CR-1400

根据主板型号将支架上的螺杆移到对应位置。

（如上图所示)

Move the screw on the bracket to the corresponding position

according to the main board type.

(As shown in the above figure)

将散热膏均匀涂抺在CPU表面上，并取下散热器

底部的保护膜。

Evenly spread the heat sink paste on the surface of the CPU and

remove the bottom of the radiator.

将背板定位滑块移至所需位置后，装入主板。

（如上图所示）

The backplane positioning slider is moved to the desired position

and loaded into the main board.

(As shown in the above figure)

将散热器置于CPU上，同时将支架螺杆对准

背板螺母并拧紧。（如上图）

Place the radiator on the CPU while aligning the support

screw to the backplane nut and tightening

（Pictured above）

Connect fan conductor and RGB LED conductor to

motherboar.(as shown above)

将风扇导线和RGB LED导线与主板连接。(如上图）

RGB LED

装上风扇。

Install the fan.

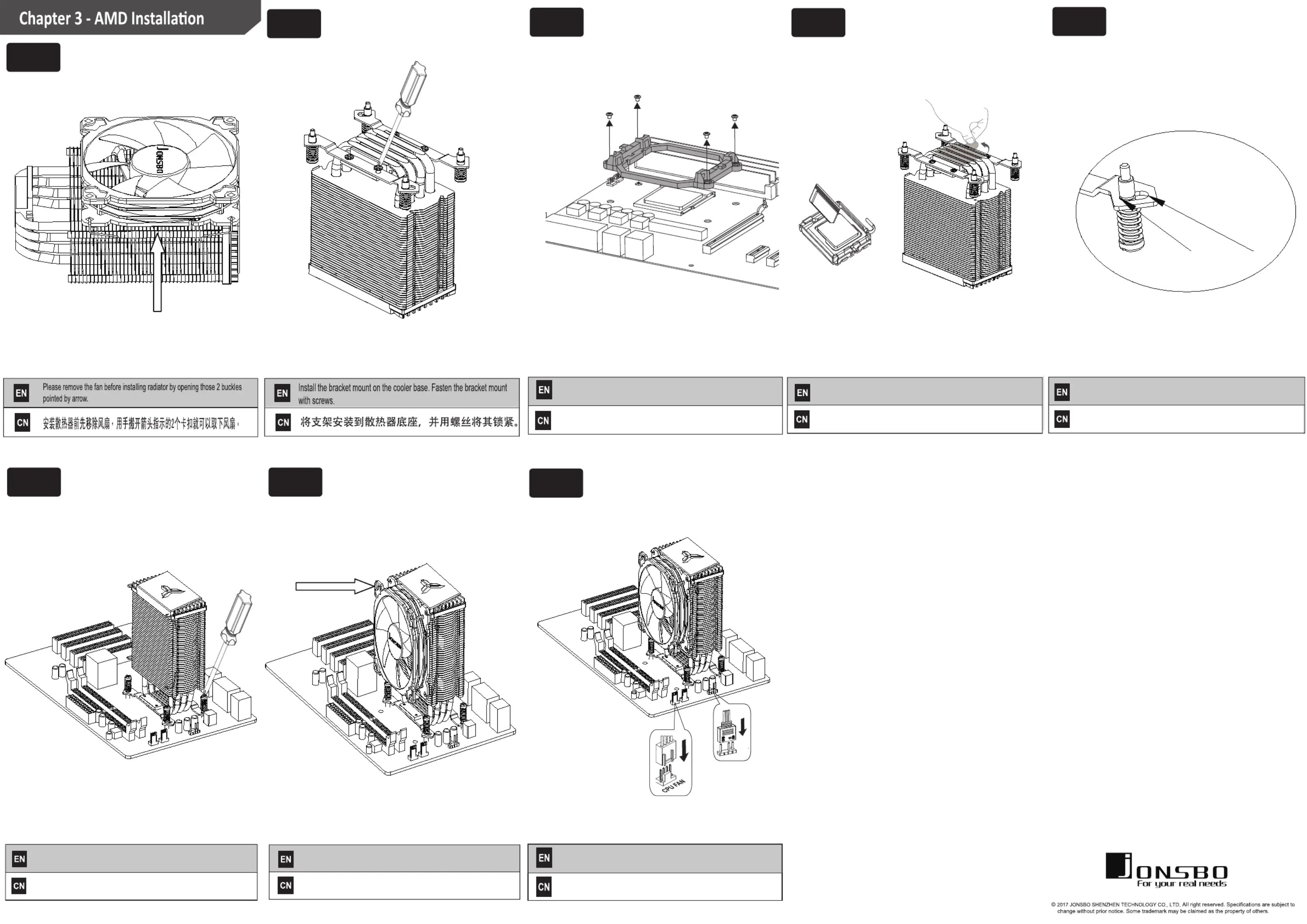

AM4

AM3+/AM3/AM2+/AM2/

FM2+/FM2/FM1

Step7

Step6

Step1

Step2

Step3

Step4

Step5

Step8

请将AMD主板上的原厂散热支架移除。（如上图）

Please remove the original heat sink bracket on the

AMD motherboard.

（Pictured above）

将散热膏均匀涂抺在CPU表面上，并取下散热器

底部的保护膜。

Evenly spread the heat sink paste on the surface of the

CPU and remove the bottom of the radiator.

根据主板型号将支架上的螺杆移到对应位置。

（如上图所示)

Move the screw on the bracket to the corresponding position

according to the main board type.

(As shown in the above figure)

将散热器置于CPU上，同时将支架螺杆对准

主板原装散热架底座孔位并拧紧。（如上图）

（Pictured above）

Place the radiator on the CPU and screw the bracket screw

to the base of the original cooling rack

装上风扇。

Install the fan.

CR-1400

Connect fan conductor and RGB LED conductor to

motherboar.(as shown above)

将风扇导线和RGB LED导线与主板连接。(如上图）

RGB LED

装上风扇。

Install the fan.

Produkt Specifikationer

Mærke:	Jonsbo
Kategori:	Computer køling komponent
Model:	CR-1400
Type:	Køler
Bredde:	93 mm
Dybde:	78 mm
Højde:	126 mm
Vægt:	450 g
Produktfarve:	Sort
Omdrejningshastighed (min.):	900 rpm
Omdrejningshastighed (maks.):	2300 rpm
Spænding:	12 V
Belysningsfarve:	Flere
Støjniveau (lav hastighed):	20 dB
Støjniveau (høj hastighed):	30.5 dB
Passende til rumtype:	Processor
Ventilator diameter:	92 mm
Maksimal luftstrøm:	36 kubikfod/min.
Ventilatorstik:	4-polet
Understøttede procesorsokler:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM1, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Antal varmerør:	4
Belysning LED:	Ja
