Fingerprint system

Ref.-no.: ..BIS 50..

Operating instructions

Fingerprint system

1. Safety Instructions ............................................................................ 1

2. Device layout ..................................................................................... 2

3. Function ............................................................................................. 2

4. Operation............................................................................................ 2

4.1. Storing a master nger ................................................................. 4

4.2. Storing user fingers....................................................................... 5

4.3. Deleting the user finger................................................................. 7

4.4. Deleting all fingers ........................................................................ 7

4.5. Changing the switching output ON time ....................................... 8

5. Fitting and electrical connection..................................................... 9

5.1. Installing the device ...................................................................... 9

5.2. Start-up ....................................................................................... 10

6. Appendix .......................................................................................... 10

6.1. Technical data............................................................................. 10

6.2. Control functions – overview....................................................... 10

6.3. Accessories................................................................................. 11

6.4. Guarantee ................................................................................... 11

1. Safety Instructions

Electrical equipment must be installed and fitted by qualified

electricians only.

Failure to observe the instructions may cause damage to the device

and result in fire or other hazards.

Only for indoor use.

The device is not protected against tampering. Do not use in areas

critical with regard to safety or in combination with alarm systems.

This device is a safety class III device. Use a safety transformer as

per EN 61558 with an output voltage of 12 VDC as power supply.

For the installation and for the laying of cables observe the relevant

specications and the standards for SELV voltages.

These operating instructions are part of the product and must be

left with the final customer.

Stand: Aug-08 325 642 13

Fingerprint system

Ref.-no.: ..BIS 50..

2. Device layout

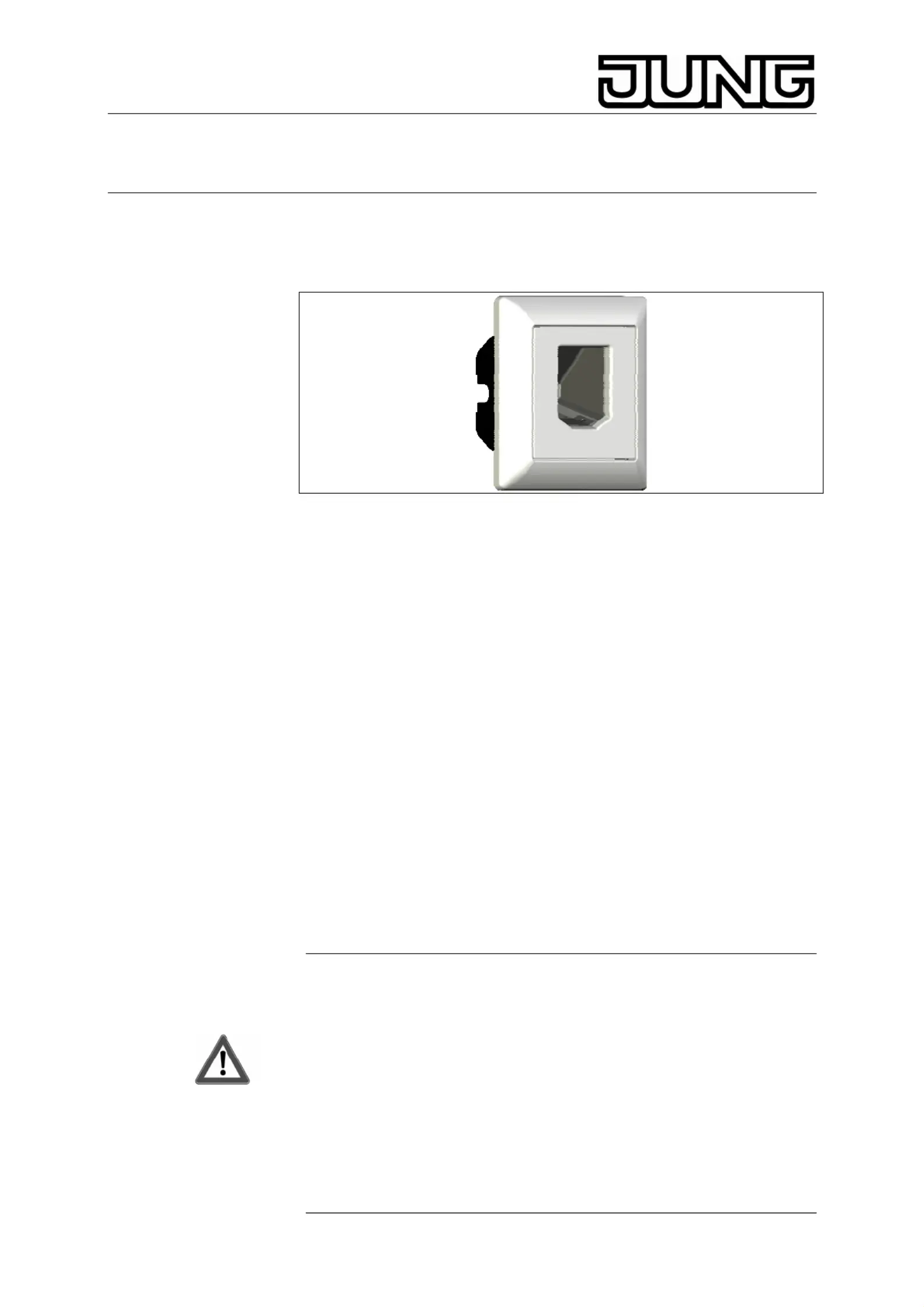

Fig. 1

(1) Design cover

(2) Indicator LEDs red, amber, green

(3) Line-oriented sensor

(4) Control button under design cover

3. Function

Designated use

• The device verifies the access authorization of persons by

comparison of their fingerprints. For this verification, the person

demanding access runs a nger over the sensor surface. If the

access authorization is confrmed, the device enables a switching

output for a preset time, e.g. to activate the opener of doors inside a

building.

• Installation in a ush-mounting box as per DIN 49073.

Recommendation: Use the deep mounting box.

Device features

• Storing capability for up to 50 user fingers

• 3 master fingers for administration purposes

• Switching output ON time adjustable between 0.5 and 10 seconds

• 3 coloured LEDs as indicators

• Stored finger data remain stored even after mains failures

• Separate power supply (accessory part) for device required

L The device uses a heated sensor. A slight temperature increase can

be felt when the finger is placed on the sensor. This temperature

increase is of no risk to the user.

The necessary operating temperature is reached 30 seconds max.

after switching on.

4. Operation

Running the finger correctly over the sensor surface

The sensor in the device works like a line scanner. When a finger is run

over the sensor surface, the device builds an image of the ngerprint

(Fig. 2) and stores it.
