KNX Combination sensor

Ref.-no.: WS 10 KS, WS 10 KS DCF

Operating Instructions

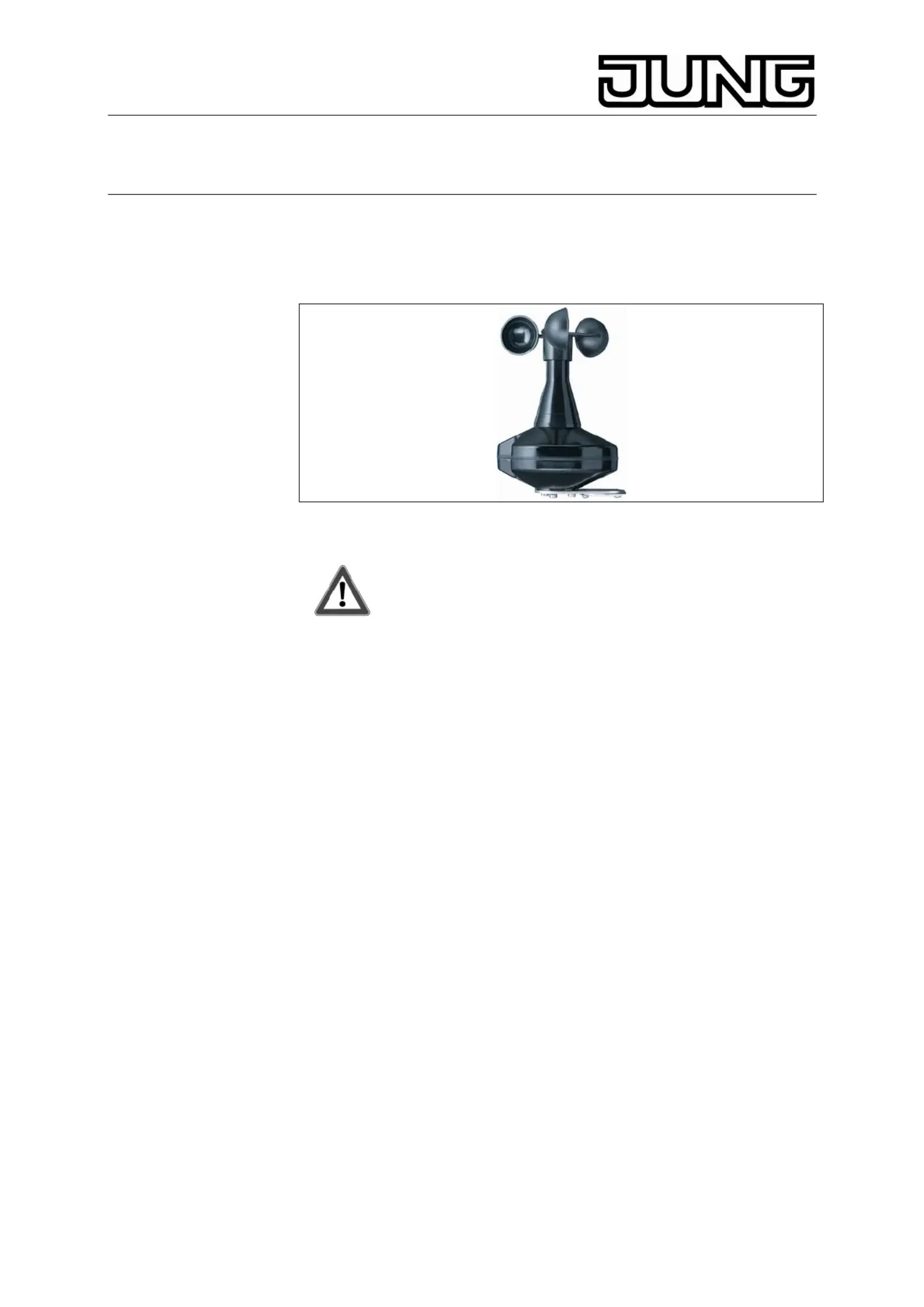

Combination sensor

1. Safety warnings

Attention:

Electrical equipment must be installed and fitted by qualified

electricians only and in strict observance of the relevant accident

prevention regulations. Failure to observe any of the installation

instructions may result in fire and other hazards.

2. Function

• The combination sensor can measure wind speed, precipitation

brightness and twilight. Brightness can be measured separately for

the cardinal points East, South and West.

• The combination sensor can be directly connected to a weather

station (e.g. Art. no. 2224 REG W) which ensures further

processing of th measured data and transmission to the bus in the

form of switching or value telegrams. Bus subscribers as, for

instance, the Info-Display ..2041.., the „Facility-Pilot“ visualization

software and the LCD annunciator and control panel MT 701 can

thus intervene into control processes, generate messages, or

control weather-dependent processes. Resulting applications are in

building services management control engineering, greenhouse

control, or in further processing of the collected data in control and

operating units.

• The combination sensor Art. no. WS 10 KSDCF is equipped with

DCF77 receiver which can receive the legal German time and

transmit the signals to the KNX/EIB bus (e.g. to synchronize

KNX/EIB clocks).

• To ensure trouble-free service even in case of frost, the

combination sensor can be heated.

• The combination sensor needs an external 24 V power supply, Art.

no. WSSV10.

Stand: Mai-07 325 552 23

KNX Combination sensor

Ref.-no.: WS 10 KS, WS 10 KS DCF

3. Installation

Important: Combination sensor with DCF77

Check the place of installation for optimal reception of the DCF77 time

signal. Reflexions can cause reception interference. If no interference-

free reception is possible, change the place of installation by a few

meters until the combination sensor receives the time signal without

interference (see chapter „Antenna orientation“).

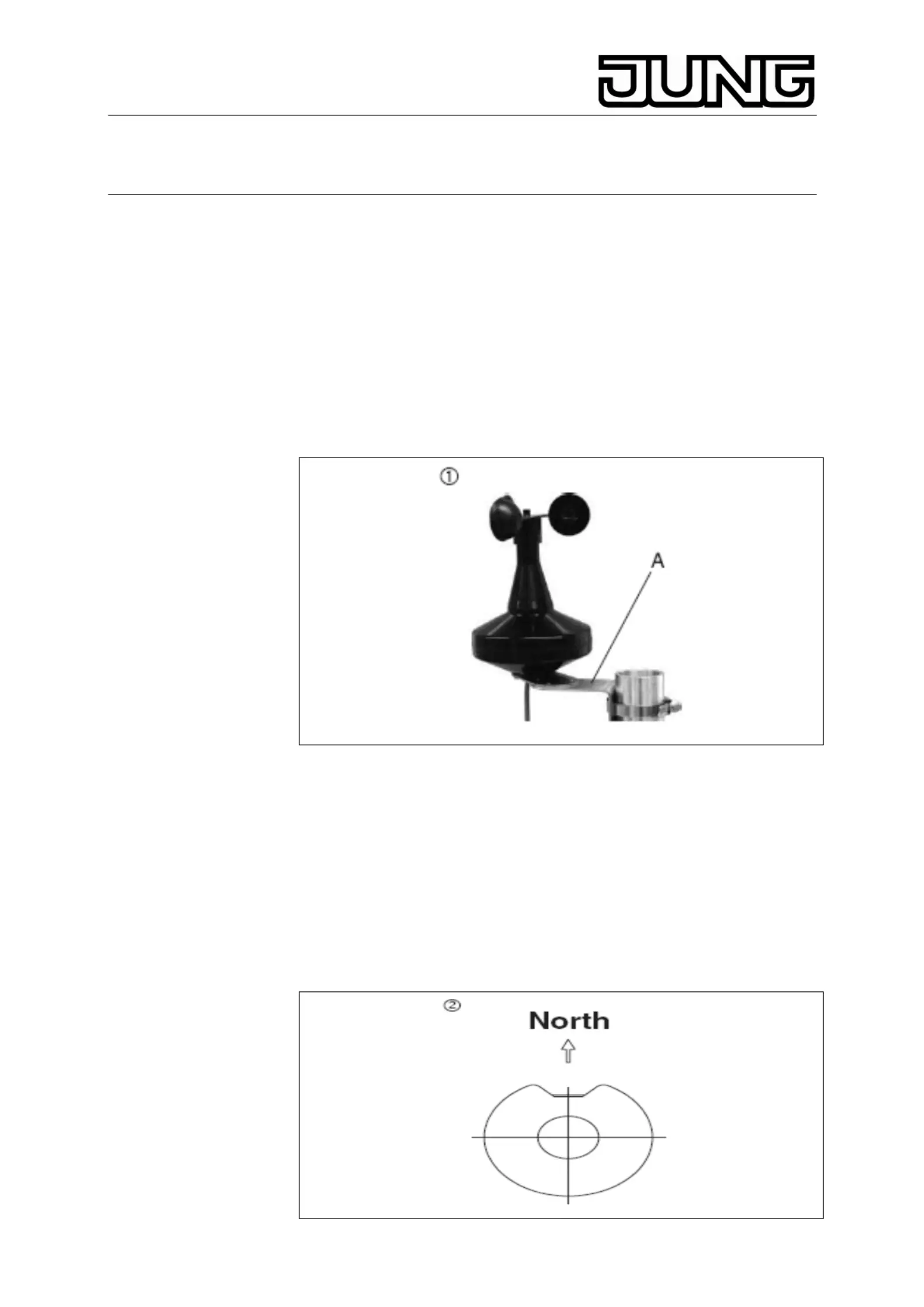

• For installation on a tubular mast (Ø 35 ... 50 mm), a stainless-steel

mounting bracket is supplied with the sensor (FIG.(1) .

• The combination sensor must be installed unobstructed by

obstacles in all directions.

• When the combination sensor is installed in front of a wall, a

minimum spacing of 0.5 m must be respected to prevent incorrect

measuring values due to negative influence on the sensors.

• To enable the brightness sensors to clearly determine the sun’s

actual position, the combination sensor must be aligned with the

help of a compass in such a way that the precipitation window

points to the North (see FIG. 2). In this case, the brightness sensors

are correctly aligned with the cardinal points (FIG.3).

• To ensure perfect wind speed measurements, the wind wheel must

be able to turn freely. This can be checked visually at low wind

speeds.
