2x1 4K/18G 40m HDBT PoH Wall Plate Switcher
with HDMI & DisplayPort, IR, RS-232 (Transmitter Only)
2x1 4K/18G 40m HDBT PoH Wall Plate Switcher with HDMI
& VGA with Analog Audio, IR, RS-232 (Transmitter Only)
The Experts in Digital Video Technology and Solutions
™

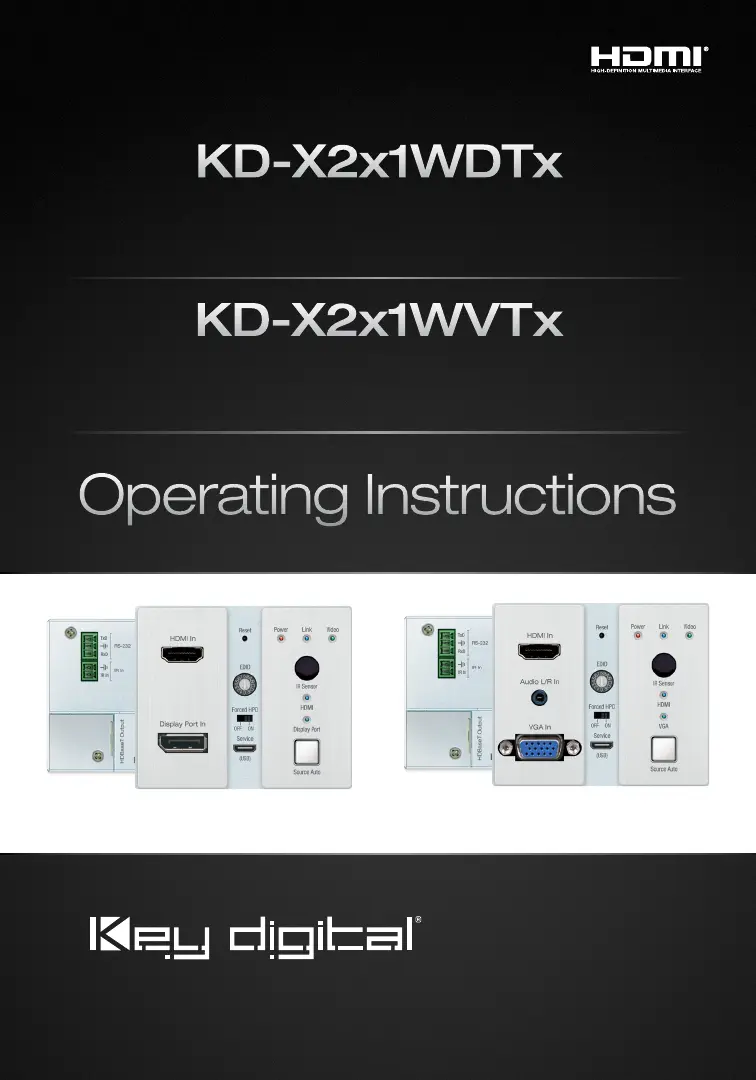

Operating Instructions
KD-X2x1WDTx KD-X2x1WVTx
KD-X2x1WVTx
KD-X2x1WDTx
2
Table of Contents
Introduction .................................................................... 4
Quick Setup Guide ............................................................... 2
Application Examples ............................................................. 2
Use with third-party HDBaseT Tx or Rx ................................................ 8
Unit Configuration with KDMS
™
Pro ................................................... 8
USB (RS-232) Commands ......................................................... 10
Specifications ..................................................................13
Important Product Warnings & Safety Instructions: .......................................14
Contacting Key Digital ............................................................ 15
Warranty Information............................................................. 15
Always follow the instructions provided in this Operating Manual.
KD-X2x1WDTx KD-X2x1WVTx
Please visit www.keydigital.com for the latest
product documentation and software downloads.
Product features and specifications are subject
to change without notice.
Introduction
Key Digital
®
KD-2x1WDTx / KD-X2x1WVTX are HDBaseT wall-plate transmitters + presentation
switchers with one HDMI and one Display Port / VGA input, ideal for professional video installations in
conference rooms, huddle spaces, class rooms, and more. KD-X2x1WDTx / KD-X2x1WVTX is natively
received by KD-X40MRx black box HDBaseT Rx or by KD-PS42 Presentation Switcher. Both Rx
options have audio de-embedding for ease of integration with audio systems. Additional Key Digital
Presentation Switchers also support integration with KD-X2x1WDTx and KD-X2x1WVTX. KD-2x1WDTx /
KD-X2x1WVTX is HDCP 2.2 compliant and supports 4K/UHD 24/25/30/60 (4:4:4) resolutions with up to
18Gbps bandwidth. 4K/UHD signals are extended up to 40m / 131ft and 1080p up to 70m / 230ft via
single CAT5e/6 cable. In addition to AV signals, KD-X2x1WDTx / KD-X2x1WVTX extends IR and RS-232
for controlling remotely located equipment. The wall-plate unit fits in a standard US dual-gang box and
is powered by the Rx unit / presentation switch or Presentation Switcher for convenient installation.
