Side 1/11
COMPVR SUBWOOFER
COMPVR8
COMPVR10
COMPVR12
COMPVR15
English Version
Versión Español
Altavoz Para Sonidos Graves
Deutsche Version
Tieftöner
Version Francaise
Haut-parleur d’Extrêmes Graves
LIVIN’ LOUD
2010 CompVR f01 indd 1
2010 CompVR f01 indd 1
2010 CompVR f01 indd 1
2010 CompVR f01 indd 12010 CompVR f01 indd 1
2010 CompVR f01.indd 1
9/9/2009 3:49:37 PM
9/9/2009 3:49:37 PM
9/9/2009 3:49:37 PM
9/9/2009 3:49:37 PM9/9/2009 3:49:37 PM9/9/2009 3:49:37 PM
2COMPVR SUBWOOFER 3
The Kicker CompVR subwoofers were specially designed for “Livin’ Loud” out in the harsh automotive
environment. CompVR subwoofers are extremely versatile and surpass the competition in a sealed or
vented box. They are made of advanced materials and construction techniques to maintain optimal
performance for years to come.
SPECIFICATIONS
WIRING
CompVR subwoofers are available with dual 2 (ohm) or dual 4 voice coils. Both coils must be  
connected to a source of amplifi cation. The dual 2 woofer will generate a 1 load if the coils are wired  
in parallel or a 4 load in series. The dual 4 woofer will provide a 2 load wired in parallel or 8 load  
wired in series. The terminals with the white dots are for the fi rst voice coil. The terminals with solid-red
and solid-black markings are for the second voice coil. See Figure 1.
SEALED ENCLOSURE APPLICATIONS
The CompVR generates more sound pressure than competing subwoofers on the market and excels
when used in the recommended sealed boxes. These sealed enclosure designs give the smoothest
response with increased energy at the lowest frequencies, 20 to 30Hz. These designs deliver massive
amounts of highly-accurate bass and can be driven with punishing levels of amplifi er power.
The CompVR high performance suspension system can operate in a larger sealed enclosure. This
maximum enclosure volume application is ideal for SQ (ultra sound quality) installations. The SQ enclosure
generates a very fl at response curve and superbly extends the subbass response.
CompVR woofers perform well in any size
sealed enclosure between the Compact
and SQ volume recommendations. These
systems will exhibit benefi ts of both designs:
Compact produces high-impact bass,
and SQ generates low bass frequency
protraction. Overall, the system will sound
more like the recommended enclosure
design it is closest to in enclosure volume.
These enclosure recommendations have
been calculated with the airspace inside the
enclosure and include the displacement of
the woofer. All sealed-enclosure airspace
should be fi lled to 50% loose poly-fi l
(polyester fi berfi ll) stuffi ng.
CompVR Subwoofer Owner’s Manual
Authorized KICKER Dealer:
Purchase Date:
Speaker Model Number:
Speaker Serial Number:
Model CompVR CompVR8 10 CompVR CompVR12 15
Nominal Impedance [Zn], ohm 2 or 4 2 or 4 2 or 4 2 or 4
Resonance Frequency [fs], Hz 52.7 43.8 32.6 24.6
Power Handling Watts, Peak (RMS) 400 (200) 800 (400) 800 (400) 1000 (500)
Sensitivity [SPLo], dB @ 1W, 1m 82.8 83.6 86.9 89.2
Effective Excursion [EXmax™], in (mm) .408 (10.37) .501 (12.73) .501 (12.73) .492 (12.5)
DC Resistance [Re], ohm 4.1 3.7 3.5 3.7
Mechanical Q-Factor [Qms] 9.577 10.03 8.166 9.138
Electrical Q-Factor [Qes] .937 .914 .703 .398
Total Q-Factor [Qts] .853 .838 .648 .381
Equivalent Volume [Vas], ft³ (L) .279 (7.925) .570 (16.159) 2.3 (65.294) 5 (143.82)
Net Displacement, in³ (cc) 33.9 (555.5) 60.4 (989.8) 75.9 (1243.8) 176.6 (2893.9)
Outer Frame Diameter, in (cm) 8-1/2 (21.6) 10-11/16 (27.1) 12-5/8 (32) 15-1/2 (39.3)
Hole Cut-Out Diameter, in (cm) 6-15/16 (17.6) 9-3/16 (23.3) 11 (27.8) 13-11/16 (34.7)
Mounting Depth, in (cm) 4-1/4 (10.8) 5-1/2 (14) 6-1/4 (15.9) 8-3/16 (20.7)
Model Volume ft3 (L) Panel A in. (cm) Panel B in. (cm) Panel C in. (cm)
CompVR8 .4 (11.3) 11X11 (27.9X27.9) 11X8.125 (27.9X20.6) 9.5X8.125 (24.1X20.6)
CompVR10 .8 (22.7) 13.5X13.5 (34.3X34.3) 13.5X10.125 (34.3X25.7) 12X10.125 (30.5X25.7)
CompVR12 1 (28.32) 14.5X14.5 (36.8X36.8) 14.5X11 (36.8X27.9) 13X11 (33X27.9)
CompVR15 1.8 (51) 17.25X17.25 (43.8X43.8) 17.25X13.5 (43.8X34.3) 15.75X13.5 (40X34.3)
Model Volume ft3 (L) Power Handling
CompVR8 .4 (11.3) 200W RMS
CompVR10 .8 (22.7) 400W RMS
CompVR12 1 (28.3) 400W RMS
CompVR15 1.8 (51) 500W RMS
Model Volume ft3 (L) Power Handling
CompVR8 1.8 (51) 140W RMS
CompVR10 3 (85) 300W RMS
CompVR12 4.6 (130) 300W RMS
CompVR15 5.2 (147) 500W RMS
CompVR CompVR CompVR CompVR8 / 10 / 12 / 15
Models:
Panel Dimensions for Compact Sealed Enclosures using 3/4” (1.9cm) thick MDF (See Figure 2)
Sealed Compact Sealed SQ
Note: All specifi cations and performance fi gures are subject to change. Please visit www.kicker.com for the most
current information. To get the best performance from your new KICKER Subwoofer, we recommend using genuine
KICKER Accessories and Wiring. Please allow two weeks of break-in time for the subwoofer to reach optimum
performance.

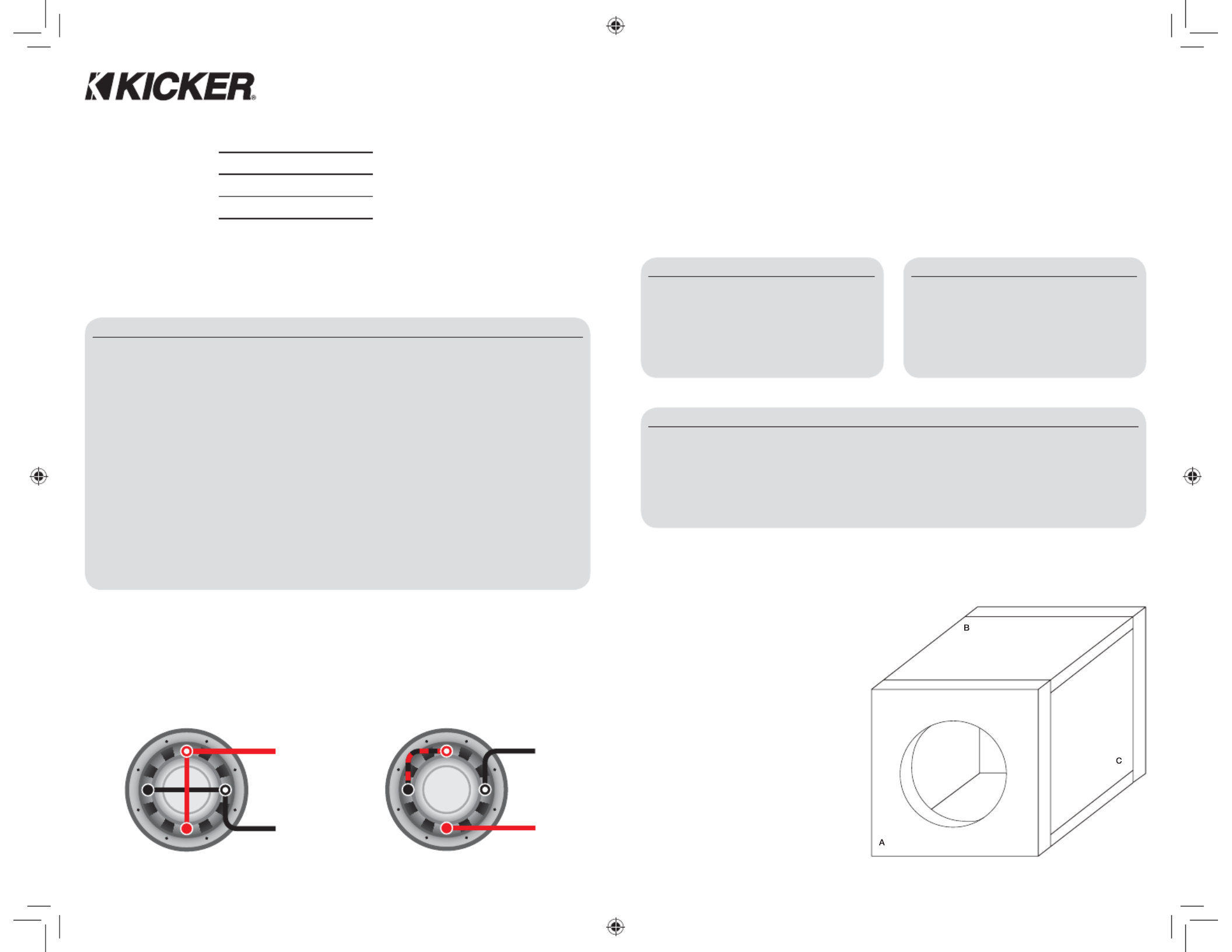

Figure 2
Figure 1 Series WiringParallel Wiring
Dual 2 Voice Coils = 4 Load 
Dual 4 Voice Coils = 8 Load 
Dual 2 Voice Coils = 1 Load 
Dual 4 Voice Coils = 2 Load 
Coil 1+Coil 1+
Coil 2+Coil 2+
Coil 2-Coil 2-
Coil 1-Coil 1-
2010 CompVR f01 indd 2 3
2010 CompVR f01 indd 2 3
2010 CompVR f01 indd 2 3
2010 CompVR f01 indd 2 32010 CompVR f01 indd 2 3
2010 CompVR f01.indd 2-3
9/9/2009 3:49:40 PM
9/9/2009 3:49:40 PM
9/9/2009 3:49:40 PM
9/9/2009 3:49:40 PM9/9/2009 3:49:40 PM9/9/2009 3:49:40 PM
