SF150C09

Designed for 2009 and newer Ford® F-150 Super-Crew vehicles

Subwoofer Assembly

Subwoofer Power Harness

Subwoofer Body

Harness

25A Fuse

Wire Ties x6

Foam Strips

M6 Bolts x3

M6 Nut Inserts p1-x3

(Requires Nut Insert Tool)

Wire Taps

Adapter Harness

SF150C09-A1-20121213

Power Wire Routing

1. Open the hood, disconnect the negative battery cable.

2. Find the fuse box in the engine compartment and open the cover.

3. Remove the supplied fuse from the fuse holder.

4. Remove the nut on the accessory lug, connect the power wire and retighten the nut. Torque 9Nm. Fig 1

5. Route the power wire across the radiator support and toward the grommet on the passenger’s side of the

ﬁ rewall. Fig 2.

6. Remove the fasteners retaining the carpet panel below the glove compartment and remove the panel.

7. Make a small incision in the rubber grommet and pass the power wire into the cabin.

8. Install the black connector on the end of the power harness inside the cabin. The black connector should

have a block out plug installed in one side to prevent the power wire from being inserted into the wrong

position in the connector.

9. Connect the black two-pin connector of the power wire to the corresponding connector of the subwoofer

harness.

10. Remove the passenger’s side threshold panel along the bottom of the front door opening.

11. Pull back the rubber door molding and then pull back on the kick panel to remove it. Fig. 3

12. Connect the black ground wire of the subwoofer harness to the factory ground point in the passenger’s

side kick panel. Torque to 9Nm. Fig. 4

13. Route the subwoofer harness along the door opening and toward the rear of the cab.

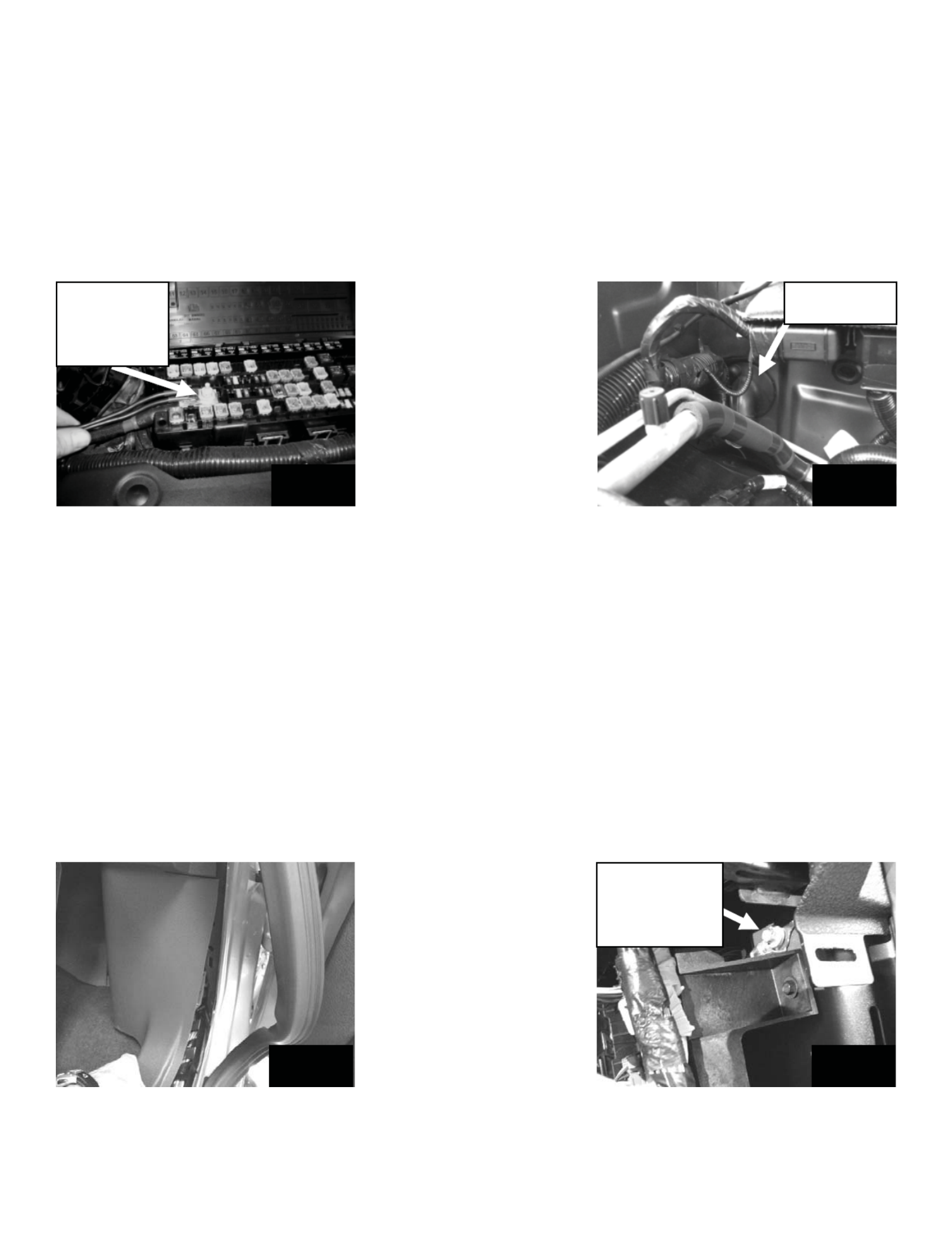

Fig. 1

Connect

Power Wire

Here

Grommet

Fig. 2

Fig. 3

Connect black

ground wire of

subwoofer

h h

Fig. 4
