Side 1/4

1

2

3

4

5

Manometer

USER MANUAL

Description of the device

1. OK key

2. Backlight key

3. Select key

4. On/Off/Esc key

5. Hold/min/max key

MP 110 – MP111

MP112 – MP 115

Technical specications

General features

Measuring element Piezoresistive sensor

Tolerated overpressure MP 110: 250 mbar / MP 111: 700 mbar / MP 115: 1.4 bar / MP 112: 3 bar

Connector

MP 110 / 111: Ø 6.2 mm barbed connectors made of nickelled brass / MP 115 / 112: Ø 4.6 mm barbed connectors made of

nickelled brass

Display

4 lines, LCD technology. Dimensions 50 x 36 mm.

2 lines of 5 digits with 7 segments (value)

2 lines of 5 digits with 16 segments (unit)

Housing ABS, protection IP54

Keypad 5 keys

European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE

Power supply 4 batteries AAA LR03 1.5 V

Battery life 180 hours

Ambience Neutral gas

Conditions of use (°C, %RH, m) From 0 to +50 °C. In non condensing conditions. From 0 to 2000 m.

Storage temperature From -20 to +80 °C

Auto shut-off Adjustable from 0 to 120 min

Weight 220 g

Parameter Models Measuring units Accuracy* Measuring range Resolution

Pressure

MP 110 Pa, mmH

2

O, inWg, daPa ±0.5% of reading ±2 Pa From -1000 to +1000 Pa 1 Pa

MP 111

kPa, mmH

2

O, inWg, mbar,

mmHg, daPa

±0.5% of reading ±2 mmH

2

O From -1000 to +1000 mmH

2

O

From 0 to ±200OmmH

2

O:

0.1 mmH

2

O

Beyond: 1 mmH

2

O

MP 115

kPa, inWg, mbar, mmHg,

PSI

±0.5% of reading ±0.5 mbar From -500 to +500 mbar 0.1 mbar

MP 112

kPa, inWg, mbar, mmHg,

PSI, bar

±0.5% of reading ±2 mbar From -2000 to +2000 mbar 1 mbar

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

Once the measurement are frozen:

• Press once on "Hold/min/max".

The device display the maximum value of pressure measured since the last questioning at the top of the screen and the

minimum value of pressure measured since the last questioning at the bottom of the screen.

• Press on"On/Off/Esc" to return to the measurement display.

Display the maximum and the minimum

• Turn on the device by pressing on "On/Off/Esc".

The device displays its name "MP110", "MP111", "MP112" or "MP115", then performs an autozero.

• Connect the pressure tubes.

The device displays the pressure.

Perform a measurement

During a measurement:

• Press on "Hold/min/max".

"Hold" appears on the screen and the measurements are frozen.

• Press on "On/Off/Esc" to exit the hold function.

The device returns to the measurement display.

Freeze the measurement

Adjust the device

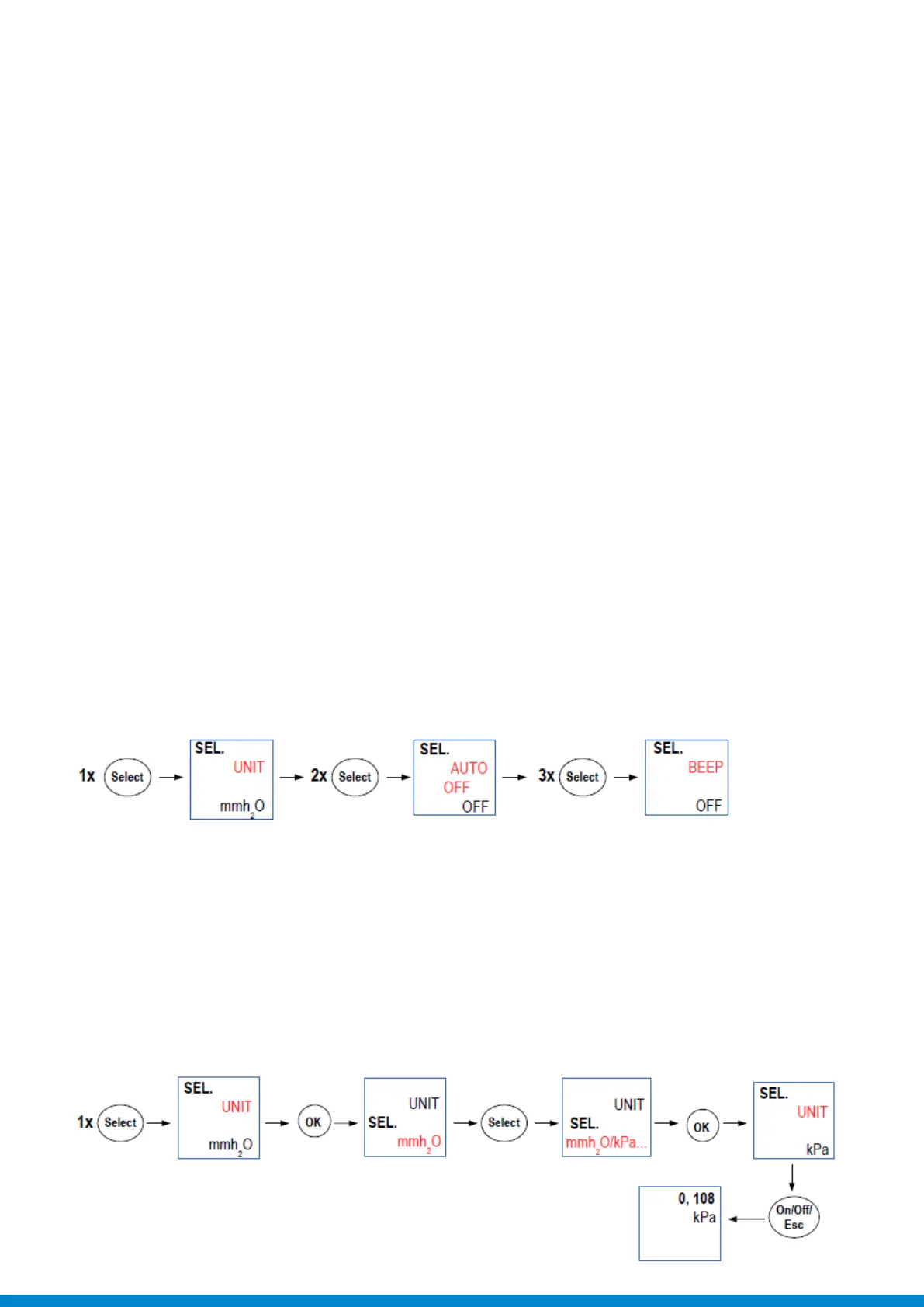

Device drop-down menu

Select the measuring unit in pressure

The device is on and displays the measurement.

• Press on "Select".

"UNIT" blinks on screen.

• Press on "OK".

The unit currently used blinks on screen.

• Press on "Select" until the required unit appears: daPa, mmh

2

O, kPa, inWg, mbar, mmHg...

• Press on "OK" to validate.

"UNIT" blinks on screen.

• Press on "On/Off/Esc" to return to the measurement display.

The device is on and displays the pressure measurements.

• Press on "OK".

"Autozero" displays on screen, the device performs an autozero then returns to the measurements display.

Perform an autozero
