Side 1/7

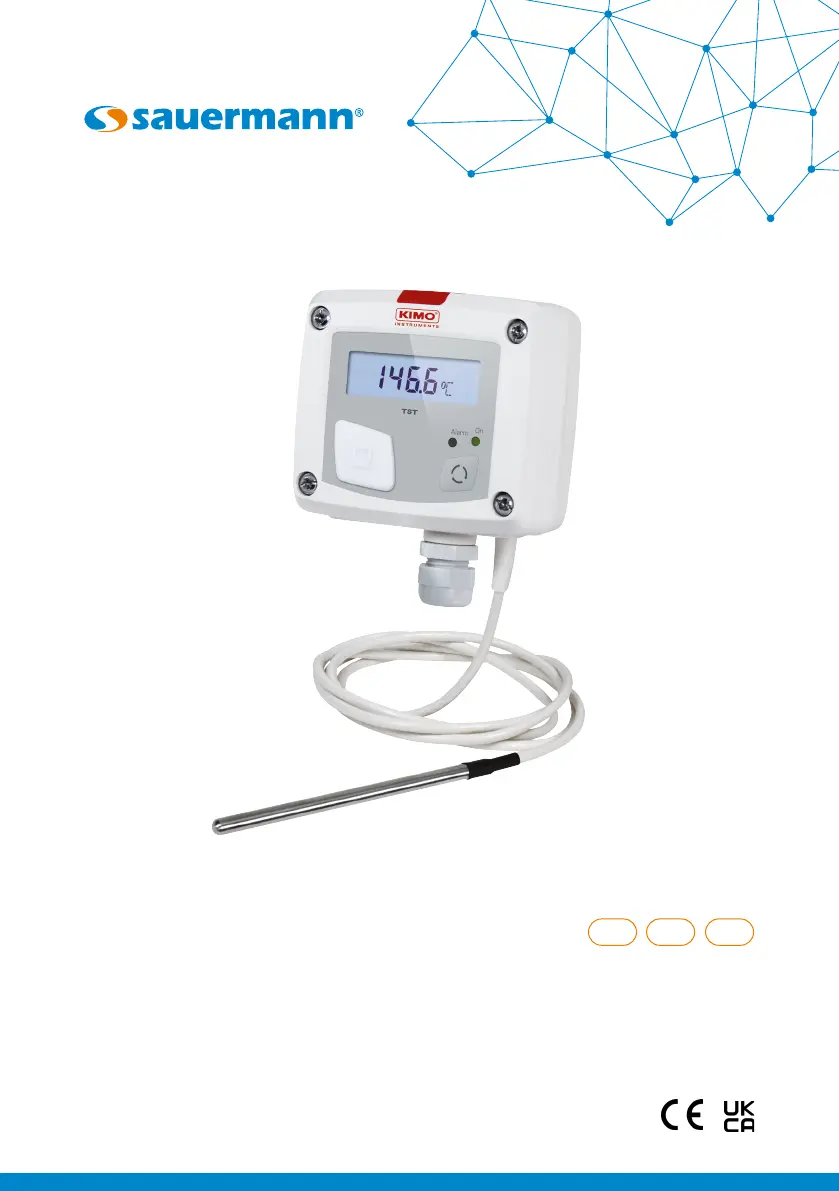

TST
Quick Start Guide
EN FR
www.sauermanngroup.com
ES

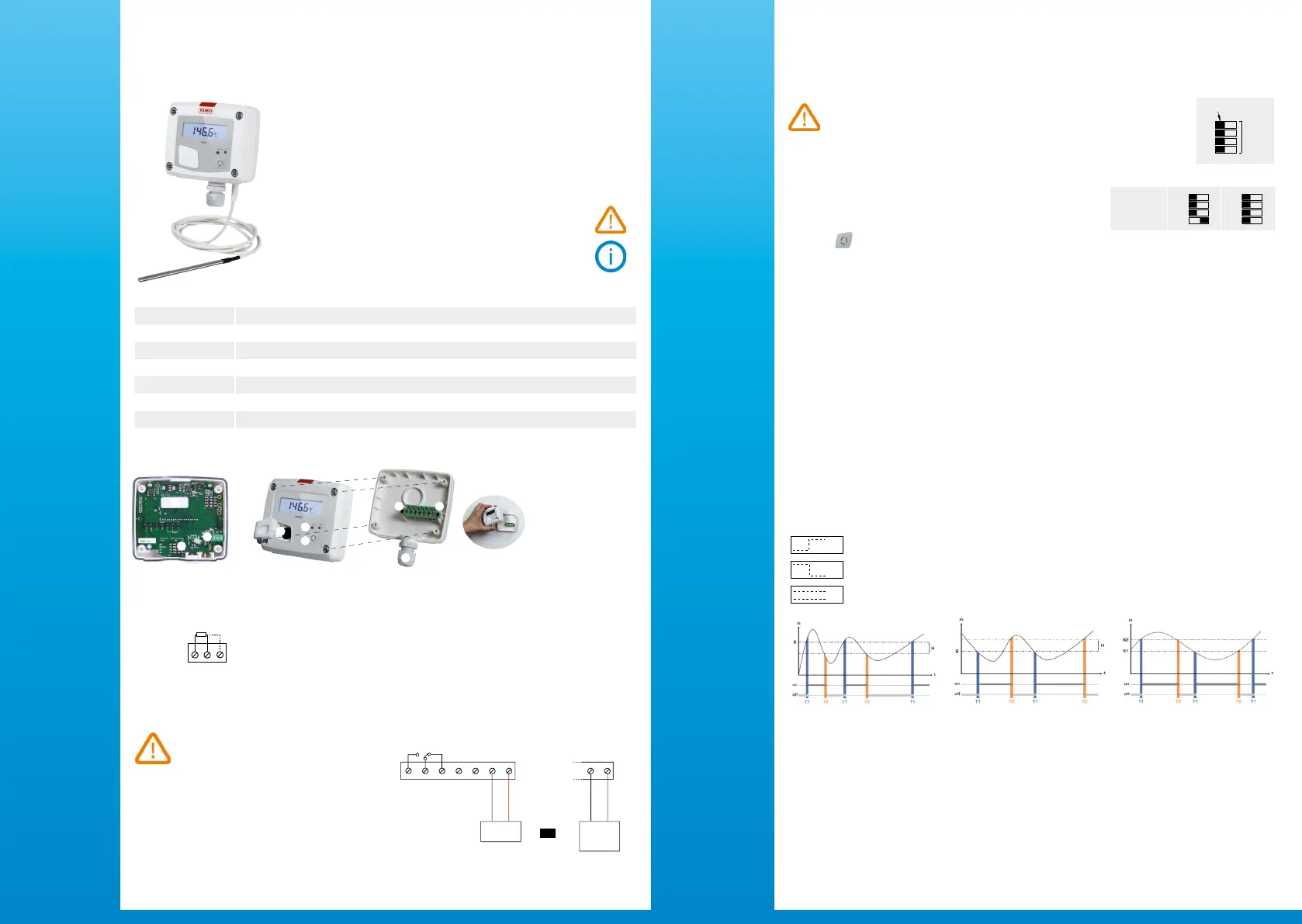

English
Quick Start Guide
Thermostats
Connections
Symbols used
For your safety and in order to avoid any damage of the device,
please follow the procedure described in this document and read
carefully the notes preceded by the following symbol:
The following symbol will also be used in this document, please
read carefully the information notes indicated after this symbol:
TST thermostat has a measuring range for the ambient model from 0 to
+50°C. For the duct model it would be from -20 to +80 °C and for the
terminal block model from -100 to +400 °C (depending on the connected
Pt100 probe).
Output 1 RCR relay 3 A / 230 Vac. NO (normally open): 5A / NC (normally closed): 3A / 240 Vac. Common mode voltage <30 Vac.
Power supply 24 Vac/Vdc ±10%
Consumption 3 VA
Relay and alarm status Red LED in front and internal buzzer (70 dB at 10 cm)
European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Electrical connection Terminal block for cables Ø0.05 to 2.5 mm
2
. Carried out according to the code of good practices
PC communication USB-mini Din cable
Environment Air and neutral gases
1. Switch
2. Terminal block (only on
model with terminal block)
3. LCC-S software connection
4. Alarm led
5. Button for settings
6. Relay terminal block
7. Power supply terminal block
8. Cable gland
Connection of a Pt100 probe on terminal
block:
1 2 2’
Sonde de mesure
1 2 2’
Measuring probe
1
2
3
4
5
6 7
8
Inside the front housing
Removable front face Fixed back housing
1
2
3
4
5
6 7
8
Electrical connections as per NFC15-100 standard
NO COM NC
1 2 3 4 5 6 7
-
+
Alimentation
24 Vdc
ou
N L
N L
~ ~
~ ~
6 7
Alimentation
24 Vac
Classe II
NO COM NC
1 2 3 4 5 6 7
-
+
Power supply
24 Vdc
or
N L
N L
~ ~
~ ~
6 7
Power supply
24 Vac
Class II
NO COM NC
1 2 3 4 5 6 7
-
+
Alimentación
24 Vdc
o
N L
N L
~ ~
~ ~
6 7
Alimentación
24 Vac
Clase II
NO COM NC
1 2 3 4 5 6 7
-
+
Alimentazione
24 Vdc
o
N L
N L
~ ~
~ ~
6 7
Alimentazione
24 Vac
Classe II
This connection must be performed by a
qualied and trained technician. To make
the connection, the transmitter must not
be energized.
NO: normally open
COM: common
NC: normally closed
• Activate or deactivate an alarm
- Press the button for 3 seconds, “CONF” is displayed then “NEG”, meaning that the relay is in negative security, it is
excited during an alarm condition.
- If needed, press quickly the button to switch the relay in positive security, the relay is de-energized during an alarm
condition or a current breaking, “POS” is displayed.
- Press 3 seconds the button, “Buzz” screen is displayed with “ON” or “OFF” blinking. Briey press on the button to
activate (“ON”) or deactivate (“OFF”) (according to the last saved conguration) the buzzer during an alarm condition.
- Press the button for 3 seconds, “Alarm” screen is displayed with “On” or “Off” blinking (according to the last saved
conguration).
- Press quickly the button, the display changes from “On” (activated alarm) to “Off” (deactivated alarm).
- Press the button for 3 seconds to conrm the setting. If the alarm is deactivated, the instrument displays the measure-
ment; if the alarm is activated, the instrument displays the following setting.
• Thresholds conguration
The button allows to activate or not an alarm (threshold), to set the action of the alarm (edge), to set the
threshold(s) value, to set the time-delay and to acknowledge the alarm.
• Set the threshold(s) value
The rst digit blinks, it corresponds to the positive (0) or negative (-) setting of the threshold value. Press briey the button to
select the sign for the threshold value. Press the button more than 3 seconds to validate.
The second digit blinks, press briey the button to scroll the numbers. Press the button more than 3 seconds to validate.
Repeat the process until the last digit to congure the threshold value, validate the threshold and go to the following setting.
If the monitoring edge has been selected, the transmitter displays the setting of the second threshold.
Working principle:
- By pressing the button more than 3 seconds, you can validate the setting and go to the next setting.
- By pressing quickly the button, you can increment a value and scroll down the different option or values.
- Press briey the button to select the trespassing direction then press the button more than 3 seconds to validate this
direction and set the thresholds.
• Units setting
To set a unit of measurement, put the on-off switch 4 of the units as shown
beside.
Measurement (m) > Threshold (S) du-
ring the time-delay T1: alarm activation.
Measurement (m) < Threshold (S) -
Hysteresis (H) during the time-delay T2:
alarm deactivation.
Measurement (m) < Threshold (S) during
the time-delay T1: alarm activation.
Measurement (m) > Threshold (S) +
Hysteresis (H) during time-delay T2: alarm
deactivation.
The alarm goes off when the measurement
is outside the low and high thresholds.
Rising edge Falling edge Monitoring
Congurations ° C ° F
Combinations
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
Mode
Mode
Mode
• Set the action of the alarm (rising edge or falling edge)
The edge determines the action of the alarm according to the trespassing direction of the threshold(s).
Rising edge(1 threshold): the alarm goes off when the measurement exceeds the threshold and stops
when it is below the threshold.
Falling edge(1 threshold): the alarm goes off when the measurement is below the threshold and stops
when it exceeds the threshold.
Monitoring (2 thresholds): the alarm goes off when the measurement is outside the dened low and
high thresholds.
Settings and use of the transmitter
CAUTION: to congure the transmitter, it must not be energized. Then, you
can make the settings required, with the DIP switches (as shown on the
drawing below). When the transmitter is congured, you can power it up.
1
2
3
4
Interrupteur
Réglage
de l’unité
de mesure
1
2
3
4
On-off switch
Units setting
• Conguration
To congure the transmitter, unscrew the 4 screws of the casing then open it.
The switches allowing the different settings are accessible.
Pt100 probe
