ENGLISH

www.kleintools.com

Instruction

Manual

F o r P r o f e s s i o n a l s . . . S i n c e 1 8 5 7

ENGLISH

ET510

• 2.4" COLOR LCD

• BRIGHT LED WORKLIGHT

• IP67 GOOSENECK CAMERA

• SCREEN MIRROR

• AUTO POWER OFF

WARRANTY

This product is warranted to be free from defects in materials and

workmanship for a period of two years from the date of purchase. During

this warranty period, Klein Tools has the option to repair, replace or refund

the purchase price of any unit which fails to conform to this warranty under

normal use and service. This warranty does not cover damage which occurs

in shipment or failure which results from alteration, tampering, accident,

misuse, abuse, neglect, or improper maintenance. Batteries and damage

resulting from failed batteries are not covered by warranty. A purchase receipt

or other proof of original purchase date will be required before warranty

repairs will be rendered.

Any implied warranties, including but not limited to implied warranties of

merchantability and ﬁ tness for a particular purpose, are limited to the express

warranty. Klein Tools shall not be liable for loss of use of the instrument or

other incidental or consequential damages, expenses, or economic loss, or for

any claim or claims for such damage, expenses or economic loss.

Some states or countries laws vary, so the above limitations or exclusions

may not apply to you. This warranty gives you speciﬁ c legal rights, and

you may also have other rights which vary from state to state. If your Klein

product requires repair or for information on how to exercise your rights

under the terms of this warranty, please contact Klein Tools at 1-800-553-

4676.

CLEANING

Turn instrument off and disconnect gooseneck camera. Clean the instrument and

camera by using a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Do not expose to high temperatures or humidity. After a period of storage in

extreme conditions exceeding the limits mentioned in the Speciﬁ cations section,

allow the instrument to return to normal operating conditions before using it.

DISPOSAL / RECYCLE

Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.



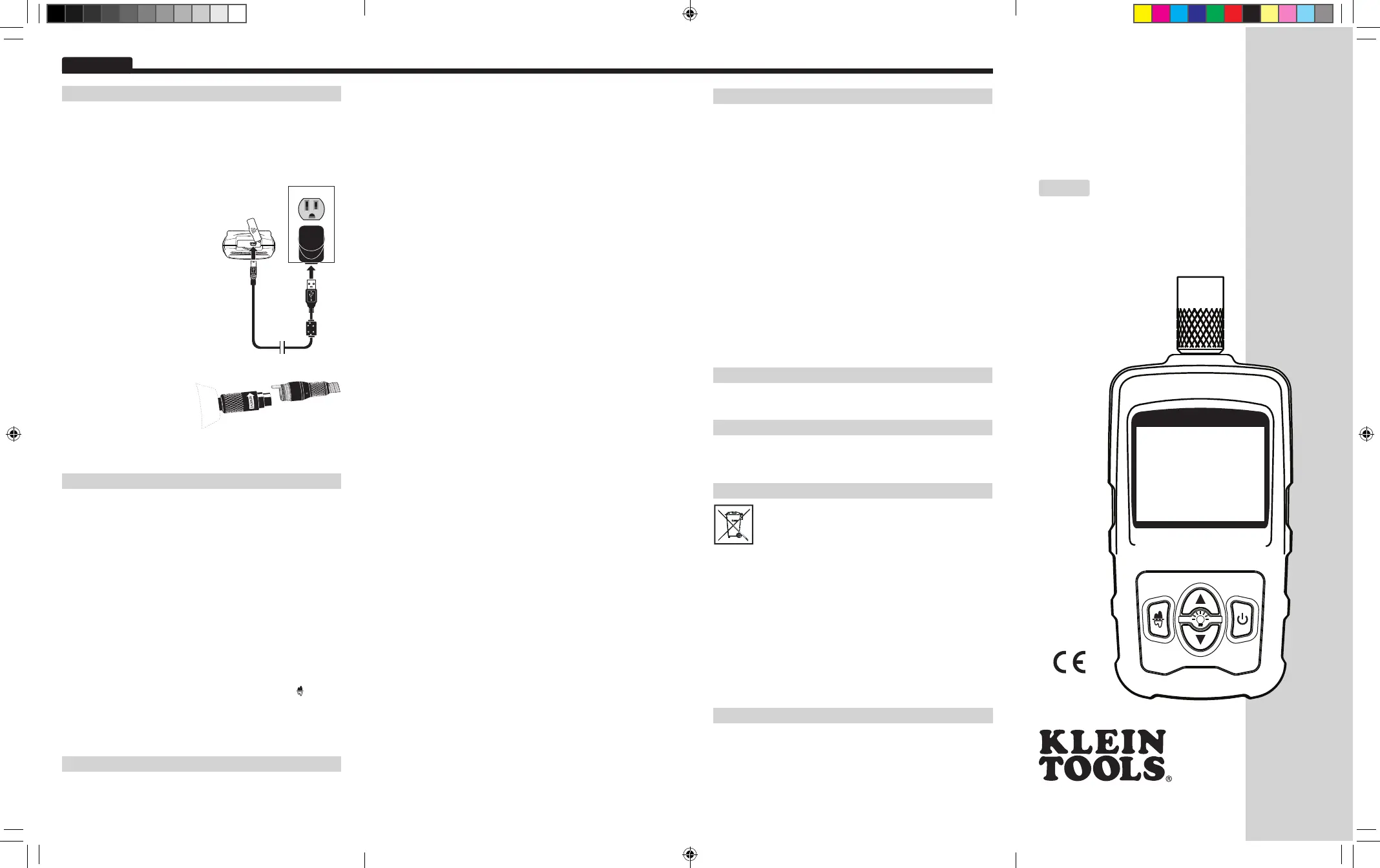

SETUP

CHARGING

The rechargable lithium-ion battery should be charged before operating

the borescope for the ﬁ rst time. The battery can be charged via a standard

120V wall outlet or through a computer USB port. An exhausted battery

will take up to 5 hours to charge. It can be left charging overnight without

needing to be removed from power. The expected lifetime of the included

battery is 500 charging cycles.

WALL OUTLET: Locate the power wall

adapter (f) and the USB cable (g). Remove

the soft input cover and plug the cable

into the borescope's USB port (7). Plug

the other end of the cable into the power

adapter, and plug the wall adapter into a

standard 120V outlet.

COMPUTER: Locate the USB cable (g).

Remove the soft input cover and plug

the cable into the borescope's USB port

(7). Plug the rectangular end into your

computer's USB port.

ATTACHING THE GOOSENECK CAMERA

Locate the gooseneck camera (10). Plug it into the camera input socket

of the borescope. Rotate the

adjustment piece clockwise to lock

it into place. The white arrow on the

camera head should be pointing up.

POWERING ON/OFF

To power the unit on and off, press and release the power button (2). The

borescope will be operational in a few moments.

LIVE VIDEO MODE

On startup, the borescope will enter the live output mode. The screen will

show the live output of the gooseneck camera along with the estimated

battery life remaining and the auto power off symbol if it is active.

LED BRIGHTNESS

The borescope gooseneck camera head has several LEDs used to light

your work area. You can control the brightness using the up and down

arrow buttons (3 & 4). The LED brightness ranges from off (LED:0) to full

(LED:100). The default setting is 25.

MIRRORING CAMERA OUTPUT

Press the mirror button (5) to mirror the camera output vertically over

the x-axis. This feature is useful when reading text or using the mirror

attachment with the borescope.

AUTO POWER OFF

The borescope can power itself off after 5 or 10 minutes of non-use, or

this feature can be disabled. Press and hold the "mirror" button for three

seconds until "APO" appears on the screen. Press repeatedly to toggle

between off, 5 min, and 10 min. The "APO" prompt will disappear after 5

seconds. A clock icon will appear in the top left corner of the screen when

auto power off is active.

BATTERY MAINTENANCE

Please contact Klein Tools customer service at 1-800-553-4676 to make

arrangements for battery replacement.

CUSTOMER SERVICE

KLEIN TOOLS, INC. 450 Bond Street Lincolnshire, IL 60069

1-800-553-4676•www.kleintools.com

139730

Rev. 04/12 B

ET510-139730ART-English.indd 1-4 5/29/12 4:01 PM

ENGLISH

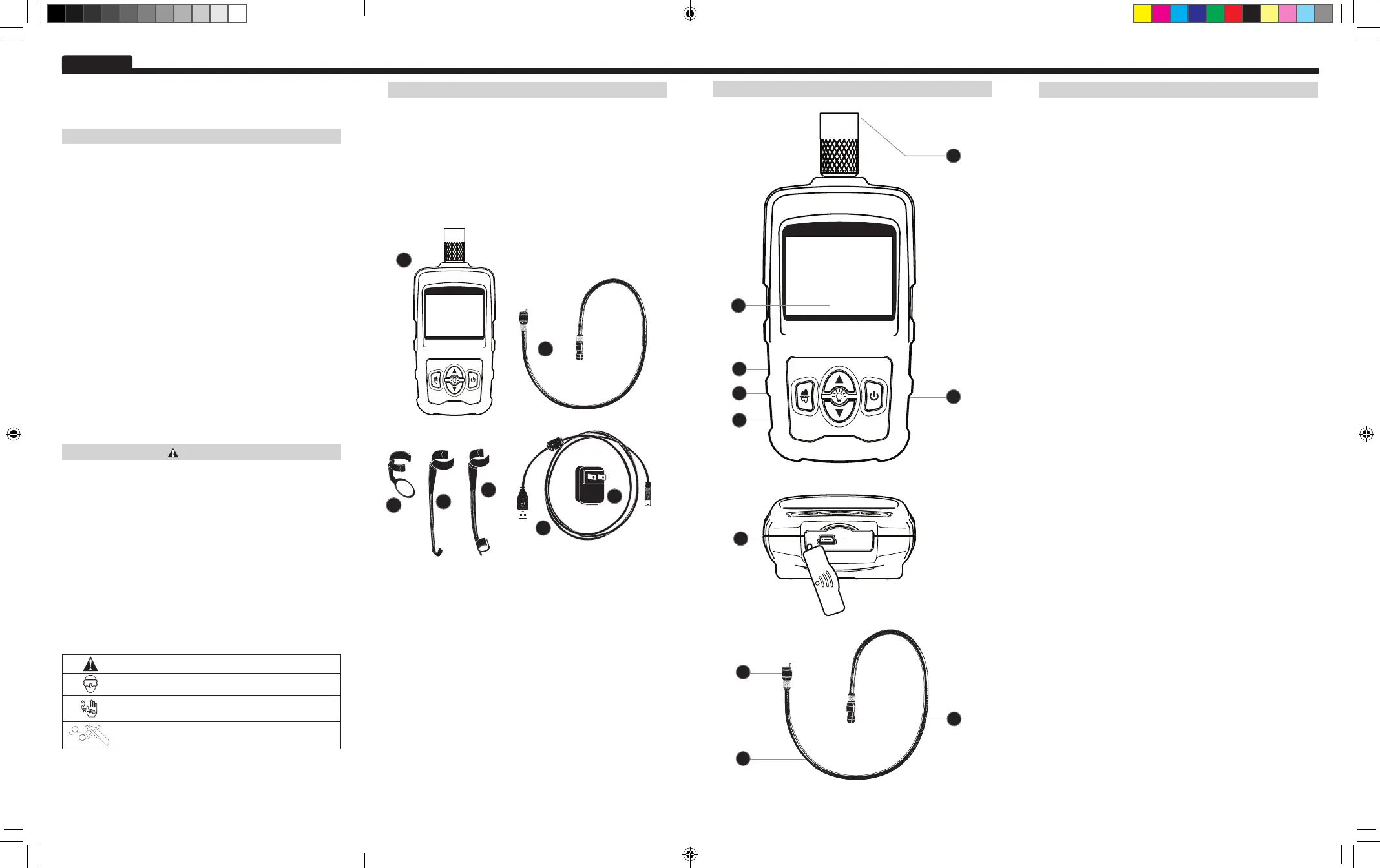

PACKAGE CONTENTS

a. Main Unit

b. Gooseneck Camera 17mm

c. Mirror Camera Attachment

d. Hook Camera Attachment

e. Magnet Camera Attachment

f. USB Power Adapter/Charger

g. USB Data/Charger Cable

GENERAL SPECIFICATIONS

The Klein Tools ET510 Borescope is an extendable video camera used

to view inaccessible areas. It features a durable camera snake with an

adjustable intensity LED worklight, a 2.4" LCD screen, auto power off, and

screen mirroring.

• Dimensions: 6.53" x 2.84" x 1.55" (16.59 x 7.22 x 3.95 cm)

• Weight (Main Unit): 8.08 oz. (229.3 grams)

• Weight (Gooseneck Camera): 1.73 oz. (49.0 grams)

• Operating Altitude: 2000 meters

• Operating Temperature: 0°C /32°F to 50°C / 122°F

• Storage Temperature: -20°C/ -4°F to 60°C / 140°F

• Relative Humidity: 85%

• Environmental Protection (Gooseneck Camera): IP67 (dust proof,

water immersible up to 1 meter for up to 30 minutes)

• Certiﬁcations: CE, WEEE

• Screen Resolution: 480 x 234px

• Color Depth: 24 bits

• Fixed Focus Distance: 1.97"~5.90" (5~15cm)

• Camera Diameter: 0.67" (17mm)

• Gooseneck Length: 3.28' (1m)

• Battery Life (Typical): 3 hours continuous operation (LEDs off)

WARNINGS

To ensure safe operation and service of the Video Borescope, follow these

instructions. Failure to observe these warnings can result in severe injury

or death.

• The Borescope and gooseneck camera are NOT insulated. Avoid

probing areas where energized conductive elements may be present.

Shut off power to the nearby work areas before starting work.

• Avoid probing areas where chemicals may be present.

• Do not probe moving machinery that could catch the Borescope and

cause harm to the operator and the Borescope.

• The Borescope is not intended for use on people or animals.

• Do not use the Borescope near sources of heat.

• Keep steady footing at all times, following ladder safety procedures

when necessary.

• Do not use if the Borescope casing is cracked or broken in any way.

WARNING SYMBOLS:

Always wear approved eye protection.

Do NOT use on energized circuits.

Do NOT probe moving machinery.

cdef

ET510 Borescope

Instruction Manual

FEATURE LAYOUT

1. LCD Screen: 2.4" TFT LCD screen.

2. Power Button: Press and release to turn the instrument on and off.

3. Worklight Up Button: Increases the brightness of the camera-

mounted LEDs up to 100. Press and hold to change quickly.

4. Worklight Down Button: Decreases the brightness of the camera-

mounted LEDs down to 0 (off). Press and hold to change quickly.

5. Mirror/Auto Power Off Button: Short press mirrors the display over

the x-axis. Long press enables auto power off mode. Short presses

in auto power off mode change auto power off time (off, 5 minutes,

10 minutes).

6. Camera Input Socket: Screw into place once the camera output plug

is inserted.

7. USB Charging Port: Attach the borescope to a computer via USB

to charge battery. Attach to included 5V adapter to charge via a

standard power outlet.

8. Camera Head: Contains the CMOS sensor and LEDs. The arrow on

top indicates the camera is right-side up.

9. Gooseneck: Rated to IP67 to withstand all ingress of dust and

submersion in water up to 1 meter. Caution: bending the gooseneck

to 90 degrees or greater can permanently damage it.

10. Camera Output: Attaches to borescope body when the notch is

oriented correctly.

FEATURE LAYOUT

ET510-139730ART-English.indd 5-8 5/29/12 4:02 PM
