Side 1/4
•
Non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting  xtures, switches, outlets, and
wires
Non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting  xtures, switches, outlets, and
wires
Non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting  xtures, switches, outlets, and
•
When voltage is detected, a high intensity, bright Red LED illuminates and a beeping sound is generated
•
Detección sin contacto de 70V a 1000V CA en cables, cables conductores, cortacircuitos, accesorios de iluminación,
interruptores, tomacorrientes y alambres
•
Cuando se detecta tensión, se enciende un potente LED de color rojo brillante yse oye un indicador sonoro
•
Détection sans contact de la tension de 70 à 1000Vc.a. dans les câbles, les cordons, les disjoncteurs, les luminaires, les
interrupteurs, les prises et les fils
Détection sans contact de la tension de 70 à 1000Vc.a. dans les câbles, les cordons, les disjoncteurs, les luminaires, les
interrupteurs, les prises et les fils
Détection sans contact de la tension de 70 à 1000Vc.a. dans les câbles, les cordons, les disjoncteurs, les luminaires, les
•
Signal sonore et voyant DEL rouge à haute intensité qui signalent lorsqu’une tension est détectée
NCVT-1XT
INSTRUCTIONS – Non-Contact Voltage Tester (English: Page 2)
INSTRUCCIONES – Probador de voltaje sin contacto (Español: página 3)
INSTRUCTIONS – Testeur de tension sans contact (Français : page 4)
3
9
4
1
2
5
7
6
8
ENGLISH
1.
Power On / Off Button
2.
Power On / Low Battery Indicator
3.
Voltage Detection LEDs (Inside Tip)
4.
Non-Contact Tip
5.
Pocket Clip
6.
O-ring Seal
7.
Battery Cap
8.
2x AAA Batteries (Included)
9.
Keep hand and fingers below this line
while using tester
NOTE: There are no user-serviceable
parts inside tester.
1.
Botón de encendido y apagado "NCV"
2. Indicador de encendido y batería baja
3. LED de detección de voltaje
(en el interior de la punta)
4. Punta para detección y
medición sin contacto
5. Clip de bolsillo
6. Junta tórica
7. Tapa del compartimento de baterías
8. 2baterías AAA (incluidas)
9.
Mantenga la mano y los dedos debajo
deesta línea mientras usa el probador
ESPAÑOL
NOTA: El probador no contiene
en su interior piezas que el
usuario pueda reparar.
1. Bouton marche/arrêt NCV
(test de tension sans contact)
2. Voyant de mise sous tension/
piles faibles
3. VoyantsDEL de détection de
tension(dans la pointe)
4. Pointe sans contact
5. Agrafe pour poche
6. Joint torique
7. Couvercle de piles
8. 2pilesAAA (comprises)
9.
Gardez la main et les doigts sous
cetteligne pendant l'utilisation
FRANÇAIS
REMARQUE: Ce testeur
ne contient aucune pièce
réparable par l’utilisateur.

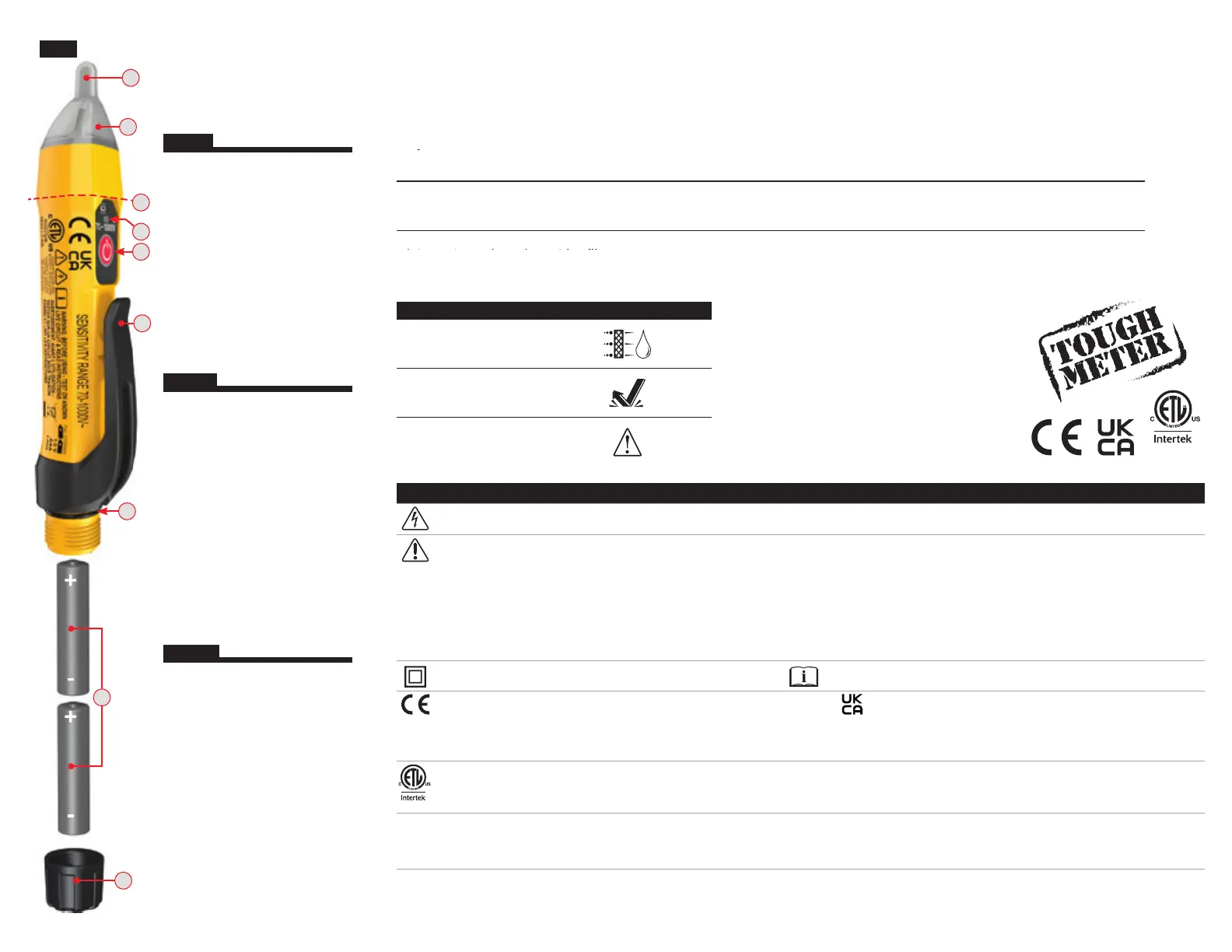

FIG. 1
SYMBOLS ON TESTER / SÍMBOLOS DEL PROBADOR / SYMBOLES SUR LE TESTEUR
Warning – Risk of electric shock / Advertencia: riesgo de choque eléctrico / Avertissement – Risque d'électrocution
Risk of danger. Important information: It is important that users of this tester read, understand, and follow all warnings, cautions, safety information, and
instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
Riesgo de peligro. Información importante: Es importante que el usuario de este probador lea, comprenda y respete todas las advertencias, precauciones,
instrucciones e información de seguridad incluidas en este manual, antes de poner en funcionamiento el probador o de realizarle servicios de mantenimiento.
No seguir estas instrucciones puede dar lugar a lesiones graves o mortales.
Risque de danger. Information importante: Il est important que les utilisateurs de ce testeur lisent, comprennent et suivent tous les avertissements, mises
en garde, informations de sécurité et instructions donnés dans le présent guide avant de faire fonctionner ou de réparer ce testeur. Le non-respect pourrait
entraîner des blessures graves, voire la mort.
Double insulated / Doble aislamiento / Double isolation Read instructions / Lea las instrucciones / Lire les instructions
Conformité Européenne:
Conforms with European Economic Area directives.
Cumple con las normas del Área Económica Europea.
Conforme aux directives de l’Espace économique Européen.
UKCA:
UK Conformity Assessment
Conformidad evaluada porelReino Unido
Évaluation de la conformité du Royaume-Uni
This product has been independently tested by Intertek and meets applicable published standards.
Este producto p1-ha sido probado de manera independiente por Intertek y cumple con las normas publicadas vigentes.
Ce produit a été testé de manière indépendante par Intertek et répond aux exigences des normes applicables.
CAT
IV
For measurements performed at the source of low-voltage installation and outside lines.
Para mediciones realizadas en la fuente de la instalación de bajo voltaje y líneas externas.
Pour des mesures prises à la source d’une installation à faible tension et des lignes extérieures.
DURABILITY / DURABILIDAD / DURABILITÉ
Ingress Protection
Protección contra el ingreso
Protection contre les infiltrations
IP67
Drop Protection
Protección ante caídas
Protection contre les chutes
9.8 ft.
(3 m)
Safety Rating
Clasificación de seguridad
Cote de sécurité
CAT IV
1000V
BASED ON: 1330974 Rev 04/22 B
5001748
ENGLISH
WARNINGS
To ensure safe operation and service of the tester, follow these
instructions. Failure to observe these warnings can result in severe
injury or death.
•
Risk of electric shock and burn. Contact with live circuits could result in death
or serious injury.
•
Use caution with voltages above 25V AC as a shock hazard may exist.
•
A blinking LED or a steadily illuminated LED in the tip and audible beeps
indicate presence of voltage. If no indication, voltage could still be present.
•
Before and after each use, verify operation by testing a known working circuit
that is within the rating of this unit.
•
Never assume neutral or ground wires are de-energized. Neutrals in multi-
wire branch circuits may be energized when disconnected and must be
retested before handling.
•
The tester
WILL NOT
detect voltage if:
WILL NOT detect voltage if:WILL NOT
•
The wire is shielded.
•
The operator is not grounded or is otherwise isolated from an effective
earth ground.
•
The voltage is DC.
•
The tester
MAY NOT
detect voltage if:
•
The user is not holding the tester.
•
The user is insulated from the tester with a glove or other materials.
•
The wire is partially buried or in a grounded metal conduit.
•
The tester is at a distance from the voltage source.
•
The field created by the voltage source is being blocked, dampened, or
otherwise interfered with.
•
The frequency of the voltage is not a perfect sine wave between 50 and
500Hz.
•
The tester is outside of operating conditions (listed in Specifications
section).
•
Operation may be affected by differences in socket design and insulation
thickness and type; tester may not be compatible with some types of standard
or tamper resistant (TR) electrical outlets.
•
In bright light conditions, the LED visual indicators will be less visible.
•
When powered-ON, one of the “power-ON” LED’s will be illuminated, and a
green light will illuminate the tip.
DO NOT USE TESTER UNLESS ONE OF THE
“POWER-ON” LED
s
IS ILLUMINATED.
•
Do not use if tester appears damaged or is not operating properly. If in doubt,
replace the tester.
•
Do not apply more than the rated voltage as marked on the tester (1000V).
•
Do not apply to uninsulated hazardous live conductors.
•
Detection above 70V AC is specified under "normal" conditions as detailed
below. The tester may detect at a different threshold at different conditions, or
may not detect at all unless:
•
The tip of the tester is within 0.25" (6 mm) of an AC voltage source radiating
unimpeded.
•
The user is holding the body of the tester with his or her bare hand.
•
The user is standing on or connected to earth ground.
•
The air humidity is nominal (50% relative humidity – non-condensing).
•
The tester is held still.
•
Always wear approved eye protection.
•
Comply with local and national safety requirements.
•
If this product is used in a manner not specified by the manufacturer,
protection provided by the product may be affected.
OPERATING INSTRUCTIONS
CHECKING FOR THE PRESENCE OF AC VOLTAGE
1. Press the Power On / Off button. After performing a self-test, a
green LED
3
will illuminate the tip when no voltage is detected.
2. Prior to use, test on a known live circuit to verify tester
functionality.
3. Place tip of the tester
4
near AC voltage. If voltage is present,
the unit will emit audible beeps and the red LED
3
in the tip will
illuminate.
SILENT OPERATION
To activate silent operation, power-ON by pressing and holding the
NCV Power-ON button
1
for more than 2 seconds. Power-ON in this
manner each time silent operation is desired.
CLEANING
Be sure tester is turned off and wipe with a clean, dry lint-free
cloth.
Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when not in use for a prolonged period
of time. Do not expose to high temperatures or humidity. After
a period of storage in extreme conditions exceeding the limits
mentioned in the General Specifications section, allow the tester to
return to normal operating conditions before using.
FCC AND IC COMPLIANCE
See this product’s page at www.kleintools.com for FCC compliance
information.
Canada ICES-003 (B) / NMB-003 (B)
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with local
regulations. Please see www.epa.gov/recycle for additional
information.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street, Lincolnshire, IL 60069 1-800-553-4676
customerservice@kleintools.com www.kleintools.com
MAINTENANCE
BATTERY REPLACEMENT
When the battery is low, the unit will power-on with a blinking red
LED
2
. When this happens, the batteries must be replaced:
1. Unscrew the battery cap
7
and remove/recycle spent batteries.
2. Install two new AAA batteries. Note proper polarity.
3. Screw battery cap tightly to ensure a tight seal with the O-Ring
6
.
FUNCTION BUTTONS
NCV POWER ON/OFF BUTTON
1
Press and release the NCV Power button
1
. The tester will emit a
single beep, the Power On Indicator
2
and green LED
3
in the tip
will illuminate. To power-OFF the tester, press and release the Power
On / Off button
1
. The tester will emit a double beep.
NOTE: The tester will automatically power-OFF following 4 minutes of
inactivity to conserve battery life.
CAUTION
•
DO NOT
attempt to repair this tester. It contains no serviceable parts.
DO NOT attempt to repair this tester. It contains no serviceable parts.DO NOT
•
DO NOT
expose tester to extremes in temperature or high humidity.
DO NOT expose tester to extremes in temperature or high humidity.DO NOT
GENERAL SPECIFICATIONS
The Klein Tools NCVT-1XT is a durable 70 to 1000V AC non-contact
voltage tester with IP67 rating and a 3m (9.8') drop protection.
• Environment: Indoor
• Measurement Range: 70 to 1000V AC
• Frequency Range: 50 to 500 Hz
• Batteries: 2x AAA 1.5V Alkaline
• Operating and Storage Altitude: Up to 6562 ft. (2000 m)
• Operating and Storage Temp: 14° to 122°F (-10° to 50°C)
• Relative Humidity: <95% non-condensing
• Dimensions: 5.34" x 1.08" x 0.97" (135.6 x 27.4 x 22.1 mm)
• Weight: 1.65 oz (46.7 g) with batteries
• Pollution degree: 2
• Safety Rating: CAT IV 1000V AC
• Drop Protection: 9.8 ft. (3 m)
• Ingress Protection: IP67
• Standards: EN61010-1:2010+A1: 2019,
EN IEC 61010-2-030:2021+A11:2021.
Conforms to UL STD. 61010-1, 61010-2-030
Certi ed to CSA STD. C22.2 No. 61010-1, 61010-2-030.
Specifications subject to change.
5001748

Produkt Specifikationer

Mærke: Klein Tools
Kategori: Måleudstyr
Model: NCVT-1XT

Har du brug for hjælp?

Hvis du har brug for hjælp til Klein Tools NCVT-1XT stil et spørgsmål nedenfor, og andre brugere vil svare dig


Måleudstyr Klein Tools Manualer

Klein Tools

Klein Tools ET19 Manual

1 Januar 2025
Klein Tools

Klein Tools NCVT-6 Manual

28 December 2024
Klein Tools

Klein Tools ET18 Manual

21 September 2024
Klein Tools

Klein Tools VDV211-048 Manual

21 September 2024
Klein Tools

Klein Tools ET500 Manual

3 September 2024
Klein Tools

Klein Tools ET510 Manual

3 September 2024
Klein Tools

Klein Tools NCVT-3 Manual

3 September 2024
Klein Tools

Klein Tools NCVT-2 Manual

3 September 2024
Klein Tools

Klein Tools 45001 Manual

3 September 2024
Klein Tools

Klein Tools HVNCVT-1 Manual

3 September 2024

Måleudstyr Manualer

Nyeste Måleudstyr Manualer

Uni-T

Uni-T UT220 Manual

3 April 2025
Uni-T

Uni-T UT681C Manual

3 April 2025
Uni-T

Uni-T UT216C Manual

3 April 2025
Uni-T

Uni-T UT611 Manual

3 April 2025
Uni-T

Uni-T UT210D Manual

3 April 2025
Uni-T

Uni-T UT210C Manual

3 April 2025
Uni-T

Uni-T UT210B Manual

3 April 2025
Uni-T

Uni-T UT682 Manual

3 April 2025
Uni-T

Uni-T UT275 Manual

3 April 2025
Uni-T

Uni-T UT08A Manual

3 April 2025
