Side 1/28

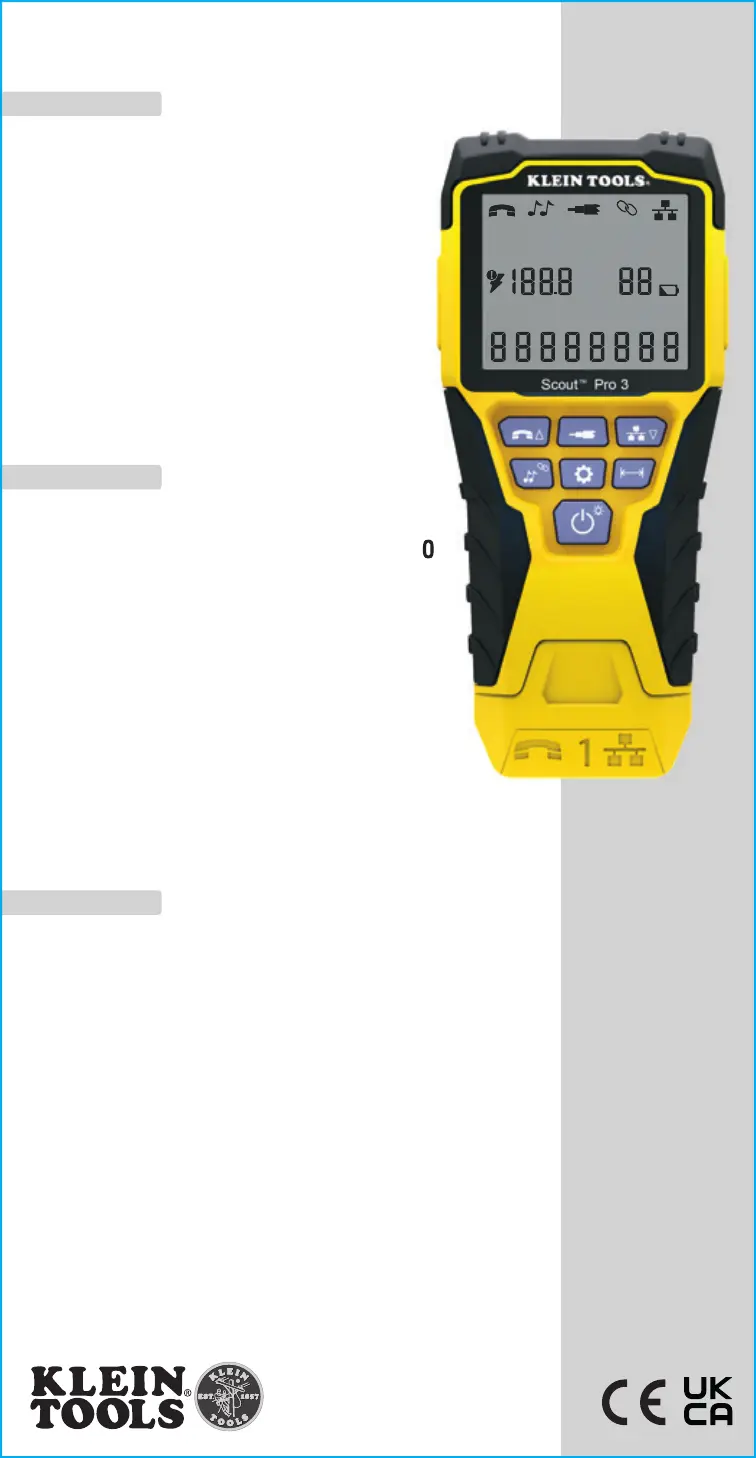

VDV501-851

VDV Scout

Pro 3

ESPAÑOL pág. 11

FRANÇAIS p. 20

INSTRUCTION MANUAL

• VOICE, DATA, AND VIDEO CABLE TESTING

• DETECTS SHORT FAULTS, OPEN FAULTS,

REVERSALS, MISWIRES, CROSSOVER

WIRING AND SPLIT PAIRS

• CABLE ID

• LENGTH MEASUREMENT

• TONE GENERATOR

• EXTRA-LARGE BACKLIT LCD

• HUB BLINK

• AUTO POWER-OFF

ENGLISH pg. 2

MANUEL D’UTILISATION

MANUAL DE INSTRUCCIONES

• VÉRIFICATION DE CÂBLES POUR VOIX, DONNÉES ET VIDÉOS

• DÉTECTION DES COURTS-CIRCUITS, DES COUPURES, DES

INVERSIONS, DES MAUVAIS RACCORDEMENTS,

DES CROISEMENTS ET DES PAIRES DIVISÉES

• IDENTIFICATION DE CÂBLE

• MESURE DE LA LONGUEUR

• GÉNÉRATEUR DE TONALITÉ

• TRÈS GRAND ÉCRAN ACL RÉTROÉCLAIRÉ

• CLIGNOTANT DU CONCENTRATEUR

• ARRÊT AUTOMATIQUE

• PRUEBA DE CABLES DE VOZ, DATOS YVIDEO

• DETECTA FALLAS DECORTOCIRCUITO,

FALLAS DE CIRCUITO ABIERTO,

INVERSIONES, ERRORES DE CABLEADO,

CABLEADO CRUZADO Y PARES DIVIDIDOS

• ID DE CABLE

• MEDICIÓN DE LONGITUD

• GENERADOR DE TONO

• PANTALLA LCD EXTRAGRANDE

RETROILUMINADA

• PARPADEO DEL CONCENTRADOR

• FUNCIÓN DE APAGADO AUTOMÁTICO

PRUEBA DE CABLES DE VOZ, DATOS YVIDEO

1 2

5 6

Pass X-over Rev

Fail Short

Split Open

Shielded

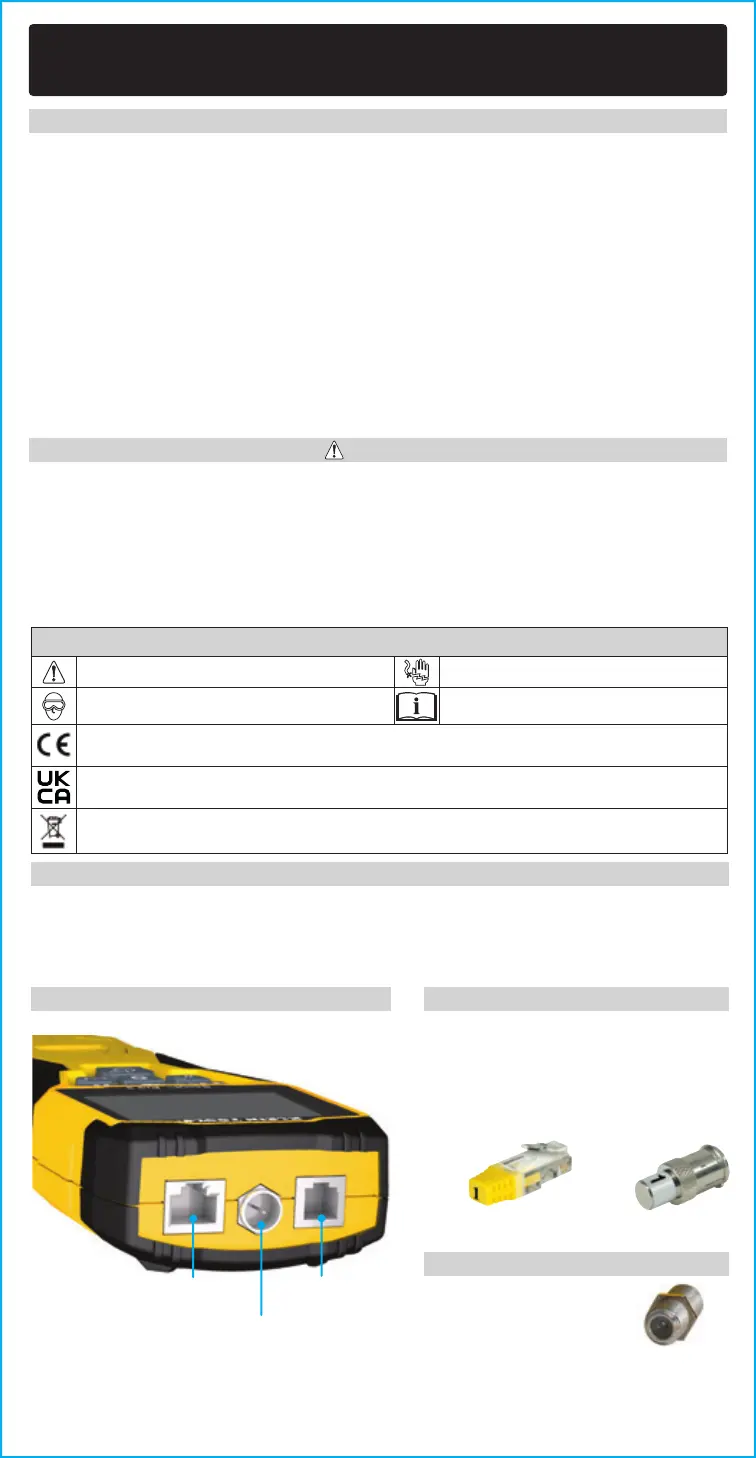

GENERAL SPECIFICATIONS

The Klein Tools VDV Scout

Pro 3 is a portable voice-data-video cable tester. It tests and troubleshoots RJ11,

RJ12, RJ45, and F-connector terminated cables and provides tone generation for cable tracing. The VDV Scout

Pro 3 also measures cable length, tests for shield, performs hub blink testing, and traces up to 19 locations (up to

5 locations with included remotes, additional remotes available separately).

PORTS AND REMOTES OVERVIEW

•

Dimensions: 6.5" x 3.0" x 1.6" (16.5 x 7.6 x 4.1 cm)

•

Weight:

11 oz. (312 g) with battery and remote

•

Operating Temperature: 32° to 122°F (0° to 50°C)

•

Storage Temperature: -4° to 140°F (-20° to 60°C)

•

Humidity: 10% to 90%, non-condensing

•

Maximum Voltage (between any two connector

pins without damage):

- RJ Jack: 66V DC or 55V AC

- F-Connector: 66V DC or 55V AC

•

Battery Life (9V alkaline):

- Standby: 4 years

- Active: 50 hours (without backlight)

•

Cable Types: Shielded or unshielded; Cat7a, Cat7, Cat6a,

Cat6, Cat5e, Cat3, Coaxial

•

Length Measurement Method: Capacitance

•

Length Measurement Range:

1.5 ft to 1,999 ft. (0.5 m to 610 m) with 15pF/ft

•

Length Accuracy:

(5% ft.) or (5% m)

•

Length Constant Range:

10pF/ft. to 40pF/ft. (33pF/m to 132pF/m)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions. Failure to observe these

warnings can result in severe injury or death.

•

The VDV Scout

Pro 3 is designed for use on unenergized cabling systems. Connecting the VDV Scout

Pro

3 to live AC power may damage it and pose a safety hazard for the user.

•

Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout

Pro 3. Visually

inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic

housing of the plug. Plugging 6-position plugs into the 8-position jack on the tester has the potential to

damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.

SYMBOLS ON TESTER

Warning or Caution Do NOT use on energized circuits

Always wear approved eye protection Read instructions

Conformité Européenne - Conforms with European Economic Area directives

UKCA: UK Conformity Assessment

This symbol indicates that equipment and its accessories shall be subject to a separate

collection and correct disposal

RJ45 Port: Data cable, Ethernet cable, Cat5e, Cat6, Cat6a, Cat7, Cat7a.

F-Connector Port: Video cable, coaxial cable, RG6/RG6Q cable, RG59 cable.

RJ11/12 Port: Voice cable, POTS (plain old televoice service) cable, 4-wire cable, 6-wire cable,

2 twisted pair cable, 3 twisted pair cable, Cat3.

VDV SCOUT

PRO 3 TESTER LOCATION ID REMOTES

F-connector port

RJ11/12 port*RJ45 port*

Use for cable location identification mapping.

Set #1–5 included with VDV500-851, set #1–18

included with VDV501-852 and sold separately.

ENGLISH

LanMap™

Location ID Remote**

VDV526-055

RJ45

connector

**Cannot be used to perform wire map or

cable length tests.

*The RJ jacks share internal connections so only one RJ cable can be connected at a time for accurate cable

test results. However, an RJ cable and a coax cable may be connected at the same time. In ID mode, all

connectors on the VDV Scout

Pro 3 may be connected at the same time.

CONNECTORS

Barrel Connector

VDV814-609

Female-to-female F-connector

Use with F-connector port

CoaxMap™

Location ID Remote**

VDV512-056

F-connector
