ENGLISH
GENERAL SPECIFICATIONS - VDV500-063 TONER-PRO
The Klein Tools VDV500-063 Toner-Pro is a professional-series tone generator for wire identification, wire
tracing and wire pair identification on non-energised wires. It features several tone frequencies and a strong
power output for tracing wires.
Operating Altitude: 6562' (2000 m) maximum
Relative Humidity: 10% to 90%, non-condensing
Operating Temp: 14° to 122°F (-10° to 50°C)
Storage Temp: -4° to 140°F (-20° to 60°C)
Dimensions: 2.5" x 5" x 1" (64 x 127 x 25 mm)
Weight: 7.4 oz (210 g) including batteries
Battery Type: 4 x 1.5V AAA Alkaline
Battery Life: Active: 120 hours
Standby/Storage: 3 years
Auto Power-Off: After 60 minutes of inactivity
Tones: Constant: 800 Hz, 1000 Hz, 1500 Hz
Alternating: 800/1000 Hz, 1000/1500 Hz
Tone Power: 8 dBm
Continuity Indication: Less than 10kΩ
Voltage Protection: Test Mode: 60 V
Tone Mode:
20 V through external 600 Ω
Specifications subject to change.
T1
TEST MODE Indicator
T9
Power On/Off Button
T2
‘NRM’ (Normal) Polarity Indicator
T10
TEST/TONE Button
T3
‘REV’ (Reverse) Polarity Indicator
T11
Battery Status Indicator
T4
‘CONT’ (Continuity) Indicator
T12
Lanyard Slot
T5
TONE MODE Indicator
T13
RJ11 Test Plug
T6
Tone Frequency Indicators
T14
ABN (Angled Bed-of-Nails) Test
T7
Tone Mode Down selector button
T15
Battery Cover
T8
Tone Mode Up selector button
T16
Battery Cover Screw (No. 2 Phill
T1
T5
T7
T9
T8
T10
T13
T12
T14
T11
T2
T3
T4
T6

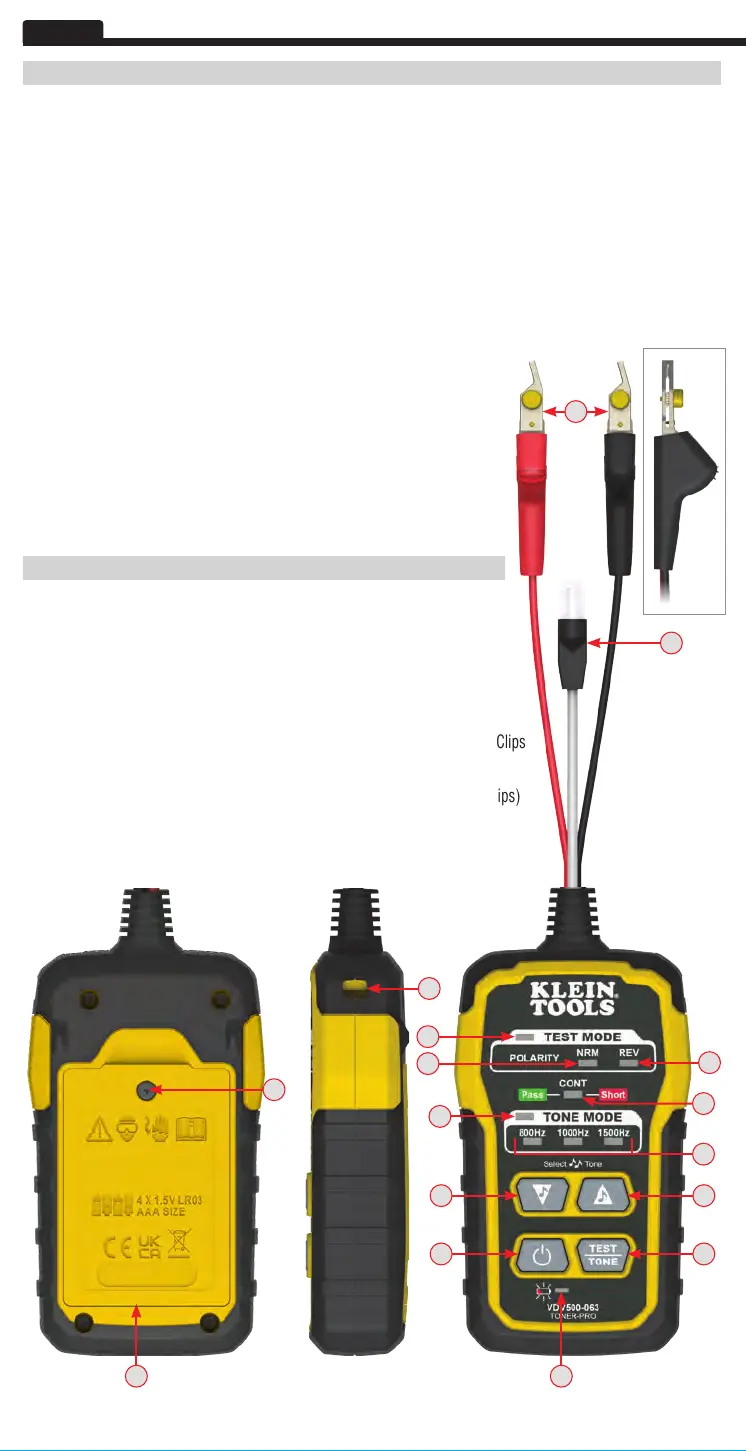

FEATURE DETAILS
T16
T15
