OSP- MM1 Quick Start

P/N:

2 9 0 0 - 3 0 1 1 8 1 QS

Rev:

Scan for full manual

OSP- OSP-SM10 Quick Start Guide MM1,

This guide helps you install and use your OSP-MM1 / OSP-SM10 for the first time.

Go to www.kramerav.com/downloads/OSP-MM1 or www.kramerav.com/downloads/OSP-SM10 to

download the latest user manual and check if rmware upgrades are available.

Step 1: Check what’s in the box

OSP-MM1 Optical MM 850nm 10G SFP+ Transceiver or

OSP-SM10 Optical SM 1310nm 10G SFP+ Transceiver

1 Quick start guide

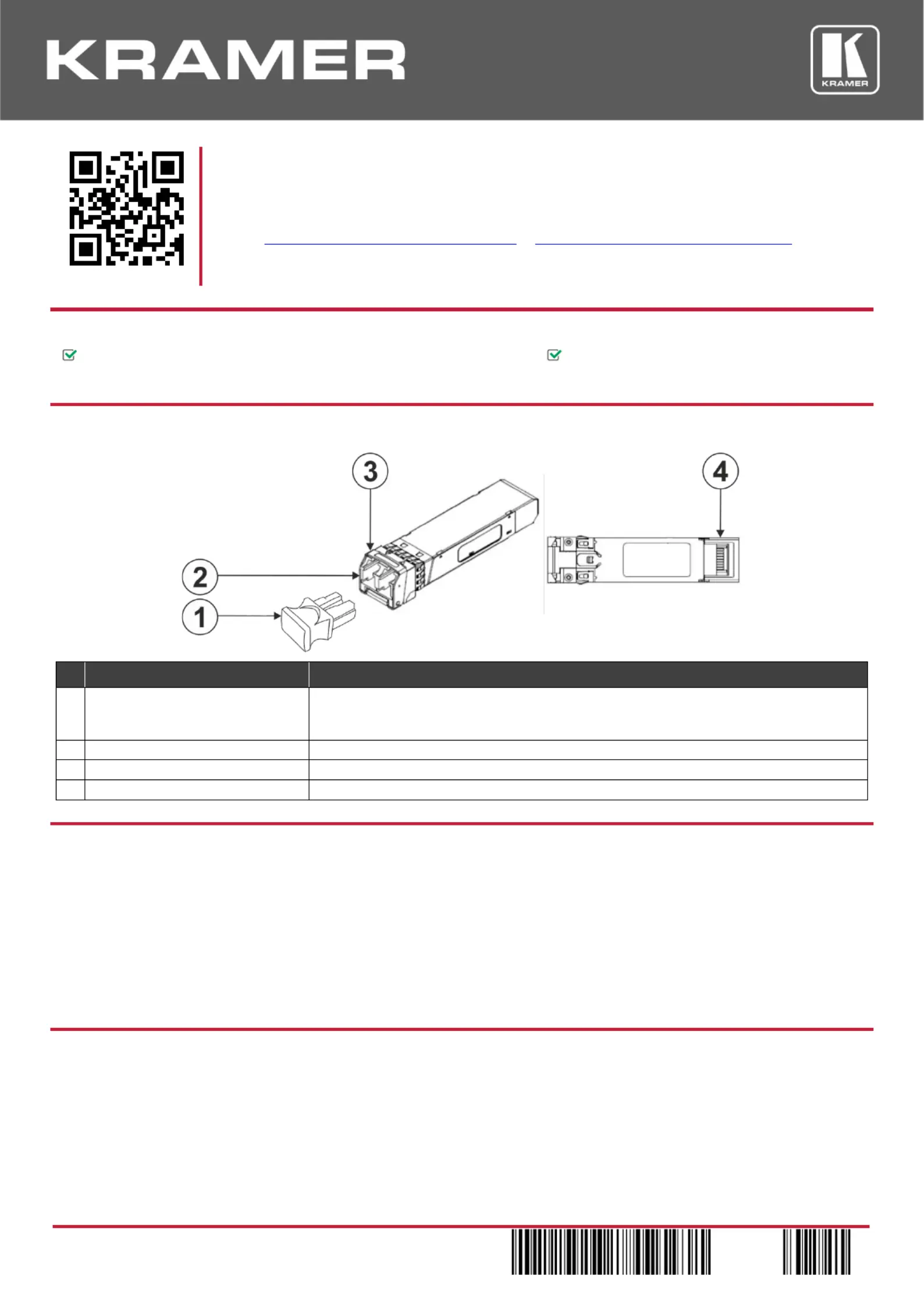

Step 2: Get to know your -OSP MM1 OSP-SM10 /

Feature

Function

Cap

Protects the LC connectors from dust.

Note: When transporting or storing an unconnected device, keep the cap on to protect

against dust.

LC Connectors

For connecting ber optic cables. Covered with protective cap when not in use.

Bail (Handle)

Pull down the handle for easy removal of the transceiver from the optical device.

SFP+ Device Interface

Connects to the optical device SFP+ port.

Step 3: Safety Instructions

Warning: Class 1 Laser Product:

• Invisible laser radiation present.

• Avoid long-term viewing of laser.

• Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes, microscopes and magnifying

lenses, but not spectacles or contact lenses).

• Avoid placing optical devices in the emitted beam that could cause the concentration of the laser radiation to be

increased.

Step 4: Operation and Installation Warnings

• and are designed to be used with LC(PC) and LC(UPC) connectors. Using an LC(APC) OSP-MM1 OSP-SM10

connector causes poor performance and can damage the connector.

• Always inspect and clean the connectors before you make a connection.

• Always use the connector housing to plug or unplug a ber.

• Never touch the end face of the ber connectors.

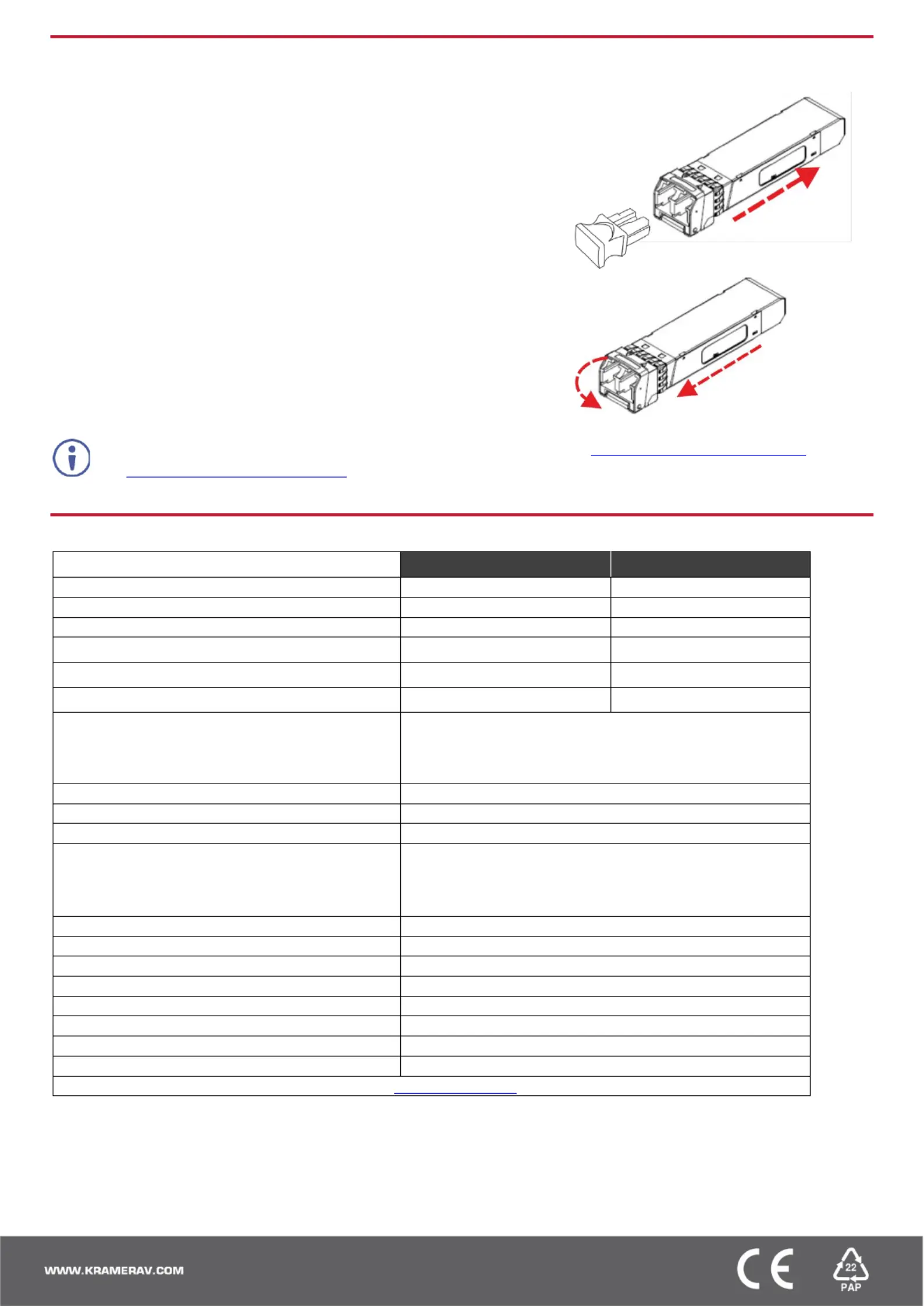

Step 5: Install the OSP-MM1 -SM10 / OSP

To install the OSP SFP+ transceiver:

1. Make sure the bail is pushed up, in the closed position.

2. Insert the OSP SFP+ transceiver into the relevant optical device SFP+ slot

and push it in until it clicks.

3. Remove the protective cap and store it in a safe place for future use.

To remove the OSP SFP+ transceiver:

1. Pull the bail down to release the transceiver unit.

2. Pull the transceiver unit out by the bail from the optical device SFP+ slot.

3. If needed, put the protective cap back on.

For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/OSP-MM1

or www.kramerav.com/product/OSP-SM10 Using third-party cables may cause damage!

Step 6: Technical Specications

OSP- MM1

OSP-SM10

Transceiver Wavelength:

850nm

1310nm

Optical Fiber Line Type:

Multi-mode

Single-mode

Optical Transmitter Type:

VCSEL

DFB

Typical Optical Transmission Power:

-2.5dBm

Typical Optical Maximum Receiver Sensitivity:

-11.1dBm

-14.4dBm

Typical Optical Maximum Loss Budget:

8.6dB

11.9dB

Ports:

2 strand ber optic LC (PC/UPC) connector for reception and

transmission

SFP+ compliant pluggable interface

Note: Do not use with LC(APC) connectors.

Data Rate:

10Gbps

Standards Compliance:

IEEE 802.3ae, SFF-8431

Laser Safety Compliance:

Laser Class I

Regulatory Certications:

FDA CDRH 21 CFR 1040 and Laser Notice No. 50

UL and CUL EN60950-2:2007

RoHS6 Directive 2002/95/EC

EMC EN 55022:2006+A1:2007; EN 55024:1998+A1+A2:2003

Operating Temperature:

0° to 70°C

Storage Temperature:

-40° to 85°C

Humidity:

5% to 95% RH

Power Consumption:

Product Dimensions:

1.33cm x 5.7cm x 0.85cm (0.52" x 2.2" x 0.33") W, D, H

Product Weight:

0.018kg (0.04lbs)

Shipping Dimensions:

4.1cm x 12.6cm x 8.4cm (1.6" x 5" x 3.3") H, W, D

Shipping Weight:

0.06kg (0.13lbs)

Specications are subject to change without notice at www.kramerav.com
