Part No. 910342

Kurzweil K2600 Rack and Keyboard

P/RAM-26 Program Expansion Module Installation Kit

This document describes the procedure for adding the P/RAM-26 Program Expansion Module to a K2600 Keyboard or K2600

Rack instrument.

Before Beginning the Installation

Installation of the P/RAM Expansion Module will completely erase the K2600Õs RAM. Unlike a normal power-down, which

clears only the sample RAM, this installation will delete all user-defined objects: programs, setups, songs, intonation tables, ve-

locity and pressure maps, etc. Please be sure that the contents of RAM have been backed up before you begin this installation.

Back up all of these objects by entering Disk mode, pressing the Save soft button, and selecting the option ÒEverythingÓ to save

all RAM objects to a floppy or hard disk.

Static Precaution Instructions

The K2600 and P/RAM Expansion Module are sensitive to static electricity. Before handling the Expansion Module, touch the

K2600 chassis to discharge any static electricity from your body. Next, remove the option from its static protective bag. Hold the

option in one hand and then firmly grasp the K2600 chassis again with your other hand. This will minimize the possibility of

static damage to your K2600 and the Expansion Module.

Tools and Materials Required for Installation

•#2 Phillips screwdriver

•Two thick foam pads (Keyboard models only)

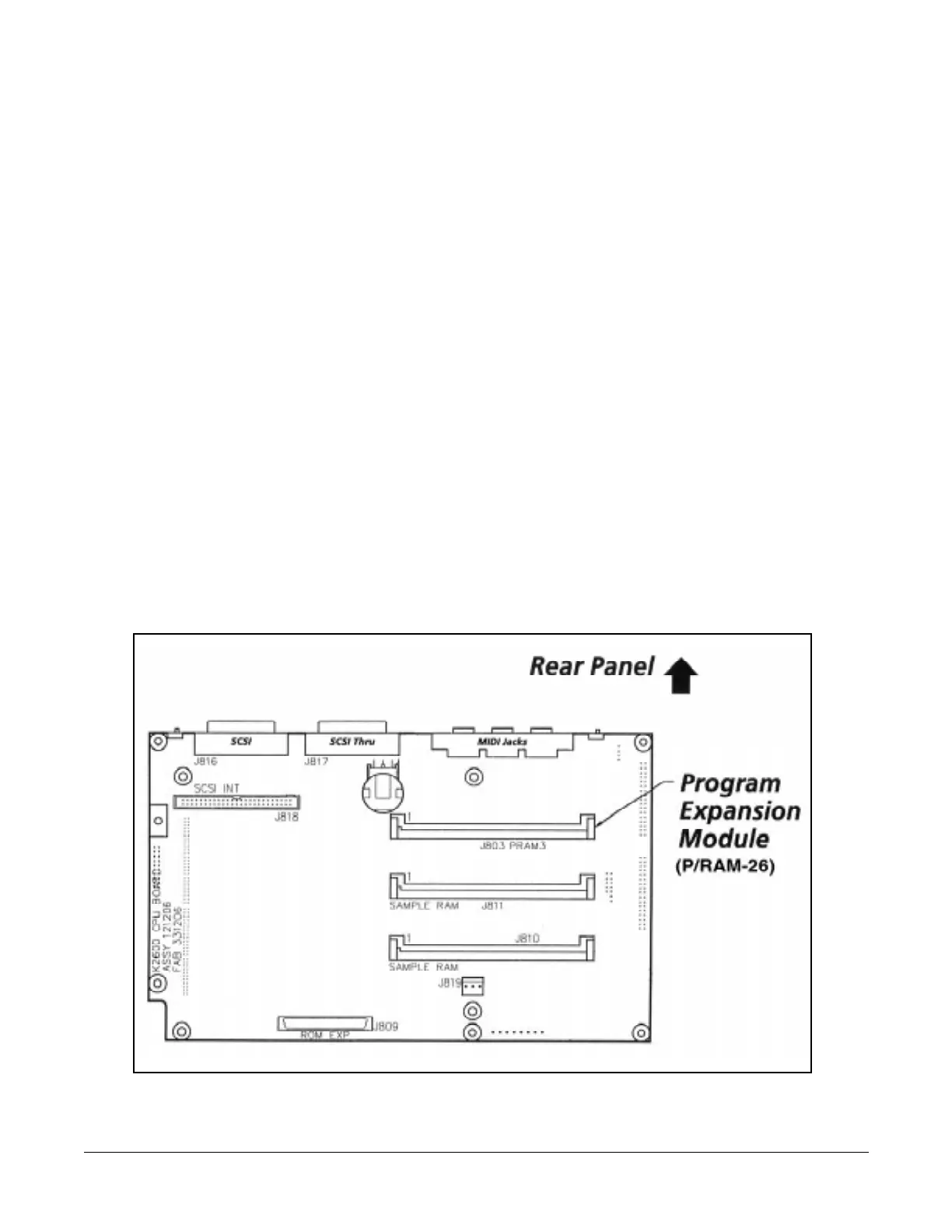

Figure 1. K2600 CPU Board, showing location of J803.

Installation For Rack Units

Warning: The P/RAM Expansion Module is static-sensitive. Follow the static precaution instructions on

page 1 before handling any circuit board.

1. Unplug all external wires, cables, and connectors from the K2600R and turn the unit upside down.

2. Locate the access panel on the bottom side of the unit. Using a #2 Phillips screwdriver, remove the

six screws attaching the access panel. Set the access panel and screws aside for reassembly.

3. Locate the P/RAM placeholder card (in the socket labeled J803, as shown in Figure 1). Remove the

placeholder card and set aside.

4. Insert the P/RAM Expansion Module into J803. The board is keyed so that it can go in only one

way. Note: on your instrument, socket J803 may be labeled PRAM3.

5. Replace the access panel and loosely install the screws, starting with those closest to the hinge

(back) of the access panel. When the screws are loosely in place, tighten them all.

6. Reconnect the power to the K2600R, then check the amount of program RAM by entering Disk

mode and viewing the amount of available RAM shown in the top line of the display. There

should be approximately 1500K of available RAM. This completes the installation of the

P/RAM Expansion Module.

Installation For Keyboard Units

Warning: The P/RAM Expansion Module is static-sensitive. Follow the static precaution instructions on

page 1 before handling any circuit board.

1. Unplug all external wires, cables, and connectors from the K2600 and turn the unit so the

keyboard faces you.

2. Turn the keyboard upside down onto a soft surface, resting the front panel on two thick foam

pads; these pads will prevent damage to the K2600Õs sliders and alpha wheel.

3. Using a #2 Phillips screwdriver, remove the eight screws attaching the access panel. Set the access

panel and screws aside for reassembly.

4. Locate the P/RAM placeholder card (J803, as shown in Figure 1). Remove the placeholder card

and set aside.

5. Insert the P/RAM Expansion Module into J803. The board is keyed so that it can go in only one

way. Note: on your instrument, socket J803 may be labeled PRAM3.

6. Replace the access panel and loosely install the screws, starting with those closest to the hinge

(back) of the access panel. When the screws are loosely in place, tighten them all.

7. Reconnect the power to the K2600, then check the amount of program RAM by entering Disk

mode and viewing the amount of available RAM shown in the top line of the display. There

should be approximately 1500K of available RAM. This completes the installation of the

P/RAM Expansion Module.
