Additional tools (if needed)
Herramientas adicionales
(si es necesario)
wood block
bloque de madera
If drilling a new door, use the
supplied template and the complete
door drilling instructions available
at kwikset.com/doorprep
utilice la plantilla suministrada y
las instrucciones completas para
la perforación de la puerta estan
disponibles en kwikset.com/doorprep
Parts in the box
Piezas en la caja
Required tools
Herramientas necesarias
Latch
Pestillo
Strike
Placa
Screws
Tornillos
Keys
Llaves
Deadbolt
Cerrojo
SmartKey® tool
(SmartKey locks only)
Herramienta SmartKey
(las cerraduras de
SmartKey solamente)
23/8" (60 mm)
or • o
23/4" (70 mm)
13/8"–21/4"*
35 mm–57 mm*
21/8"
54 mm
64024 / 01
780
A Q
A / Q
A / Q
B C D E F G
H
J K L M
Hold the latch in front of the
door hole, with the latch face
lush against the door edge.
Sostenga el pestillo en frente del oriicio
de la puerta, con la cara del pestillo
al ras con el borde de la puerta.
If the D-shaped hole is centered
in the door hole, no adjustment
is required. Proceed to step 4.
If the D-shaped hole is NOT
centered, adjust latch. See “Latch
Adjustment” (step 3C).
Si el oriicio en forma de “D” es
centrado con el oriicio de la puerta, no
se requiere ajustarlo. Vaya al paso 4.
Si el oriicio en forma de “D” NO está
centrado, ajuste el pestillo. Consulte
“Ajuste del pestillo” (el paso 3C).
Latch Adjustment (only if needed)
Ajuste del pestillo (si es necesario)
18
23/8" (60 mm)
23/4" (70 mm)
Backset Distancia al centro
Centerline
13/8" (35 mm)
13/4" (44 mm)
21/4" (57 mm)
Edge of the door
Borde de la puerta
Fold
Doble
Linea central
Drilling Template
Plantilla de perforación
Instructions continue on reverse
Las instrucciones continúan en el reverso de la hoja
A
B
C
*Call Kwikset to order
a service kit for 21/4"
(57 mm) thick doors.
*Llame a Kwikset para
pedir un kit de servicio
para puertas gruesas
con un espesor de
entre 57 mm (21/4").
Template is only needed if a new hole must be drilled in the door.
La plantilla solo se necesita en caso de que deba
perforarse un nuevo oriicio en la puerta.
not centered
no centrado
centered
centrado
1"
25 mm

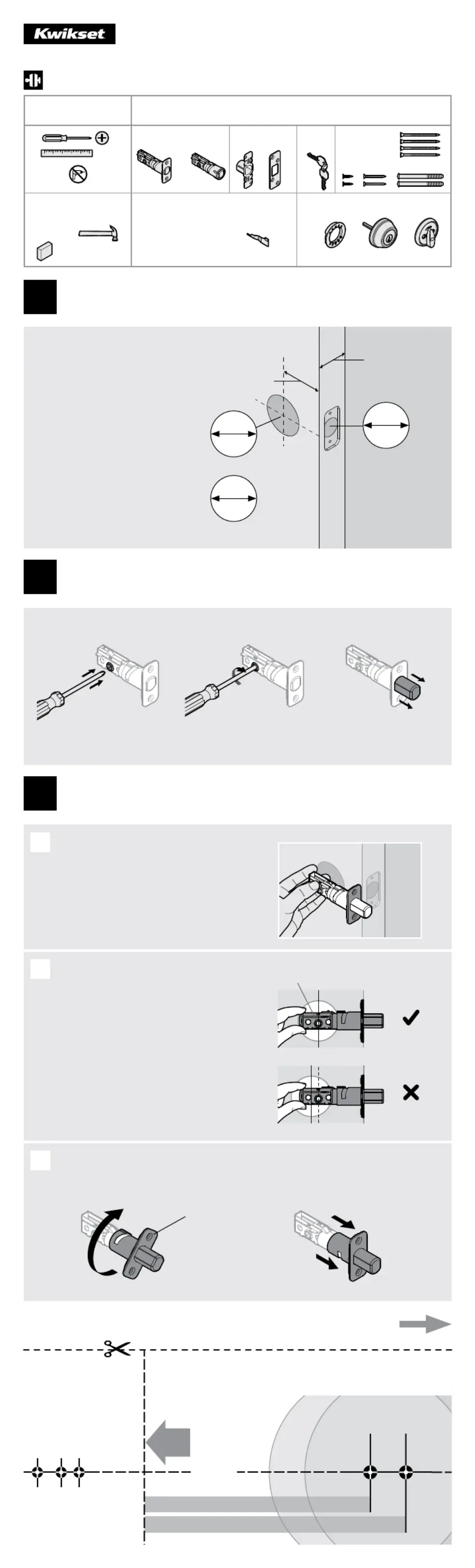

Installation Guide
Guía de instalación
18003275625 • www.kwikset.com
Face of the door
Frente de la puerta
Rotate the front of the
latch to extend it.
Gire la parte delantera del
pestillo para extenderlo.
D-shaped hole
oriicio en forma de “D”
or
o
Note: Additional door preparation may be
required for doors with 11/2" (38 mm) holes.
Consult drilling instructions online.
Nota: Preparación adicional de la puerta puede ser
necesaria en puertas con los oricios de 38 mm (11/2").
Consulte las instrucciones de perforación en linea.
or • o
11/2"
38 mm
Prepare door and check dimensions
Prepare la puerta y revise las dimensiones
1
Extend latch bolt
Extienda el perno de retención
2
Adjust the backset of the latch (if needed)
Ajuste la distancia al centro del pestillo (si es necesario)
3
