Side 1/7

Outdoor temperature sensor

World Time Center • Remote transmission of outdoor temperature via 433MHz to base World Time Center.

• LCD display showing current outdoor temperature in Fahrenheit (ºF)

• Shower proof casing

• Wall mounting case

Introduction

Getting started

Congratulations on purchasing this state-of-the-art World Time Center as an example of superior design and

engineering. Providing radio controlled time, indoor temperature and humidity displays, outdoor temperature, this unit will

never keep you guessing on time, date or current and future weather conditions. Operation of this product is simple and

straightforward. By reading this operating manual, the user will however receive a better understanding of the WorldTime

Center together with the optimum benefit of all its features.

Remove all parts from the packaging and place onto a table in front of you. Ensure that the following parts are included:

1. World Time Center (main unit)

2. Outdoor temperature sensor

3. Instruction manual

World Time Center

If any one of the above mentioned parts is missing please contact your supplier.

Hanging Hole

LCD display Holder

Outdoor temperature sensor

Battery cover

LCD2

LCD3

LCD1

SET-Key

WORLDTIME-Key

TIMEZONE-Ke

+ -Key

HYGRO-Key

Please follow all further explanations and descriptions in this manual in order to ensure that your World Time

Center and Outdoor temperature sensor work correctly.

Important Note:

For all users wanting to get additional informations on the function of the World Time Center there is an

alphabetically sorted subject index at the end of this manual offering a number of technical and functional

explanations. For use and operation of this product however the knowledge of this index is not necessary.

Putting into Operation

Basic Setup

Features

World Time Center

• 4 digits showing Hour and Minute in the main display

• WWVB time signal radio-controlled clock with manual time display

• 12/24 hour display

• Time zone selectable

• World time display with specific place represented by 3 sucessive characters

• Calendar display

• Display of weekday (8 languages to choose from)

• Display of current indoor temperature

• Display of current indoor relative humidity

• Three weather icons for weather forecasting

• Weather tendency indicators

• °C or °F temperature display selectable

• LCD contrast changeable to 8 different tones

• Low battery indicator

• Wall Mounting

Battery

Compartment

Battery Cover

1. Open the battery cover of the World Time Center and - checking the correct polarities –

insert 3 x AA, IEC LR6 1.5V batteries into the battery compartment as indicated above and replace the cover.

Battery cover

Battery

compartment

2. Unscrew the screw on the back of the Outdoor temperature sensor compartment and remove the cover.

3. Insert the 2 x AAA, IEC LR3, 1.5V batteries observing correct polarity.

4. Replace battery cover on unit and seal by re-screwing

5. When replacing the battery covers, ensure that the batteries do not spring free from the contacts.

6. Your World Time Center and Outdoor temperature sensor are now operational.

Reset

To reset the World Time Center and the Outdoor temperature sensor, simply take out the batteries from both unit. Wait

for at least 30 seconds and repeat the setup procedure above.

• In normal mode display of radio controlled, highly accurate time of day depending on programming - 12 or 24 hours

mode.

• A transmission tower symbol in the upper center of the display indicates that the WWVB time signal is scanned for

(flashing) or received (steady).

Important!

After putting into operation (basic setup or reset) all key functions except for the “SET” and the “+” keys should

not be operated until the WWVB time signal has been received or the time is manually set.

• A battery symbol in the lower center indicates low running batteries.

LCD 3 - Temperature/Indoor Humiditiy and Weather Forecast

Self Programming after Basic Setup or Reset (Putting into Operation)

Indoor

temperature

After the the batteries are inserted (see “Putting into Operation”) into World Time Center and a self programming

sequence will start which cannot be influenced by the user. At first all segments in the LCD will light up for appr. 3

seconds. Next, the unit will perform a battery test followed by the measurements of indoor temperature and humidity, air

pressure and a scanning of the WWVB time signals. After this starting phase the indoor temperature (Left on LCD 3) will

be displayed along with the displays “- - -” in the weekday, time (LCD 1), WWVB time (LCD 2) and outdoor

temperature/humidity sections (Right on LCD 3). If measurements and signal receptions are successful, the dashes will

be updated one by one by the real values measured and received.

Initial Displays

If the “SET” key is pressed after “- - -” is displayed (as described in 7.1), but before the real measurements are

displayed, the learning mode will be terminated. Apart from the temperature already displayed on LCD 3 the following

initial displays will now be assigned to the various sections on the LCD:

• Date (LCD 1) “MON 1.1.98”

• Time of day (LCD 2) “0:00”

If selected:

• Worldtime location (LCD 1) “- - -”

• Worldtime (LCD 1) “0:00”

• Time zone (LCD 2) “0”

Further default values:

Display modes

• Time: 24 hours

• Temperature: °F (degrees Fahrenheit)

• Language for weekday display: GB (English)

• LCD Contrast: Level 5

Note:

After completion of the self programming procedure check that all frequency signals are correctly received and displayed

in the appropriate sections of the LCD screens. Should any one signal not be received, then see Items “WWVB

Reception Check” below before performing a reset (see Reset above).

LCD Screens

The LCD of your World Time Center consists of three separate screens which provide - from top to bottom - the following

information:

LCD 1 - Worldtime and Date/Weekday

• In normal mode display of current date (Day and Month. Year will only show in programming mode) with current

weekday (abbreviated to 3 letters; 8 languages to choose from).

• By key stroke display of radio controlled, highly accurate worldtime at any location on earth (identified by 3 letter

abbreviation).

• By key stroke alternating display of both above modes every 5 seconds.

LCD 2 - Time of Day

• On the left, display of current indoor temperature.

Indoor relative

humidity

• On the right, display of current outdoor temperature and by pressing the “ Hygro ” key, alternate between

1. the indoor relative humidity,

2. indoor relative humidity and outdoor temperature, and

3. outdoor temperature

• In the center, the display shows the expected weather in the form of three weather symbols and weather tendency

indicator in the form of an arrow.

• In normal mode display on the right shows the current indoor humidity.

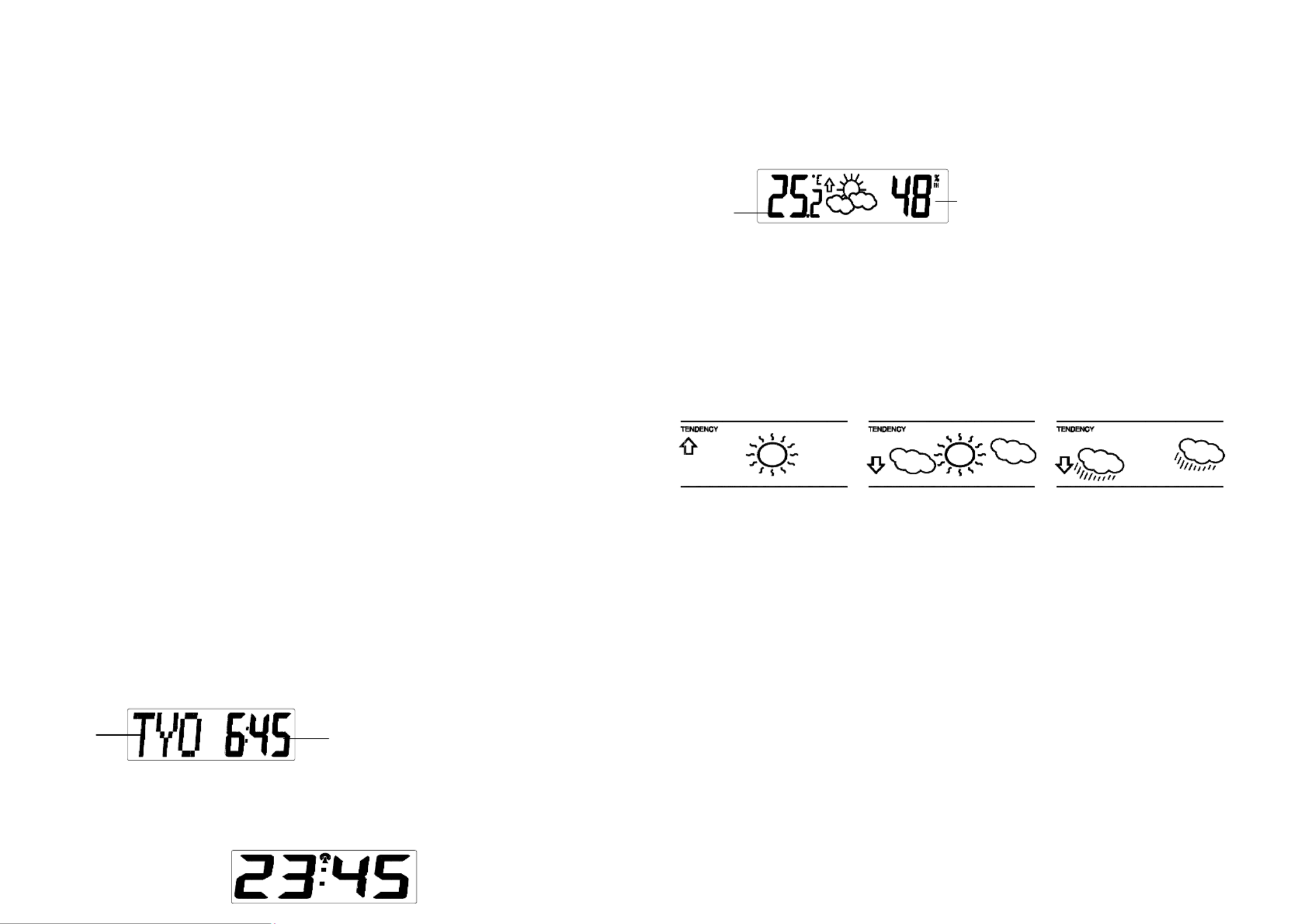

Weather Symbols:

The weather symbols will in the following combinations provide a weather forecast upon reading any sudden changes in

air pressure:

Sunny Cloudy with sunny intervals Rainy

Common to weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting feature is estimated

to have an accuracy level of about 75% due to the various areas it has been designed to be used in.

Weather Tendency Indicators :

The weather tendency indicator arrows are located to the left and right of the weather symbols. They indicate the air

pressure development and thus, also provide a forecast of the weather to be expected.

The tendency arrows can be displayed as follows:

• Tendency arrow pointing upwards:

This means that the air pressure is increasing and the weather is expected to improve.

• Tendency arrow pointing downwards:

This means that the air pressure is decreasing and the weather is expected to become worse.

City World

Time

Function Keys

SET Key

• Serves in normal mode to enter the programming mode and - once in programming mode - the selection of the

various setting modes as well as the acknowledgements of the selected values.
