Side 1/1
4
Please observe the
following when setting
up the device
A For devices to be
operated on the
desktop, please attach
the adhesive rubber
A Do not rest any objects
on top of the device
A Keep the ventilation
slots on the side of
the device clear of
obstruction
A Lockable wall and
ceiling mounting with
the LANCOM Wall
Mount (LN) (available as
an accessory)
a Power
Off Device switched off
Green,
constantly on*
Device operational
resp. device paired / claimed and LANCOM
Management Cloud (LMC) accessible.
blinking
Conguration password not set. Without a
conguration password, the conguration
data in the device is unprotected.
Orange/green
blinking alternately
with the WLAN
link LED
At least one Wi-Fi module is in
managed mode and has not found a
WLAN controller yet. The corresponding
Wi-Fi module(s) is/are switched off until a
WLAN controller has been found to supply
a congu ration, or until being switched
manually into another operating mode.
Orange/red
blinking alternately
with the WLAN
link LED
At least one Wi-Fi module is in managed
mode and has found a WLAN controller.
However, the WLAN controller cannot
assign a conguration because the
rmware and/or the device's loader
version is not compatible with the WLAN
controller.
1x green inverse
blinking*
Connection to the LMC active, pairing OK,
claiming error.
2x green inverse
blinking*
Pairing error, resp.
LMC activation code / PSK not available.
3x green inverse
blinking*
LMC not accessible, resp.
communication error.
a b
b WLAN link
Off No Wi-Fi network dened or Wi-Fi module
deactivated. The Wi-Fi module is not
transmitting beacons.
Green At least one Wi-Fi network dened and
Wi-Fi module activated. The Wi-Fi module
is transmitting beacons.
Green
inverse ashing
Number of ashes = number of connected
Wi-Fi stations and P2P wireless
connections, followed by a pause (default).
Alternatively the ashing frequency can
indicate signal strength over the dened
P2P link or the signal strength between the
access point and the device operating in
client mode.
Green blinking DFS scanning or other scan procedure.
Red blinking Hardware error in the Wi-Fi module.
M O U N T I N G A N D C O N N E C T I N G T H E D E V I C E
Hardware
Power supply 12 V DC, external power adapter (110 or 230 V) with bayonet connector to secure against
disconnection or PoE based on 802.3at via ETH1
Power consumption Approx. 15.1 W via 12 V / 2 A power adapter (value refers to the total power consumption of
access point and power adapter),
Approx. 14.9 W via PoE (value solely refers to the power consumption of the access point)
Environment Temperature range 0–45 °C (vertical wall mount with LANCOM Wall Mount (LN)),
0-37 °C (horizontal ceiling mount with LANCOM Wall Mount (LN))
Access point overheating is avoided by automatic throttling of the Wi-Fi modules
Humidity 0-95 %; non-condensing
Housing Robust synthetic housing, rear connectors, ready for wall and ceiling mounting; measures
205 x 42 x 205 mm (W x H x D)
Number of fans None; fanless design, no rotating parts, high MTBF
Wi-Fi
Frequency band 2400-2483.5 MHz (ISM) or 5180-5700 MHz (restrictions vary between countries)
Radio channels 2.4 GHz Up to 13 channels, max. 3 non-overlapping (2.4 GHz band)
Radio channels 5 GHz Up to 19 non-overlapping channels (automatic dynamic channel selection required)
Interfaces
ETH1 (PoE) 10 / 100 / 1000 Base-TX, autosensing, auto node hub,
PoE adapter compliant with IEEE 802.3at required
ETH2 10 / 100 / 1000 Base-TX, autosensing, auto node hub
Serial interface Serial conguration interface / COM-port (8-pin mini-DIN): 9,600 - 115,000 baud
Declaration of conformity
The Declaration of Conformity can be found on the product page of our website www.lancom-systems.com
Package content
Manual Installation Guide (DE/EN), Quick Reference Guide (DE/EN)
Antennas (only LN-862) Four 3 dBi dipole dual-band antennas
Cable Ethernet cable, 3 m
Power adapter External power adapter, NEST 12 V / 1.5 A DC/S, barrel connector 2.1 / 5.5 mm bayonet,
LANCOM item no. 111507 (EU, 230 V); LANCOM item no. 111302 (UK, 230 V)
LANCOM, LANCOM Systems and LCOS are registered trademarks. All other names or descriptions used may be trademarks or registered
trademarks of their owners. Subject to change without notice. No liability for technical errors and/or omissions. 111553/0317
T E C H N I C A L D E T A I L S
LANCOM LN-860
LANCOM LN-862

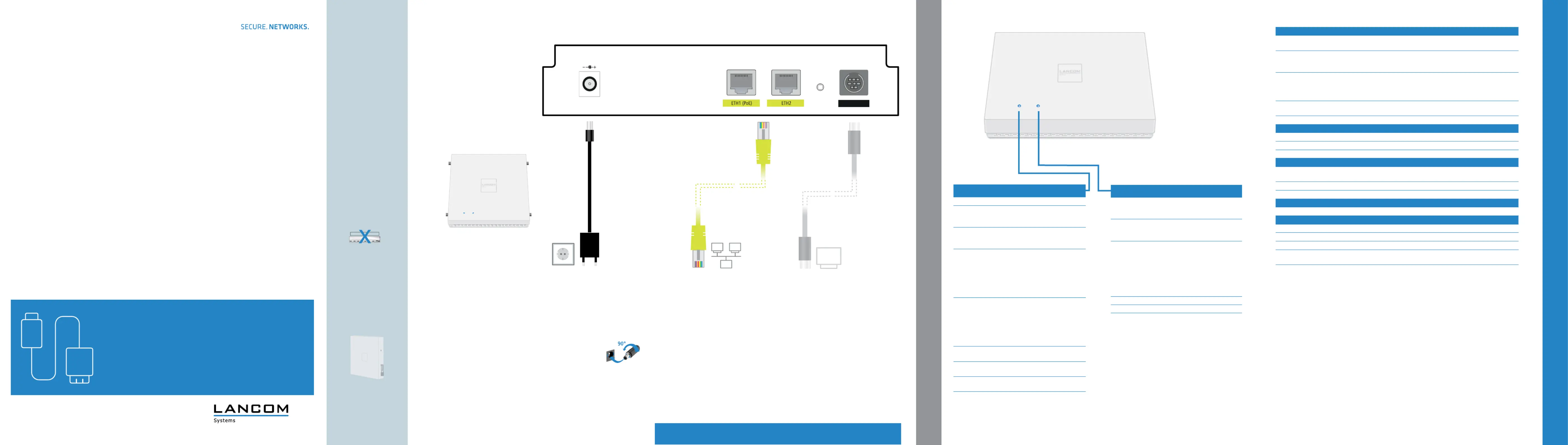

Quick Reference Guide
Ethernet interface
Use the cable with the Ethernet
connectors to connect interface
ETH1 (PoE) or ETH2 to your PC
or a LAN switch.
Power
When connecting the cable to the
device, turn the bayonet connector
90° clockwise until it clicks into
place.
Use only the supplied power adapter!
Serial interface
You can congure the device by
connecting it to a PC with a
conguration cable
(separately available).
b c d
Please note that when operating both Wi-Fi modules in the same frequency band, mutual
interference cannot be ruled out
5
DC 12 V Reset Config (Com)
c
b
d
Wi-Fi antennas (only LN-862)
Screw the supplied Wi-Fi antennas
onto the connectors
WLAN 1 Ant 1 / Ant 2 and
WLAN 2 Ant 1 / Ant 2.
The desired MIMO behaviour can
be congured under
> Physical WLAN Settings
> Radio
> Antenna grouping
a
WLAN 1 Ant 1
WLAN 1 Ant 2
WLAN 2 Ant 1
WLAN 2 Ant 2
a
*) The additional power LED status are displayed in 5-seconds rotation if the device is congured to be managed by the
LANCOM Management Cloud.
