Please observe the following when setting up the device
→ Donotplaceanyobjectsonthetopofthedeviceorstackseveraldevices
→ Lockablewallandceilingmountingusingthesuppliedwallmount
i
LANCOM LX-7400
Hardware Quick Reference

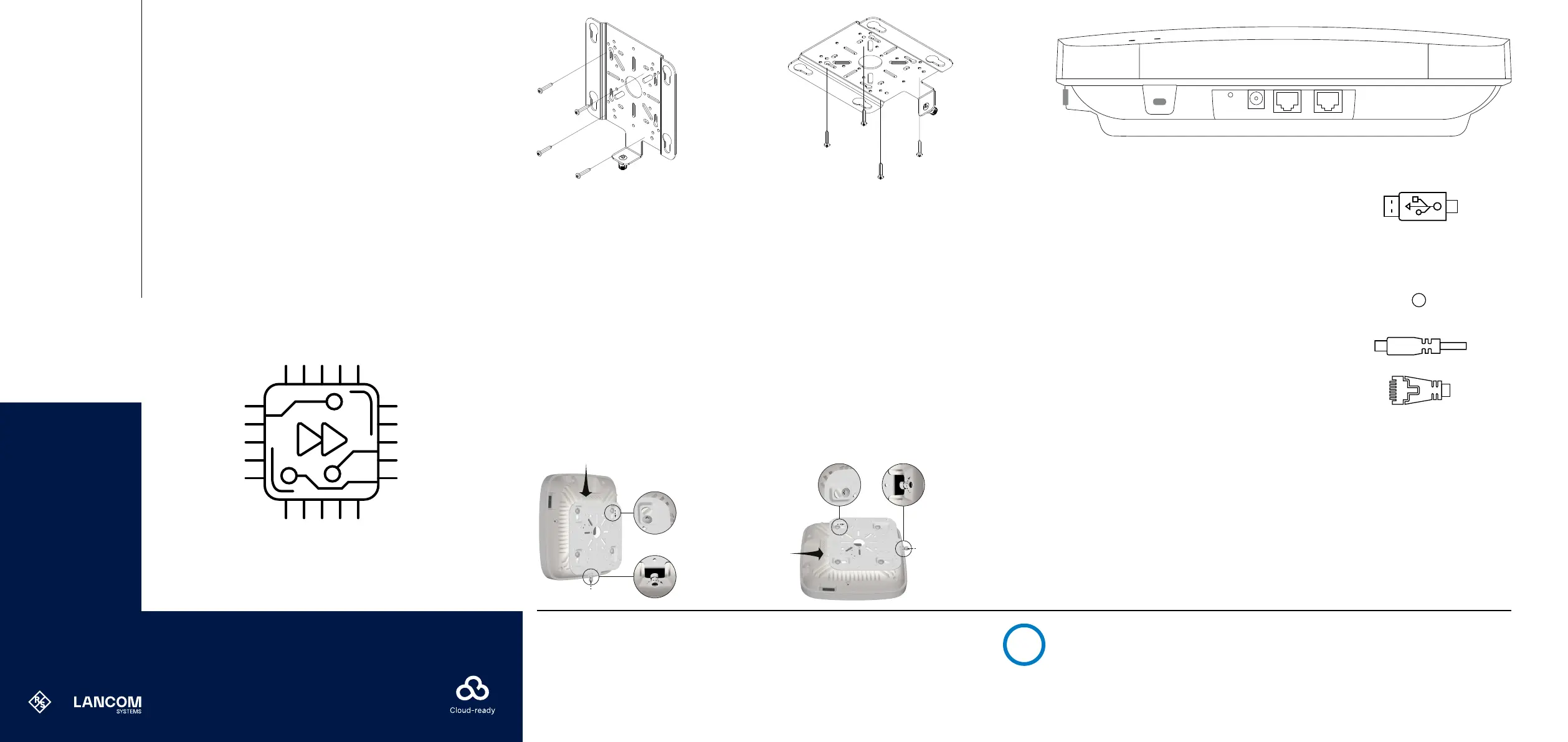

Wall mounting
Depending on the wall material structure, select 4 suitable pan
head screws M4x35
➀ and, if necessary, suitable dowels for
mounting the retaining plate
➁ on a sufficiently load-bearing
wall.
Mount the retaining plate
➁ with the screws ➀ through the
holes marked in the illustration to the wall.
The access point is already prepared for mounting on the
mounting plate.
Insert the access point into the mounting plate so that the locking
mechanisms on the device and mounting plate are opposite each
other and the screws M6x10
➃ already pre-assembled on the
device reach into the keyhole-shaped recesses of the retaining
plate. Then push the device towards the locking mechanism up
to the stop.
Ensure that the appliance is locked by tightening the locking
screw
➂ in the direction of the device and then turn it 90°
clockwise.
To remove the device, turn the locking screw
➂ 90°
counterclockwise and pull it away from the device. The device
can now be removed from the retaining plate in the opposite
direction to the locking direction.
➃
➂
Ceiling mounting
Depending on the ceiling material structure, select 4 suitable
pan head screws M4x35
➀ and, if necessary, suitable dowels
for mounting the retaining plate
➁ on a sufficiently load-bearing
ceiling.
Mount the retaining plate
➁ with the screws ➀ through the
holes marked in the illustration to the ceiling.
The access point is already prepared for mounting on the
mounting plate.
Insert the access point into the mounting plate so that the locking
mechanisms on the device and mounting plate are opposite each
other and the screws M6x10
➃ already pre-assembled on the
device reach into the keyhole-shaped recesses of the retaining
plate. Then push the device towards the locking mechanism up
to the stop.
Ensure that the appliance is locked by tightening the locking
screw
➂ in the direction of the device and then turn it 90°
clockwise.
To remove the device, turn the locking screw
➂ 90°
counterclockwise and pull it away from the device. The device
can now be removed from the retaining plate in the opposite
direction to the locking direction.
➃ ➂
➀
USB 2.0 interface
Connect compatible USB devices to the USB interface either
directly or via a suitable USB cable.
➁
Kensington Lock holder
For mechanical theft protection of the access point
➂
Reset button
Pressed up to 5 seconds: Device restart
Pressed longer than 5 seconds:
Configuration reset and device restart
➃
Power supply connection socket
Connect a suitable 12V power supply unit here.
➄
TP-Ethernet interfaces ETH1 / ETH2
Connect the ETH1 or ETH2 interfaces to other network
components using suitable Ethernet cables.
➀
➁
➂
➂
➁
➀
➁ ➃➂➀
➄
