Side 1/11
PK-A3141-10-02-5A
(REF-0R-49990-00 -06)-00
,>?@=04-0=!;?4.:990.?:=
%! &!$
%&
%%&
%
%
%%


%


%
%&R! &!$
A Division of Leviton Manufacturing Co.,Inc.
Technical Support: 800-824-3005
Fax: (425) 483-5270
www.levitonvoicedata.com

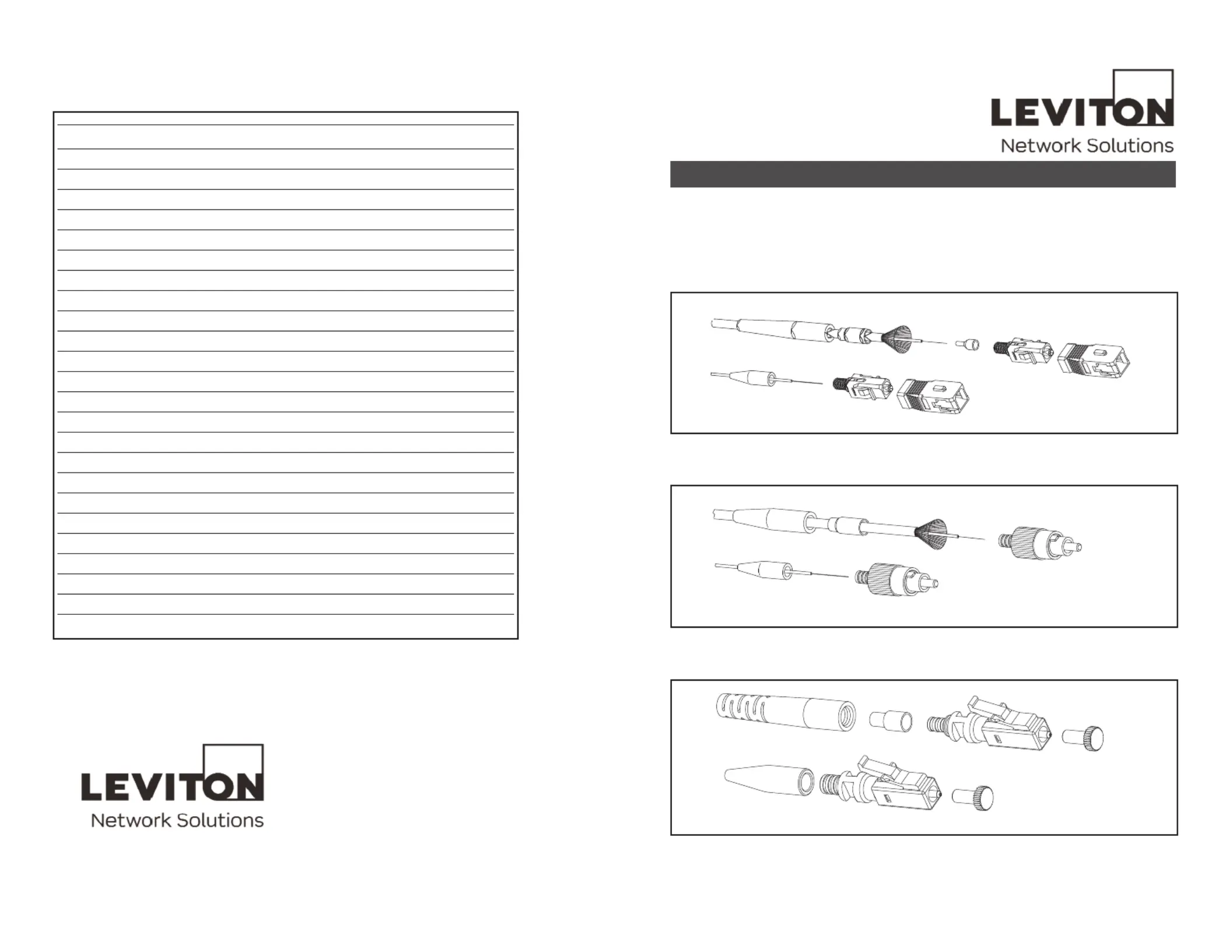

Description Part No.
Multimode ST Connector 50/125 & 62.5/125 49990-MST
Singlemode ST Connector 49990-SST
Multimode SC Connector 50/125 & 62.5/125 (beige) 49990-MSC
LO Multimode SC Connector (aqua) 49990-LSC
Singlemode SC Connector (blue) 49990-SSC
SC Duplex Clip, black (Bag of 25) 49886-DSC
Mulimode LC Connector with 3mm boot (beige) 49990-ML2
LO Multimode LC Connector with 3mm boot (aqua) 49990-LL2
Singlemode LC Connector with 3mm boot (blue) 49990-SL2
Multimode LC Connector with .9mm boot (beige) 49990-MDL
LO Multimode LC Connector with .9 mm boot (aqua) 49990-LDL
Singlemode LC Connector with .9mm boot (blue) 49990-SDL
LC Duplex Clip, Multimode, beige (bag of 25) 49886-DLM
LC Duplex Clip, Singlemode, blue (bag of 25) 49886-DLS
Fast Cure Tool Kit 49800-FTK
Fast Cure Consumables Kit 49800-FCC
Adhesive Primer Kit 49800-680
Crimp Tool with .128, .151, .178 hex die 49886-FCT
Replacement Needles (19 gauge, bags of 25) 49886-FCN
Syringes (bags of 25) 49886-SYR
LC Polishing Puck 49886-LCP
LC Duplex Scope Adapter 49886-LCD
LC Simplex Scope Adapter 49886-LCS
Fast Cure Carrying Case 49886-FCC
Part Numbers
! &!$
PK-A3141-10-02-5A
(REF-0R-49990-00- 06)00-

%&%)&

)&

'$

>>08-7D9>?=@.?4:9>
"$"$
77:990.?:=&D;0>
NOTE: If using 900 µm buffered fiber, do not use the crimp tube in step 1.
1. Slide the boot and the crimp tube onto the fiber, with the small end inserted first. (Figure 1)
:=88,.60?0/,-70Use the ribbed boot, provided.
:=S8@110=0/,-70Use the smooth boot, provided.
NOTE: If using an SC Connector on 900µm buffered fiber, you must install the SC body into the housing
before continuing to step 2. Align the body with the connector housing, then insert the body into
the housing until it snaps into place. Use the dust cap to push the body into the housing.
2. Strip the jacket and/or buffer using the measurements provided in the chart below, and strip in
increments of 1/4”. If using jacketed cable, trim the aramid strands as indicated, below.
(Figure 2a-c)
!&&:307;,A:4/?::7-@110=,9/14-0=.:9?,849,?4:9.70,95,.60?,9/0C;:>0/-@110=B4?3
,,7.:3:7B4;0?309B4?3,749?1=00B4;0-:?3-01:=0,9/,1?0=>?=4;;492
3. Clean exposed fiber with a 99% alcohol wipe followed by a lint-free wipe to remove any contaminants.
 !&8,20>,=09:??:>.,70
%:990.?:=&D;0>:988,.60?0/,-70! +
4. Insert spacer over buffer and push all the way down, until it rests against the jacket. (Figure 3)
7409? :?0> :?0>/07W@?474>,?0@= :?,>/07@>@,=4:
strip length 20 mm
1/4
1/4
3/4
1 3/4
1/2
1 1/2
apply primer 10mm
 !&8,20>,=09:??:>.,70
