OWNER'S MANUAL

LAUNDRY CENTER

Read this owner's manual thoroughly before operating the

appliance and keep it and h y for reference at all times.

ENGLISH ESPAÑOL

WSEX200HNA / WSGX201HNA

MFL71728914

Rev.0 _07 200 22

www.lg.com

TABLE OF CONTENTS

3 IMPORTANT SAFETY

INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE

3 WARNING STATEMENTS

7 CAUTION STATEMENTS

8 PRODUCT OVERVIEW

8 Product Features

10 OPERATION-WASHER

10 Using the Washer

13 Adding Cleaning Products

15 Control Panel

18 Wash Cycles

21 Cycle Modifiers

21 Options and Extra Functions

23 OPERATION-DRYER

23 Using the Dryer

25 Control Panel

27 Dry Cycles

29 Cycle Modifiers

29 Options and Extra Functions

31 SMART FUNCTIONS

31 Using LG ThinQ Application

35 Smart DiagnosisTM Function

37 MAINTENANCE

37 Washer

42 Dryer

44 TROUBLESHOOTING

44 Washer

52 Dryer

57 Common

58 LIMITED WARRANTY

58 USA

3IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and

follow all safety messages.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,

and tell you what may happen if the instructions are not followed.

WARNING STATEMENTS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this

product, follow basic precautions, including the following:

Safety for a Gas Dryer

Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Clothes dryer installation must be performed by a qualified installer.

• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is

installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with

clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These

conditions will obstruct clothes dryer airflow and increase the risk of fire.

• To reduce the risk of severe injury or death, follow all installation instructions.

FIRE OR EXPLOSION HAZARD

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other

appliance.

• WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your building.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages

will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

WARNING - Risk of Fire

5IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

• All nonrigid metal transition duct tion duct could must be UL-listed. Use of other materials for transi

affect drying time.

• Ductwork is not provided with the appliance, and you should obtain the necessary ductwork locally. The

end cap should have hinged dampers to prevent backdraft when the dryer is not in use.

• Gas dryers MUST be exhausted to the outside.

• The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted

outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An

accumulation of lint in any area of the home may create a health and fire hazard.

• Do not install near another heat source such as a stove, oven or heater.

• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of

lint, dust, and dirt.

• The appliance must not be supplied through an external switching device, such as a timer, or connected

to a circuit that is regularly switched on and off by a utility.

• Do not install a booster fan in the exhaust duct.

• This is a single appliance and a single unit for sale, delivery and installation.

• Do not disassemble this appliance as it can’t be installed in a side-by-side configuration.

Grounding Instructions

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check

with a qualified electrician or service personnel if you are in doubt whether the appliance is properly

grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper

outlet installed by a qualified electrician.

• The appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least resistance for electric current. The appliance is

equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes

and ordinances.

Operation

• Read all instructions before using the appliance and save these instructions.

• Use this appliance only for its intended purpose.

• If the product has been submerged in water, sitting in standing water, or waterlogged, do not come in

contact with the product and immediately contact an LG Electronics Customer Information Center for

instructions before resuming use.

• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug

it immediately, and contact an LG Electronics Customer Information Center.

• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used

for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for

such a period, before using the appliance, turn on all hot water faucets and let the water flow from each

for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not

smoke or use an open flame during this time.

• Do not reach into the appliance if the tub or drum, agitator, or any interior parts are moving. Before

loading, unloading, or adding items, press Start/Pause and allow the tub or drum to coast to a complete

stop before reaching inside.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning the use of the appliance by a person responsible for their safety.

• Do not allow children or pets to play on, in or with the appliance. Close supervision is necessary when the

appliance is used near children or pets.

6IMPORTANT SAFETY INSTRUCTIONS

• Keep laundry products out of children’s reach. To prevent injury to persons, observe all warnings on

product labels.

• Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage along its length or at either end.

• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight

out from the outlet.

• Do not use an extension cord or adapter with this appliance.

• Do not grasp the power cord or touch the appliance controls with wet hands.

• Do not modify or extend the power cord.

• If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent

or a similar qualified person in order to avoid a hazard.

• Do not put oily or greasy clothing, candles or flammable materials on top of the appliance.

• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags,

etc.), gasoline, chemicals and other flammable vapors and liquids.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other

appliance.

• Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when

using laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death.

• Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They will damage the

finish.

• Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, vegetable or cooking oil, or other flammable or explosive substances, as

they give off vapors that could ignite or explode.

• Do not dry unwashed items in the appliance.

• Remove all objects from pockets such as lighters and matches.

• Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash

water. These substances give off vapors that could ignite or explode.

• In the event of a gas leak (propane gas, LP gas, etc.), do not operate this or any other appliance. Open a

window or door to ventilate the area immediately.

• Do not tamper with controls.

• Fix the drain hose securely in place to avoid flooding.

• Do not abuse, sit on, or stand on the door of the appliance.

• Always check the inside of the appliance for foreign objects.

• Do not allow water, bleach or other liquids to sit in the drum for extended periods. Doing so can corrode

the drum or cause mildew or odors.

• Do not use the appliance to dry articles containing foam rubber or similarly textured rubber-like

materials.

• Gas appliances can cause minor exposure to four potentially hazardous substances, namely benzene,

carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural

gas or LP fuels.

• Properly adjusted appliances will minimize incomplete combustion. Exposure to these substances can be

minimized further by properly venting the dryer to the outdoors.

• Do not place items exposed to cooking oils in your appliance. Items contaminated with cooking oils may

contribute to a chemical reaction th reduce the risk of fire due to at could cause a load to catch fire. To

contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid

stopping tumble drying before the end of the drying cycle unless all items are quickly removed and

spread out so that the heat is dissipated.

• Do not put any part of your body, such as your hands or feet, or metal objects under the appliance.

• Do not let your hand get pinched when opening or closing the appliance door.

7IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

SAVE THESE INSTRUCTIONS

• Do not open the appliance door during a STEAM CYCLE.

• Do not touch the steam nozzle in the drum during or after a STEAM CYCLE.

• On models with a steam feeder drawer, do not fill the steam feeder with hot water (over 86 ℉ / 30 ℃),

gasoline, dry cleaning solvents, or other flammable or explosive substances.

Maintenance

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by

qualified service personnel unless specifically recommended in this owner’s manual. Use only authorized

factory parts.

• Disconnect this appliance from the power supply before cleaning and attempting any user maintenance.

Turning the controls to the OFF position does not disconnect this appliance from the power supply.

• Remove any dust or foreign matter from the power plug pins.

• Do not disassemble or repair the appliance by yourself.

• Remove the door(s) before the appliance is removed from service or discarded to avoid the danger of

children or small animals getting trapped inside.

• Make sure the dispenser drawer or lid is closed at all times when not being filled with laundry products.

• Clean the lint filter of the dryer before or after each load.

• The interior of the appliance and exhaust duct should be cleaned periodically by qualified service

personnel.

CAUTION STATEMENTS

CAUTION

• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or

property when using this product, follow basic precautions, including the following:

Installation

• Install the product on a firm and level floor.

Operation

• Turn off the water faucets and unplug the appliance if the appliance is to be left for an extended period

of time, such as during vacations.

• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.

• Do not combine laundry products for use in one load unless specified on the label.

• Do not touch draining water which may be hot.

• If the drain hose and the water inlet hose are frozen in winter, defrost them before using the appliance.

• Do not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the

appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.

• Clothing or articles that are waterp shed in the Waterproof cycle only. roof or water resistant must be wa

(Examples include water resistant clothing, mattress covers, outdoor clothes, plastic mats.) Using

another cycle may result in personal injury or damage to the washer, clothes, walls, floor, and

surrounding objects due to abnormal vibration.

8PRODUCT OVERVIEW

PRODUCT OVERVIEW

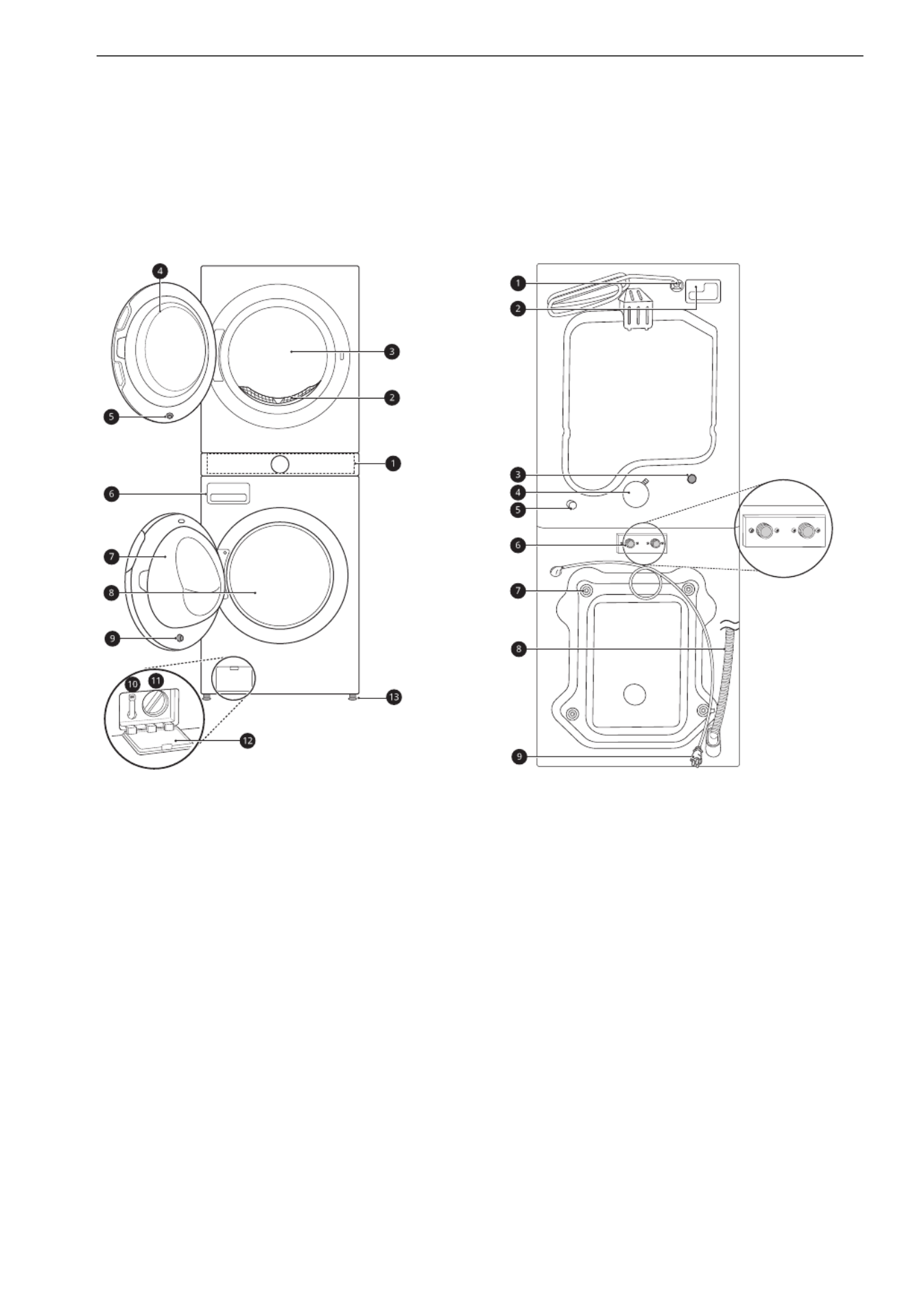

Product Features

The images in this guide may be different from the actual components and accessories, which are subject

to change by the manufacturer without prior notice for product improvement purposes.

Front View

aControl Panel

bLint Filter

cDryer Drum

dDryer Door

eDryer Door Magnet

fDetergent Dispenser Drawer

gWasher Door

hWasher Drum

iWasher Door Magnet

jDrain Hose

kDrain Pump Filter

lDrain Pump Filter Cover

mLeveling Feet

Rear View

aPower Cord (for Gas Models)

bTerminal Block Access Panel (for Electric

Models)

cCold Water Inlet

dExhaust Duct Outlet

eGas connection (for Gas Models)

fHot and Cold Water Inlets

gShipping Bolts

hDrain Hose

iPower Cord (for Washer)

9PRODUCT OVERVIEW

ENGLISH

Product Specifications

Accessories

Included Accessories

aNon-skid Pads

bHole Caps

cWrench

dY Connector

eTie Strap

fElbow Bracket (for securing drain hose)

Required Accessories

aHot and Cold Water Hoses (for Washer)

bCold Water Hose (for Dryer)

cConnecting Supply Hose

dTie Straps

Optional Accessories

aDrying Rack

WARNING

• For your safety and for extended product life,

use only authorized components. The

manufacturer is not responsible for product

malfunction, property damage or bodily injury

caused by the use of separately purchased

unauthorized components, parts, or non-LG

products.

Model WSEX200HNA / WSGX201HNA

Electrical Requirements Please refer to the rating label for detailed

information.

Min. / Max. Water Pressure 20 - 120 psi (138 - 827 kPa)

Dimensions (Width X Height X Depth) 27'' X 74 3/8'' X 30 3/8'' (70 cm X 189 cm X 77 cm)

Maximum Depth with Door Open 55'' (139.6 cm)

Net Weight 320 lb (145 kg)

Capacity (Washer/Dryer) 4.5 cu.ft. / 7.4 cu.ft.

Max. Spin Speed (Washer) 1300 RPM

Gas Requirements NG: 4 - 10.5-inch (10.2 - 26.7 cm) WC

LP: 8 - 13-inch (20.4 - 33.1 cm) WC

Operating Temperature Range 41-95 ℉ (5-35 ℃)

11OPERATION-WASHER

ENGLISH

Sorting Laundry

CAUTION

• Clothing or articles that are waterproof or water-resistant must be washed in the Waterproof, Bedding,

Bulky/Large, or Jumbo Wash cycle only. (Examples include water resistant clothing, mattress covers,

outdoor clothes, and plastic mats.) Failure to do so may result in personal injury or damage to the

washer, clothes, walls, floor, and surrounding objects due to abnormal vibration.

• Remove the stuffing from pillows and cushions before washing the covers. Failure to do so can cause

excessive vibration, resulting in damage to the washer, clothes, nearby objects, walls, and floor.

Grouping Similar Items

For the best washing results, and to reduce the possibility of damage to clothing, sort clothing into loads

made up of similar items.

Mixing different fabric types and/or soil levels can result in poor wash performance, color transfer,

discoloration, fabric damage or linting. Fabrics should be sorted into groups as described below.

Colors

Sort articles by color. Wash dark clothes separately from light colors or whites. Mixing dark clothes with

light clothes can result in dye transfer or discoloration of the lighter clothes.

Soil Level

Wash heavily soiled clothing together. Washing lightly soiled clothing in the same load with heavily soiled

clothing could result in poor wash performance for the lightly soiled clothing.

Fabric Type

Delicate articles should not be mixed with heavy or sturdy fabric types. Washing heavy fabrics with

delicates can result in poor wash performance for the heavy fabrics and possible damage to the delicates.

Lint Type

Some fabrics attract and bind lint to give off lint in the laundry process. Avoid mixing them while others

these lint collectors and lint producers in the same load. Mixing these fabrics will result in pilling and

linting on the lint collectors. (For example, lint collector - knit sweater; lint producer - terry cloth towels.)

How to Sort Laundry

Fabric Care Labels

Many articles of clothing include a fabric care label. Using the chart below, adjust the cycle and option

selections to care for your clothing according to the manufacturer’s recommendations.

By Colors By Soil By Fabric By Lint

White Heavy Delicates Lint Producer

Lights Normal Easy Care Lint Collector

Darks Light Sturdy

12 OPERATION-WASHER

Loading the Washer

WARNING

• Clothing or articles that are waterproof or water-

resistant must be washed in the Waterproof,

Bedding, Bulky/Large, or Jumbo Wash cycle

only. (Examples include water resistant clothing,

mattress covers, outdoor clothes, and plastic

mats.) Failure to do so may result in personal

injury or damage to the washer, clothes, walls,

floor, and surrounding objects due to abnormal

vibration.

General Tips

• Check and empty pockets. Paper clips, coins,

matches, etc.can damage clothing and the

washer.

• Close zippers and hooks, and tie drawstrings to

prevent snagging or tangling of clothes.

• Pretreat heavily stained areas for best results.

• Brush off heavy soil, dust, and hair from items

before washing. Excess dirt or sand can abrade

other fabrics and lead to poor wash

performance.

• For best performance, load clothes as shown.

- Do not press down on items while stacking

them in the drum.

- Load clothes loosely, and do not overfill the

drum. Clothes need room to circulate in order

to get clean.

• Combine large and small items in the drum.

Load large items first. Large items should not be

more than half of the total load.

• The washer can be fully loaded, but the drum

should not be tightly packed with items. The

door of the washer must close easily.

• The washer will not fill or operate with the door

open.

Bulky Items

• Wash thick, bulky items individually. Heavy

blankets, comforters, bedspreads, or pet beds

can get tangled or cause an unbalanced load if

combined with other items.

Category Label Directions

Washing

Hand wash

Machine wash, Normal cycle

Perm Press/Wrinkle Resistant setting (which has a cool down or cold

spray before the slower spin)

Gentle/Delicate setting (slow agitation and/or reduced wash time)

Do not wash

Do not wring

Water Temperature Hot

Warm

Cold/Cool

Bleach Symbols

Any bleach (when needed)

Only non-chlorine bleach (when needed)

Do not bleach

13OPERATION-WASHER

ENGLISH

Small Items

• Do not wash a single small item. Add enough

similar items to the load to prevent an out-of-

balance load.

• Wash small, light items in a mesh bag. Small

items can get caught in the impeller at the

bottom of the drum, and brassiere hooks can

snag on other clothing or the drum.

Adding Cleaning Products

About Detergent Use

This washer is designed for use with only HE (High-

Efficiency) detergents.

• HE detergents produce fewer suds, dissolve

more efficiently to improve washing and rinsing

performance, and help to keep the interior of

the washer clean. Using detergent that is not HE

may cause oversudsing and unsatisfactory

performance which could result in error codes,

cycle failure, and washer damage.

• Detergents designated as HE-compatible may

not provide optimal results.

• For proper wash performance, always measure

detergent using the measuring device provided

by the detergent manufacturer. For an average

load, use less than half of the recommended

maximum. Use less detergent for soft water,

light soil, or smaller loads.

• Use extra care when measuring 2X and 3X

concentrated detergents because even a small

amount of extra detergent can lead to problems.

• Never use more than the maximum amount of

detergent recommended by the manufacturer.

Using too much detergent can lead to

oversudsing, poor rinsing, detergent buildup in

clothing, and residue buildup that can contribute

to odors in the washer.

aMaximum fill line

bAverage load fill line

cLiquid detergent

dPowdered detergent

Single-Use Detergent Packs

• Do not use more than one single-use detergent

pack in the washer. Using too much detergent

may cause oversudsing and unsatisfactory

performance. Reduce detergent amount or add

an extra rinse if detergent residue is left on

fabrics. To add an extra rinse, select the Extra

Rinse option.

• Place liquid or powdered detergent packs in the

drum before loading laundry. Do not place

detergent packs in the dispenser.

Using the Dispenser

To add cleaning products to the automatic

dispenser:

1 Open the dispenser drawer.

2 Load the laundry products into the

appropriate compartments.

• Follow the manufacturer’s

recommendations when adding cleaning

products.

aPre-wash detergent compartment (on

some models)

bLiquid detergent cup

cMain wash detergent compartment

dLiquid fabric softener compartment

eLiquid chlorine bleach compartment

14 OPERATION-WASHER

3 Gently close the detergent dispenser drawer

before starting the cycle.

• Slamming the drawer closed may result in

the detergent overflowing into another

compartment or dispensing into the drum

earlier than programmed.

• Be careful not to get a hand caught in the

drawer while closing.

• It is normal for a small amount of water to

remain in the dispenser compartments at

the end of the cycle.

CAUTION

• Do not place or store laundry products, such as

detergent, bleach, or liquid fabric softener, on

top of your washer. These products can damage

the washer’s finish and controls.

Pre-wash Detergent Compartment

Add liquid or powdered detergent to this

compartment when using the Pre-wash option.

Always use HE (High-Efficiency) detergent with

your washer.

• When using the Pre-wash option, liquid

detergent for the main wash needs to be loaded

in the liquid detergent cup accessory in the main

wash dispenser (where applicable), to prevent it

from being dispensed with the pre-wash

detergent.

• The amount of detergent added for the Pre-

wash option is 1/2 the amount recommended

for the main wash cycle. For example, if the main

wash cycle requires one measure of detergent,

add 1/2 measure for the Pre-wash option.

Main Wash Detergent Compartment

This compartment holds laundry detergent for the

main wash cycle. Either powdered or liquid

detergent may be used in this compartment.

• The detergent is added to the load at the

beginning of the cycle. Always use HE (High-

Efficiency) detergent with your washer.

• Do not exceed the maximum fill line. Using too

much detergent can result in detergent buildup

in clothing and the washer.

• Liquid or powdered color-safe bleach may be

added to the main wash compartment with

detergent of the same type. Do not mix liquids

and powders

• If the dispenser has a liquid detergent cup and

insert:

- Make sure they are in place when using liquid

detergent.

- Make sure to remove them when using

powdered detergent. Powdered detergent will

not dispense with the liquid detergent cup and

insert in place.

• If you use a detergent that does not dissolve

easily or a detergent with high viscosity, it will

leave a residue and clog the dispenser.

Liquid Bleach Compartment

This compartment holds liquid bleach, which is

dispensed automatically at the proper time during

the wash cycle. The dispenser is activated twice to

ensure complete dispensing of the bleach. Any

liquid remaining in the dispenser at the end of the

cycle is water, not bleach.

WARNING

• Do not mix chlorine bleach with ammonia or

acids such as vinegar or rust/scale remover.

Mixing chemicals like these can produce a lethal

gas, resulting in severe injury or death.

NOTE

• Do not add powdered bleach to this

compartment. The bleach compartment is

designed to dispense liquid chlorine bleach only.

Powdered or liquid color-safe bleach will not

dispense properly.

• Follow the manufacturer’s recommendations

when adding bleach. Never add more than one

cup, and do not exceed the maximum fill line or

the bleach may be dispensed immediately and

damage fabrics. Using too much bleach can also

damage fabrics.

• Never pour undiluted liquid chlorine bleach

directly onto the load or into the drum. Fabric

damage can occur.

• Do not use color-safe bleach or oxygen bleach in

the same cycle with liquid chlorine bleach.

Fabric Softener Compartment

This compartment holds fabric softener, which is

automatically dispensed during the final rinse

cycle. Either powdered or liquid fabric softener

may be used.

• Do not exceed the maximum fill line. Using too

much fabric softener may stain clothes or cause

buildup on fabrics or in the washer.

• Dilute concentrated fabric softeners with warm

water.

• Never pour fabric softener directly onto the load

or into the drum.

15OPERATION-WASHER

ENGLISH

Control Panel

Control Panel Features for the Washer

aPower On/Off Button

• Press this button to turn the washer on or off.

• Pressing this button during a cycle will cancel that cycle and any load settings will be lost.

• The door will unlock after a brief pause.

NOTE

• If there is any water remaining in the drum after the washer shuts off, it will drain after a delay. The

washer can be restarted at any time before the drain begins. However, once the water begins to drain,

all functions will be suspended until the water has been completely drained and the washer shuts off.

bCycles

• Press a button to select the desired cycle.

• Once the desired cycle has been selected, the standard presets will appear in the display. These

settings can be adjusted using the Cycle Modifier buttons at any time before starting the cycle.

cStart/Pause Button

• Press and hold this button to start the selected cycle.

• If the washer is running, use this button to pause the cycle without losing the current settings.

NOTE

• If the Start/Pause button is not pressed to after a delay the washerstart the selected cycle,

automatically turns off and all cycle settings are lost. Any water remaining in the drum will be drained.

dCycle Modifier Buttons

• Use these buttons to adjust the wash temperature, spin speed and soil level settings for the selected

cycle.

• The current settings are shown in the display.

• Press the button for that option to select other settings.

eOption and Extra Function Buttons

18 OPERATION-WASHER

Wash Cycles

The wash cycles are designed for specific types of wash loads. Select the cycle that best matches the load

contents for maximum wash performance and fabric care. See Sorting Laundry section for best results,

and follow the fabric care labels on your garments. For a guide to fabric care symbols, see Sorting

Laundry section.

Cycle Guide

Turn the knob or press the button to e. When you select a wa select the desired cycl sh cycle, the light for

the corresponding wash cycle will turn on.

NOTE

• Whenever load weights are mentioned, assume 1 lb (0.45 kg) = 1 thick bath towel (dry).

•Temperature: Cold > Cool > Warm > Very Warm > Hot

•Spin: No Spin > Low > Medium > Medium High > High

•Soil: Light > Limited > Normal > Moderate > Heavy

Cycle Normal

Description Use to wash all normal items such as cotton, linen, shirts, jeans or mixed loads, except

delicate fabrics such as wool or silk.

• Pressing the Start/Pause button without selecting a cycle will cause the Normal

cycle to begin immediately, using the default settings.

Wash Temp. Default: Warm Available: All

Spin Speed Default: Medium High Available: High, , , Medium High Medium

Low

Soil Level Default: Normal Available: All

Cycle Bedding

Description Suitable for washing blankets or bulky items which have difficulty absorbing water, such

as pillows, blankets, comforters, sheets or pet bedding.

• Do not use this cycle to wash a mixed load of bedding and non-bedding items.

• Do not mix large/bulky items with smaller articles of clothing.

• Do not wash excessively large items. If large/bulky items do not fit easily into the

tub, there may not be enough room for them to move during washing.

Wash Temp. Default: Warm Available: Very Warm, , , Warm Cool Cold

Spin Speed Default: , , Medium Available: Medium Low No Spin

Soil Level Default: Normal Available: All

Cycle Delicates

Description Suitable for washing dress shirts/blouses, nylons, lingerie, or sheer and lacy clothes which

can easily be damaged. (less than 8 lb (3.63 kg))

Wash Temp. Default: , , Cool Available: Warm Cool Cold

Spin Speed Default: , , Medium Available: Medium Low No Spin

19OPERATION-WASHER

ENGLISH

Available Options

† This option is automatically included in the cycle and cannot be deselected.

NOTE

• If the Turbo WashTM option is on, you cannot set the spin level to No Spin.

Soil Level Default: Normal Available: All

Cycle Heavy Duty

Description Suitable for washing heavily soiled laundry, such as cotton fabrics, using more powerful

wash motions.

• When washing large loads, there will be brief periods of 2 minutes or more

without agitation. Th the cycle’s design, and are ese soak periods are part of

normal.

Wash Temp. Default: Warm Available: All

Spin Speed Default: , , , High Available: High Medium High Medium

Low

Soil Level Default: Heavy Available: All

Cycle Speed Wash

Description Quickly washes lightly soiled clothing and small loads. For high wash and rinse efficiency,

wash small loads of 2-3 lightly soiled garments. (less than 3 lb (1.36 kg))

• Use very little detergent in this cycle. To add an extra rinse, use the Extra Rinse

option.

Wash Temp. Default: Very Warm Available: Very Warm, , , Warm Cool Cold

Spin Speed Default: High Available: All

Soil Level Default: Light Available: All

Cycle Downloaded (Rinse+Spin)

Description Use a smartphone to download a specialized cycle to this cycle position.

• The default cycle is Rinse+Spin. This cycle is also available for download.

• Refer to the LG ThinQ application to see the cycles available for download.

Wash Temp. Default: Cool Available: Cool

Spin Speed Default: Medium High Available: All

Soil Level Default: - Available: -

Cycle Steam Turbo WashTM Extra Rinse Pre-wash

Normal ##†# #

Bedding # # # #

Cycle Delicates

20 OPERATION-WASHER

Delicates # #

Heavy Duty ##†# #

Speed Wash # #

Downloaded

default: Rinse+Spin #

Cycle Steam Turbo WashTM Extra Rinse Pre-wash

22 OPERATION-WASHER

WARNING

• Do not touch the door during steam cycles. The

door surface can become very hot and can cause

severe burns. Allow the door lock to release

before opening the door.

• Do not attempt to override the door lock

mechanism or reach into the washer during a

steam cycle. Steam can cause severe burns.

Turbo WashTM

Adding this option reduces the cycle time while still

providing similar wash performance to the same

cycle without Turbo WashTM.

NOTE

• This option cannot be used with all cycles.

• This option defaults to on for Normal and Heavy

Duty wash cycles.

Extra Rinse

This option adds an extra rinse to the selected

cycle. Use this option to help ensure the removal

of detergent or bleach residue from fabrics.

• Press the Extra Rinse button to add additional

rinses to the cycle.

Using the Pre-wash Option

This option adds a pre-wash (for about 15 - 17

minutes) for improved cleaning of heavily soiled

or stained clothing.

NOTE

• If you select Pre-wash after putting the

detergent directly in the drum, the detergent

may be washed away, reducing the washing

performance.

Control Lock

Use this function to disable the controls. This

function can prevent children from changing

cycles or operating this washer.

NOTE

• The function does not lock the door.

• Once this function is set, all buttons are locked

except the Power button.

• When the controls are locked, CL and the

remaining time are alternately shown on the

display during the wash cycle.

• Turning off the power will not reset this function.

You must deactivate this function before you can

access any other options and functions.

Locking/Unlocking the Control Panel

1 Turn on the power.

2 Press and hold the Soil button for 3 seconds

to activate/deactivate this function.

• When the function is deactivated, a chime will

sound and the remaining time for the current

cycle will reappear on the display.

Signal

The washer plays a melody when the wash cycle is

finished. The buttons make a sound each time a

button is pressed. Use this button to turn the

melody and button tones on or off.

• To turn the function on/off, press and hold the

Extra Rinse button for 3 seconds.

Drum Light

The drum is equipped with a white LED light that

illuminates when the washer is turned on. This

light automatically turns off when the door is

closed and the cycle starts.

• Press and hold the Pre-wash button for 3

seconds during the cycle to turn on the drum

light.

• The drum light will turn off automatically after 4

minutes.

25OPERATION-DRYER

ENGLISH

Control Panel

Control Panel Features for the Dryer

aPower Button

• Press the button to turn the appliance on. Press again to turn the appliance off.

NOTE

• Pressing the Power button during a cycle will cancel that cycle and any load settings will be lost.

bCycles

• Press a button to select the desired cycle. Once the desired cycle has been selected, the standard

presets will be shown in the display.

cStart/Pause Button

• Press and hold this button to start the selected cycle. If the appliance is running, use this button to

pause the cycle without losing the current settings.

NOTE

• If you do not press the Start/Pause button to resume a cycle within 14 minutes, the appliance turns off

automatically and all cycle settings are lost.

dCycle Modifier Buttons

• Press these buttons to select additional cycle options. Press and hold any button marked with an

asterisk for 3 seconds to activate a special function.

eExtra Options and Functions

• Use these buttons to select the desired options for the selected cycle. Not all options are available for

each cycle.

•Remote Start

- With the LG ThinQ app, you can use a smartphone to control your appliance remotely.

•Wi-Fi

- Press and hold the Temp. button for 3 seconds to initiate the connection of the appliance to the LG

ThinQ application.

26 OPERATION-DRYER

Time and Status Display

aWi-Fi Indicator

• This indicator is lit when the product is connected to a home Wi-Fi network.

bRemote Start Indicator

• This indicator lights up when the Remote Start feature is activated.

cFlow Sense Indicator

• The Flow Sense duct blockage sensing system detects and alerts you to blockages in the ductwork

that reduce exhaust flow from the dryer. Maintaining a clean exhaust system improves operating

efficiency and helps minimize service calls, saving you money.

dSignal Indicator

• This indicator lights up when the end-of-cycle and button tones are turned on.

eEstimated Time Remaining

• When a drying cycle is selected, the estimated drying time for the selected cycle is displayed. This

time will change if you select extra options for the cycle.

• The cycle time on Sensor Dry cycles may fluctuate as the appliance recalculates drying time for

optimal results.

fAI Sensor Dry Indicator

• This feature optimizes drying times and temperatures by detecting the laundry's characteristics.

The indicator lights up when the Normal cycle is selected with the Normal dry level, except when the

Energy Saver option is turned on.

gLint Filter Status Indicator

•K lights up at the beginning of the cycle to remind you to check the lint filter. It also lights up if the

lint filter needs to be cleaned or is missing.

- If the lint filter is not inserted, the icon will light up and the appliance will not operate.

hCycle Status Indicators

•@ lights up when the appliance is in the drying stage.

•= lights up when the appliance is in the cool down stage.

27OPERATION-DRYER

ENGLISH

Dry Cycles

Cycle Guide

The appliance automatically sets the dryness level and temperature at the recommended setting for each

cycle. The estimated time remaining will be shown in the display.

•Temperature: Low > Medium Low > Medium > Medium High > High

•Dry Level: Damp > Less > Normal > More > Very

Cycle Normal

Description Use this cycle for drying all normal items such as cotton, linen, shirts, jeans or mixed

loads, except delicate fabrics such as wool or silk.

Temp. Default: Medium High Available: Medium High

Dry level Default: Normal Available: All

Cycle Bedding

Description Use this cycle for drying blankets or bulky items such as pillows, blankets, comforters,

sheets or pet bedding.

Temp. Default: Medium MediumAvailable:

Dry level Default: Normal Available: Very, More, Normal

Cycle Delicates

Description Use this cycle for drying dress shirts/blouses, nylons, lingerie, or sheer and lacy clothes

which can easily be damaged.

Temp. Default: Medium Low Available: Medium Low

Dry level Default: Normal Available: All

Cycle Heavy Duty

Description Use this cycle for drying heavy-duty clothes like jeans or garments that need extra

drying.

Temp. Default: High HighAvailable:

Dry level Default: Normal Available: All

Cycle Small Load

Description Use this cycle for drying light or small items. (up to 3 items)

Temp. Default: High HighAvailable:

Dry level Default: Normal Available: Very, More, Normal

28 OPERATION-DRYER

Available Options

† This option is automatically included in the cycle and can be deselected.

NOTE

• The Energy Saver option is set to on by default. If you turn on the dryer and set the Energy Saver option

to off, the Energy Saver option is turned off when you turn on the dryer.

Cycle Downloaded (Perm. Press)

Description Use a smartphone to download a specialized cycle to this cycle position.

• The default cycle is Perm. Press. This cycle is also available for download.

• Refer to the LG ThinQ application to see the cycles available for download.

Temp. Default: Medium MediumAvailable:

Dry level Default: Normal Available: All

Cycle Steam Winkle Care Reduce Static Energy Saver

Normal # # #†

Bedding # #

Delicates # #

Heavy Duty ###

Small Load #

Downloaded

default: Perm.

Press

###

29OPERATION-DRYER

ENGLISH

Cycle Modifiers

About Modifier Buttons

Each cycle has default settings that are selected

automatically. Customize these settings using the

cycle modifier buttons. Press the button for the

desired modifier to open the modifier’s screen.

Temp.

Use this button to adjust the temperature setting.

This allows precise care of fabrics and garments.

Press the Temp. button repeatedly to scroll

through available settings.

Dry Level

Use this button to select the dryness level for the

cycle. Press the Dry Level button repeatedly to

scroll through available settings.

• The appliance will automatically adjust the cycle

time according to the selected dryness level.

Selecting More or Very will increase the cycle

time, while Less or Damp will decrease the cycle

time.

• Use a Less or Damp setting for items that you

wish to iron.

Time Dry

Use this button to manually select the drying time,

from 20 to 60 minutes, in 10-minute increments.

• Use this for small loads or to remove wrinkles.

Options and Extra Functions

Your dryer includes several additional cycle

options to customize cycles to meet your individual

needs.

Select the desired option after selecting the

desired cycle and settings.

NOTE

• The LED for the option will light up when the

option is selected.

• To protect your garments, not every option is

available with every cycle.

• A chime will sound twice and the LED will not

light up if the selected option is not allowed for

the selected cycle.

Steam

Adding the Steam option to a dry cycle helps

reduce wrinkles and odor in fabrics.

WARNING

• Do not touch the door during steam cycles. The

door surface can become very hot.

• Do not attempt to reach into the dryer during a

steam cycle. Steam can cause severe burns.

NOTE

• Steam may not be clearly visible during steam

cycles. This is normal.

• Do not use steam with delicate fabrics such as

wool, silk, or easily discolored fabrics.

• When the filter/duct is clogged, this option may

not have optimal results.

• When the steam function is operating, the drum

will stop to allow steam to stay in the drum.

Steam Fresh

This cycle uses the power of steam to quickly

reduce wrinkles and odors in fabrics. It brings new

life to wrinkled clothes that have been stored for

an extended time and makes heavily wrinkled

clothes easier to iron. It can also be used to help

reduce odors in fabrics.

1 Press the Power button to turn on the dryer.

2 Press and hold the Steam button for 3

seconds.

3 To add an option, select Wrinkle Care.

4 Press Start/Pause to start the cycle.

NOTE

• Steam may not be clearly visible during the

steam cycles. This is normal.

30 OPERATION-DRYER

NOTE

• Do not use Steam Fresh with items such as

wool, wool blankets, leather jackets, silk, wet

clothes, lingerie, foam products, or electric

blankets.

Wrinkle Care

Selecting this option will tumble the load

periodically for up to 3 hours after the selected

cycle, or until the door is opened. This is helpful in

preventing wrinkles when you are unable to

remove items from the dryer immediately.

Press the Wrinkle Care button before you start a

drying cycle.

NOTE

• When the option is set, a rectangle with a

dashed line and ENd appears on the display until

the feature is off.

• When the option is set, only the Power button

works after the drying cycle ends.

• When a drying cycle is running, pause the cycle

first to set the option.

• Always turn off the appliance before unloading

the clothes.

Reduce Static

This option injects steam late in the drying cycle to

reduce the static electricity caused by dry fabrics

rubbing together.

Energy Saver

This option helps to reduce the energy

consumption of the Normal cycle, depending on

the load size. When the Energy Saver option is

selected, the cycle begins with an air dry section

and the drying time is increased.

Control Lock

Use this function to disable the controls. This

function can prevent children from changing

cycles or operating this dryer.

NOTE

• The function does not lock the door.

• Once this function is set, all buttons are locked

except the Power button.

• When the controls are locked, CL and the

remaining time are alternately shown on the

display during the dry cycle.

• Turning off the power will not reset this function.

You must deactivate this function before you can

access any other options and functions.

Locking/Unlocking the Control Panel

1 Turn on the power.

2 Press and hold the Time Dry button for 3

seconds to activate/deactivate this function.

• When the function is deactivated, a chime will

sound and the remaining time for the current

cycle will reappear on the display.

Signal

The dryer plays a melody when the dry cycle is

finished. The buttons make a sound each time a

button is pressed. Use this button to turn the

melody and button tones on or off.

• To turn the function on/off, press and hold the

Reduce Static button for 3 seconds.

Drum Light

The drum is equipped with a white LED light that

illuminates when the dryer is turned on. This light

automatically turns off when the door is closed

and the cycle starts.

• Press and hold the Wrinkle Care button for 3

seconds during the cycle to turn on the drum

light.

• The drum light will turn off automatically after 4

minutes.

31SMART FUNCTIONS

ENGLISH

SMART FUNCTIONS

Using LG ThinQ Application

The LG ThinQ application allows you to

communicate with the appliance using a

smartphone.

LG ThinQ Application Features

•Remote Start

- Control the appliance remotely from the LG

ThinQ application.

•Downloaded

- Download new and specialized cycles that are

not included in the standard cycles on the

appliance. Once cycle download is completed

in the appliance, the product keeps the

downloaded cycle until a new cycle is

downloaded.

•Cloud Cycle

- The Cloud cycles include many cycles which

are started from the Cloud and offer various

options. However, the downloaded cycle is

deleted from the appliance when the power is

turned off.

•Tub Clean Coach (Washer)

- Find out how many cycles remain before it is

time to run the Tub Clean cycle.

• Venting Tips (Dryer)

- Access tips for optimizing dryer ventilation.

•Energy Monitoring

- Keep track of the washer's power consumption

and how it is affected by your selected wash

cycles and options.

•Smart DiagnosisTM

- This function provides useful information for

diagnosing and solving issues with the

appliance based on the pattern of use.

•Push Alerts

- When the cycle is complete or the appliance

has problems, you will receive a push

message.

•Settings

- Set various options on the appliance and in the

application.

NOTE

• If you change your wireless router, Internet

service provider, or password, delete the

connected appliance from the LG ThinQ

application and connect it again.

• This information is current at the time of

publication. The application is subject to change

for product improvement purposes without

notice to users.

Before Using LG ThinQ Application

1 Check the distance between the appliance

and the wireless router (Wi-Fi network).

• If the appliance is too far from the router,

the signal strength becomes weak. It may

take a long time to connect or installation

may fail.

2 Turn off the Mobile data or Cellular Data on

your smartphone.

3 Connect your smartphone to the wireless

router.

NOTE

• To verify the Wi-Fi connection, check that the f

icon on the control panel is lit.

• The appliance supports 2.4 GHz Wi-Fi networks

only. To check your network frequency, contact

your Internet service provider or refer to your

wireless router manual.

• is not responsiblLG ThinQ e for any network

connection problems or any faults, malfunctions,

or errors caused by network connection.

• If the appliance is having trouble connecting to

the Wi-Fi network, it may be too far from the

router. Purchase a Wi-Fi repeater (range

extender) to improve the Wi-Fi signal strength.

• The Wi-Fi connection may not connect or may be

interrupted because of the home network

environment.

32 SMART FUNCTIONS

NOTE

• The network connection may not work properly

depending on the Internet service provider.

• The surrounding wireless environment can

make the wireless network service run slowly.

• If the appliance cannot be registered due to

problems with the wireless signal transmission,

unplug the appliance and wait about a minute

before trying again.

• If the firewall on your wireless router is enabled,

disable the firewall or add an exception to it.

• The wireless network name (SSID) should be a

combination of English letters and numbers. (Do

not use special characters.)

• Smartphone user interface (UI) may vary

depending on the mobile operating system (OS)

and the manufacturer.

• If the security protocol of the router is set to

WEP, network setup may fail. Change the

security protocol (WPA2 is recommended) and

connect the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the

Google Play Store or Apple App Store on a

smartphone. Follow instructions to download and

install the application.

Using the Washer/Dryer Remotely

Remote Start

Use a smartphone to control your appliance

remotely. You can also monitor your cycle

operation so you know how much time is left in the

cycle.

Using Remote Start

1 Load the laundry.

2 Press the Power button.

3 Press and hold the Remote button for 3

seconds to enable the remote control

function.

4 Start a cycle from the LG ThinQ application on

your smartphone.

NOTE

• Once this function is enabled, you can only start

a cycle from the LG ThinQ smartphone

application. If the cycle is not started, the

appliance will wait to start the cycle until it is

turned off remotely from the application or this

function is disabled.

• If the door has been opened, you cannot start a

cycle remotely.

Disabling Remote Start Manually

When the function is activated, press and hold the

Remote button for 3 seconds.

Downloaded Cycle

You can download new and specialized cycles that

are not included in the standard cycles on the

appliance.

Appliances that have been successfully connected

can download a variety of specialty cycles specific

to the appliance.

Once cycle download is completed in the

appliance, the product keeps the downloaded

cycle until a new cycle is downloaded.

NOTE

• Only one downloaded cycle can be stored on the

appliance at a time.

Cloud Cycle

Use the LG ThinQ app to start cycles with various

options. Cloud cycles are deleted from the

appliance once the power is turned off.

Downloaded and Cloud Cycles for the Washer

Check the LG ThinQ app for available Downloaded and Cloud cycles for your model.

Cycle Name Description

Allergiene Powerful, high-temp cycle to reduce certain allergens

33SMART FUNCTIONS

ENGLISH

Downloaded and Cloud Cycles for the Dryer

Check the LG ThinQ app for available Downloaded and Cloud cycles for your model.

Beachwear Optimized for beachwear

Blanket Cleans blankets which are used every day. Do not use for wool blankets.

Bright Whites Bright whites only

Collars and Cuffs Washes collars and cuffs using a high temperature for effective stain removal.

Color Care Keeps colors from fading

Delicate Dresses Cleans lightly stained cocktail dresses with care

Denim Special cycle for jeans

Spin Only For spinning dry handwashables.

Full Load Wash Optimized wash settings for full sized wash loads

Half Load Wash Optimized wash settings for half sized wash loads

Juice and Food Stains Removes juice and food stains from clothes.

Hand Wash / Wool For washing shrinkable woolen or hand-washable items requiring delicate care

Overnight Wash Reduces washing noise and continues tumbling after the cycle to prevent

wrinkles.

Perm. Press Optimized for wrinkle-free clothes or tablecloths.

Rainy Day Cleans clothing that is damp from the rain.

Rinse+Spin rinse and spin a load separately from a regular cycle.

Single Garments Quickly washes a single item.

Small Load Washes a small load of laundry (less than 3 lb).

Sportswear Optimized for specially treated sportswear.

Sweat Stains Removes sweat stains and odor.

Towels Optimized for towels, shirts, jeans and mixed loads.

Cycle Name Description

Antibacterial Reduces 99.9% of bacteria on laundry.

Air Dry For items that require heat-free drying such as

plastics or rubber

Blankets Dries bulky blankets

Blanket Refresh Warms blankets and makes them feel nice and fluffy.

Denim Special cycle for jeans

Deodorization Reduces odors in clothes that do not require washing.

Easy Ironing Leaves clothes slightly damp so they're ready to iron

dry.

Cycle Name Description

37MAINTENANCE

ENGLISH

MAINTENANCE

WARNING

• To reduce the risk of fire, electric shock, or injury to persons, read this entire owner’s manual, including

the SAFETY INSTRUCTIONS, before operating this appliance.

• Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning

can cause serious injury, fire, electric shock, or death.

• Do not use volatile substances (benzene, paint thinner, alcohol, acetone, etc.), abrasive cleaners, or

detergents with strong chemical components when cleaning the appliance. Doing so may cause

discoloration or damage to the appliance, or may cause a fire.

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during

servicing. Service personnel - Do not contact the following parts while the appliance is energized: pump,

valve, motor, control board.

Washer

Regular Cleaning

Care after Wash

After the cycle is finished, wipe the door and the

inside of the door seal to remove any moisture.

• Wipe the body of the washer with a dry cloth to

remove any moisture.

• Leave the door open to dry the drum interior.

WARNING

• Make sure children and pets do not climb into

the drum. Engage the Control Lock feature if

needed to prevent children from accidentally

starting a wash cycle.

Cleaning the Exterior

Proper care of your washer can extend its life.

Door:

Wash with a damp cloth on the outside and inside

and then dry with a soft cloth.

Exterior:

• Immediately wipe off any spills.

• Wipe with a damp cloth.

• Do not touch the surface or the display with

sharp objects.

Cleaning the Drum

Over time, residue may build up in the drum,

leading to mildew or a musty odor. Run the Tub

Clean cycle monthly to remove residue and

prevent odor.

NOTE

• Make sure to run the Tub Clean cycle only when

the drum is empty. Never load laundry while

using this cycle. The laundry may be damaged or

contaminated with cleaning products.

• Run the cycle more often under heavy use

conditions or if odor is already present.

• If mildew or musty smell already exists, run this

cycle once a week for three consecutive weeks.

1 Remove any clothing from the drum.

2 Add cleaning agents.

Cleaner Instructions

Drum cleaner Add to main detergent

compartment of detergent

dispenser

Lime scale

remover

Liquid chlorine

bleach

Add to bleach compartment

of detergent dispenser.

Powdered cleaner Pull out liquid detergent cup

before adding to main

detergent compartment

Cleaning tablets Place directly into the washer

drum.

38 MAINTENANCE

• For other drum cleaning products, follow

the cleaner manufacturer’s instructions and

recommendations.

• Do not exceed the maximum fill line when

adding bleach or powdered cleaners.

Powdered cleaners may remain in the drum

after cleaning.

3 Close the door and press the Power button.

4 Select the Tub Clean cycle and press the

Start/Pause button to begin the cycle.

5 After the cycle ends, open the door and allow

the drum interior to dry completely.

WARNING

• Make sure children and pets do not climb into

the drum. Engage the Control Lock feature if

needed to prevent children from accidentally

starting a wash cycle.

NOTE

• If you use a descaler or drum cleaner during the

Tub Clean cycle, use the Speed Wash option to

rinse the washer drum before running your next

wash cycle.

Automatic Alert for Tub Clean

When the power is on and the tcL message blinks

on the display, it means the washer drum needs

cleaning. Use the Tub Clean cycle to clean the

washer drum. The frequency of the automatic

alert’s appearance depends on how often the

washer is used. However, the message will

generally appear every one to two months.

Removing Mineral Buildup

In areas with hard water, mineral scale can form

on internal components of the washer. Periodically

clean the mineral buildup on the internal

components to extend the lifespan of the washer.

Use of a water softener is recommended in areas

with hard water.

• Use a descaler to remove visible mineral buildup

on the washer drum.

• After descaling, always run the Tub Clean cycle

before washing clothing.

• Mineral scale and other spots may be removed

from the stainless steel drum using a soft cloth

soaked in stainless steel cleaner.

• Do not use steel wool or abrasive cleaners.

Leaving the Door Open

After you finish using the washer, leave the door

open overnight to allow air to circulate and dry the

drum. This helps prevent odors.

Cleaning the Dispenser Drawer

Leaving detergent in the detergent dispenser

drawer for an extended period of time or using the

washer for a long period of time may cause the

build-up of residue in the detergent dispenser

drawer. Remove and clean the detergent

dispenser drawer once or twice a month.

WARNING

• Do not spray water inside the washer. Doing so

may cause fire or electric shock.

1 Turn off the washer, and unplug the power

cord.

2 Pull the drawer straight out until it stops.

3 Press down hard on the disengage button a

and pull the drawer completely out.

4 Remove the inserts from the drawer.

5 Clean the inserts and drawer with warm

water.

• Use a soft cloth or brush to clean and to

remove any residue.

• Do not use soap when cleaning the drawer

and inserts.

6 Wipe off any moisture with a dry towel or

cloth after cleaning.

39MAINTENANCE

ENGLISH

7 To clean the drawer opening, use a small,

non-metal brush to clean the recess. Remove

all residue from the upper and lower parts of

the recess.

8 Replace the drawer.

Cleaning the Door Seal

Clean the door seal once a month to prevent

build-up of dirt.

CAUTION

• Cleaning the door seal with undiluted bleach

may cause malfunction of the door seal and

washer parts. You must add water to the bleach

before using it.

1 Wear rubber gloves and protective goggles.

2 Dilute 3/4 cup (177 mL) of liquid chlorine

bleach in 1 gallon (3.8 L) of water.

3 Wipe around the door seal.

• Soak a sponge or a soft cloth in this diluted

solution and wipe all around the door seal.

4 Wipe up any moisture with a dry towel or

cloth after cleaning.

5 Leave the door open to allow the door seal to

dry completely.

Cleaning the Water Inlet Filters

If the washer does not fill properly, an error

message will appear on the display. The inlet valve

filter screens could be clogged by hard water scale,

sediment in the water supply, or other debris.

WARNING

• The inlet screens protect the delicate parts of the

inlet valve from being damaged by particles that

could enter the valves with the water supply.

Operating the washer with these filters removed

could cause a valve to open continuously,

resulting in flooding and/or property damage.

CAUTION

• Do not use the washer without the inlet filters.

Doing so will cause leaks and malfunction.

• If you use the washer in an area with hard water,

the inlet filter may clog due to lime buildup and

require more frequent cleaning.

1 Turn off the washer, and unplug the power

cord.

2 Turn off hot and cold water faucets.

3 Unscrew the hot and cold water hoses from

the back of the washer.

4 Remove the filters from the water valves

carefully.

• Use pliers to pull out the filters from the

water valves.

5 Remove foreign objects and soak the filters in

white vinegar or a lime scale remover.

• If using a lime scale remover, follow the

manufacturer’s instructions. Be careful not

to damage the filters while cleaning them.

6 Rinse filters thoroughly and press them back

into place.

40 MAINTENANCE

7 Flush then reattach the water hoses.

• Before reattaching the water inlet hoses,

flush them by running several gallons of

water through them into a bucket or drain,

preferably with the faucets wide open for

maximum flow.

NOTE

• An IE error message may blink on the display

when the water pressure is low or an inlet filter

is clogged with dirt. Clean the inlet filter.

Cleaning the Drain Pump Filter

The washer fails to drain if the drain pump filter is

clogged. Periodically clean the drain filter to

prevent clogging with foreign objects.

WARNING

• Opening the drain filter will result in water

overflowing if there is water in the drum. Use a

bucket if the drum is not completely drained

before you open the drain filter.

• Using the washer without the drain filter or with

an incorrectly assembled drain filter may cause

leaks or malfunction of the washer.

1 Turn off the washer, and unplug the power

cord.

2 Open the drain pump filter cover.

3 Drain any remaining water.

• Unclip the drain hose and remove the plug

from the drain hose to drain the remaining

water.

4 Remove the pump filter.

• Twist the pump filter counterclockwise to

remove.

5 Clean the pump filter and opening.

6 Reassemble the plug onto the drain hose and

reclip the drain hose.

7 Insert the drain pump filter and twist it

clockwise.

41MAINTENANCE

ENGLISH

8 Close the drain pump filter cover.

NOTE

• An OE message blinks on the display when the

drain pump filter is clogged with dirt. Clean the

drain pump filter.

Care in Cold Climates

Storing the Appliance

If the washer will not be used for an extended

period of time and is in an area that could be

exposed to freezing temperatures, follow these

steps to protect the washer from damage.

NOTE

• Make sure the drum is empty before following

these steps.

1 Turn off the washer, and unplug the power

cord.

2 Turn off the water faucets.

3 Disconnect the water inlet hoses. Drain any

water from the hoses.

4 Plug the power cord into a properly grounded

electrical outlet.

5 Add 1 gallon of nontoxic recreational vehicle

(RV) antifreeze to the empty drum and close

the door.

• Never use automotive antifreeze.

6 Turn on the washer and press the Spin

button.

7 Press the Start/Pause button to start the

drain pump for 1 minute.

• This will expel some of the antifreeze,

leaving enough to protect the washer from

damage.

8 Turn off the washer and unplug the power

cord.

9 Dry the drum interior with a soft cloth, and

close the door.

10 Store the washer in an upright position.

11 Remove the inserts from the dispenser. Drain

any water in the compartments and let them

dry.

12 To remove the antifreeze from the washer

after storage, run the Speed Wash cycle using

detergent.

• Do not add laundry to this cycle.

When the Water Inlet Hoses Are Frozen

1 Turn off the washer, and unplug the power

cord.

2 Turn off the faucets connected to the water

inlet hoses.

3 Pour hot water on the frozen faucets to thaw

the water inlet hoses and remove the water

inlet hoses.

4 Immerse the water inlet hoses in hot water to

thaw them.

42 MAINTENANCE

5 Reconnect the water inlet hoses to the water

inlets of the washer and to the faucets.

• See Connecting the Water Inlet Hoses for

details.

6 Turn on the faucets.

7 Press the Power button to turn on the

washer.

8 Press the Spin button to operate spin only

cycle for draining and spinning.

9 Press the Start/Pause button.

When the Drain Hose is Frozen

1 Pour hot water in the washer drum and close

the door.

2 Wait for 1 - 2 hours.

3 Press the Power button.

4 Press the Spin button to operate spin only

cycle for draining and spinning.

5 Press the Start/Pause button to make sure

the water drains.

Dryer

Regular Cleaning

Cleaning the Exterior

Proper care of your appliance can extend its life.

The outside of the appliance can be cleaned with

warm water and a mild, nonabrasive household

detergent. Immediately wipe off any spills with a

soft, damp cloth.

NOTE

• Do not use methylated spirits, solvents, or

similar products.

• Never use steel wool or abrasive cleansers; they

can damage the surface.

Cleaning the Interior

• Wipe around the door opening and seal with a

soft, damp cloth to prevent lint and dust buildup

that could damage the door seal.

• Clean the window with a soft cloth dampened

with warm water and a mild, nonabrasive

household detergent. Then wipe dry.

• The stainless steel drum can be cleaned with a

conventional stainless steel cleaner, used

according to the manufacturer’s specifications.

Never use steel wool or abrasive cleansers; they

may scratch or damage the surface.

Cleaning Around and Under the

Appliance

Vacuum lint and dust from around the dryer and

underneath it regularly.

Maintaining Ductwork

Vent ductwork should be checked for lint build up

once per month and cleaned at least once per

year. If any noticeable reduction in airflow or

drying performance occurs, immediately check

ductwork for obstructions and blockages and

contact a qualified technician or service provider.

44 TROUBLESHOOTING

TROUBLESHOOTING

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at

an early stage. If the appliance does not function properly or does not function at all, check the following

before you call for service.

Washer

FAQs: Frequently Asked Questions

Error Messages

Q: Why does my washer make loud banging noises while it is filling with water?

A: This is actually a problem with the plumbing in your home. When the water valve in the washer shuts

off, it can cause pipes in your home to move, resulting in a loud banging noise. This effect, called

water hammer, can be reduced by installing an item called a water hammer arrestor. Add-on

arrestors can be purchased through your local hardware or home improvement store.

Q: Why is there so little water in my washer? How can it clean the clothes?

A: HE (High-Efficiency) washers are designed to properly wash your laundry while using a minimum

amount of water and energy. Because the water volume is low, the small amount of detergent used is

more concentrated in the water, resulting in excellent cleaning performance.

Q: When I press a button, why does my washer beep and then nothing happens?

A: The Control Lock feature is turned on. To turn it off, turn on the washer, then press and hold the

button that has Control Lock on or under it for 3 seconds.

Q: Where should I pour the powdered laundry products when doing my laundry?

A: If you are using powdered laundry detergent, load it in the main detergent dispenser after removing

the liquid detergent insert. Powdered laundry agents or powdered color safe bleach should be put

directly into the drum. These products can be put in the empty drum before loading or on top of the

laundry after loading the washer.

Problem Possible Cause & Solution

IEIE

INLET ERROR

Water supply faucets are not fully open.

• Make sure that the water faucets are fully open.

Water inlet hoses are kinked, pinched, or crushed.

• Make sure that the hoses are not kinked, pinched or crushed behind or under the washer.

Be careful when moving the washer during cleaning or maintenance.

Water inlet filters are clogged.

• Clean the inlet filters. See MAINTENANCE.

Water supply pressure to faucet or house is too low.

• Check another faucet in the house to make sure that household water pressure is

adequate and flow is not restricted.

• Disconnect the water inlet hoses from the washer and run a few gallons of water through

the hoses to flush out any dirt.

• If flow is too low, contact a plumber to have the water supply lines repaired.

Water supply connected with leak-limiting hoses.

• The use of hoses designed to limit leaks is not recommended. Leak limiting hoses can trip

falsely and prevent the washer from filling.

45TROUBLESHOOTING

ENGLISH

UEUE

UNBALANCE ERROR

The load is too small.

• Add additional items to allow the washer to balance the load.

Heavy articles are mixed with lighter items.

• Always try to wash articles of somewhat similar weight to allow the washer to evenly

distribute the weight of the load for spinning.

The load is out of balance.

• Manually redistribute the load if articles have become tangled, preventing the automatic

rebalancing from working properly.

dEdE dEz

dEz

dEzdEz dE

dEdE4

44, dE1

dE1

dE1dE1, ,

DOOR OPEN ERROR

The door is not secured.

• Close and secure the door. If the message keeps appearing, unplug the power cord and

call for service.

OEOE

WATER OUTLET

ERROR

Drain hose is kinked, pinched, or clogged.

• Make sure that the drain hose is free of clogs or kinks and is not pinched behind or under

the washer.

The end of the drain hose is more than 96 inches (2.4 m) above the bottom of the

washer.

• Move the end of the drain hose so that it is lower than 96 inches (2.4 m).

tEtE

TEMPERATURE

SENSOR ERROR

Control error.

• Unplug the washer and wait 60 minutes. Reconnect power and try again.

• If the error code is still displayed, call for service

FEFE

OVERFLOW ERROR

Water level is too high due to a faulty water valve.

• Close the water faucets, unplug the washer, and call for service.

PEPE

PRESSURE SENSOR

ERROR

The water level sensor is not working correctly.

• Close the water faucets, unplug the washer, and call for service.

LELE

MOTOR LOCKED

ERROR

A motor error has occurred.

• Allow the washer to stand for 30 minutes and then restart the cycle.

• If the error code is still displayed, call for service.

svd

svdsvd

OVERSUDSING

DETECTION

Oversudsing of detergent

• Do not add more than the manufacturer’s recommended amount of detergent.

• If too many suds are detected during spinning, the washer stops to help prevent leaking.

PFPF

WATER LEVEL

SENSOR ERROR

Water level is too low or high compared to the load.

• Unplug the washer and wait for 60 minutes. Reconnect power and try again.

• If the error code is still displayed, call for service.

FFFF

FROZEN ERROR

Inlet hose, drain hose or drain pump is frozen.

• See Care in Cold Climates.

CLCL

CONTROL LOCK

FUNCTION

The Control Lock function is on to prevent anyone from changing cycles or operating

the washer.

• Turn off the Control Lock function in the control panel. See Control Lock under Options

and Extra Functions.

tcL

tcLtcL

TUB CLEAN ALARM

It is time to run the Tub Clean cycle.

• This is not an error code. It indicates that the Tub Clean cycle is running or needs to be run

to clean the washer drum.

Problem Possible Cause & Solution

46 TROUBLESHOOTING

Noises

vsvs

VIBRATION SENSOR

ERROR

Vibration sensor malfunctions.

• Call for service.

Problem Possible Cause & Solution

Clicking Door lock sounds when the door locks or unlocks.

• Normal operation

Spraying or hissing Water spraying or circulating during the cycle

• Normal operation

Humming or

Gurgling

Drain pump is pumping water from the washer at times during a cycle.

• Normal operation

Water sloshing A liquid in the balance ring around the pulsator helps the basket spin smoothly.

• Normal operation

Water being added

after the washer has

already begun to

operate

The washer adapts to the load size and type to add more water to the cycle as needed.

• Normal operation

The wash load may be unbalanced. If the washer senses that the load is unbalanced, it

will stop and refill to redistribute the load.

• Normal operation

The washer may be diluting laundry additives to add to the wash load.

• Normal operation

Rattling and

clanking noise

Foreign objects, such as keys, coins, or safety pins may be in drum or pump.

• Stop the washer, check the drum and the drain filter for foreign objects.

• If noise continues after the washer is restarted, call for service.

Thumping sound Heavy wash loads may produce a thumping sound.

• This is normal, but if the sound continues, the washer is probably out of balance. Stop and

redistribute wash load.

Wash load may be out of balance.

• Pause the cycle and redistribute the load after the door unlocks.

Vibrating noise Packaging materials were not removed.

• See Unpacking and Removing Shipping Material in INSTALLATION.

Wash load may be unevenly distributed in the drum.

• Pause the cycle and redistribute the load after the door unlocks.

Not all leveling feet are resting firmly and evenly on the floor.

• See Leveling the Appliance in INSTALLATION.

Floor is not rigid enough.

• Make sure that the floor is solid and does not flex. See Flooring in INSTALLATION.

Squeaking noise Packaging materials were not removed.

• See Unpacking and Removing shipping Material in INSTALLATION.

Problem Possible Cause & Solution

47TROUBLESHOOTING

ENGLISH

Operation

Banging noise when

the washer is filling

with water. (Water

hammer)

Plumbing in the home moves or flexes when the water valves in the washer shut off.

• Water hammer is not caused by a defect in the washer. Install water hammer arrestors

(purchased separately at hardware or home improvement store) between the fill hose and

the washer for best results.

Household water supply pressure is very high.

• Adjust household water supply regulator to a lower pressure or contact a plumber.

Problem Possible Cause & Solution

Water Leaking Hoses are not connected correctly.

• Check hoses and connectors for leaks, cracks, and splits.

• Check and tighten hose connections.

House drain pipes are clogged.

• The washer pumps out water very rapidly. Check for water backing up out of the drain pipe

during drain. If water is seen coming out of the drain, check for proper drain hose

installation and check for restrictions in the drain.

• Contact a plumber to repair drain pipe.

Drain hose has come out of the drain connector or is not inserted far enough.

• Tie drain hose to inlet hose or standpipe to prevent it from coming out during drain.

• For smaller drain pipes, insert the drain hose into the pipe as far as the drain hose flange.

For larger drain pipes, insert the drain hose into the pipe 1 - 2 inches past the flange.

Oversudsing of detergent

• Oversudsing may create leaks, and may be caused by the type and amount of detergent

used. HE (High-Efficiency) detergent is the only detergent recommended. The normal

amount of detergent to use is 1/4 to 1/2 of the maximum amount recommended by the

detergent manufacturer.

• Always reduce the amount of detergent if the load is small or lightly soiled, or if the water

is very soft.

• Never use more than the maximum amount recommended by the detergent

manufacturer.

Excessive sudsing Too much detergent or incorrect detergent

• HE detergents are formulated specifically fo ) washers and contain r HE (High-Efficiency

suds reducing agents. Only use detergent with the HE (High-Efficiency) logo.

• For detergent quantities refer to Detergent Use in OPERATION. If sudsing or detergent

residue continues to be an issue, add an extra rinse.

Washer will not turn

on.

Power cord is not properly plugged in.

• Make sure that the plug is plugged securely into a grounded, 3-prong, 120-VAC, 60 Hz

outlet.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a

circuit overload, have it corrected by a qualified election.

Wash cycle time is

longer than usual.

The washer automatically adjusts the wash time for the amount of laundry, water

pressure and other operating conditions.

• This is normal. The washer adjusts cycle time automatically to provide optimal results for

the selected cycle. The time remaining shown in the display is only an estimate. Actual time

may vary.

Problem Possible Cause & Solution

49TROUBLESHOOTING

ENGLISH

Washer is not filling

properly.

Filter is clogged.

• Make sure that inlet filters on the fill valves are not clogged. Refer to Cleaning the Water

Inlet Filters in MAINTENANCE.

Inlet hoses may be kinked.

• Check that inlet hoses are not kinked or clogged.

Energy efficiency

• This is a High-Efficiency (HE) washer. As a result, the water level settings for this washer

may be different than for conventional washer.

Insufficient water supply

• Make sure that both hot and cold water faucets are turned on all the way.

Washer door is open.

• Close the door and make sure that nothing is caught under the door preventing it from

closing completely.

Water level is too low.

• The water will not normally cover the clothes. The fill level is optimized for the wash

motion to achieve the best wash performance.

Water in the washer

does not drain or

drains slowly.

Drain hose is kinked, pinched, or clogged.

• Make sure that the drain hose is free of clogs or kinks and is not pinched behind or under

the washer.

The end of the drain hose is more than 96 inches (2.4 m) above the bottom of the

washer.

• Move the end of the drain hose so that it is lower than 96 inches (2.4 m).

Bleach does not

dispense.

Bleach dispenser cover is not properly installed (on some models).

• Make sure that the bleach cover is properly installed and snapped into place before the

beginning of the cycle.

Bleach dispenser is dirty or clogged.

• Lift out the bleach dispenser cover and clean out the reservoir. Lint and other foreign

debris that are collected inside the dispenser may prevent proper dispensing of the

bleach.

Premature

dispensing of bleach

Bleach dispenser filled for future load.

• You cannot store bleach in the dispenser for future use. The bleach will be dispensed every

load.

Overfilling the bleach dispenser

• Overfilling the bleach dispenser will cause the bleach to dispense immediately, which will

damage the laundry or the washer. Always measure bleach, but never fill above the max

line on the dispenser. A half cup of bleach is sufficient for most loads. Never use more than

1 cup of bleach.

Problem Possible Cause & Solution

50 TROUBLESHOOTING

Performance

Problem Possible Cause & Solution

Wrinkling Washer is not unloaded promptly.

• Always remove items from the washer as soon as the cycle is complete.

Washer is overloaded.

• The washer can be fully loaded, but the drum should not be tightly packed with items. The

door of the washer should close easily.

Hot and cold water inlet hoses are reversed.

• Hot water rinse can set wrinkles in garments. Check the inlet hose connectors.

Staining Bleach or softener dispensed too soon.

• Dispenser compartment was overfilled or closed too quickly, causing the bleach or

softener to dispense immediately. Always measure bleach, and never use more than 1 cup.

Bleach or softener was added directly to the wash load in the drum.

• Always use the dispensers to ensure that laundry products are properly dispensed at the

right time in the cycle.

Washer was not unloaded promptly.

• Always remove items from the washer as soon as possible after the cycle is completed.

Clothes were not properly sorted.

• Always wash dark colors separately from light colors and whites to prevent discoloration.

• Never wash heavily soiled items with lightly soiled items.

Poor stain removal Proper options are not selected.

• Heavier soils and tougher stains may require extra cleaning power. Select the Heavy Soil

feature to boost the cleaning power of the selected cycle.

Previously set stains.

• Articles that have previously been washed may have stains that have been set. These

stains may be difficult to remove and may require hand washing or pre-treating to aid in

stain removal.

Musty or mildewy

odor in the washer

Incorrect or too much detergent has been used.

• Use only HE (High-Efficiency) detergent in accordance with the manufacturer’s

instructions.

Inside of the drum was not cleaned properly.

• Run the Tub Clean cycle regularly.

52 TROUBLESHOOTING

Dryer

FAQs: Frequently Asked Questions

Error Messages

Q: When I press a button, why does my dryer beep and then nothing happens?

A: The Control Lock feature is turned on. To turn off Control Lock, turn the dryer on, then press and

hold the button that has Control Lock on or under it for 3 seconds.

Q: Why does my dryer take so long to dry clothes?

A: Proper airflow is critical to the efficient operation of clothes dryers. A lint filter which is full of lint or

clogged with fabric softener sheet residue can reduce the airflow to the point that the time required

to dry clothing will be greatly increased.

Q: Why does my dryer start by itself every few minutes?

A: This is how the Wrinkle Care feature works. The dryer runs briefly every few minutes for up to 3

hours after the cycle finishes. This feature is designed to help prevent wrinkles from setting in when

the dryer is not unloaded immediately after the cycle is finished.

Q: Why does my dryer show 3 minutes when I select the Steam Fresh™ cycle?

A: When the Steam Fresh™ cycle is selected, the dryer displays the recommended number of garments

for the cycle, not the estimated cycle time, until the cycle is started. Use the Time Dry button to adjust

the load size setting for the number of garments you desire.

Problem Possible Cause & Solution

tE1

tE1tE1 through tE7

tE7

tE7tE7

TEMPERATURE

SENSOR ERROR

Temperature sensor failure.

• Turn off the appliance and call for service.

PsPs

POWER ERROR

Power cord is connected incorrectly.

• Check the connection of the power cord to the terminal block.

d7s

d7sd7s d8O

d8O

d8Od8O, , ,

dGO

dGOdGO dGs

dGs

dGsdGs

DUCT BLOCK ERROR

The duct work is about 75% - 95% blocked. (The error code is displayed for 2 hours only.)

• Do not use the appliance until the exhaust system has been cleaned and/or repaired.

Using the appliance with a severely restricted exhaust is dangerous and could result in a

fire or other property damage.

• Check the outside dryer vent while the appliance is operating to make sure there is strong

airflow. If the exhaust system is extremly long, have it repaired or rerouted.

House exhaust system blocked.

• Keep the area around the dryer clean and free of clutter. Check vent hood for damage or

lint clogging. Make sure the area around the vent hood is clear.

[L[L

CONTROL LOCK

FUNCTION

The Control Lock function is on to prevent anyone from changing cycles or operating

the dryer.

• Turn off the Control Lock function in the control panel. See Control Lock under Options

and Extra Functions.

53TROUBLESHOOTING

ENGLISH

Operation

Problem Possible Cause & Solution

The Flow Sense TM

WW) indicator

remains active after

clearing the

restriction in the

venting.

After clearing the restrictions, the Flow Sense TM (W

WW) system requires multiple,

consecutive cycles to determine that the performance value has improved before the

Flow Sense TM (W

WW) indicator is reset.

• If the Flow Sense TM (W) indicator remains active for more than five cycles after the

restriction has been cleared, call for service.

Clothes take too long

to dry.

Exhaust ducts are blocked, dirty, or duct run is too long.

• Confirm that the exhaust duct is properly configured and free of debris, lint, and

obstructions. Make sure that the outside wall damper can open properly and is not

blocked, jammed, or clogged.

Load is not properly sorted

• Separate heavy items from lightweight items. Larger and heavier items take longer to dry.

Light items in a load with heavy items can fool the sensor because the light items dry

faster.

Large and heavy fabrics are loaded.

• Heavy fabrics take longer to dry because they tend to retain more moisture. To help

reduce and maintain more consistent drying times for large and heavy fabrics, separate

these items into smaller loads of a consistent size.

Dryer controls are not set properly.

• Use the appropriate control settings for the type of load you are drying. Some loads may

require an adjustment of the dry level setting for proper drying.

Lint filter needs to be cleaned.

• Remove the lint from the filter before every load. With the lint removed, hold the filter up

to a light to see if it is dirty or clogged. With some loads that produce high amounts of lint,

such as new bath towels, it may be necessary to pause the cycle and clean the filter during

the cycle.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a

circuit overload, have it corrected by a qualified electrician.

The appliance is overloaded.

• Divide extra large loads into smaller loads for better drying performance and efficiency.

Energy Saver option is selected. (on some models)

• If using the Normal cycle, deselect the Energy Saver option that is selected by default.

This option reduces enery use by adding an air dry section to the beginning of the cycle. It

is normal to feel no heat at the beginning of the cycle while in Energy Saver mode.

The appliance will

not turn on.

Power cord is not properly plugged in.

• Make sure that the plug is securely plugged into a grounded outlet matching the

appliance's rating plate.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a

circuit overload, have it corrected by a qualified electrician.

55TROUBLESHOOTING

ENGLISH

Steam Function

Lint on clothes. Lint filter not cleaned properly.

• Remove the lint from the filter before every load. With the lint removed, hold the filter up

to a light to see if it is dirty or clogged. If it looks dirty, follow the cleaning instructions in

the MAINTENANCE section. With some loads that produce high amounts of lint, it may be

necessary to clean the filter during the cycle.

Laundry not sorted properly.

• Some fabrics are lint producers (i.e., a fuzzy white cotton towel) and should be dried

separately from clothes that are lint trappers (i.e., a pair of black linen pants).

Excess static in clothes.

• Use a fabric softener to reduce static electricity. Be sure to follow the manufacturer’s

instructions. Overdrying a load of laundry can cause a buildup of static electricity.

The appliance is overloaded.

• Divide extra large loads into smaller loads for drying.

Tissue, paper, etc., left in pockets.

• Check pockets thoroughly before washing and drying clothes.

Excess static in

clothes after drying.

Fabric softener is not used or is used incorrectly.

• Use a fabric softener or the Reduce Static option, if available, to reduce static electricity.

Be sure to follow the manufacturer’s instructions.

Clothes dried too long (overdried).

• Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and

use a shorter drying time. Select a lower dry level setting, if necessary.

Drying synthetics, permanent press, or synthetic blends.

• These fabrics are naturally more prone to static buildup. Try using fabric softener, or use a

lower dry level setting and/or shorter time settings.

Clothes have damp

spots after a dry

cycle.

Very large load or very small load. Single large item such as a blanket or comforter.

• If items are too tightly packed or too sparse the sensor may have trouble reading the

dryness level of the load. Use a Time Dry cycle for very small loads.

• Large, bulky items such as blankets or comforters can sometimes wrap themselves into a

tight ball of fabric. The outside layers will dry and register on the sensors, while the inner

core remains damp. When drying a single bulky item, it may help to pause the cycle once

or twice and rearrange the item to unwrap and expose any damp areas.

• To dry a few remaining damp items from a very large load or a few damp spots on a large

item after a sensor cycle has completed, empty the lint trap, and then set a Time Dry cycle

to finish drying the item(s).

Problem Possible Cause & Solution

Water drips from

nozzle when Steam

cycle starts.

This is normal.

• This is steam condensation when Steam cycle starts. The dripping water will stop after a

short time.

Steam does not

generate, but no

error code is shown.

Water level error.

• Unplug dryer and call for service.

Water drips from

door during Steam

cycle.

This is normal.

• Condensation will normally form on the inside of the dryer door during steam operation.

Some condensation may drip out the bottom of the door.

Problem Possible Cause & Solution

57TROUBLESHOOTING

ENGLISH

Common

Wi-Fi

Problem Possible Cause & Solution

Trouble connecting

appliance and

smartphone to Wi-Fi

network

The password for the Wi-Fi network was entered incorrectly.

• Delete your home Wi-Fi network and begin the connection process again.

Mobile data for your smartphone is turned on.

• Turn off the Mobile data on your smartphone before connecting the appliance.

The wireless network name (SSID) is set incorrectly.

• The wireless network name (SSID) should be a combination of English letters and

numbers. (Do not use special characters.)

The router frequency is not 2.4 GHz.

• Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and

connect the appliance to the wireless router. To check the router frequency, check with

your Internet service provider or the router manufacturer.

The appliance and the router are too far apart.

• If the appliance is too far from the router, the signal may be weak and the connection may

not be configured correctly. Move the router closer to the appliance or purchase and

install a Wi-Fi repeater.

58 LIMITED WARRANTY

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT

REQUIRES YOU AND LG ELECTRONICS (“LG”) TO RESOLVE DISPUTES BY BINDING ARBITRATION

INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND

JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING

DISPUTES” BELOW.

Should your LG Washer/Dryer (collectively “Product”) fail due to a defect in materials or workmanship

under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or

replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”)

and applies only when purchased lawfully and used within the United States including U.S. Territories.

• Replacement Products and parts are warranted for the remaining portion of the original limited

warranty period or ninety (90) days, whichever is greater.

• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory

remanufactured.

• Replaced Product or part(s) will be the property of LG.

• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain

warranty service under this limited warranty. In the hase, warranty start dateevent of no proof of purc

will be ninety (90) days from the manufacture date.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN

DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES

SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL,

CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST

GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF

REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER

BASED IN CONTRACT, TORT, OR OTHERWISE. LG’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE

PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE

EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU

SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

WASHER WARRANTY PERIOD

Product Direct Drive Motor (Stator or

Rotor) Stainless Steel Drum

Parts (internal/ functional arts p

on an Labor: ( )ly) d Two 2 years

from the date of iginal etail or r

purchase

Parts Only: Ten (10) years from the

date of original retail purchase

You are responsible for any

applicable labor cost.

Parts Only: Three (3) years from

the date of original retail purchase

You are responsible for any

applicable labor cost.

DRYER WARRANTY PERIOD

Product Stainless Steel Drum

Parts (internal/ functional parts y) and La onl bor:

Two ( )2 year om the date of iginal tail s fr or re

purchase

Parts Only: Three (3) years from the date of original

retail purchase

You are responsible for any applicable labor cost.

59LIMITED WARRANTY

ENGLISH

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install, or; educate how to operate the Product;, ii) correct wiring;, or

iii) correct unauthorized repairs or installations of the Product.

• Damage or failure of the Product to perform during power failures and interrupted or inadequate

electrical service.

• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted

drain lines, inadequate or interrupted water supply, or inadequate supply of air.

• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere, in an

unsuitable environment, or otherwise contrary to the Product owner’s manual.

• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods,

pandemics, acts of nature, or any other causes beyond the control of LG.

• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or

maintenance, or service not approved by LG. Improper repair includes use of parts not authorized or

specified by LG. Improper installation or maintenance includes installation or maintenance contrary to

the Product’s owner’s manual.

• Damage or failure of the Product caused by unauthorized modification or alteration, any other property

damage or failure resulting from any water leakage where the Product is not properly installed in

accordance with the Product’s owner’s manual.

• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.

• Damage or failure of the Product caused by use of parts, accessories, components, consumable cleaning

products, any other products, or service that are not authorized by LG.

• Replacement of light bulbs, filters, fuses, or any other consumable parts.

• Damage or failure of the Product caused by transportation, storage, and/or handling, including

scratches, dents, chips, and/or other damage to the finish of your Product, unless such damage is

reported within one (1) week of delivery.

• Damage or missing items to any display, open box, refurbished, or discounted Product.

• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.

• Products with original serial numbers that have been removed, altered, or cannot be readily determined

at the discretion of LG.

• Increases in utility costs and additional utility expenses in any way associated with the Product.

• Any noises associated with normal operation.

• Products used for other than normal and proper household use, including, without limitation,

commercial or industrial use or, use in offices, and recreational facilities or vehicles, or as otherwise

outlined in the Product owner’s manual.

• Costs associated with removal and/or reinstallation of your Product.

• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed

in accordance with the Product owner’s manual.

The cost of repair or replacement under the above excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-800-243-0000 and select the appropriate option from the menu.

Or visit our website at http://www.lg.com

Or by mail: LG Electronics, P.O. Box 240007, Huntsville, AL 35813 ATTN: Customer Service

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED

WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND

NOT IN A COURT OF GENERAL JURI ANS THAT YOU AND LG ARE EACH SDICTION. BINDING ARBITRATION ME

WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

61LIMITED WARRANTY

ENGLISH

location within the federal judicial district in which you reside unless we both agree to another location or

we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can

require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no

later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by

either: (i) sending an e-mail to optout@lge.com, with the subject line: “Arbitration Opt Out” or (ii) calling 1-

800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address;

(b) the date on which the product was purchased; (c) the product model name or model number; and (d)

the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://

www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial

Number”).

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail

or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure.

Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any

way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and

do not opt out, then you accept all terms and conditions of the arbitration provision described above.

MANUAL DEL PROPIETARIO

CENTRO DE LAVADO

Lea el manual del propietario detenidamente previo a operar el

electrodoméstico y mantengalo al alcance para futuras

referencias.

ESPAÑOL

www.lg.com

ÍNDICE

3 INSTRUCCIONES IMPORTANTES

DE SEGURIDAD

3 LEA TODAS LAS INSTRUCCIONES ANTES DE

UTILIZAR

3 MENSAJES DE ADVERTENCIA

7 MENSAJES DE PRECAUCIÓN

9 DESCRIPCIÓN GENERAL DEL

PRODUCTO

9 Características del producto

11 FUNCIONAMIENTO DE LA LAVA-

DORA

11 Uso de la lavadora

14 Agregado de productos de limpieza

17 Panel de control

20 Ciclos de lavado

23 Modificadores de ciclo

23 Opciones y funciones adicionales

26 FUNCIONAMIENTO DE LA SECA-

DORA

26 Cómo usar la secadora

28 Panel de control

30 Ciclos de secado

32 Modificadores de ciclo

32 Opciones y funciones adicionales

35 FUNCIONES INTELIGENTES

35 Uso de la aplicación LG ThinQ

40 Función Smart DiagnosisTM (Diagnóstico In-

teligente)

41 MANTENIMIENTO

41 Arandela

47 Secadora

49 SOLUCIÓN DE PROBLEMAS

49 Arandela

58 Secadora

64 Común

65 GARANTÍA LIMITADA

65 EE. UU.

3INSTRUCCIONES IMPORTANTES DE SEGURIDAD

ESPAÑOL

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

LEA TODAS LAS INSTRUCCIONES ANTES DE UTILIZAR

Mensajes de seguridad

Su seguridad y la de los demás son muy importantes.

Tanto en este manual como en el equipo, hemos proporcionado muchos mensajes de seguridad

importantes. Siempre debe leer y respetar todos los mensajes de seguridad.

Todos los mensajes de seguridad le indicarán cuáles son los peligros potenciales, cómo reducir la

posibilidad de lesiones y qué podría suceder si no sigue las instrucciones.

MENSAJES DE ADVERTENCIA

ADVERTENCIA

• Para disminuir el riesgo de explosiones, incendios, descargas eléctricas, quemaduras, lesiones o muerte

para las personas que usen este artefacto, siga las precauciones básicas, incluidas las siguientes:

Medidas de seguridad para una secadora de gas

Instale la secadora de ropa de acuerdo con las instrucciones del fabricante y los códigos locales.

• La instalación de la secadora de ropa debe ser realizada por un técnico calificado.

• No instale la secadora de ropa con materiales de ventilación de plástico flexibles. Si se instala un

conducto flexible metálico (tipo lámina de aluminio), este debe ser de un tipo específico avalado por el

fabricante como apto para el uso con secadoras de ropa. Es sabido que los materiales de ventilación

flexibles se colapsan, se aplastan con facilidad y atrapan pelusas. Estas condiciones obstruirán el flujo de

aire de la secadora y aumentarán el riesgo de incendio.

• Para reducir el riesgo de lesiones graves o muerte, siga todas las instrucciones de instalación.

PELIGRO DE INCENDIO O EXPLOSIÓN

• No almacene ni use gasolina u otros líquidos o vapores inflamables cerca de este artefacto ni de ningún

otro.

• QUÉ HACER SI HUELE GAS

- No intente encender ningún aparato.

Este es el símbolo de alerta de seguridad.

Este símbolo le advierte sobre posibles riesgos que pueden ocasionar lesiones o la muerte a usted o

a otros. El símbolo de alerta de seguridad siempre estará acompañado de las palabras

"ADVERTENCIA" o "PRECAUCIÓN" y seguido de un mensaje de seguridad importante.

Estos términos significan lo siguiente:

ADVERTENCIA

El incumplimiento de las instrucciones podría causarle la muerte o lesiones graves.

PRECAUCIÓN

El incumplimiento de las instrucciones podría causarle lesiones o daños al producto.

ADVERTENCIA - Riesgo de incendio

4INSTRUCCIONES IMPORTANTES DE SEGURIDAD

- No toque ningún interruptor eléctrico ni use ningún teléfono de su edificio.

- Evacue a todos los ocupantes de la habitación, el edificio o el área.

- Llame a su compañía de gas inmedi las instrucciones de atamente desde el teléfono de un vecino. Siga

la compañía de gas.

- Si no puede comunicarse con su compañía de gas, llame al departamento de bomberos.

• La instalación y el servicio deben ser realizados por un técnico calificado, una agencia de servicios o su

compañía de gas.

Instalación

• Cumpla con todos los procedimientos de seguridad del sector recomendados, incluido el uso de guantes

de manga larga y gafas de seguridad.

• Nunca intente operar este artefacto si se encuentra dañado, si no funciona correctamente, si no está

ensamblado por completo o si tiene piezas faltantes o rotas, incluido un cable o enchufe dañado.

• Antes de ser utilizado, este artefacto debe ser correctamente instalado, conforme a lo descrito en este

manual.

• Para reducir el riesgo de lesiones graves o muerte, siga todas las instrucciones de instalación.

• Consulte las INSTRUCCIONES DE INSTALACIÓN para obtener información detallada sobre los

procedimientos de conexión a tierra. Las instrucciones de instalación se suministran junto con el

artefacto para ser consultadas por el instalador. Si el artefacto se traslada a una nueva ubicación,

asegúrese de que lo revise y lo vuelva a instalar personal de servicio calificado.

• Cuando traslade el producto o lo instale en un lugar diferente, llame a dos o más miembros del personal

de servicio calificado para la instalación y el mantenimiento.

• No instale el artefacto en lugares húmedos.

• Almacene e instale el artefacto donde no esté expuesto a temperaturas bajo cero ni a la intemperie.

• Este artefacto no ha sido diseñado para ser usado en embarcaciones o instalaciones móviles, tales como

casas rodantes, remolques o aeronaves.

• Mantenga los materiales de empaque fuera del alcance de los niños. Los materiales de empaque

pueden ser peligrosos para los niños. Corren riesgo de asfixia.

• Destruya el cartón, la bolsa de plástico y los demás materiales de empaque luego de desempacar el

artefacto. Estos materiales podrían utilizarlos los niños para jugar. Las cajas de cartón cubiertas con

tapetes, colchas o láminas plásticas pueden convertirse en cámaras herméticas.

• El artefacto debe ser instalado y conectado a tierra por personal de servicio calificado, de acuerdo con

los códigos locales.

• Cuando traslade o instale el aparato, tenga especial cuidado en no apretar, aplastar o dañar el cable de

alimentación.

• Debe conectarse a un circuito de alimentación de clasificación y tamaño adecuados y debidamente

protegido para evitar la sobrecarga eléctrica.

• Debe posicionar este artefacto cerca de una fuente de suministro eléctrico.

• Desconecte el cable de alimentación, el fusible del hogar o el interruptor de corriente antes de instalar o

reparar el artefacto.

• El cable de alimentación de este aparato está equipado con un enchufe de 3 clavijas (conexión a tierra)

que se conecta con un tomacorriente estándar de 3 clavijas (tierra) para minimizar la posibilidad de

descarga eléctrica de este aparato.

• Por ninguna razón debe cortar o quitar la tercera clavija (tierra) del cable de alimentación.

• Use mangueras nuevas cuando conecte el aparato al suministro de agua. No reutilice mangueras viejas.

• No instale el artefacto con materiales de ventilación de plástico flexibles. Si se instala un conducto

flexible metálico (tipo lámina de aluminio), este debe ser de un tipo específico avalado por el fabricante

como apto para el uso con la sección secadora del artefacto. Los materiales de ventilación flexibles

5INSTRUCCIONES IMPORTANTES DE SEGURIDAD

ESPAÑOL

suelen colapsarse, aplastarse con facilidad y atrapar pelusas. Estas condiciones obstruirán el flujo de aire

de la sección secadora y aumentarán el riesgo de incendio.

• Las ordenanzas locales pueden prohibir la instalación en un garaje. Comuníquese con un inspector de

obra local.

• No utilice tornillos para chapa metálica ni ningún otro tipo de sujetadores que se extiendan dentro del

conducto y puedan atrapar pelusa, y, así, reducir la eficiencia del sistema de escape. Asegure todas las

uniones con cinta adhesiva para conductos.

• Use únicamente conductos de metal rígidos, semirrígidos o flexibles de 4 pulgadas de diámetro dentro

del gabinete del artefacto o para escape al exterior. El uso de conductos de plástico o de otro material

combustible puede causar incendios. Los conductos agujereados pueden causar incendios si se

colapsan o se restringen de alguna manera durante el uso o la instalación.

• Todos los conductos metálicos de transición que no sean rígidos deben estar aprobados por UL. El uso

de otros materiales para el conducto de transición afectará el tiempo de secado.

• No se suministran los conductos con el artefacto; deberá obtenerlos en su localidad. La tapa terminal

deberá tener reguladores de tiro con bisagras para prevenir una contracorriente de aire cuando no se

use la secadora.

• Las secadoras de gas DEBEN tener escape al exterior.

• El sistema de escape de la secadora debe tener salida al exterior de la vivienda. Si la secadora no tiene

salida al exterior, se expulsará pelusa fina y grandes cantidades de humedad al área de lavado. Una

acumulación de pelusa en cualquier parte de la casa puede crear riesgos para la salud y peligro de

incendio.

• No instale la secadora cerca de un elemento que genere calor, como una estufa, un horno o un

calentador.

• Mantenga el área alrededor de la abertura de escape y las áreas adyacentes libres de acumulación de

pelusa, polvo y tierra.

• El electrodoméstico no debe ser suministrado a través de un interruptor externo, como un

temporizador, o conectado a un circuito que sea encendido y apagado regularmente.

• No instale un ventilador auxiliar en el conducto de extracción.

• Este es un artefacto individual, y es una unidad individual para la venta, la entrega y la instalación.

• No desarme este artefacto porque no se puede instalar en una configuración lado a lado.

Instrucciones de conexión a tierra

• La conexión inadecuada del conductor de conexión a tierra puede resultar en riesgo de choque eléctrico.

Pregunte a un electricista calificado o al personal de servicio si no está seguro si el artefacto está

adecuadamente conectado a tierra. No modifique el enchufe que viene con el artefacto. Si no cabe en el

contacto, pida que un electricista calificado instale un contacto apropiado.

• El artefacto debe estar conectado a tierra. En caso de funcionamiento defectuoso o avería, la conexión a

tierra reduce el riesgo de choque eléctrico al establecer una ruta de menor resistencia para la corriente

eléctrica. El artefacto viene equipado con un cable eléctrico que tiene un conductor para conexión a

tierra y un enchufe con conexión a tierra. El enchufe debe ser conectado a un contacto apropiado que

esté instalado y conectado a tierra de acuerdo con todos los códigos y ordenanzas locales.

FUNCIONAMIENTO

• Lea todas las instrucciones antes de usar el artefacto y consérvelas.

• Use el artefacto únicamente para el fin previsto.

• Si el producto ha estado sumergido en el agua, en agua estancada o en un área anegada, no entre en

contacto con el producto y comuníquese de inmediato con un Centro de información al cliente de LG

Electronics para recibir instrucciones antes de reanudar el uso.

• Si detecta un sonido extraño, olor a quemado o a químico, o humo provenientes del artefacto,

desconéctelo de inmediato y contáctese con un Centro de Información al Cliente de LG Electronics.

6 INSTRUCCIONES IMPORTANTES DE SEGURIDAD

• Bajo ciertas condiciones, podría producirse gas hidrógeno en un sistema de agua caliente que no ha sido

utilizado por dos semanas o más. EL GAS HIDRÓGENO ES EXPLOSIVO. Si el sistema de agua caliente no

se ha usado durante ese período de tiempo, abra todas las llaves de agua caliente y deje que fluya varios

minutos antes de usar el artefacto. Esto eliminará el gas hidrógeno acumulado. Dado que el gas

hidrógeno es inflamable, no fume ni use ninguna llama abierta durante este proceso.

• No introduzca las manos en el artefa eza interior se cto si la cuba, el tambor, el agitador o cualquier pi

encuentra en movimiento. Antes de cargar, descargar o agregar artículos, presione Inicio/Pausa y

espere que la cuba o el tambor se detengan por completo antes de introducir las manos.

• Este artefacto no ha sido diseñado para ser utilizado por personas con capacidades físicas, sensoriales o

mentales disminuidas (incluidos niños) o que no cuenten con la experiencia o los conocimientos

necesarios para operarlo, salvo que una persona responsable de su seguridad les brinde la supervisión o

la instrucción pertinente en cuanto al uso del artefacto.

• No permita que niños o mascotas jueguen con el electrodoméstico, sobre o dentro de éste. Es necesaria

la supervisión cuando el electrodoméstico es utilizado cerca de niños o mascotas.

• Mantenga los productos de lavandería lejos del alcance de los niños. Para evitar lesiones a las personas,

preste atención a todas las advertencias que figuran en las etiquetas de los productos.

• Repare o reemplace de inmediato todos los cables de alimentación deshilachados o dañados de otra

forma. No use un cable que exhiba roturas o abrasión en su longitud o en sus extremos.

• Nunca desconecte el artefacto tirando del cable de alimentación. Sujete siempre con firmeza el enchufe

y tire derecho para extraerlo del tomacorriente.

• No use un cable de extensión ni un adaptador con este artefacto.

• No sujete el cable de alimentación ni toque los controles del artefacto con las manos húmedas.

• No modifique ni extienda el cable de alimentación.

• Si se daña el cable de electricidad, solo el fabricante está autorizado para reemplazarlo, o bien su agente

de servicio técnico o una persona de calificación similar para prevenir riesgos.

• No coloque prendas aceitosas o grasosas, candelas o materiales inflamables encima del artefacto.

• Mantenga el área debajo de los artefactos y sus alrededores libre de materiales combustibles (pelusa,

papel, trapos, etc.), gasolina, productos químicos y otros vapores o líquidos inflamables.

• No almacene ni use gasolina u otros líquidos o vapores inflamables cerca de este artefacto ni de ningún

otro.

• No mezcle cloro con amoniaco o ácidos, como por ejemplo, vinagre. Siga las instrucciones del envase

cuando utilice productos de lavandería. Su uso incorrecto puede producir gases venenosos, los cuales

pueden ocasionar lesiones graves o la muerte.

• Nunca utilice productos químicos agresivos, limpiadores abrasivos ni solventes para limpiar el

electrodoméstico. Estos productos arruinarán el acabado.

• No lave ni seque artículos que hayan sido previamente limpiados, lavados o manchados con gasolina,

solventes de limpieza en seco, aceite vegetal o de cocina, u otras sustancias inflamables o explosivas, ni

artículos a los cuales se haya sumergido en estos productos, ya que emiten vapores que pueden

inflamarse o explotar.

• No seque en el artefacto artículos que no estén lavados.

• Retire de los bolsillos todos los objetos, como encendedores y cerillas.

• No agregue gasolina, solventes de limpieza en seco ni otras sustancias explosivas o inflamables al agua

del lavado. Estas sustancias emiten vapores que pueden inflamarse o explotar.

• En el caso de que se produzca una fuga de gas (gas propano, gas licuado de petróleo, etc.), no ponga en

funcionamiento este artefacto ni ningún otro. Abra una puerta o una ventana para ventilar el área de

inmediato.

• No utilice indebidamente los controles.

• Asegure la manguera de drenaje de forma segura en su lugar a manera de evitar inundaciones.

• No maltrate la puerta, no se siente ni se pare sobre ella.

• Verifique siempre el interior del electrodoméstico para detectar objetos extraños.

8INSTRUCCIONES IMPORTANTES DE SEGURIDAD

GUARDE ESTAS INSTRUCCIONES

FUNCIONAMIENTO

• Cierre las llaves de agua y desconecte el artefacto si este no será usado por un periodo de tiempo

prolongado, por ejemplo, durante las vacaciones.

• SIEMPRE siga las instrucciones para cuidado de los tejidos suministradas por el fabricante.

• Use suavizantes o productos para eliminar la electricidad estática solamente según las recomendaciones

del fabricante.

• No combine productos de lavandería en una misma carga a menos que este uso se especifique en la

etiqueta.

• No toque el agua de desagüe, ya que podría estar caliente.

• Si las mangueras de drenaje y de entrada de agua se congelan en invierno, descongélelas antes de

utilizar el electrodoméstico.

• No almacene ni vierta limpiadores, blanqueadores (blanqueador con cloro, blanqueador oxigenado, etc.)

ni detergentes líquidos encima del artefacto. Si lo hace, podría ocasionar corrosión, decoloración o daño

de la superficie del artefacto.

• Prendas o artículos impermeables o resistentes al agua deben ser lavados solamente en el ciclo

Impermeables. (Los ejemplos incluyen: prendas resistentes al agua, fundas para colchones, ropa para

exteriores, tapetes plásticos, etc.) El uso de otro ciclo podría producir una herida o causarle daños a la

lavadora, a las prendas, las paredes, el piso y a objetos circundantes debido a la vibración anormal.

12 FUNCIONAMIENTO DE LA LAVADORA

NOTA

• Si la temperatura o el nivel de agua dentro de la

máquina es demasiado alto, la puerta no se

desbloqueará cuando presione el botón de

Inicio/Pausa, y la función Add Item (Añadir

Prendas) no estará disponible (en modelos

aplicables). Para detener un ciclo y drenar el

agua completamente, apague y encienda el

aparato, y luego seleccione Rinse+Spin

(Enjuague+Centrifugado).

Clasificación de prendas

PRECAUCIÓN

• Las prendas o los artículos impermeables o resistentes al agua se deben lavar solo en el ciclo

Waterproof (Impermeables), Bedding (Ropa de cama), Bulky/Large (Voluminosas/Grandes) o

Jumbo Wash (Lavado Jumbo). (Entre los ejemplos se incluyen prendas resistentes al agua, fundas para

colchones, prendas para exteriores y tapetes de plástico). Si se utiliza otro ciclo, se pueden producir

lesiones personales o daños a la lavadora, a las prendas, a las paredes, al piso y a los objetos

circundantes, debido a la vibración anormal.

• Retire el relleno de las almohadas y cojines antes de lavar las fundas. Si no lo hace, se puede provocar

una vibración excesiva y dañar la lavadora, las prendas, los objetos circundantes, las paredes y el suelo.

Conjuntos de prendas similares

Para obtener los mejores resultados de lavado y para reducir la posibilidad de daños en las prendas,

agrupe la ropa en cargas de prendas de características similares.

Si se mezclan telas o niveles de suciedad diferentes, el resultado puede ser un lavado deficiente,

transferencia de colores, decoloración, daño de las prendas o que se desprendan pelusas. Las telas deben

clasificarse en grupos tal como se describe a continuación.

Colores

Clasifique las prendas según su color. Lave la ropa oscura separada de los colores claros o blancos. Si se

mezclan prendas de colores oscuros con prendas de colores claros, puede ocurrir transferencia de tinte o

decoloración en la ropa más clara.

Nivel de suciedad

La ropa muy sucia debe lavarse junta. Si lava las prendas con menor suciedad en la misma carga que la

ropa muy sucia, el resultado puede ser un lavado deficiente de las prendas de menor suciedad.

Tipo de tela

Las prendas delicadas no deben mezclarse con las prendas de telas más resistentes o pesadas. Si lava

prendas de telas pesadas con ropa delicada, el resultado puede ser un lavado deficiente de la ropa de tela

pesada y es posible que se dañen las prendas delicadas.

Telas que atraen o despiden pelusa

Algunas telas atraen pelusa y esta se adhiere a ellas, mientras que otras despiden pelusas en el proceso de

lavado. Evite mezclar en la misma carga ropa a la que se adhiere la pelusa con ropa que despida pelusas.

Mezclar estos materiales puede tener como resultado que, en las prendas que atraen pelusa, se formen

bolitas y que estas ropas se llenen de pelusa. (Por ejemplo, prenda a la que se le adhiere la pelusa: suéter

tejido; prenda que despide pelusas: toalla de tejido esponjoso).

Cómo clasificar las prendas

Por Colores Por nivel de suciedad Por tela Según la pelusa

Blancas Muy sucias Delicadas Que despide pelusa

13FUNCIONAMIENTO DE LA LAVADORA

ESPAÑOL

Etiquetas de cuidado de las prendas

Muchas prendas incluyen una etiqueta de cuidado de telas. Utilizando el siguiente cuadro, ajuste el ciclo y

las opciones a manera de cuidar de sus prendas de acuerdo a las recomendaciones del fabricante.

Carga de la lavadora

ADVERTENCIA

• Las prendas o los artículos impermeables o

resistentes al agua se deben lavar solo en el ciclo

Waterproof (Impermeables), Bedding (Ropa

de cama), Bulky/Large (Voluminosas/

Grandes) o Jumbo Wash (Lavado Jumbo).

(Entre los ejemplos se incluyen prendas

resistentes al agua, fundas para colchones,

prendas para exteriores y tapetes de plástico). Si

se utiliza otro ciclo, se pueden producir lesiones

personales o daños a la lavadora, a las prendas,

a las paredes, al piso y a los objetos

circundantes, debido a la vibración anormal.

Consejos generales

• Revise y vacíe los bolsillos. Los ganchos para

papel, las monedas, los fósforos, etc., pueden

dañar las prendas y la lavadora.

• Asegúrese de que los zípers y los ganchos de la

ropa estén cerrados y amarre cualquier cordón

para evitar que las prendas se enganchen o

enreden.

• Para mejores resultados, trate previamente las

áreas con manchas difíciles.

• Con un cepillo, quite el polvo, los pelos y la

suciedad más densa de los artículos antes de

lavarlos. El exceso de suciedad o arena puede

raspar otras telas y causar un lavado deficiente.

• Para un mejor rendimiento, cargue la ropa como

se muestra.

Colores claros Normal Cuidado fácil Que recoge pelusa

Oscuras Ligera Resistente

Categoría Etiqueta Indicaciones

Lavado

Lavado a mano

Lavado en lavadora, Ciclo normal

Configuración Planchado permanente/Resistente a las arrugas (que

tiene un rociado fresco o frío antes de un centrifugado más lento)

Suave/Delicado (agitación lenta y/o menor tiempo de lavado)

No lavar

No retorcer

Temperatura del agua Caliente

Tibia

Fría

Símbolos sobre

blanqueador

Cualquier blanqueador (cuando sea necesario)

Solo blanqueador sin cloro (cuando sea necesario)

No usar blanqueador

Por Colores Por nivel de suciedad Por tela Según la pelusa

14 FUNCIONAMIENTO DE LA LAVADORA

- No presione las prendas cuando las coloque

en el tambor.

- Cargue la ropa floja y no llene excesivamente

el tambor. Las prendas necesitan espacio para

moverse y, así, limpiarse.

• Combine prendas grandes y pequeñas en el

tambor. Primero, cargue la ropa más grande.

Las prendas grandes no deben representar más

de la mitad de la carga total.

• La lavadora puede estar llena por completo,

pero el tambor no debe llenarse totalmente con

prendas. La puerta de la lavadora debe poder

cerrarse con facilidad.

• La lavadora no se llenará ni funcionará con la

puerta abierta.

Artículos voluminosos

• Lave las prendas gruesas y voluminosas de

manera individual. Las cobijas, los edredones y

las colchas pesadas o las camas para mascotas

pueden enredarse o provocar una carga

desequilibrada si se combinan con otros

artículos.

Prendas pequeñas

• No lave prendas pequeñas individualmente.

Agregue suficientes prendas similares a la carga

para evitar que quede desequilibrada.

• Lave las prendas pequeñas y livianas en una

bolsa de malla. Las prendas pequeñas pueden

quedar atrapadas en el impulsor al fondo del

tambor, y los ganchos de los sostenes pueden

engancharse en otras prendas o en el tambor.

Agregado de productos de

limpieza

Acerca del uso de detergente

Esta lavadora está diseñada para ser usada

únicamente con detergentes de alta eficiencia

(HE).

• Los detergentes de alta eficiencia (HE) producen

menos espuma, se disuelven mejor a fin de

optimizar el rendimiento del lavado y el

enjuague, y ayudan a mantener limpio el interior

de la lavadora. El empleo de un detergente que

no sea de alta eficiencia puede producir

demasiada espuma y un mal desempeño,

causando errores, fallas en los ciclos y daños a la

lavadora.

• Puede que detergentes designados como

Compatibles con HE no provean resultados

óptimos.

• Para lograr un buen desempeño de lavado,

siempre mida la cantidad de detergente usando

el dispositivo de medición provisto por el

fabricante del detergente. Para una carga

promedio, use menos de la mitad del máximo

recomendado. Use menos detergente para

aguas blandas, ropas con poca suciedad o

cargas reducidas.

• Preste atención especial al medir detergentes

concentrados 2X y 3X porque incluso agregar

solo un poco más de detergente podría provocar

problemas.

• Nunca utilice una cantidad de detergente

superior al máximo recomendado por el

fabricante. Usar una cantidad excesiva de

detergente puede producir demasiada espuma,

un enjuague deficiente, acumulación de

detergente en la ropa y acumulación de residuos

que contribuyen a que se produzcan olores en la

lavadora.

aLinea de llenado máximo

bLínea de llenado de carga promedio

cDetergente líquido

dDetergente en polvo

Paquetes de detergente de un solo uso

• No utilice más de un paquete de detergente de

un solo uso en la lavadora. Utilizar demasiado

detergente podría generar un exceso de espuma

y afectar el rendimiento de lavado. Reduzca la

cantidad de detergente o añada un enjuague

extra si hay residuos de éste en los tejidos. Para

añadir un enjuague extra, seleccione la opción

Extra Rinse (Extra enjuague).

• Coloque los paquetes de detergente en polvo o

líquido en el tambor previo a cargar sus

prendas. No coloque los paquetes en el

dispensador.

16 FUNCIONAMIENTO DE LA LAVADORA

Compartimiento de blanqueador

líquido

En este compartimiento se coloca el blanqueador

líquido, que se dispensa automáticamente en el

momento adecuado durante el ciclo de lavado. El

dispensador se activa dos veces para asegurar que

el blanqueador se dispense por completo. Si

queda líquido en el dispensador después de la

finalización del ciclo de lavado, se trata de agua, no

de blanqueador.

ADVERTENCIA

• No mezcle cloro con amoniaco o ácidos, como

por ejemplo vinagre o removedores de óxido o

desincrustantes. La mezcla de productos

químicos como los mencionados puede producir

gases letales, que provocan lesiones graves o la

muerte.

NOTA

• No añada blanqueador en polvo a este

compartimiento. El compartimiento de

blanqueador está diseñado para dispensar

únicamente blanqueador con cloro líquido. El

blanqueador protector de color, líquido o en

polvo, no se dispensará apropiadamente.

• Siga las recomendaciones del fabricante cuando

añada blanqueador. Nunca añada más de una

taza y no sobrepase la línea de llenado máximo o

el blanqueador se dispensará de inmediato y

dañará las prendas. El uso excesivo de

blanqueador también puede dañar las telas.

• Nunca vierta blanqueador con cloro líquido sin

diluir directamente sobre la ropa o en el tambor.

Puede dañar las prendas.

• No utilice blanqueador protector de color o

blanqueador con oxígeno en el mismo ciclo de

lavado en el que utilice blanqueador de cloro

líquido.

Compartimiento de suavizante

En este compartimiento, se coloca el suavizante de

ropa, que se dispensa automáticamente durante el

ciclo final de enjuague. Puede utilizarse tanto

suavizante líquido como en polvo.

• No sobrepase la línea de llenado máximo. El uso

de una cantidad excesiva de suavizante puede

manchar las prendas u ocasionar una

acumulación en las telas o en la lavadora.

• Diluya en agua caliente los suavizantes

concentrados.

• Nunca vierta suavizante directamente sobre la

ropa o en el tambor.

17FUNCIONAMIENTO DE LA LAVADORA

ESPAÑOL

Panel de control

Funciones del panel de control para la lavadora

aBotón de Encendido/Apagado

• Presione este botón para encender o apagar la lavadora.

• Presionar este botón durante un ciclo cancelará ese ciclo y se perderá cualquier configuración

ingresada.

• La puerta se destrabará luego de una breve pausa.

NOTA

• Si queda agua en el tambor después de que se apaga la lavadora, el agua se drenará después de un

tiempo de retraso. La lavadora puede reiniciars tes de que comience el e en cualquier momento an

drenaje. Sin embargo, una vez que comienza a drenarse el agua, se suspenderán todas las funciones

hasta que se haya drenado el agua completamente y la lavadora se apague.

bCiclos

• Presione un botón para seleccionar el ciclo deseado.

• Una vez haya seleccionado el ciclo deseado, se mostrarán las configuraciones predeterminadas en la

pantalla. Estas configuraciones pueden ajustarse usando los Botones modificadores de ciclo en

cualquier momento antes de iniciar el ciclo.

cBotón de Inicio/Pausa

• Mantenga presionado este botón para iniciar el ciclo seleccionado.

• Si la lavadora está funcionando, utilice este botón para pausar el ciclo sin perder las configuraciones

actuales.

NOTA

• Si no se presiona el botón de Inicio/Pausa para iniciar el ciclo seleccionado, después de un tiempo de

retraso la lavadora se apaga automáticamente y todas las configuraciones del ciclo se perderán. Se

drenará el agua que quede en el tambor.

dBotones modificadores de ciclo

• Use estos botones para ajustar las configuraciones de temperatura de lavado, velocidad del

centrifugado y nivel de suciedad para el ciclo seleccionado.

18 FUNCIONAMIENTO DE LA LAVADORA

• Las configuraciones actuales se muestran en la pantalla.

• Presione el botón para esa opción a fin de seleccionar otras configuraciones.

eBotones de Opción y Función adicional

• Estos botones le permiten seleccionar opciones adicionales para el ciclo. Ciertos botones también le

permiten activar funciones especiales al mantenerlos presionados por 3 segundos.

Remote Start (Inicio remoto)

Utilice un teléfono inteligente para controlar su lavadora de manera remota.

- Para obtener más información, consulte FUNCIONES INTELIGENTES en este manual.

Wi-Fi

Cuando la lavadora está conectada a una red Wi-Fi doméstica, el icono en el panel de control está f

encendido.

- Para conectar la lavadora a la aplicación LG ThinQ, mantenga presionado el botón Temp.

(Temperatura) durante 3 segundos.

Pantalla de tiempo y estado

aIndicador Wi-Fi

• Este indicador se enciende cuando el producto está conectado a una red Wi-Fi doméstica.

bIndicador de inicio remoto

• Este indicador se enciende cuando se activa la función de Inicio remoto.

cIndicador de Bloqueo de Puerta

• Este indicador se enciende cuando el ciclo comienza y se bloquea la puerta.

• La luz indicadora permanecerá encendida hasta que el ciclo haya finalizado o sea pausado o

detenido.

dIndicador de señal

• Este indicador se ilumina cuando se encienden los tonos del botón y del fin de ciclo.

eTiempo restante estimado

• Cuando un ciclo se ha seleccionado, el tiempo predeterminado para éste se mostrará. Este tiempo

cambiará conforme se seleccionen modificadores u opciones.

• Si la pantalla muestra -I--, entonces se mostrará el tiempo después de que el sensor de carga haya

detectado el tamaño de la carga.

• El tiempo mostrado es sólo un estimado. Este tiempo está basado en condiciones de operación

normal. Varios factores externos (tamaño de la te, temperatura del agua, carga, temperatura ambien

etc.) podrían afectar el tiempo real.

NOTA

• Una vez el botón Inicio/Pausa ha sido presionado, la lavadora medirá el tamaño de la carga. El tiempo

estimado podrá cambiar una vez el tamaño de la carga ha sido establecido.

19FUNCIONAMIENTO DE LA LAVADORA

ESPAÑOL

fIndicador AI DD

• Esta función ofrece un lavado optimizado mediante la detección del tamaño de la carga y las

características de la ropa.

El indicador se ilumina cuando se selecciona el ciclo Normal con una función de temperatura de

lavado Warm.

NOTA

• La función AI DD puede variar según el entorno y el modelo.

gIndicadores de Estado del Ciclo

• Estos indicadores LED parpadean cuando un ciclo ha sido seleccionado para indicar las etapas a

ejecutar.

• Cuando un ciclo está en progreso, el indicador LED de la etapa activa parpadea y los indicadores LED

de las etapas restantes completa una etapa, el indicador LED permanecen estables. Una vez que se

se apaga. Si se pausa un ciclo, el indicador LED de la etapa activa deja de parpadear.

24 FUNCIONAMIENTO DE LA LAVADORA

Tub Clean (Limpieza de la tina)

Este es un ciclo especial diseñado para limpiar el

interior de la lavadora.

Steam (Vapor)

Si se agrega esta opción a un ciclo de lavado, se

obtiene una higiene superior. La utilización de

vapor brinda a las telas los beneficios de limpieza

de un lavado muy caliente.

• Es posible que, durante los ciclos de vapor, este

no pueda verse. Esto es normal. El exceso de

vapor podría dañar las prendas.

• No utilice vapor con telas delicadas, como la lana

y seda, o con telas que se decoloran fácilmente.

ADVERTENCIA

• No toque la puerta durante los ciclos de vapor.

Su superficie puede calentarse mucho y puede

provocar quemaduras graves. Espere a que se

liberen las trabas de la puerta antes de abrirla.

• Nunca intente anular el mecanismo de cierre de

la puerta ni intente introducir las manos en la

lavadora durante un ciclo de vapor. El vapor

puede causar quemaduras graves.

Lavado TurboTM

Al agregar esta opción se reduce el tiempo del

ciclo, mientras se obtiene un desempeño de

lavado similar al del mismo ciclo sin Turbo

WashTM.

NOTA

• Esta opción no puede usarse con todos los ciclos.

• Esta opción está predeterminada en ciclos de

lavado Normal y Heavy Duty (Muy sucia).

Extra Rinse (Extra enjuague)

Esta opción añadirá un enjuague extra al ciclo

seleccionado. Use esta opción para ayudar a

eliminar el residuo de detergente o blanqueador

de las telas.

• Presione el botón Extra Rinse (Extra enjuague)

para añadir enjuagues adicionales al ciclo.

Uso de la opción de prelavado

Esta opción añade un prelavado (durante

alrededor de 15 a 17 minutos) para mejorar la

limpieza de la ropa manchada o con alto nivel de

suciedad.

NOTA

• Si selecciona Pre-wash (Prelavado) después de

agregar detergente directamente en el tambor,

es posible que el detergente desaparezca,

reduciendo así el desempeño de lavado.

Control Lock (Bloqueo de Panel)

Utilice esta función para deshabilitar los controles.

Esta función puede evitar que los niños cambien

los ciclos o manejen esta lavadora.

NOTA

• La función no traba la puerta.

• Una vez que se establece esta función, todos los

botones quedan bloqueados, excepto el botón

de Encendido/Apagado.

• Cuando los controles están bloqueados, CL y el

tiempo restante se muestran alternativamente

en la pantalla durante el ciclo de lavado.

• Apagar la alimentación no restablecerá esta

función. Debe desactivar esta función antes de

poder acceder a otras opciones y funciones.

Bloqueando/Desbloqueando el Panel de

Control

1 Conectar la alimentación.

2 Mantenga presionado el botón de Soil

(Suciedad) por 3 segundos para activar/

desactivar esta función.

• Cuando la función está desactivada, sonará una

alarma y el tiempo restante para el ciclo actual

volverá a aparecer en la pantalla.

Signal (Señal)

La lavadora emite una melodía cuando finaliza el

ciclo de lavado. Los botones producen un sonido

cada vez que se los presiona. Utilice esta opción

para ajustar el volumen de la melodía y de los

tonos de los botones.

• Para apagar o encender la función, mantenga

presionado el botón Extra Rinse (Extra

enjuague) durante 3 segundos.

31FUNCIONAMIENTO DE LA SECADORA

ESPAÑOL

Opciones disponibles

† Esta opción se incluye automáticamente en el ciclo y se puede deseleccionar.

NOTA

• La opción Energy Saver (Ahorro de Energía) se activa por defecto. Si usted enciende la secadora y

desactiva la opción Energy Saver (Ahorro de Energía), la opción Energy Saver (Ahorro de Energía)

permanecerá apagada cuando encienda la secadora.

Temp.

(Temperatura)

Predeterminado: High (Alta) Disponible: High (Alta)

Dry level (Nivel de

Secado)

Predeterminado: Normal Disponible: Very (Muy), More (Más),

Normal

Ciclo Downloaded (Perm. Press) (Descargado (Planchado permanente))

Descripción Utilice un teléfono inteligente para descargar un ciclo especializado para esta posición

de ciclo.

• El ciclo predeterminado es Perm. Press (Planchado permanente). Este ciclo

también está disponible para descargar.

• Consulte la aplicación LG ThinQ para ver los ciclos disponibles para descargar.

Temp.

(Temperatura)

Predeterminado: Medium (Medio) Disponible: Medium (Medio)

Dry level (Nivel de

Secado)

Predeterminado: Normal Disponible: Todos

Ciclo Steam (Vapor)

Wrinkle Care

(Prevención de

Arrugas)

Reduce Static

(Estática

Reducida)

Energy Saver

(Ahorro de

Energía)

Normal # # #†

Bedding (Ropa de

cama)

# #

Delicates

(Delicadas)

# #

Heavy Duty (Muy

sucia)

###

Small Load (Poca

ropa)

Downloaded

(Descargado)

Predeterminado:Pe

rm. Press

(Planchado

permanente)

###

Ciclo Small Load (Poca ropa)

32 FUNCIONAMIENTO DE LA SECADORA

Modificadores de ciclo

Acerca de los botones

modificadores

Cada ciclo tiene configuraciones predeterminadas

que se seleccionan automáticamente.

Personalícelas con los botones modificadores de

ciclo. Presione el botón del modificador deseado

para abrir la pantalla del modificador.

Temp. (Temperatura)

Use este botón para ajustar la configuración de la

temperatura. Esto permite el cuidado preciso de

sus tejidos y prendas. Presione el botón Temp.

(Temperatura) repetidas veces para deslizarse

por los ajustes disponibles.

Dry level (Nivel de Secado)

Use este botón para seleccionar el nivel de secado

para el ciclo. Presione el botón de Dry level (Nivel

de Secado) repetidas veces para desplazarse por

los ajustes disponibles.

• El artefacto ajustará el tiempo del ciclo de forma

automática según el nivel de secado

seleccionado. Si selecciona More (Más) o Very

(Muy), aumentará el tiempo del ciclo; mientras

que las opciones Less (Menos) o Damp

(Planchado) disminuirán el tiempo del ciclo.

• Use un ajuste Less (Menos) o Damp

(Planchado) para las prendas que desee

planchar.

Time Dry (Secado con Temporizador)

Utilice este botón para seleccionar manualmente

el tiempo de secado, de 20 a 60 minutos en

incrementos de 10 minutos.

• Utilice esto para cargas pequeñas o para quitar

las arrugas.

Opciones y funciones

adicionales

Su secadora incluye varias opciones de ciclos

adicionales para personalizarlos de modo que

cumplan con sus necesidades.

Seleccione la opción deseada después de elegir el

ciclo y los ajustes que prefiere.

NOTA

• La luz LED de la opción se iluminará cuando sea

seleccionada.

• Para proteger sus prendas, no se dispone de

todas las opciones en cada ciclo.

• Sonará una alarma dos veces y no se encenderá

la luz LED si no se permite la opción seleccionada

para el ciclo que eligió.

Steam (Vapor)

Al añadir la opción a un ciclo de Steam (Vapor)

secado, se reducirán las arrugas y el olor de los

tejidos.

ADVERTENCIA

• No toque la puerta durante los ciclos de vapor,

ya que esta se puede calentar mucho.

• No trate de introducir las manos en la secadora

durante un ciclo de vapor. El vapor puede causar

quemaduras graves.

NOTA

• Es posible que, durante los ciclos de vapor, este

no pueda verse. Esto es normal.

• No utilice vapor con telas delicadas como lana,

seda, o con telas que se decoloran fácilmente.

• Si el filtro/conducto está obstruido, es posible

que esta opción no dé resultados óptimos.

• Cuando se ejecute la función de vapor, el tambor

se detendrá para permitir que el vapor

permanezca en el tambor.

Steam Fresh

Este ciclo utiliza el poder del vapor para reducir las

arrugas y el olor en los tejidos rápidamente.

Renueva la ropa arrugada que estuvo guardada

durante mucho tiempo y facilita el planchado de la

ropa con arrugas muy marcadas. También puede

utilizarse para ayudar a reducir los olores en los

tejidos.

1 Presione el botón Encendido/Apagado para

encender la secadora.

2 Mantenga presionado el botón de Steam

(Vapor) durante 3 segundos.

33FUNCIONAMIENTO DE LA SECADORA

ESPAÑOL

3 Para agregar una opción, seleccione Wrinkle

Care (Prevención de Arrugas).

4 Presione Inicio/Pausa para comenzar el ciclo.

NOTA

• Es posible que durante los ciclos de vapor, este

no pueda verse. Esto es normal.

• No utilice Steam Fresh con artículos como lana,

mantas de lana, chaquetas de cuero, seda,

prendas húmedas, lencería, productos de

espuma o mantas eléctricas.

Wrinkle Care (Cuidado de las

arrugas)

Al seleccionar esta opción, la secadora hará un

centrifugado periódico por un período de hasta

3 horas después del ciclo seleccionado o hasta que

se abra la puerta. Esto ayuda a prevenir la

formación de arrugas cuando no le sea posible

retirar las prendas de la secadora

inmediatamente.

Presione el botón Wrinkle Care (Prevención de

Arrugas) para seleccionar un ciclo de secado.

NOTA

• Cuando se establezca la opción, aparecerá un

rectángulo con un guion y ENd en pantalla hasta

que se apague la función.

• Cuando se establezca la opción, solo el botón

Encendido/Apagado funciona después de que

termina el ciclo de secado.

• Cuando se ejecuta un ciclo de secado, pause

primero el ciclo para ajustar la opción.

• Apague siempre el artefacto antes de sacar la

ropa.

Estática Reducida

Esta opción inyecta vapor al final del ciclo de

secado para reducir la electricidad estática que

producen los tejidos secos con la frotación.

Energy Saver (Ahorro de energía)

Esta opción ayuda a reducir el consumo de energía

del ciclo Normal, dependiendo del tamaño de la

carga. Cuando se selecciona la opción Energy

Saver (Ahorro de Energía), el ciclo comienza con

una sección de secado con aire y el tiempo de

secado se incrementa.

Control Lock (Bloqueo de Panel)

Utilice esta función para desactivar los controles.

Esta función puede evitar que los niños cambien

los ciclos o manejen esta secadora.

NOTA

• La función no traba la puerta.

• Una vez que se establece esta función, todos los

botones quedan bloqueados, excepto el botón

de Encendido/Apagado.

• Cuando los controles están bloqueados, CL y el

tiempo restante se muestran de manera

alternada en la pantalla durante el ciclo de

secado.

• Apagar la alimentación no restablecerá esta

función. Debe desactivar esta función antes de

poder acceder a otras opciones y funciones.

Bloqueando/Desbloqueando el Panel de

Control

1 Conectar la alimentación.

2 Mantenga presionado el botón de Time Dry

(Secado con Temporizador) por 3 segundos

para activar/desactivar esta función.

• Cuando la función está desactivada, sonará una

alarma y el tiempo restante para el ciclo actual

volverá a aparecer en la pantalla.

Signal (Señal)

La secadora reproduce una melodía una vez que

termina el ciclo de secado. Los botones emiten un

sonido cada vez que se presiona uno de ellos.

Utilice este botón para encender o apagar la

melodía y los tonos del botón.

• Para apagar o encender la función, mantenga

presionado el botón Reduce Static (Estática

Reducida) durante 3 segundos.

Drum Light (Luz del tambor)

El tambor está equipado con una luz LED blanca

que se ilumina cuando se enciende la secadora. La

luz se apaga automáticamente cuando se cierra la

puerta y se inicia el ciclo.

34 FUNCIONAMIENTO DE LA SECADORA

• Mantenga presionado el botón Wrinkle Care

(Prevención de Arrugas) por 3 segundos

durante el ciclo para encender la luz del tambor.

• La luz del tambor se apagará automáticamente

transcurridos 4 minutos.

35FUNCIONES INTELIGENTES

ESPAÑOL

FUNCIONES INTELIGENTES

Uso de la aplicación LG

ThinQ

La aplicación LG ThinQ le permite comunicarse

con el electrodoméstico usando un teléfono

inteligente.

Funciones de la aplicación LG ThinQ

•Remote Start (Inicio remoto)

- Controle el aparato de manera remota desde

la aplicación LG ThinQ.

•Downloaded (Descargado)

- Descargue ciclos nuevos y especializados que

no estén incluidos en los ciclos estándar en el

artefacto. Una vez que se completa la

descarga de un ciclo en el artefacto, el

producto mantiene el ciclo descargado hasta

que se descarga un nuevo ciclo.

•Ciclo en la nube

- Los ciclos en la nube incluyen muchos ciclos

que inician desde la nube y ofrecen varias

opciones. Sin embargo, el ciclo descargado se

borra del artefacto cuando este se apaga.

•Asistente de Limpieza de Tina (Lavadora)

- Descubra la cantidad de ciclos restantes previo

a que sea tiempo de ejecutar el ciclo de Tub

Clean (Limpieza de la tina).

•Consejos sobre la ventilación (Secadora)

- Consejos de acceso para optimizar la

ventilación del secador.

•Monitoreo de energía

- Lleve el control del consumo de energía de la

lavadora y cómo este se ve afectado por los

ciclos y las opciones de lavado seleccionados.

•Smart DiagnosisTM

- Esta función brinda información útil para

diagnosticar y resolver problemas con el

producto conforme a su patrón de uso.

•Alertas Emergentes

- Cuando se completa el ciclo o el artefacto tiene

problemas, recibirá un mensaje emergente.

•Configuración

- Ajuste varias opciones en el aparato y en la

aplicación.

NOTA

• Si cambia de enrutador inalámbrico, proveedor

de Internet o contraseña, borre el artefacto

conectado de la aplicación LG ThinQ y proceda a

conectarlo de nuevo.

• Esta información está actualizada en el

momento de su publicación. La aplicación está

sujeta a cambios, con fines de mejorar el

producto, sin previo aviso a los usuarios.

Antes de usar la aplicación LG

ThinQ

1 Compruebe la distancia entre el aparato y el

enrutador inalámbrico (red de Wi-Fi).

• Si el aparato está demasiado lejos del

enrutador inalámbrico, la intensidad de la

señal se debilita. Es probable que le tome

más tiempo conectarse o que falle la

instalación.

2 Desactive los Datos Móviles o Datos

Celulares en su teléfono inteligente.

3 Conecte su teléfono inteligente al enrutador

inalámbrico.

NOTA

• Para verificar la conexión Wi-Fi, revise que el

ícono f en el panel de control esté encendido.

• El electrodoméstico funciona únicamente con

redes Wi-Fi de 2.4 GHz. Contacte a su proveedor

de servicios de internet o verifique el manual del

enrutador inalámbrico para revisar la frecuencia

de su red.

•LG ThinQ no es responsable por ningún

problema de conexión en red, falla, mal

funcionamiento o error causado por la conexión

de red.

36 FUNCIONES INTELIGENTES

NOTA

• Si el aparato tiene problemas para conectarse a

la red Wi-Fi, es posible que se encuentre

demasiado lejos del router. Adquiera un

repetidor Wi-Fi (extensor de alcance) para

mejorar la intensidad de la señal Wi-Fi.

• Es posible que la conexión Wi-Fi no se conecte o

se interrumpa debido al entorno de la red

doméstica.

• Es posible que la conexión de red no funcione

bien por cuestiones relacionadas con su

proveedor de servicios de Internet.

• El entorno inalámbrico circundante puede hacer

que el servicio de red inalámbrica funcione

lentamente.

• Si el electrodoméstico no puede registrarse

debido a problemas con la transmisión de la

señal inalámbrica, desconéctelo y espere

alrededor de un minuto previo a intentarlo de

nuevo.

• Si el cortafuegos de su enrutador inalámbrico

está activado, desactivelo o añada una

excepción a éste.

• El nombre de la red inalámbrica (SSID) debe ser

una combinación de letras y números. (No utilice

símbolos especiales)

• La interfaz de usuario (IU) del teléfono

inteligente puede variar dependiendo del

sistema operativo (OS) del móvil y del fabricante.

• Puede que la configuración de red falle si el

protocolo de seguridad del enrutador está en

WEP. Cambie el protocolo de seguridad por otro

(se recomienda el WPA2) y conecte el producto

de nuevo.

Instalación de la aplicación LG

ThinQ

Busque la aplicación LG ThinQ en la tienda Google

Play o App Store desde su teléfono inteligente.

Siga las instrucciones para descargar e instalar la

aplicación.

Utilización de forma remota de la

lavadora/secadora

Remote Start (Inicio remoto)

Utilice un teléfono inteligente para controlar su

electrodoméstico de manera remota. También

puede monitorear el funcionamiento del ciclo para

saber cuánto tiempo le queda.

Uso de Inicio remoto

1 Cargue las prendas.

2 Presione el botón de Encendido/Apagado.

3 Mantenga presionado el botón Remote

(Remoto) durante 3 segundos para habilitar

la función de control remoto.

4 Inicie un ciclo desde la aplicación LG ThinQ en

su teléfono inteligente.

NOTA

• Una vez que esté habilitada esta función, usted

puede empezar un ciclo desde la aplicación LG

ThinQ para teléfonos inteligentes. Si el ciclo no

inició, el electrodoméstico esperará a que el ciclo

se inicie hasta que este se apague de forma

remota desde la aplicación, o al deshabilitar esta

función.

• Si se abrió la puerta, no puede iniciar un ciclo

remoto.

Deshabilite Remote Start (Inicio remoto)

de forma manual

Cuando la función esté activada, mantenga

presionado el botón Remote (Remoto) por

3 segundos.

Ciclo descargado

Usted puede descargar ciclos nuevos y

especializados que no se encuentran incluidos en

los ciclos estándar del electrodoméstico.

Los artefactos que se han conectado

correctamente tienen la posibilidad de descargar

una variedad de ciclos especiales específicos para

ellos.

Una vez que se completa la descarga de un ciclo en

el artefacto, el producto mantiene el ciclo

descargado hasta que se descarga un nuevo ciclo.

NOTA

• Solo se puede guardar un ciclo descargado a la

vez en el electrodoméstico.

Ciclo en la nube

Utilice la aplicación LG ThinQ para iniciar ciclos

con varias opciones. Los ciclos en la nube se

eliminan del artefacto una vez que se lo apaga.

37FUNCIONES INTELIGENTES

ESPAÑOL

Ciclos descargados y en la nube para la lavadora

Consulte la aplicación LG ThinQ para ver los ciclos que se pueden descargar y en la nube para su modelo.

Ciclos descargados y en la nube para la secadora

Consulte la aplicación LG ThinQ para ver los ciclos que se pueden descargar y en la nube para su modelo.

Nombre del ciclo Descripción

Allergiene Ciclo potente de alta temperatura para reducir ciertos alérgenos.

Trajes de baño Optimizado para trajes de baño.

Cobijas Limpia cobijas que se utilizan todos los días. No lo utilice para cobijas de lana.

Bright Whites Únicamente para colores blancos.

Cuellos y puños Lava cuellos y puños utilizando temperatura elevada para la eliminación efectiva

de manchas.

Cuidado de colores Evita que se aclaren los colores.

Vestidos delicados Limpia con cuidado los vestidos de cóctel con manchas leves.

Denim Ciclo especial para jeans.

Solo centrifugado Para centrifugar prendas lavables a mano.

Lavado de carga

completa

Ajustes de lavado optimizado para cargas de lavado completas.

Lavado de media carga Ajustes de lavado optimizado para media carga de lavado.

Manchas de jugos y

comida

Elimina manchas de jugos y comida de la ropa.

Lavado a mano / lana Para lavar artículos de lana que se encogen o artículos de lavado a mano que

requieren un cuidado delicado.

Lavado durante la noche Reduce el ruido del lavado y continúa girando después del ciclo para prevenir las

arrugas.

Planchado permanente Optimizado para dejar sin arrugas ropa o manteles.

Día lluvioso Limpia la ropa que está mojada por la lluvia.

Enjuague+Centrifugado Enjuagar y centrifugar una carga por separado de un ciclo regular.

Prendas únicas Lava rápidamente una única prenda.

Poca ropa Lava una pequeña carga de ropa (menos de 3 lb).

Ropa deportiva Optimizado para ropa deportiva con tratamiento especial.

Manchas de

transpiración

Elimina las manchas de transpiración y sudor.

Toallas Optimizado para toallas, camisas, jeans y cargas mixtas.

38 FUNCIONES INTELIGENTES

Nombre del ciclo Descripción

Antibacteriano Reduce el 99.9% de las bacterias en la ropa.

Secado por aire Para prendas que requieren secado sin calor, como

plásticos o goma

Cobijas Seca cobijas voluminosas

Renovación de cobijas Calienta las cobijas y les proporciona una sensación

agradable y suave.

Denim Ciclo especial para jeans.

Desodorización Reduce los olores en la ropa que no requieren lavado.

Planchado fácil Deja la ropa apenas húmeda para que esté lista para

secar con el planchado.

Secado de carga completa Ajustes de secado optimizado para cargas de lavado

completas.

Secado de media carga Ajustes de secado optimizado para media carga de

lavado.

Ropa de gimnasia Optimizado para ropa de gimnasia.

Ropa infantil Usa temperatura elevada para desinfectar la ropa de

los niños.

Ropa de gimnasia infantil Optimizado para la ropa deportiva de algodón de los

niños.

Lencería Optimizado para lencería.

Secado a baja temperatura Seca la carga mientras reduce el consumo de energía.

Secado durante la noche Este ciclo de ahorro de energía seca una carga

pequeña durante la noche.

Planchado permanente Optimizado para telas de planchado permanente o

artículos sintéticos.

Secado sobre rejilla Diseñado para usar con la rejilla de secado para secar

artículos como suéteres de lana, artículos de seda o

lencería que se deben secar de forma horizontal.

Día lluvioso Seca ropa húmeda a causa de la lluvia o la nieve.

Calcetines Optimizado para calcetines.

Secado rápido Seca pequeñas cargas rápidamente utilizando

temperaturas elevadas.

Ropa deportiva Optimizado para ropa deportiva con tratamiento

especial.

Reducción de la estática Usa vapor para reducir la estática en la ropa seca.

Higiene con vapor Reduce las bacterias en la ropa mediante el uso de

Turbo Steam.

Secado extraordinario Seca por completo la ropa de algodón.

Toallas Optimizado para las toallas.

Produkt Specifikationer

Mærke:	LG
Kategori:	Vaskemaskine
Model:	WSGX201HNA

Har du brug for hjælp?

Hvis du har brug for hjælp til LG WSGX201HNA stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Vaskemaskine LG Manualer

21 Juli 2025

11 Juli 2025

11 Juli 2025

8 Juli 2025

5 Juli 2025

5 Juli 2025

5 Juli 2025

4 Juli 2025

4 Juli 2025

LG LDFN4542BSS Manual

4 Juli 2025

Vaskemaskine Manualer

Nyeste Vaskemaskine Manualer

SVAN SL9120DID Manual

30 Juli 2025

Wascomat H7-600 Manual

30 Juli 2025

Wascomat Junior W 75 Manual

30 Juli 2025

Frigidaire FLVW7000AW Manual

30 Juli 2025

Wascomat EX618cl Manual

30 Juli 2025

Wascomat EXSM680cl Manual

30 Juli 2025

BEKO B5W5941BDW Manual

30 Juli 2025

Haier HW90-B14367U1 Manual

30 Juli 2025

Wascomat H7-240 Manual

30 Juli 2025

AEG LWR954P16H Manual

30 Juli 2025
