Side 1/24
EN
www.weldline.eu
LINCOLN ELECTRIC IBERIA S.L.
Ctra. Laureà Miró 396-398,
08980 Sant Feliu de Llobregat (Barcelona) - SPAIN
WTT2 20W 18W
Curent
Duty cycle 60% 250 A 350 A
Duty cycle 100% 200 A 320 A
Light alloy welding, reduce the duty cycle about 30%
Water flow mini 1.0 l/mn
Water pressure 3.3 bars
Maxi temperature inlet water 45°C
Voltage class L - 113 V
Gas flow Mini : 7 l/mn - Maxi : 13 l/mn
Using electrodes Ø 1.0 / 3.2 mm Ø 1.0 / 4.0 mm
Origin
equipment fitted
to the torch
Back Cap
Long Long
Long Long
Nozzle Ø 12 mm Ø 12 mm
Electrode Ø 2.4 L Ø 2.4 L
WTT2
4 m 8 m
20W
RL S
W000278893 W000278906
RL S
18W
RL S
W000278897 W000278900
20W
RL C5B
W000278894 W000278905
RL C5B
18W
RL C5B
W000278898 W000278899
N°8695-1196_Rev2_05/2018
We thank you for your trust in our company by purchasing this equipment which will provide
you with complete satisfaction if you comply with its conditions for use and maintenance.
CAUTION: The company declines all responsibility in case of modification, addition of
components or subassemblies, or any transformation of the equipment carried out by
the customer or a thirdparty, without prior specific written agreement from the company.
Arc welding and plasma cutting may be dangerous for the operator and persons close
to the work area. Read the operating manual and safety instructions W000261712.
See www.weldline.eu.
A) Maintenance / Troubleshooting
Before any internal verifications and repair work, make sure that the equipment is separated
from the electric installation by electrical isolation (by electrical isolation is meant a group of
operations designed to separate and keep the equipment de-energized).
At least every six months, you must check the proper condition of the insulation and
connections of the electric equipment and accessories such as plugs, flexible wires, ducts,
connectors, extension leads, partholders, electrode-holders, or torches...
Maintenance and repair work on the jackets and insulating ducts must be carried out
extremely carefully.
Have defective parts repaired by a specialist, or better still, have them replaced.
Routinely check the proper tightening and cleanliness of the electric connections.
B) Work-station
Use only electrode holders and torches which are perfectly insulated.
The operator must be insulated from the ground-surface and the workpiece (gloves, safety
shoes, dry clothes, leather apron, and so forth...).
Do not touch the electrode wire and the part (or the nozzle) simultaneously.
C) Protection
It is absolutely essential that your protect your eyes from blinding glare (glare of arc invisible
light and infrared and ultraviolet radiation).
The welding mask, without or with helmet, must always be equipped with a protective filter
whose gradation depends on the welding arc current intensity (EN 169 Standard).
Fumes emitted during welding operations may be dangerous. Use adequate protection
means (fumes extraction, ventiled masks...)

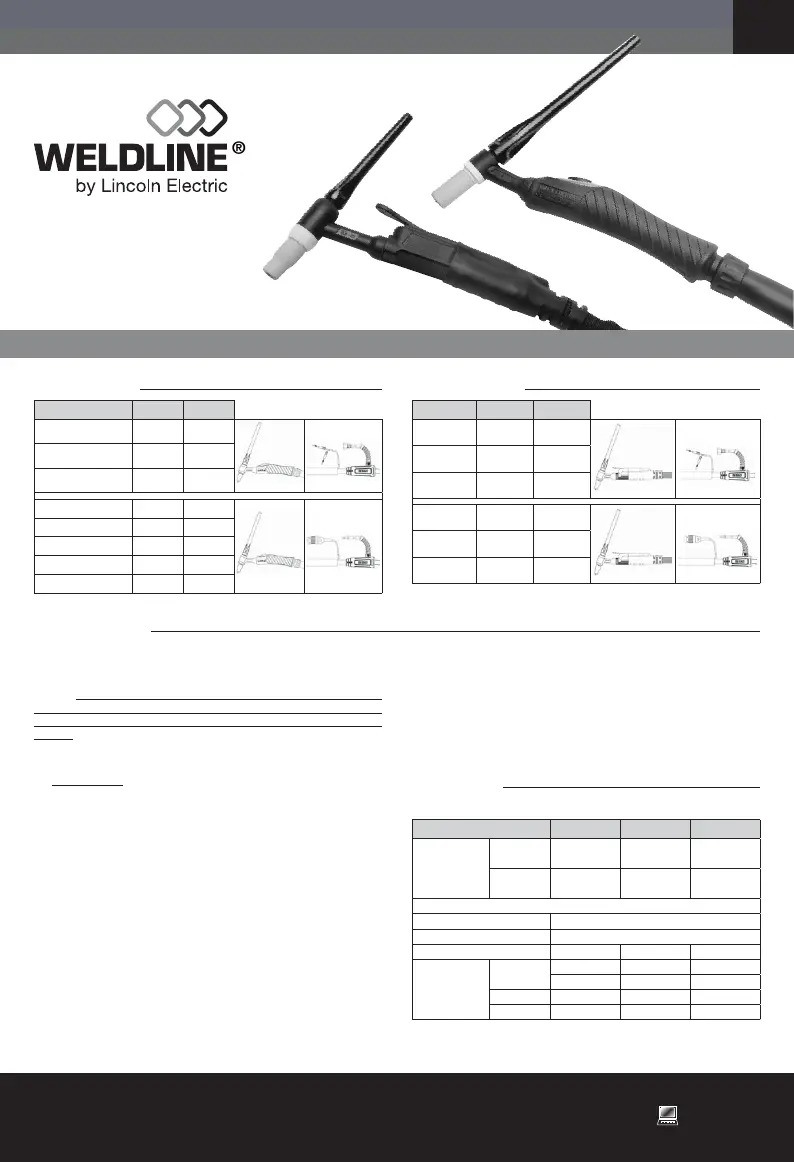

Technical data
TIG manual torch with natural cooling
Safety instructions
French lever rangeErgonomic Range
WTT2
4 m 8 m
20W EB S
W000278891 W000278911
EB S
18W EB S
W000278895 W000278902
20W
EB C5B
W000278892 W000278909
EB
C5B
18W
EB C5B
W000278896 W000278901
20W EB S/
C5B FLEX
W000382786 W000382787
18W EB S/
C5B FLEX
W000382788 W000382789
WTT2 20W
WTT2 18W
I nstructions for safety, use and maintenance
EN
www.weldline.eu
LINCOLN ELECTRIC EUROPE S.L.
c/o Balmes, 89 - 8
o
2
a
- 08008 Barcelona - SPAIN
We thank you for your trust in our company by purchasing this equipment which will
provide you with complete satisfaction if you comply with its conditions for use and
maintenance.
CAUTION: The company declines all responsibility in case of modifi cation, addition of
components or subassemblies, or any transformation of the equipment carried out
by the customer or a thirdparty, without prior specifi c written agreement from the
company.
Arc welding and plasma cutting may be dangerous for the operator and persons close
to the work area. Read the operating manual and safety instructions W000261712.
See www.weldline.eu.
A) Maintenance / Troubleshooting
Before any internal verifi cations and repair work, make sure that the equipment is separated
from the electric installation by electrical isolation (by electrical isolation is meant a group of
operations designed to separate and keep the equipment de-energized).
At least every six months, you must check the proper condition of the insulation and
connections of the electric equipment and accessories such as plugs, fl exible wires, ducts,
connectors, extension leads, partholders, electrode-holders, or torches...
Maintenance and repair work on the jackets and insulating ducts must be carried out
extremely carefully.
Have defective parts repaired by a specialist, or better still, have them replaced.
Routinely check the proper tightening and cleanliness of the electric connections.
B) Work-station
Use only electrode holders and torches which are perfectly insulated.
The operator must be insulated from the ground-surface and the workpiece (gloves, safety
shoes, dry clothes, leather apron, and so forth...).
Do not touch the electrode wire and the part (or the nozzle) simultaneously.
C) Protection
It is absolutely essential that your protect your eyes from blinding glare (glare of arc invisible
light and infrared and ultraviolet radiation).
The welding mask, without or with helmet, must always be equipped with a protective fi lter
whose gradation depends on the welding arc current intensity (EN 169 Standard).
Fumes emitted during welding operations may be dangerous. Use adequate protection
means (fumes extraction, ventiled masks...)
Technical data
TIG manual torch with natural cooling
WTT2 9 17 26
Curent
Duty cycle
35%
110 A 135 A 180 A
Duty cycle
60%
80 A 100 A 130 A
Light alloy welding, reduce the duty cycle about 30%
Voltage class L - 113 V
Gas fl ow Mini : 7 l/mn - Maxi : 13 l/mn
Using electrodes Ø 1.0 / 3.2 mm Ø 1.0 / 3.2 mm Ø 1.0 / 4.0 mm
Origin
equipment fi tted
to the torch
Back Cap
Long Long Long
Long Long Long
Nozzle Ø 10 mm Ø 10 mm Ø 12 mm
Electrode Ø 1.6 L Ø 2.0 L Ø 2.4 L
I nstructions for safety, use and maintenance
N°8695-1195_Rev2_05/2018
Safety instructions
French lever range
WTT2
4 m 8 m
9 RL S
W000278878 W000278923
RL S
17 RL S
W000278883 W000278918
26 RL S
W000278888 W000278914
9 RL C5B
W000278879 W000278922
RL C5B
17 RL C5B
W000278884 W000278917
26 RL C5B
W000278890 W000278913
WTT2 9
WTT2 17
WTT2 26
Ergonomic Range
WTT2
4 m 8 m
9 EB S
W000278877 W000278929
EB S
17 EB S
W000278881 W000278920
26 EB S
W000278886 W000278916
9 EB C5B
W000278875 -
EB C5B
17 EB C5B
W000278882 W000278919
26 EB C5B
W000278887 W000278915
17 EB S/C5B FLEX
W000382782 W000382783
26 EB S/C5B FLEX
W000382784 W000382785
EN
EN
www.weldline.eu
LINCOLN ELECTRIC IBERIA S.L.
Ctra. Laureà Miró 396-398,
08980 Sant Feliu de Llobregat (Barcelona) - SPAIN
WTT2 20W 18W
Curent
Duty cycle 60% 250 A 350 A
Duty cycle 100% 200 A 320 A
Light alloy welding, reduce the duty cycle about 30%
Water flow mini 1.0 l/mn
Water pressure 3.3 bars
Maxi temperature inlet water 45°C
Voltage class L - 113 V
Gas flow Mini : 7 l/mn - Maxi : 13 l/mn
Using electrodes Ø 1.0 / 3.2 mm Ø 1.0 / 4.0 mm
Origin
equipment fitted
to the torch
Back Cap
Long Long
Long Long
Nozzle Ø 12 mm Ø 12 mm
Electrode Ø 2.4 L Ø 2.4 L
WTT2
4 m 8 m
20W
RL S
W000278893 W000278906
RL S
18W
RL S
W000278897 W000278900
20W
RL C5B
W000278894 W000278905
RL C5B
18W
RL C5B
W000278898 W000278899
N°8695-1196_Rev2_05/2018
We thank you for your trust in our company by purchasing this equipment which will provide
you with complete satisfaction if you comply with its conditions for use and maintenance.
CAUTION: The company declines all responsibility in case of modification, addition of
components or subassemblies, or any transformation of the equipment carried out by
the customer or a thirdparty, without prior specific written agreement from the company.
Arc welding and plasma cutting may be dangerous for the operator and persons close
to the work area. Read the operating manual and safety instructions W000261712.
See www.weldline.eu.
A) Maintenance / Troubleshooting
Before any internal verifications and repair work, make sure that the equipment is separated
from the electric installation by electrical isolation (by electrical isolation is meant a group of
operations designed to separate and keep the equipment de-energized).
At least every six months, you must check the proper condition of the insulation and
connections of the electric equipment and accessories such as plugs, flexible wires, ducts,
connectors, extension leads, partholders, electrode-holders, or torches...
Maintenance and repair work on the jackets and insulating ducts must be carried out
extremely carefully.
Have defective parts repaired by a specialist, or better still, have them replaced.
Routinely check the proper tightening and cleanliness of the electric connections.
B) Work-station
Use only electrode holders and torches which are perfectly insulated.
The operator must be insulated from the ground-surface and the workpiece (gloves, safety
shoes, dry clothes, leather apron, and so forth...).
Do not touch the electrode wire and the part (or the nozzle) simultaneously.
C) Protection
It is absolutely essential that your protect your eyes from blinding glare (glare of arc invisible
light and infrared and ultraviolet radiation).
The welding mask, without or with helmet, must always be equipped with a protective filter
whose gradation depends on the welding arc current intensity (EN 169 Standard).
Fumes emitted during welding operations may be dangerous. Use adequate protection
means (fumes extraction, ventiled masks...)
Technical data
TIG manual torch with natural cooling
Safety instructions
French lever rangeErgonomic Range
WTT2
4 m 8 m
20W EB S
W000278891 W000278911
EB S
18W EB S
W000278895 W000278902
20W
EB C5B
W000278892 W000278909
EB
C5B
18W
EB C5B
W000278896 W000278901
20W EB S/
C5B FLEX
W000382786 W000382787
18W EB S/
C5B FLEX
W000382788 W000382789
WTT2 20W
WTT2 18W
I nstructions for safety, use and maintenance
EN
www.weldline.eu
LINCOLN ELECTRIC EUROPE S.L.
c/o Balmes, 89 - 8
o
2
a
- 08008 Barcelona - SPAIN

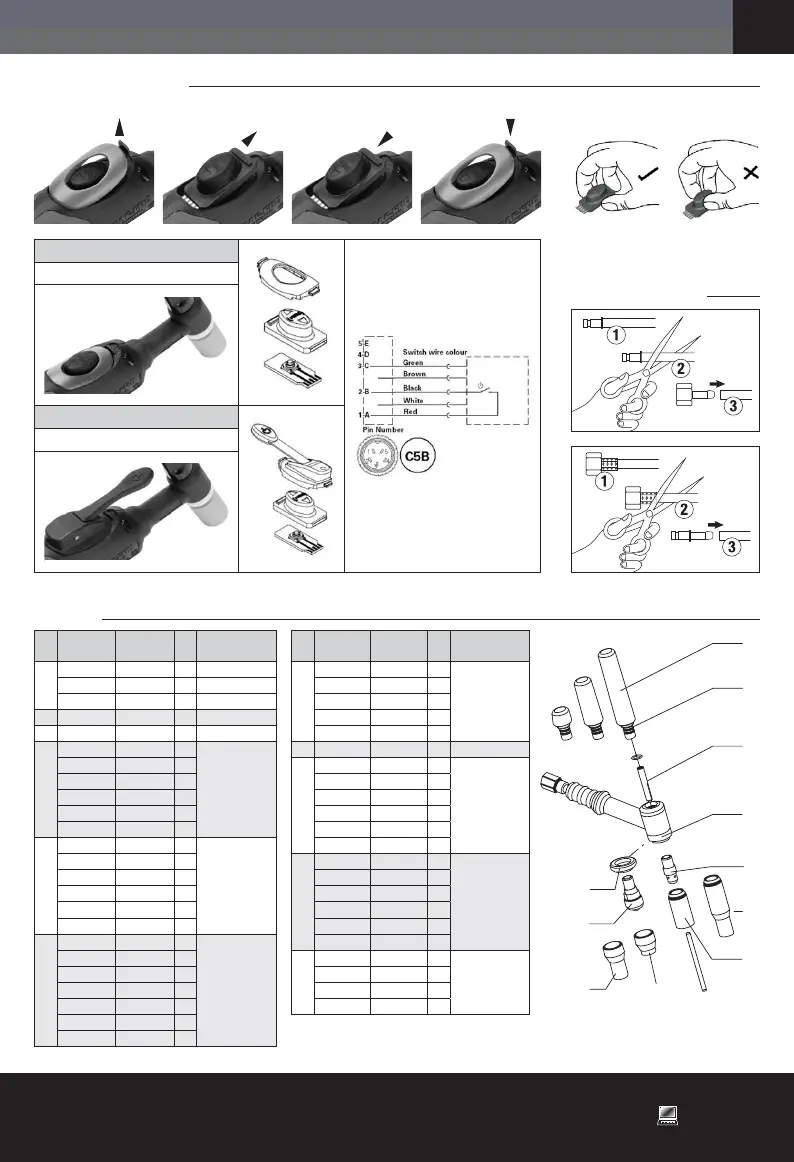

Wear parts
1
4
3
5
6L
6
7
8
L
L
9
2
9L
REP
WTT2 9
WTT2 17
WTT2 26
Ø Wear parts
6L
W000306456 / 4.8
Long Nozzle
W000306457 W000306462 6.4
W000306458 W000306463 8.0
W000306459 W000306464 9.6
/ W000306465 11.2
7 / W000306466 // Gas Lens sealing ring
8
W000306385 W000306389 1.0
Gas Lens
collet body
W000306386 W000306390 1.6
W000306460 / 2.0
W000306387 W000306391 2.4
W000306388 W000306392 3.2
/ W000306393 4.0
9
W000306429 W000306434 6.4
Gas Lens nozzle
/ W000306435 8.0
W000306431 W000306436 9.6
W000306432 W000306437 11.2
W000306433 W000306438 12.8
W000306438 16.0
9L
/ W000306467 8.0
Long Gas Lens
nozzle
/ W000306468 9.6
/ W000306469 11.2
/ W000306470 12.8
REP
WTT2 9
WTT2 17
WTT2 26
Ø Wear parts
1
W000306398 W000306399 // Short back cap
W000306400 / // Medium back cap
W000306402 W000306403 // Long back cap
2 W000306404 W000306405 // Back cap
3 W000306396 W000306397 // Sealing ring
4
W000306406 W000306411 1.0
Collet
W000306407 W000306412 1.6
W000306408 W000306413 2.0
W000306409 W000306414 2.4
W000306410 W000306415 3.2
/ W000306416 4.0
5
W000306376 W000306380 1.0
Collet body
W000306377 W000306381 1.6
W000306378 W000270781 2.0
W000306455 W000306382 2.4
W000306379 W000306383 3.2
/ W000306384 4.0
6
W000306417 W000306423 6.4
Nozzle
W000306418 W000306424 8.0
W000306419 W000306425 9.6
W000306420 W000306426 11.2
W000306421 W000306427 12.8
W000306422 W000306428 16.0
/ W000306461 19.2
Kit B
W000279241
Kit L
W000279245
1 4
2
3
Trigger simple commands
Simplifi ed maintenance.
Gas connector change
EN

Produkt Specifikationer

Mærke: Lincoln Electric
Kategori: Svejseapparat
Model: Weldline WTT2 9

Har du brug for hjælp?

Hvis du har brug for hjælp til Lincoln Electric Weldline WTT2 9 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Svejseapparat Lincoln Electric Manualer

Lincoln Electric

Lincoln Electric Square Wave TIG 200 Manual

24 September 2025
Lincoln Electric

Lincoln Electric Flextec 500X CE Manual

24 September 2025
Lincoln Electric

Lincoln Electric Flextec 350X PowerConnect Manual

24 September 2025
Lincoln Electric

Lincoln Electric NA-4 Manual

23 September 2025
Lincoln Electric

Lincoln Electric Magnum 100SG Manual

23 September 2025
Lincoln Electric

Lincoln Electric Ranger 305 G EFI Manual

23 September 2025
Lincoln Electric

Lincoln Electric Flextec 650X CE Manual

23 September 2025
Lincoln Electric

Lincoln Electric Tandem Cruiser Manual

8 September 2025
Lincoln Electric

Lincoln Electric Power Wave Advanced Module Manual

8 September 2025
Lincoln Electric

Lincoln Electric Ranger Air 260MPX Manual

8 September 2025

Svejseapparat Manualer

Nyeste Svejseapparat Manualer

Esab

Esab Warrior 500i CC/CV Manual

29 September 2025
Telwin

Telwin Smart Inductor 5000 Manual

28 September 2025
Bavaria

Bavaria BEW 160 Manual

28 September 2025
Cigweld

Cigweld Arcmaster XC8 Manual

27 September 2025
Cigweld

Cigweld Transmig 500HD Manual

27 September 2025
Telwin

Telwin Maxima 160 Synergic Manual

27 September 2025
Telwin

Telwin Maxima 200 Manual

27 September 2025
Draper

Draper 53084 Manual

23 September 2025
Draper

Draper Storm Force 02516 Manual

23 September 2025
Draper

Draper 69939 Manual

23 September 2025
