Side 1/10
Part no.:
| DESCRIPTION
30113
7m Type 2 EV-Charging Cable, 22kW
3-phase charging for electric and hybrid vehicles
Type 2 to Type 2 cable to charge any Type 2 tted vehicles at a public charging station or wall boxfi
3-phase charging with max. 22kW charging power for faster charging
Robust TPU jacket and PVC connectors with rubber covers to protect the connectors when not in use
Supplied with a carrying bag for convenient storage
2 year warranty
Quickly recharge your E-Vehicle or Plug in Hybrid with the Lindy Type 2 cables. With this charging cable you can recharge any
vehicle, fitted with a Type 2 port, at a public charging station or wall box.
As Type 2 is standard in the EU, you can use this cable at
most charging stations in the European area. 3-phase charging with up to 22kW (32A 480VAC) is possible as well as 1-phase
charging.
The cable is well protected against dust and water (IP55), it is UV-resistant and the connectors are ame retardant (UL 94 V-0).fl
The
plugs are designed for more than 10,000 mating cycles, which means a lifespan of more than 10 years with daily use.
When not in use the cable can easily be stored in the carrying bag which is supplied with the product.
This product has been certified by TÜV Rheinland.
•
•
•
•
•
| TECHNICAL DATA SHEET
Connectors

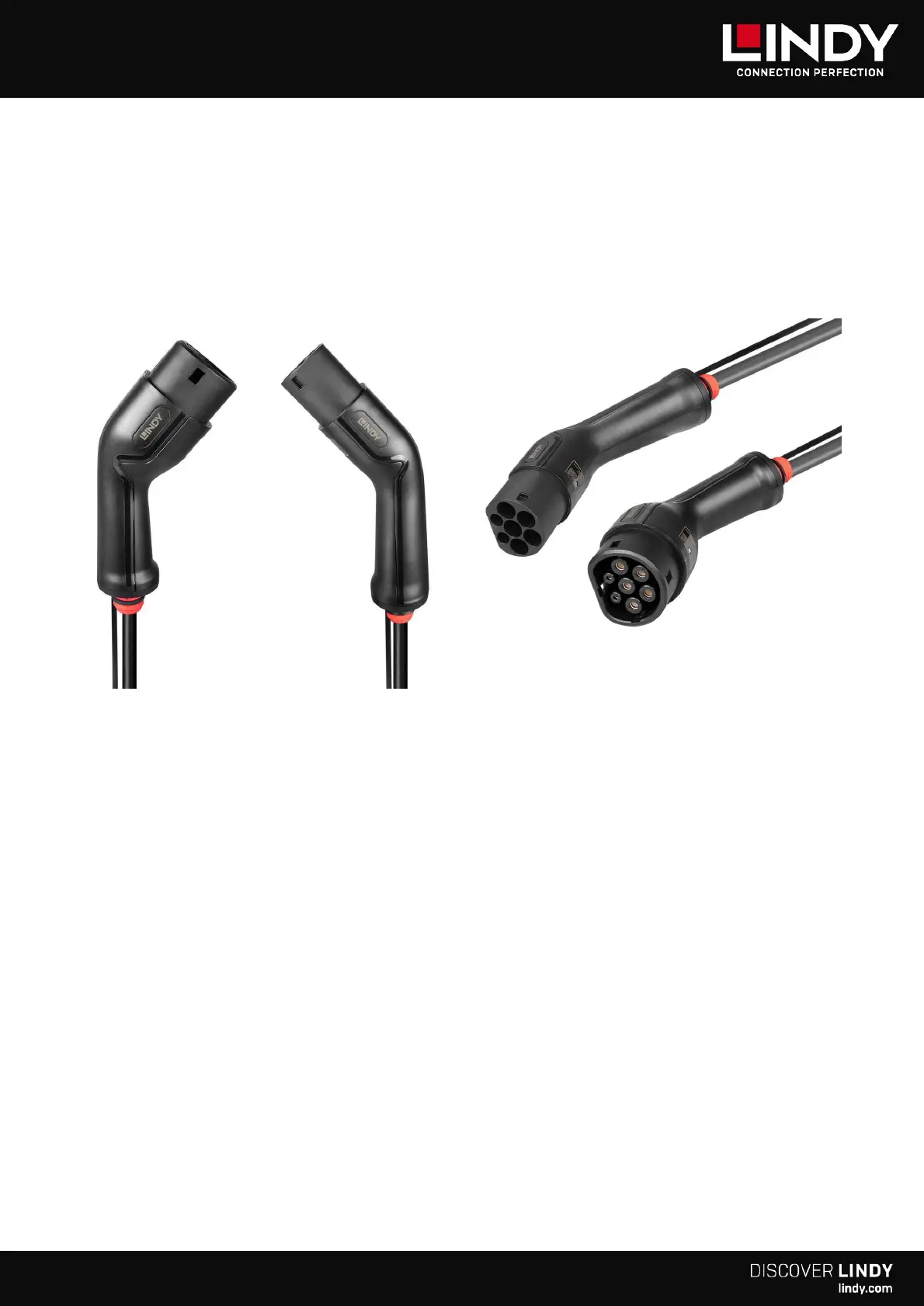

Connector A: Type 2 Female (IEC 62196)
Connector B: Type 2 Male (IEC 62196)
Housing Material: PC & Nylon
Dimensions (approx.) WxDxH:
Type 2 Female: 204.2x122.3x71mm (8,04x4.81x2.8in)
Type 2 Male: 214.1x115.5x56mm (8.43x4.55x2.2in) 
Cable Construction
Length: 7m (22.97ft)
Colour: Black
Charging Mode: Mode 3
Number of Phases: 3
Jacket Diameter: 16.8mm (0.66in)
Jacket Material: TPU
Conductor Material: Copper alloy with silver plating
Speci cationsfi
Rated Current: 32A
Operation Voltage: 480V
Charging Power: 22kW
Minimum Bend Radius: 84mm (3.31in)
Protection Level: IP55, IP65 (with protection caps)
UV Resistant: Yes
Flame Retardant Grade: UL 94 V-0 (connectors only)
Operating Temperature: -30°C - 50°C (-22°F - 122°F)
Storage Temperature: -30°C - 40°C (-22°F - 104°F)
Miscellaneous
Packaging Type: Carton Box
Warranty (Years): 2
Product Compliance: CE, UKCA, RoHS, REACH, TÜV
Package Contents
7m Type 2 Charging Cable, 22kW
Carrying bag
Purchasing Information
No.: 30113
EAN: 4002888301138
This product is also available in other lengths
30112 - 5m (16.40ft)
30113 - 7m (22.97ft)
•
•
•
•
◦
◦
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
