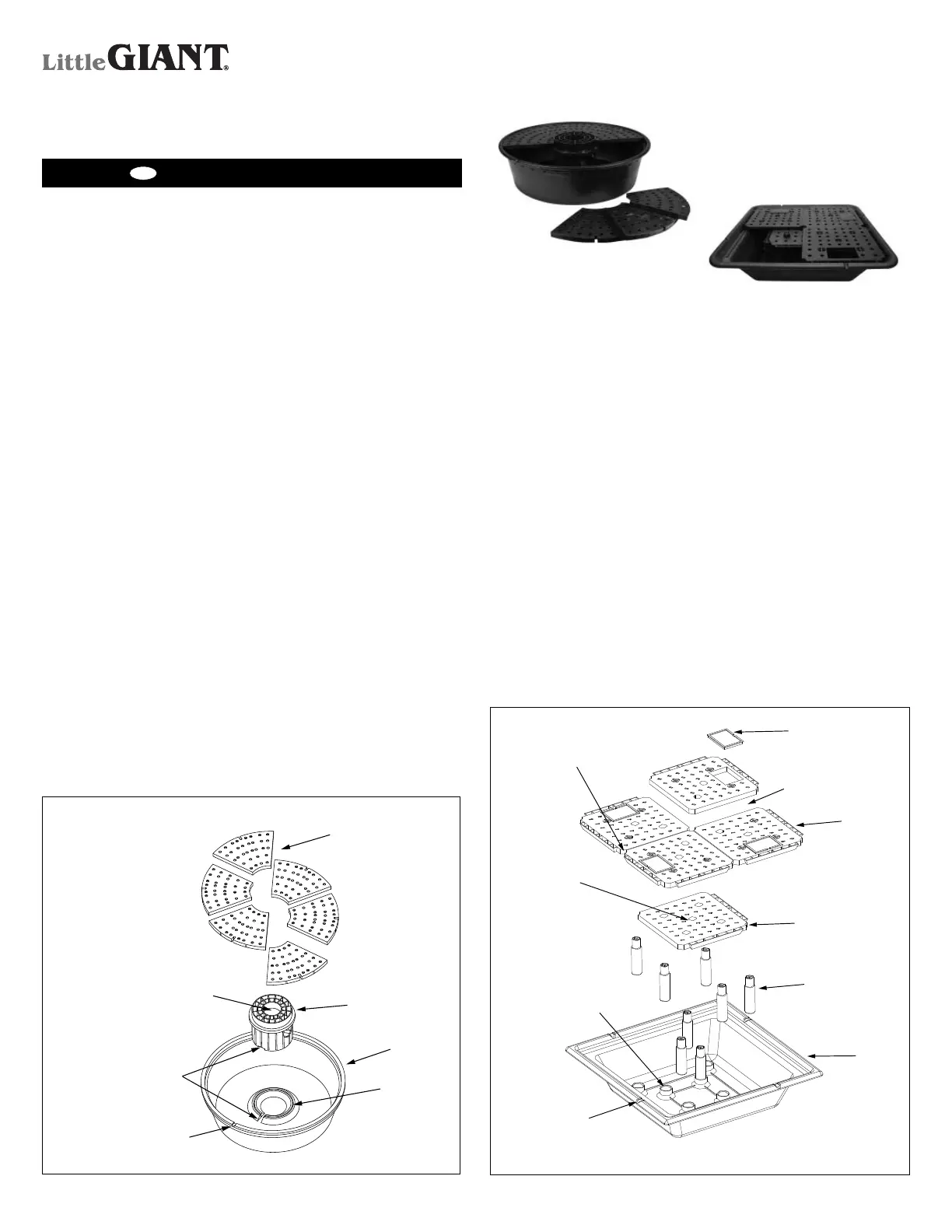

Side 1/4
Franklin Electric Co., Inc.
P. O. Box 12010
Oklahoma City, OK 73157-2010
405.947.2511 • Fax: 405.947.8720
www.LittleGiantPump.com
CustomerService-WTS@fele.com
DISAPPEARING WATER FEATURE BASIN • CUVETTE POUR JEUX
D’EAU EN CIRCUIT FERMÉ • CUBETA PARA FUENTE DE AGUA QUE
DESAPARECE
INTRODUCTION
EN
This instruction sheet provides you with the information required
to safely own and operate your Little Giant product. Retain these
instructions for future reference.
The Little Giant product you have purchased is of the highest quality
workmanship and material, and has been engineered to give you
long and reliable service. Little Giant products are carefully tested,
inspected, and packaged to ensure safe delivery and operation. Please
examine your items carefully to ensure that no damage occurred
during shipment. If damage has occurred, please contact the place of
purchase. They will assist you in replacement or repair, if required.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING
TO INSTALL, OPERATE, OR SERVICE YOUR LITTLE GIANT
PRODUCT. KNOW THE PRODUCT’S APPLICATION, LIMITATIONS,
AND POTENTIAL HAZARDS. PROTECT YOURSELF AND OTHERS
BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY
WITH THESE INSTRUCTIONS COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY DAMAGE!
INSTALLATION (DFB36)
Refer to Figure 1 and the following instructions to install the DFB36 basin:
1. Dig a hole 9” deep, 30” in diameter at the bottom, and sloping to
35” in diameter at the top. Ensure that the ground at the bottom is
level and solid.
2. Place the basin into the hole, with the power cord cut-out facing
toward the power source.
3. Set the support into the circular receptacle in the center of the basin
and align the tubing cut-outs.
4. Place the pump into the basin, running the power cord through the
cord cut-out.
5. Cut a length of tubing long enough to reach from the bottom of the
basin to the top of the water feature.
6. Run the tubing through the center hole in the top of the support and
out the tubing cut-outs, then connect it to the pump outlet fitting.
7. Install the six top plates.
8. Refer to the water feature owner’s manual to complete the
installation.
1
INSTALLATION (DFB44)
Refer to Figure 2 and the following instructions to install the DFB44
basin:
1. Dig a hole 10” deep, 29” square at the bottom, and sloping to 37”
square at the top. Ensure that the ground at the bottom is level and
solid.
2. Place the basin into the hole.
3. Insert the 8 supports into the 8 support holes.
4. Place the center plate (gray) onto the supports, pressing firmly to
ensure full installation.
5. Place the pump into the basin.
6. Cut a length of tubing long enough to reach from the bottom of the
basin to the top of the water feature.
7. Run the tubing through the center hole in the top of the center plate
and connect it to the pump outlet fitting.
8. Install the four top plates. On the side nearest the power supply, run
the pump power cord out the cord gap, under the edge of the top
plate, and through the cord cut-out.
9. Install the four access covers, ensuring that the cut-out in each
faces outward.
10. Refer to the water feature owner’s manual to complete the
installation.
Center hole
Trou central
Orificio central
Support
Support
Soporte
Basin
Cuvette
Cubeta
Top plates (6)
Plaques supérieures (6)
Placas superiores (6)
Tubing cut-outs
Découpes pour tuyauterie
Recortes para el tubo
Cord cut-out
Découpe pour cordon
d’alimentation
Recorte para el cable
Receptacle
Réceptacle
Receptáculo
Supports (8)
Supports (8)
Soportes (8)
Basin
Cuvette
Cubeta
Access cover (4)
Couvercles d’accès (4)
Cubierta de acceso (4)
Top plates (4)
Plaques supérieures (4)
Placas superiores (4)
Center plate (gray)
Plaque centrale (gray)
Placa central (gris)
Edge
Bord
Borde
Support holes
Trous pour supports
Orificios de soporte
Cord cut-out
Découpe pour cordon
d’alimentation
Recorte para el cable
Center hole
Trou central
Orificio central
Cord gap
Espace prévu pour le cordon
d’alimentation
Espacio para el cable
Figure • Figure • Figura 2 - DFB44
Figure • Figure • Figura 1 - DFB36
DFB36
DFB44
