QL-C1MST112

Ford Mustang Coupe 2005-up

Thanks for choosing Q-Logic! - Quite possibly the most advanced loudspeaker enclosure available

for Mobile Electronics. Follow the instructions to custom fit your driver to the enclosure.

YOUR INSTALLATION CAN MAKE A HUGE DIFFERENCE IN THE SOUND QUALITY!

INSTALLATION INSTRUCTIONS:

Enclosure Installation

Continued on other side:

Begin the installation process by removing the 4 pin-lock and 2

tree-lock fasteners in the trunk rear valance piece, and remove the

valance. Next, remove the tree locks from the passenger side fender well

carpeting(see picture). Pull the carpet panel back exposing the sheet

metal with several holes punched in it. Install the supplied body clip in

the lower larger square hole in the sheet metal directly behind the wheel

well(see picture). Thread the supplied 1\4-20 x 1" bolt into the clip. The

bracket which held the upper treelock may be bent toward the center of

the car approximately 1/4". This is not required but will aid in the installa-

tion of the upper enclosure bolt later. Replace the carpeting, locate the

bolt head and make a 3-sided box cut around the bolt and fold the cut

panel under the trunk liner(see picture). Remove the bolt for installation.

Tuck the carpet behind the upper bracket and push back into the corner.

When the enclosure is installed the carpet will not extend under the rear

valance. Fold the trunk floor carpeting over, exposing the wire loom and

studs in the floor channel. Remove the wiring harness from the 2 rear-

most studs and move the harness towards the center of the trunk. Slide

the enclosure into the rear corner until the brackets are located on the

two rear studs. Install the supplied 1/4-20 x 1" bolt through the predrilled

hole in the back of the enclosure and into the body clip. Install the

supplied 8mm socket head bolt and washer through the carpeted baffle

and into the upper factory bracket. Install the two supplied nuts on the

studs securing the brackets and tighten all nuts and bolts. Replace the

wiring harness to the original factory location.

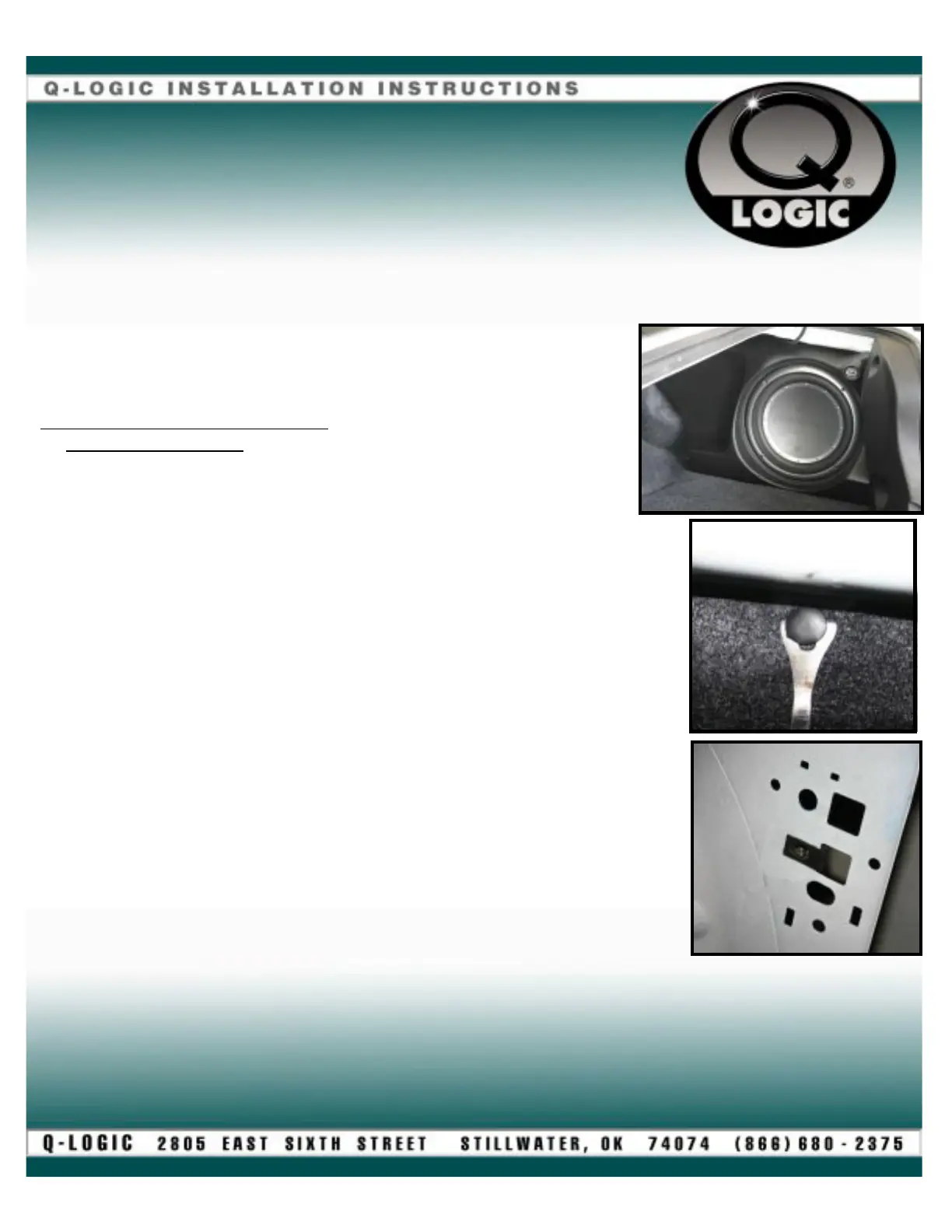

QL-C1MST112 After

Remove Tree Locks

Install Body Clip

ONE YEAR LIMITED WARRANTY

Q-Logic warrants to the original retail purchaser, this product to be free from defective workmanship and material when used under normal conditions in

accordance with the product's printed instructions for a period of one (1) year from date of purchase. Q-Logic agrees to remedy any such defect or to furnish a

new part in exchange for the defective one at no charge for parts or labor.

This warranty is limited to Q-Logic products and specifically excludes consequential damage to other associated equipment which may result for any reason from

use with this product. In no event shall Q-Logic be liable for incidental or consequential damages or have any liability with respect to defects other than the

obligations set forth above. Some states do not allow limitations on how long an implied warranty lasts, and/or the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights and you may also have other rights

which vary from state to state.

This warranty does not cover the following:

• Damages caused by water, neglect, abuse, misuse,

• Improper installation or operation.

• Damages caused by acts of God or nature.

• Damages occurring during shipment of the product to Q-Logic for repairs.

• Any product which is modified without consent of Q-Logic.

If you need warranty service, take the following steps:

1.Save your sales receipt for warranty registration and service.

2.Contact the dealer from whom you bought Q-Logic. They will give you instructions for warranty service.

3.If no dealer is available, call Q-Logic for further Instructions: (866) 680 - 2375.

You must receive an RA# before returning any defective parts.

SHIPPING ADDRESS:

Q-Logic

2805 E. 6th Ave.

Stillwater, OK

74074-6513

For other cool Q-Logic products

visit our website!

http://qlogic.ws

Attach the speaker lead from the amplifier to the terminal cup

on the enclosure before installing the faceplate. Before installing the

woofer and faceplate in the vehicle place the Qx Ring and the woofer

into the faceplate and align the dustcap as desired. Predrill the woofer

screw locations with an 1/8" drill bit. Place the supplied polyfill inside

the enclosure. Place the faceplate and Qx Ring in place on the front of

the enclosure. Attach the speaker lead to the woofer as per

manufacturer's instructions. Place the woofer in the enclosure, align

with the previously drilled holes and secure using the supplied #8 x 1"

wood screws. It is recommended to start all screws and then return

and retighten.

Reinstall the rear valance piece using the original hardware. Place the

trunk carpet back in place and fold the remaining flap under itself, and

tuck it against the bottom of the faceplate.

Continued from other side:

Woofer Installation:

Grill Installation:

Place the supplied "U" channel over and around the

edge of the speaker grill. It may help to stretch the "U"

channel before installing it on the grill. Press the grill into

place on the faceplate.

This completes the installation of your new Q-Custom

subwoofer enclosure, Enjoy!

Supplied Hardware:

8 - #8 x 1" Woofer Screws

2 - Pre-Installed Brackets

2 - 6mm Nuts

1 - 1/4-20 Threaded Body Clip

1 - 1/4-20 x 1" Bolt

1 - 8mm Socket Head Bolt

1 - Flat Washer

1 - 12" Qx Ring

1 - Speaker Lead

1 - Polyfill Sheet

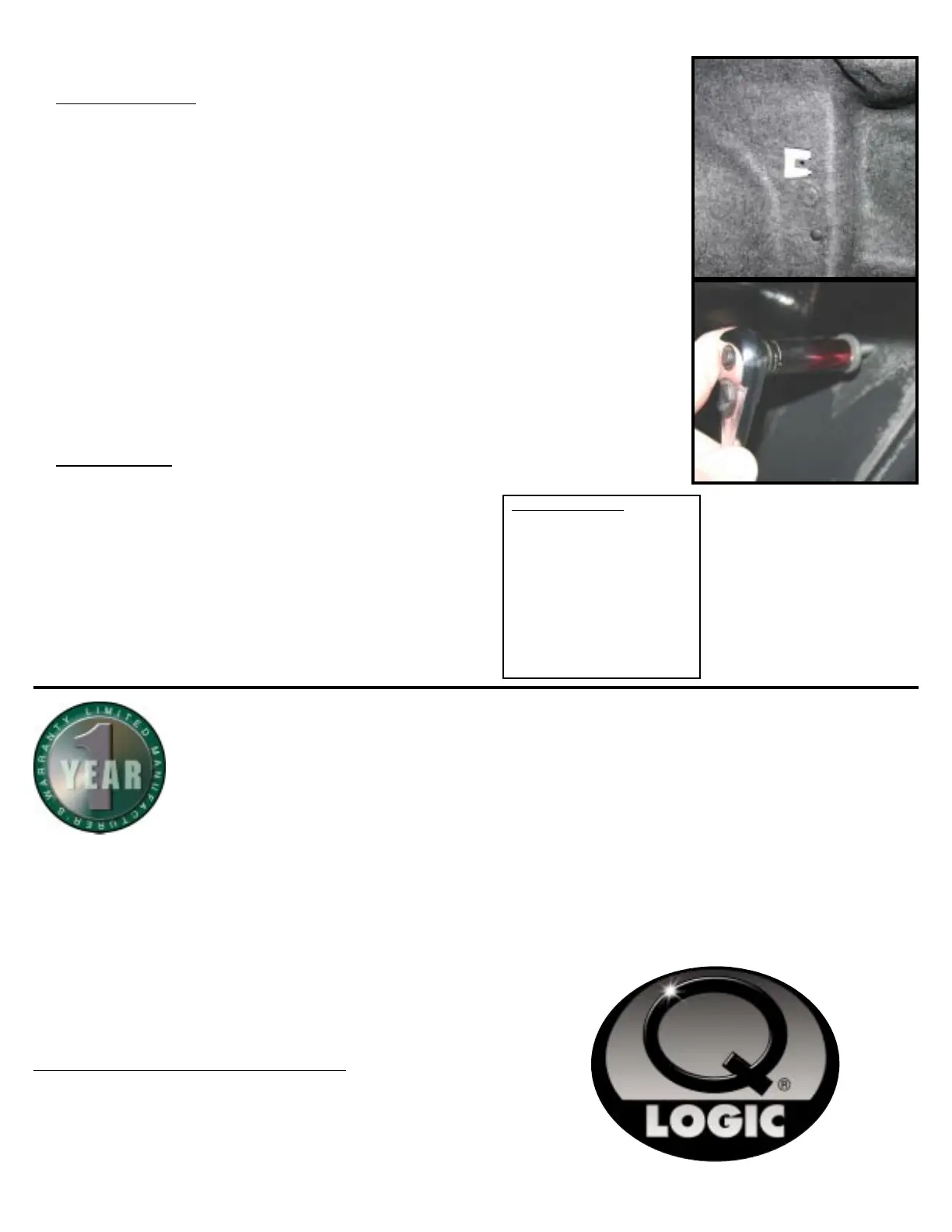

Cut Factory Carpet

Install Bolt inside Enclosure
