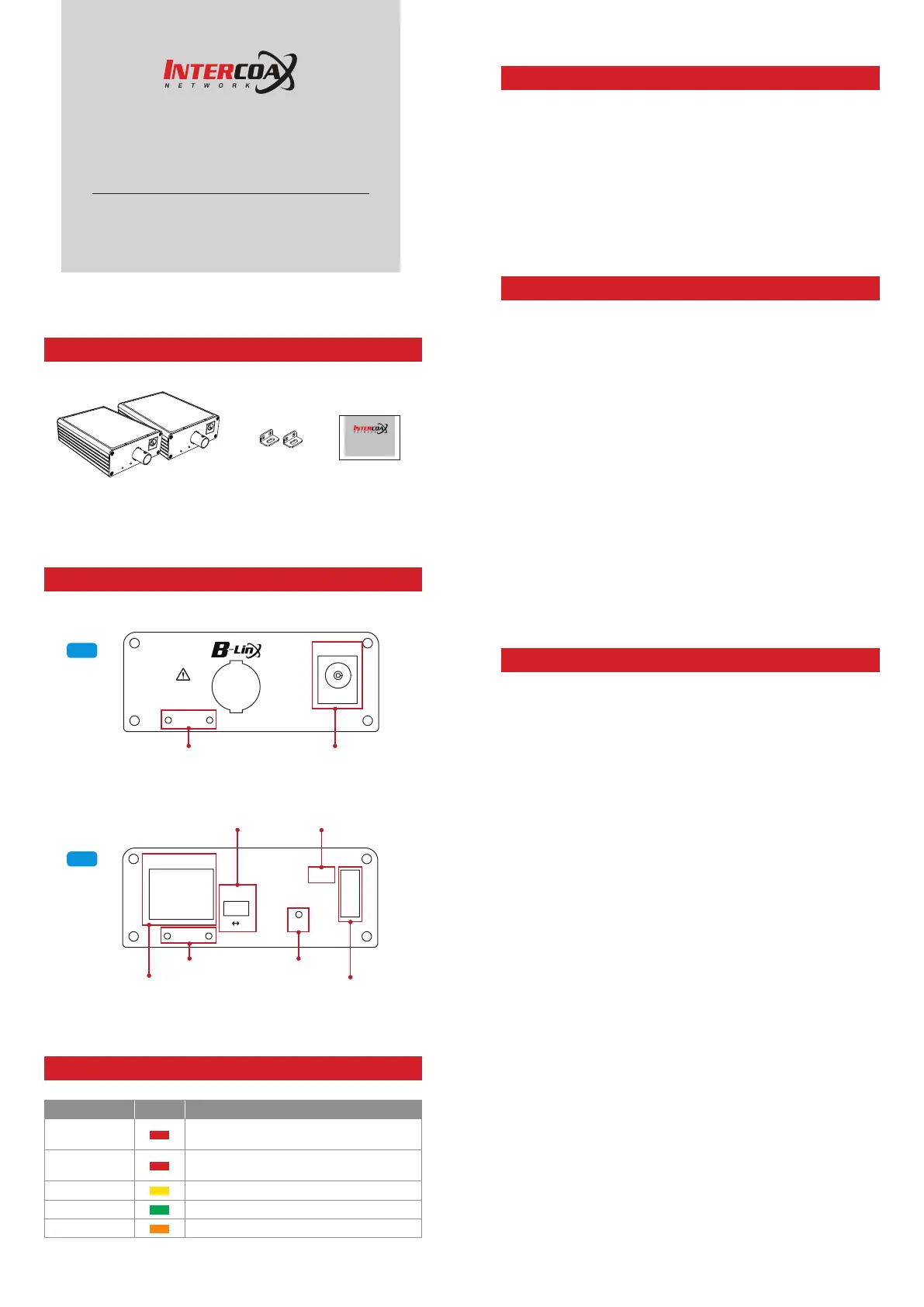

Side 1/2

Package

ECP-2601T (Transmitter)

ECP-2601R (Receiver)

Bracket Quick Start

Guide

Hardware Overview

Right

Left

57V DC

Bracket

NO ANALOG

CAMERA

ETHERNET

PoE-ON

Data-Link

Join-Link

Power

PoE

Bracket

Join

ON OFF

RJ45

PoE-ON (ECP-2601T)

PD-AUX (ECP-2601R)

Bracket Hole DC Power Jack

Bracket Hole Join Button

Status LED Indicator

PoE ON/OFF Switch

(ECP-2601T only)

Overview

This device is a High-Speed, long distance Ethernet & PoE extender

that makes possible to transmit the Ethernet signal up to 2.4Km and

PoE up to 1.2Km via Coax (or UTP, 2-wire) cables in different situations.

It is cost-effective and time saving solution to migrate existing analog

system to IP based system since this device supports easy installation

utilizing the existing cable.

With long distance transmission feature, the device makes to

overcome 100 meters distance limitation easily and reduces the

construction cost significantly compared with fiber optic configuration.

Features

Ethernet over Coax communication following IEEE1901 Standard

Data + Power over Coax cable (or UTP, 2-Wire)

Data distance up to 2.4Km

PoE distance up to 1.2Km

Max. 95Mbps Bandwidth

(270Mbps between Intercoax 2 series models)

10/100 Full Duplex

128bit AES network encryption

Supports Multi-connection (Daisy chain, Star, etc.)

PoE, PoE+, Extra PoE (Max. 60W output)

Supports UTP, Telephone (2 Pairs), 2-Wire cable communication

(Using BTE Series)

LED Indication (Data, Power, Link, PoE)

Plug & Play

Surge Protection

Support PoE+ Input (25.5W) from PSE devices – ECP-2601R Only

Slim design

Quick Start Guide

ECP-2601T / ECP-2601R

Please read carefully the instruction manual before use.

Contents of this manual are subject to change without prior

notice for reasons such as functionality enhancements.

LED Indicators

Indicator Color Function

PoE-ON (Tx) ON : PoE Switch On (PoE Output)

OFF : PoE Switch Off

PD-AUX (Rx) ON : PoE Input or Powered by Transmitter

OFF : Powered by adapter

Data-Link Blinking : Ethernet Data Act

Join-Link ECP-Product Link

Power 57V DC Link

Installation Guide

1. Set the IP address on the camera following the instruction manual

of the camera.

If the camera IP is automatically assigned (DHCP, etc.), there is no

need to set the camera IP separately.

2. Connect BNC of the coaxial cable to each Transmitter/Receiver.

3. Connect 57V DC power to Transmitter/Receiver first and then to

AC outlet.

Receiver can be powered by PoE Switch Device (PoE+ PD

Supported) but for safe working, it recommeded to use 57V DC

Power supply on Receiver. When using both PoE switch Device and

power supply at the same time, power supply works preferentially.

In case of 7W camera, the device supports long distance PoE

transmission up to 1,200m over RG6 coaxial cable. PoE transmission

distance can be varied depending on cable type and Camera’s power

consumption(W).

4. When they are connected without any problem, Power / Join Link

LED are on.

5. Adhere the brackets in the package to Transmitter/Receiver and

then fix up the products.

6. Connect the UTP(LAN) cable between Receiver and NVR first and

then between Transmitter and camera.

7. Turn on the PoE switch on Transmitter for PoE IP camera and if the

camera is powered by a separate power source (not powered by

PoE output feature of the Transmitter

), turn off the PoE switch on

Transmitter.

Both Transmitter/Receiver send data and power together via BNC

connector. Receiver does not have PoE support so that it can send

data only via RJ45.

8. Ping test is recommended to confirm the whole network after

installation.

9. Check the video signal on the monitor.

Rev.1.1

Caution

Please install the device following the installation guide.

Do not touch the device and cable with wet hands.

Keep away from moisture and shock.

Do not install near any heat sources such as radiators, heat registers,

stoves or other apparatus that produce heat.

Indoor use only.

Do not use for other purposes.

Do not disassemble or modify this device.

Do not put any sticker or paint on it.

If this device is defective or malfunctioning, please unplug the power

adapter immediately and contact dealer or service center.

Please use the rated power supply for the product.

Connect DC power to this device first and then to AC outlet.

Warranty

This device has passed the quality control and product inspection.

Please install and use according to the installation guide.

The warranty period for this product is 24 months from the date of

purchase.

If this device is defective or malfunctioning, please unplug the power

adapter immediately and contact dealer or service center.

Any damages or breakage from user’s abuse, accident, modification

or natural disasters will not be covered manufacturer’s warranty.

How to change the communication password

(Coax/UTP/2-Wire)

All Intercoax EoC converters have the same password as factory

defaults setting value and can be used immediately when connecting

to the product (Plug & Play mode).

However, if a number of products are mixed in the same area or

the signal transmission line is in poor condition, the communication

passwords for each equipment (or group) can be set differently to

prevent cross-talk between the lines.

1. Needed items for Joining

EoC Converters / Power supply / Short Cable (Coax, UTP, 2-Wire) /

Paper clip

2. Product configuration

a. Connect EoC Converters with Coax cable (or UTP, 2-Wire) and

power to the one of the converters up with power supply.

b. Check if the Power LED on both devices is ON.

3. Remove the existing password (Unjoining)

This process removes passwords that are entered as factory

defaults.

a. Press the Join button on one of the connected products using a

paper clip until the Power LED turns off and on (Approximately

15 seconds)

b. Remove the existing password by pressing the Join button on the

opposite product in the same way as above.

c. Join LED will be turned off if the password on the devices is

removed correctly.

4. Create New Password (Joining)

New password for communication between connected devices is

created and this will block the communication with other devices (or

group) which have a different password.

a. Press the Join button for 2 seconds on one of the connected

product using a paper clip and the Join LED of the device will

flicker at a constant speed. (Stand-by mode)

b. Press the Join button for 2 seconds on the opposite device in the

same way as above. And then, the Join LED of the device flickers

at a constant speed and both devices restart at the same time.

c. Then the Join-Link lights up and communications are resumed

between the products

5. When adding new products in 1:N configuration to a group that

has already been joined. (Group Joining)

a. Connect new device to the group which is already joined. (using

T-BNC or Y-UTP coupler, Terminal block)

b. Remove the password of the new device in the same way as step

‘3-a’.

c. Press Join button on the one of the device of the existing group

for 2 seconds and Join LED flickers at a constant speed.

d. Press Join button on the new device for 2 seconds and new

device restarts

e. Join-Link lights up and communications are resumed between

the products.

Please visit below website for more detailed information.

Web: http://www.intercoax.com Tel: +82. 31. 365. 3133~4

E-mail: info@intercoax.com Fax: +82. 31. 365. 3135

This device complies with part 15 of the fcc rules. Operation is subject to the

following two conditions :

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received including interference

that may cause undesired operation

Applications

AC/DC

Adapter(12V)

Non-PoE IP

Camera

Coaxial Cable

10/100 Ethernet

PoE

ECP-2601R

57V DC/1.2A

Power Supply

NVR

ECP-2601T ECP-2601R

ECP-2601T

PoE

Camera

PoE Switch

Specification

Model ECP-2601T ECP-2601R

Interface

Coax 1 x 75Ω BNC (Female)

- Ethernet over Coax (B-LinX)

Ethernet 1 x RJ45 - 10/100 Base-T

with Auto-detect MDIX

Transmission Rate 95Mbps Full Duplex

(270Mbps between Intercoax devices)

Transmission

Distance

Ethernet up to 2.4Km(RG-6)

PoE (PoC) up to 1.2Km (RG-6 / 7W camera)

LED

Indication

Ethernet 1 x Data-Link (Yellow)

EoC 1 x Join-Link (Green)

Power 1 x Power On(Amber)

PoE 1 x PoE Out (Red)

Encryption 128-bit AES

Power

Input B-Linx or

DC12V~57V

PoE Switch or

DC12V~57V

PoE Output

IEEE802.3af(PoE),

IEEE802.3at (PoE+),

Extra PoE up to 60W

PoE Not Supported

PoC Only

Mechanical Dimension 82.4(L) x 61.6(W) x 24(H)mm

Weight 77g

Environment

Operating Temp -20 ~ 60°C

Storage Temp -30 ~ 80°C

Relative Humidity 10% ~ 90%

Compliance Certification FCC, CE, KC, RoHS

Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

Optional Accessories 57VDC / 1.2A External Power Supply
