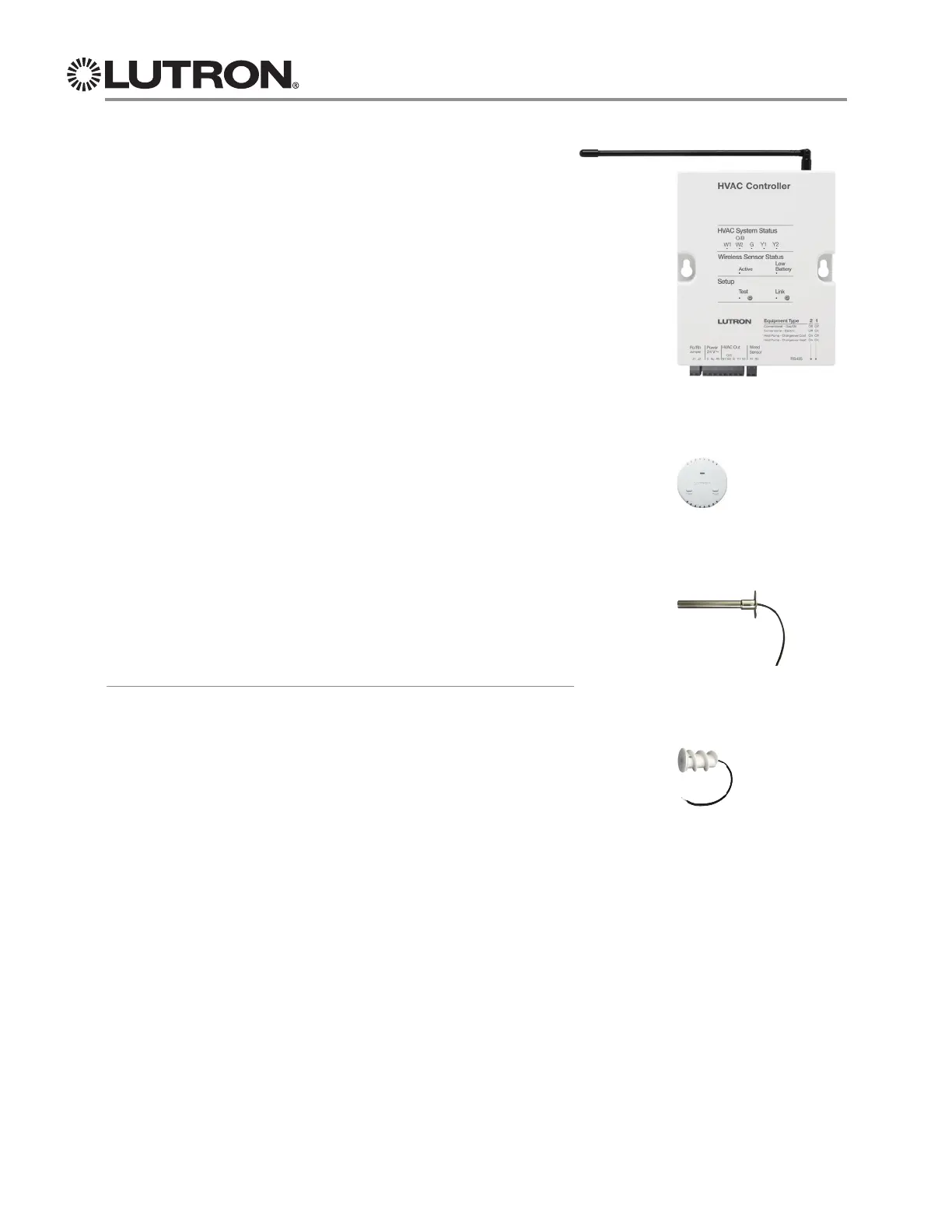

HVAC Controller
Lutron®
|
1www.lutron.com
product specifications
09.19.12
369272d
LutronR Comfort Controls
HVAC Controller and Temperature Sensors
Model Numbers
LRF2-TWRB-XX* Wireless Temperature Sensor
LR-TEMP-FLSH** Wired Flush Mount Sensor
Packages:
LR-HVAC-PKG-WH System package includes:
-1 HVAC Controller**
-1 seeTempT Wall Display (°F) (WH)
-1 Wireless Temperature Sensor (SW)
- 1 Wired Return Air Duct Sensor
LR-HVAC-PKG-C-WH System package includes:
-1 HVAC Controller**
-1 seeTempT Wall Display (°C) (WH)
-1 Wireless Temperature Sensor (SW)
- 1 Wired Return Air Duct Sensor
LR-HVAC-INT-XX* System package includes:
-1 HVAC Controller**
-1 Wireless Temperature Sensor*
- 1 Wired Return Air Duct Sensor
LR-HVAC-INT-FLSH System package includes:
-1 HVAC Controller**
- 1 Wired Flush Mount Sensor**
* Available in Snow (SW) and Midnight (MN).
** Only available in White (WH).
Wireless Temperature Sensor
Add LutronR Comfort Controls to your light and
shade / drapery systems for convenient control of all
aspects of an environment—natural light, artificial light, and
temperature—from the touch of a button. LutronR Comfort
Controls allow heating and cooling systems to integrate
seamlessly with LutronR systems and must be located within
30 ft (9 m) of an RF signal repeater.
The HVAC Controller connects to and controls HVAC
equipment using standard 24 V~ thermostat wiring. It can be
mounted out of sight, near the equipment being controlled.
Communication with a LutronR total home control system is
accomplished using LutronR Clear Connect
TM RF technology.
The HVAC Controller can utilize either LutronR Wireless
Temperature Sensors or Wired Flush Mount Sensors to read
the temperature in the area being controlled. The Wireless
Temperature Sensor is battery powered, making it easy to
install in existing spaces. A 5-year battery life and LutronR
Clear Connect
TM RF communication ensure reliable operation.
LutronR Comfort Controls can only be used in RadioRAR 2
and HomeWorksR QS systems programmed using the PC
Programming Tool.
Wired Return Air Duct Sensor
Wired Flush Mount Sensor
2
|
Lutron® 24/7 Technical Support—800.523.9466
product specifications
09.19.12
369272d
LutronR Comfort Controls
HVAC Controller and Temperature Sensors
Specifications
Model Numbers Temperature Sensors: LRF2-TWRB-XX, LR-TEMP-FLSH
Packages: LR-HVAC-PKG-WH, LR-HVAC-INT-XX,
LR-HVAC-PKG-C-WH, LR-HVAC-INT-FLSH
Power HVAC Controller: 24 V~ IEC PELV / NECR Class 2
Wireless Temperature Sensor: 3 V- (one CR2450 battery included)
Typical Power
Consumption
HVAC Controller: 3 W; Test conditions: two LEDs on
Regulatory
Approvals
HVAC Controller: UL, cUL, FCC, IC, COFETEL
WirelessTemperature Sensor: UL, cUL, FCC, IC, COFETEL
Environment HVAC Controller: Ambient operating temperature: 32 °F to 160 °F (0 °C to
71°C), 0% to 90% humidity, non-condensing. Indoor use only.
Wireless Temperature Sensor, Wired Return Air Duct Sensor, and Wired Flush
Mount Sensor: Ambient operating temperature: 32°F to 104 °F (0 °C to 40 °C),
0% to 90% humidity, non-condensing. Indoor use only.
Communications
LutronR Comfort Controls communicate with the system through Radio
Frequency (RF) and must be located within 30 ft (9 m) of a repeater. System
devices operate on frequencies between 431.0 MHz and 437.0 MHz.
ESD Protection Tested to withstand electrostatic discharge without damage or memory loss, in
accordance with IEC 61000-4-2.
Surge Protection Tested to withstand surge voltages without damage or loss of operation,
in accordance with IEEE C62.41-1991 Recommended Practice on Surge
Voltages in Low-Voltage AC Power Circuits.
Power Failure Power failure memory: should power be interrupted, the Comfort Controls will
retain their programming when power is restored.
Mounting HVAC Controller: Mount on flat surface using supplied screws.
Wireless Temperature Sensor: Adhesive strip provided for temporary mounting
and testing. Wall anchor and screw provided for permanent mounting.
Wired Return Air Duct Sensor: Mount in return air duct using supplied screws.
Wired Flush Mount Sensor: Surface mount in area to be controlled.
Wiring HVAC Controller:
IEC PELV / NECR Class 2, 22 AWG (0.5 mm
2
) to 18AWG
(0.75 mm
2
) solid wiring. Requires transformer common connection.
Wired Return Air Duct Sensor: IEC PELV / NECR Class 2, 22 AWG (0.5mm
2
) to 18AWG
(0.75 mm
2
) twisted, shielded pair wiring. Maximum wire length is 100ft (30.5 m).
Wired Flush Mount Sensor:
IEC PELV
/
NECR Class 2, 22 AWG (0.5mm
2
)
twisted, shielded pair wiring. Maximum wire length is 100 ft (30.5 m).
Warranty http://www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf
Warranty only valid if installed by climate control specialist.
