ACC–CK100 Caster Kit Installation Instructions

Description

The contents of this kit allow the addition of casters to various

subwoofers. Only use with subwoofers speciﬁcally designed

to use the ACC–CK00 kit.

Note: In order to use this kit with any subwoofer, users should ﬁrst

verify that there are mounting holes located on the rear of the cabinet.

ACC–CK100 Caster Kit (Part No. 2035618-01 / 02) contents:

Item Quantity Description

A 6 Screw, M6 hex head

B 6 Washer, lock

C 6 Washer, ﬂat

D 4 Caster Swivel

Required Tools (not included):

#3 Phillips screwdriver

0mm socket wrench

Safety First!

Before installing and using this product, please read these instructions

carefully and keep them on hand for future reference. Additionally,

refer to the subwoofer product manual for detailed product-speciﬁc

information. Failure to follow the precautions in both documents

may result in injury or damage to the subwoofer and/or contents

of the caster kit.

WARNING: This product has been designed for installation only

by qualiﬁed personnel having the technical know-how and experience

or speciﬁc instructions to ensure correct execution of all of the operations

involved to prevent any risk to personal safety. It is strongly recommended

that this product be installed only by professionals or specialized ﬁrms.

When installing this product, always respect the safety standard. Do not

install the product in any way that is not described in these instructions.

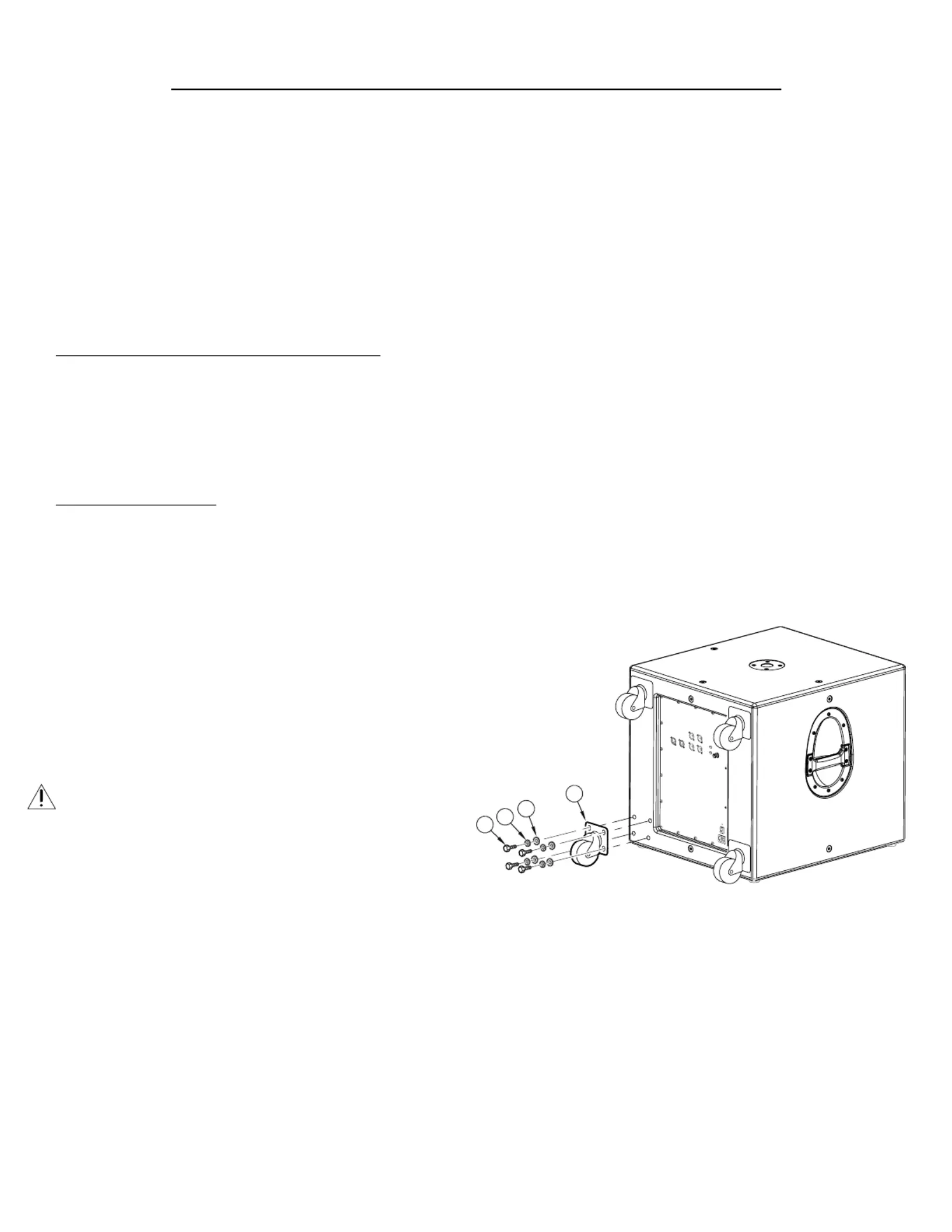

Caster Installation

. Using the #3 Phillips screwdriver, remove the 6 screws

from the rear corners of the subwoofer.

2. Place the threaded part of the screw (A) through the locking

washer (B).

3. Place the screw through the ﬂat washer (C).

4. Place the screw through one of the openings of the caster

(D) and ﬁnger-tighten.

5. Repeat steps 2-4 for the remaining three openings of the same

caster.

6. Using the 0mm socket wrench, fully tighten the four screws

into the threaded inserts of the subwoofer.

7. Repeat steps 2-6 for the remaining three casters.

VERY IMPORTANT: Do not over-tighten the screws, as this could

damage the threaded inserts of the subwoofer.

Note: Subwoofer shown is for reference only and may not reﬂect

the user’s actual subwoofer.

LOUD Audio, LLC. • 6220 Wood-Red Road NE

Woodinville • WA • 98072 • 800/258-6883

Outside the U.S. call 425/487-4333 • FAX 425/487-4337

Disclaimer:

LOUD Audio, LLC. continually engages in research related to product improvement.

New material, production methods, and design reﬁnements are introduced into existing

products without notice as a routine expression of that philosophy. For this reason, any

current LOUD Audio, LLC. product may dier in some respect from its published description,

but will always equal or exceed the original design speciﬁcations unless otherwise stated.

Part No. SW0867 Rev D 04/19

Produkt Specifikationer

Mærke:	Mackie
Kategori:	Højttaler
Model:	DRM 315-P
Bredde:	483 mm
Dybde:	478 mm
Højde:	927 mm
Vægt:	30600 g
Produktfarve:	Sort
Pakkevægt:	36500 g
Pakkedybde:	566 mm
Pakkebredde:	564 mm
Pakkehøjde:	996 mm
Bluetooth:	Ingen
Udgangseffekt (RMS):	1000 W
Husmateriale:	Krydsfiner
Pakketype:	Kasse
Anbefalet brug:	Højttalersæt enhed
Frekvensområde:	45 - 20000 Hz
Impedens:	4 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	3-vejs
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Floor, Stand-mountable
Antal drivere:	3
Peak Music-Udgangseffekt (PMPO):	2000 W
Sensitivitet:	136 dB
Delefrekvens:	2500 Hz
Plug and play:	Ja
Diskant diameter:	6.5 "
Bashøjttaler:	Ja
Antal bashøjttalerdrev:	1
Forstærker:	Ingen
Woofer diameter (britisk mål):	15 "
Mid-range driver diameter (britisk mål):	1.4 "
