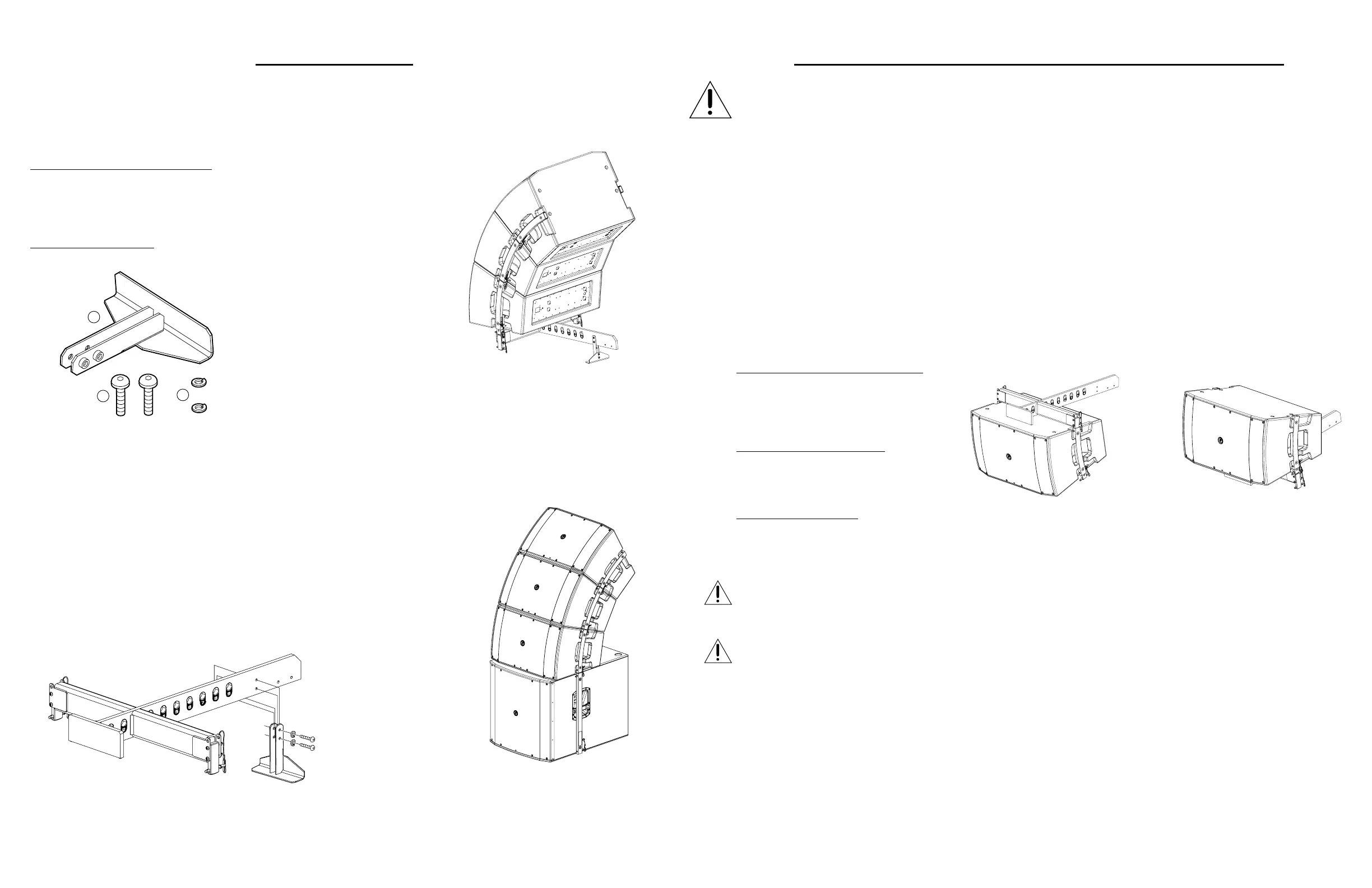

FB100 Flyware Kit Installation & Rigging Instructions
LOUD Audio, LLC.
6220 Wood-Red Road NE
Woodinville, WA 98072
800/258-6883 • FAX 425/487-4337
Disclaimer:
LOUD Audio, LLC continually engages in research related to product improvement. New material,
production methods, and design refinements are introduced into existing products without notice
as a routine expression of that philosophy. For this reason, any current LOUD Audio, LLC product
may dier in some respect from its published description, but will always equal or exceed the original
design specifications unless otherwise stated.
4
WARNING: Installation should only be done by experienced licensed professionals. Improper installation may result in damage to the equipment,
injury or death. Make sure the loudspeakers are installed in a stable and secure way in order to avoid any conditions that may be dangerous
for persons or structures.
Before suspending the loudspeaker(s), make all of the necessary calculations to ensure that all of the components are used within their nominal
work load range. Remember that the weakest component determines the safety level of the entire installation.
Introduction
DRM2A and DRM8S loudspeakers may be suspended below a hoisted FB00 Flybar. The flybar is also used as a base for DRM2A loudspeakers
when arrayed on the floor. The DRM8S is placed directly on the floor with no need for the FB00 Flybar.
These instructions will first explain how to suspend loudspeakers from the FB00 Flybar, then explain how to use the flybar as a base on which
to stack an DRM2A array. Note that a foot assembly must be attached to the flybar before using the FB00 Flybar as a ground stack base.
Installation is explained in the second half of these instructions.
Before installing and using this product, please read these instructions carefully and keep them on hand for future reference. Additionally, refer
to the product manual(s) for detailed product-specific information. Failure to follow the precautions in these documents may result in injury
or damage to the loudspeaker, the FB00 Flybar, or even you!
FB00 Flybar Kit (Part No. 205004) contents:
Item Quantity Description
A FB00 Flybar
B Ground Stack Foot Kit
Required Accessories (not included):
Flyware Kit, part number 205056
(one per DRM8S subwoofer)
Required Tools (not included):
4 mm hex key
0 mm (or small adjustable) wrench
WARNING: Two (2) DRM8Ss and four (4) DRM2As in succession suspended by the FB00 Flybar have been tested to a Working Load Limit (WLL)
of 452 lb / 205 kg with a design factor of 0:. Never apply a load that exceeds the WLL.
WARNING: Four (4) DRM2As in succession suspended by the FB00 Flybar have been tested to a Working Load Limit (WLL) of 248 lb / 112 kg
with a design factor of 0:. Never apply a load that exceeds the WLL.
One () FB00 Flybar weighs 27 lb / 12.2 kg.
One () DRM8S weighs 102 lb / 46.3 kg.
One () DRM2A weighs 62 lb / 28.1 kg.
DRM2A loudspeaker
suspended from the FB00
Flybar
DRM2A loudspeaker
ground stacked on the
FB00 Flybar
8. Ground stacking DRM12A loudspeakers on the FB100 Flybar:
A maximum of three (3) DRM2A loudspeakers may be stacked
and locked on an FB00 Flybar. Only one () person is required
to stack the first two (2) DRM2A loudspeakers on the flybar.
a. Position an DRM2A
loudspeaker on the flybar
so its two (2) side rigging
tubes are aligned above
the fixed latches in the flybar.
b. Remove the two (2) side
quick release pins from the
flybar. They may be inserted
in the latch through holes
for storage.
c. Remove the two (2) side
quick release pins from
the sides of the DRM2A
loudspeaker; the latches will
drop and rest atop the flybar's
fixed latches.
d. Align the holes in
the DRM2A's latches and the holes immediately above the flybar's
latches. Lock the loudspeaker in position by fully inserting the quick
release pins removed in the proceeding step.
e. Stack additional DRM2A loudspeakers as required. Note that
the DRM2A only has two (2) rigging tubes and latches. This procedure
is similar to those outlined in sections 3b through 3d.
9. Ground stacking an DRM12A / DRM18S loudspeaker array:
The FB00 Flybar is not required
for this application, as the DRM8S
(with the Flyware Kit, part number
205056) is used as the ground
stack base.
A limit of three (3) DRM2A
loudspeakers may be stacked on
up to two (2) DRM8S subwoofers.
Two (2) people are required to lif
and stack the loudspeakers
in a mixed array. Loudspeaker
stacking and locking procedures
outlined in sections 3a through 3d
in these instructions should
be followed.
6. The FB100 Ground Stack Foot Kit:
The FB00 Flybar requires the use of a supplied Ground Stack Foot Kit
to ground stack DRM2A loudspeakers. This kit is made up of the following
parts:
FB00 Flybar Ground Stack Foot Kit contents:
Item Quantity Description
A Assembly Bracket Foot FB00
B 2 Screw 6 M x 30 mm Lg
C 2 Locking washer 6 M
Required Tools (not included):
4 mm hex key
7. Attaching the Ground Stack Foot to the FB100 Flybar:
The Ground Stack Foot is mounted to the underside of the FB00 Flybar.
The flybar is correctly oriented when the hole numbers are right side up
and the flybar's fixed latches point down. The latches serve as additional
feet in a ground stack application.
a. With the edge of the foot facing front, fit the two (2) arms of the foot
on each side of the flybar.
b. Align the two (2) holes in the foot to the holes in the flybar.
c. Insert both screws with their lock washers through the holes
in the foot and flybar. Then thread the screws into the internal nuts
on the second arm of the foot.
d. Tighten the two (2) screws using the 4 mm hex key.
A
B
C
Ground Stacking:
Part No. 205268 Rev B 2/18
© 208 LOUD Audio, LLC. All Rights Reserved.

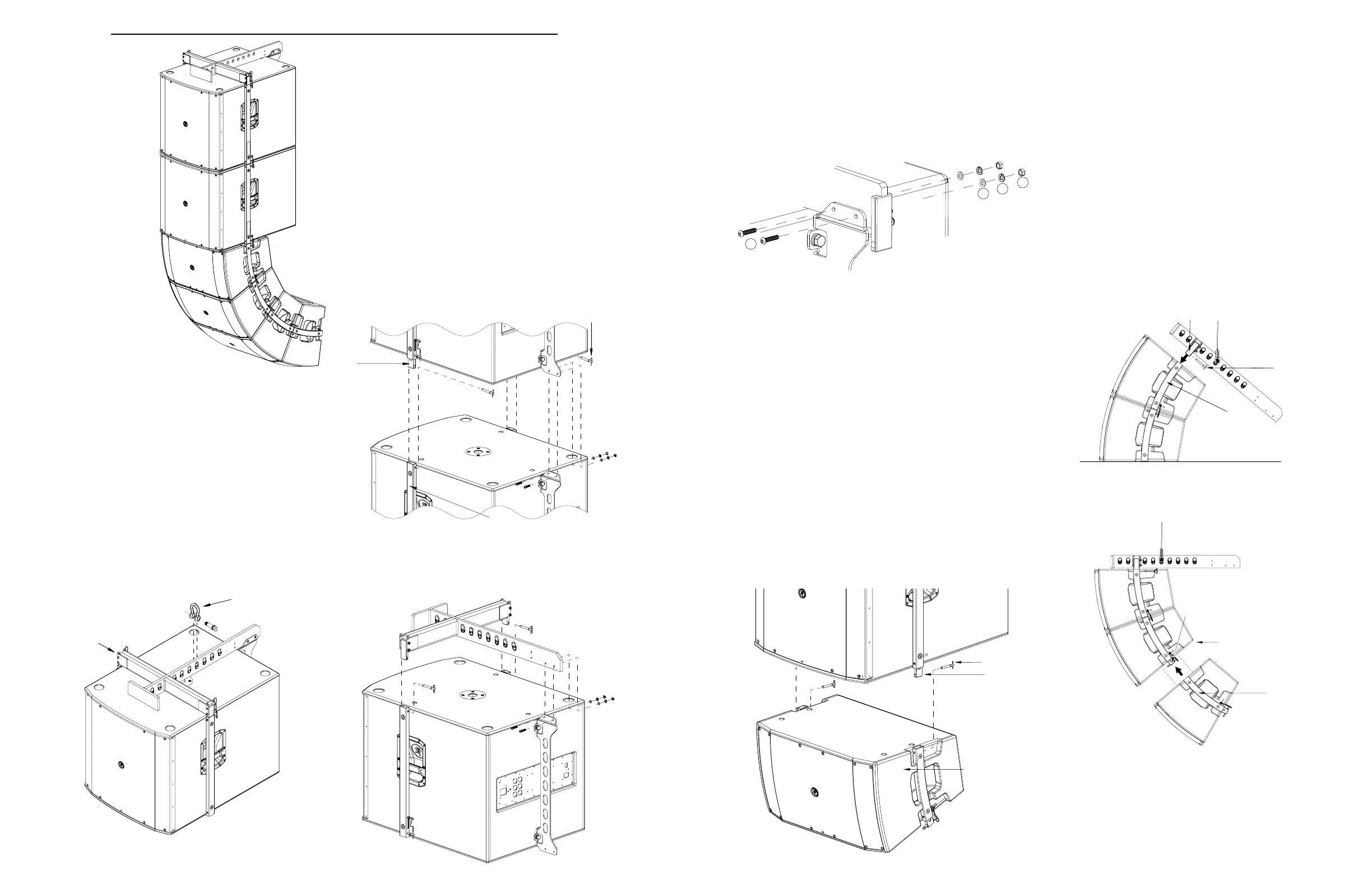

3. Suspending DRM18S Arrays:
At least two (2) people are required to lif, stack and ready DRM8S
subwoofers for suspension from the FB00 Flybar.
a. Place a DRM8S subwoofer on the floor or similar stable surface
below the desired rigging point.
b. Install the Rigging Kit on each DRM8S subwoofer as described
in the document that accompanied the kit.
c. Stack an additional DRM8S subwoofer, if desired.
d. Each DRM8S subwoofer has latches stored at the bottom
of the two (2) rigging tubes. These latches are held in their stored
position by quick release pins. When using two subwoofers in the array,
remove the two (2) pins of the top subwoofer. The latches will release
and slide into the two (2) tubes of the subwoofer below them. Align
the holes in the tubes to those in the latches and lock them together
by fully inserting the quick release pins.
e. Remove the FB00 Flybar's quick release pins and insert its front
two fixed latches into the top DRM8S's rigging tubes. Align the holes
in the tubes to those in the latches and lock them together by fully
inserting the quick release pins.
LATCH
PIN
TUBE
Combinations of DRM8S
and DRM2A loudspeakers
may be suspended
in the same array.
When doing so, DRM18S(s)
are always suspended above
DRM2A(s). Therefore,
the DRM8S is attached
to the FB00 Flybar first.
Remember that a maximum
of two (2) DRM8Ss and four
(4) DRM2As may be
attached to a suspended
FB00 Flybar.
1. Positioning a Flybar Shackle:
The Flybar is suspended by a user-supplied shackle. Its position
on the flybar's numbered center bar is determined by the required
Array Configuration and aiming angle.
2. Attaching the shackle and hoist cable:
A user-supplied screw pin anchor shackle or safety bolt anchor shackle
is used to ax a hoist motor and/or cable to the flybar. Allowable shackle
sizes are:
Minimum: 0.75 T, 9 mm / 0.3 in
Maximum: 3.25 T, 6 mm / 0.63 in
USER
SUPPLIED
SHACKLE
FB100 FLY BAR
DRM18S
SUBWOOFER
f. Attach the rear bracket (previously assembled to the DRM8S
subwoofer as part of the Rigging Kit) to the back of the flybar with M6
screws (A), flat washers (B), lock washers (C) and hex nuts (D) provided
in the Rigging Kit, as shown below. If a second DRM8S subwoofer
is suspended, the rear brace on that subwoofer should be attached
to the bottom of the rear brace on the DRM8S above, also using
the hardware supplied in the Rigging Kit. Tighten all screws using
the 4 mm hex key and 0 mm (or small adjustable) wrench.
g. Hoist the array to the desired trim height or to the working height
needed for the next applicable procedure.
4. Attaching DRM12A loudspeakers to a suspended DRM18S subwoofer:
At least two (2) people are required to lif and attach an DRM2A
loudspeaker to a suspended DRM8S subwoofer.
a. The two (2) side latches on the bottom suspended DRM8S
subwoofer must be lowered from their stored position. Do this by removing
the two (2) bottom quick release pins; the latches will drop to their ready
position. The bottom rear latch should remain pinned in its stored position.
b. Lif and position the DRM2A loudspeaker so its rigging
tubes capture the two (2) side latches of the DRM8S subwoofer.
Align the holes in the tubes to those in the latches and lock them
together by fully inserting the quick release pins.
c. Repeat steps 4a and 4b for any additional DRM2A loudspeakers
to be added to the array.
d. Hoist the array to the desired trim height.
A
B
C
D
SIDE
LATCH
PIN
TUBE
5. Attaching DRM12A loudspeakers to the FB100 Flybar:
Only one () person is required to suspend the first two (2) DRM2A
loudspeakers from the FB00 Flybar. If a third (3) or fourth (4) DRM2A
loudspeaker is to be suspended, then two (2) people are required to lif
and attach those.
a. Attach a lifing apparatus to the FB00 Flybar at the desired rigging
point and hoist the flybar above head height.
b. Stack and lock together up to two (2) DRM2A loudspeakers
on the floor or similar stable surface below the flybar. This procedure
is similar to those outlined in sections 3b through 3d.
c. Lower and position the FB00 Flybar. Remove the flybar's two (2)
side quick release pins and insert its two (2) fixed latches into the rigging
tubes of the top DRM2A loudspeaker. Align the holes in the tubes to those
in the latches and lock them together by fully inserting the quick release
pins.
d. Hoist the array to the desired trim height.
If a third (3) or fourth (4) DRM2A loudspeaker is added, they must be
individually lifed and locked to the bottom of the array by two (2) people.
This procedure is similar to those outlined in sections 4a through 4c.
TWO (2)
LATCHES
TWO (2) PINS
TWO (2)
TUBES
TILTED
FLY
BAR
TWO (2) DRM12A LOUDSPEAKERS
STACKED AND LOCKED TOGETHER
TWO (2)
LATCHES
TWO (2) PINS
TWO (2)
TUBES
Suspending DRM18S and DRM12A Loudspeakers
32

Produkt Specifikationer

Mærke: Mackie
Kategori: Ikke kategoriseret
Model: FB100

Har du brug for hjælp?

Hvis du har brug for hjælp til Mackie FB100 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Mackie Manualer

Mackie

Mackie MainStream Manual

3 November 2024
Mackie

Mackie MDB-1A Manual

12 September 2024
Mackie

Mackie Onyx Producer 2x2 Manual

7 September 2024
Mackie

Mackie Control Universal Pro Manual

10 August 2024
Mackie

Mackie SWM300 Manual

7 August 2024
Mackie

Mackie MDB-2P Manual

3 August 2024
Mackie

Mackie FKDRM18S Manual

2 August 2024
Mackie

Mackie MTEST-1 Manual

2 August 2024
Mackie

Mackie M48 Manual

28 Juli 2024
Mackie

Mackie FB100 Manual

27 Juli 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

KanexPro

KanexPro AUD-DTE-DCODE Manual

29 September 2025
August

August SE55 Manual

29 September 2025
Homematic IP

Homematic IP HmIP-BPS Manual

29 September 2025
Coxreels

Coxreels MRT-1 Manual

29 September 2025
Xavax

Xavax 00111915 Manual

29 September 2025
Xavax

Xavax 00110892 Manual

29 September 2025
Kopul

Kopul XLRTWIST-360-MTS Manual

29 September 2025
Xavax

Xavax 00111970 Manual

29 September 2025
SWIT

SWIT OMNI-50S Manual

29 September 2025
Martin Audio

Martin Audio CMX1A Manual

29 September 2025
