SWM300 Swivel Wall Mount Installation Instructions
Description
The contents of the SWM300 Swivel Wall Mount Kit allow you
to mount either a DLM8 or a DLM12 loudspeaker on the wall.
Only one DLM loudspeaker may be mounted per SWM300
Wall Mount Kit.
SWM300 Swivel Wall Mount Kit (Part No. 2034990) contents:
Part No. Quantity Description
2034995 1 Swivel Wall Mount
2040541-00 1 Instruction Sheet
Required Tools (not included):
Hand wrench or 3/8" socket wrench
Drill and drill bit
Four (4) 3/8" lag bolts or ination screws
Safety First!
Before installing and using this product, please read these
instructions carefully and keep them on hand for future reference.
Failure to follow the precautions may result in damage, injury, or
even death.
WARNING: When installing this product, always respect the
safety standard. Do not install the product in any way that is not
described in these instructions.
WARNING: The SWM300 Swivel Wall Mount has been tested
to a Working Load Limit (WLL) of 60 lb / 27.2 kg. Never apply
a load that exceeds the Working Load Limit.
Before mounting the speaker, make all of the necessary
calculations to ensure that all of the components are used within
their nominal work load range. Remember that the weakest
component determines the safety level of the entire installation.
Be sure to select the appropriate lag bolts or ination screws for
the type of wall to which the SWM300 and DLM loudspeaker
will be mounted.
Wall Mount Installation
Only one DLM loudspeaker may be mounted per SWM300
Wall Mount Kit. Follow the steps below once you have found
a suitable position for the speaker.
1. With the bracket held in place, use a pencil to mark the four
holes of the back plate. Once marked, put the bracket down.
2. Using a drill bit that is smaller in diameter than the lag bolt
or ination screw, drill each of the four marked holes.
3. Put the bracket back in place where you just drilled the holes.
Using the hand wrench or 3/8" socket wrench, fully screw each
of the four lag bolts or ination screws through the wall mount
bracket into the wall until they are rmly against the bracket.
4. Place the DLM loudspeaker on to the vertical sleeve of the
wall mount via the DLM’s built-in pole receptacle. Be sure the
loudspeaker is secure before releasing it.
VERY IMPORTANT: Test the installation with the loudspeaker
in vertical and tilted positions to ensure that the bracket stays
rmly secured to the wall.

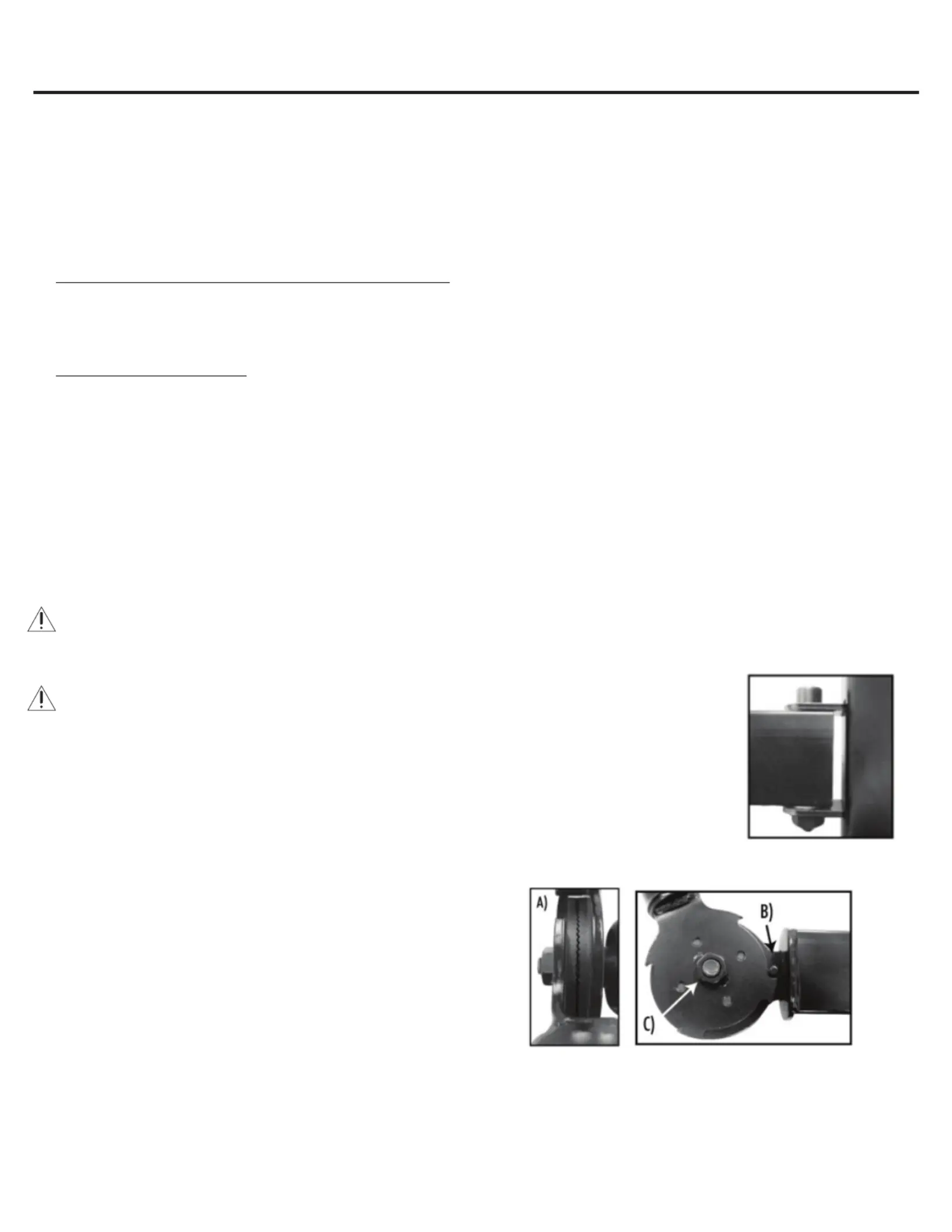

Angle Adjustments
The stress rated steel hex nut and bolt
is strong enough to support up to
60 lb / 27.2 kg and also allows for
horizontal swivel adjustments up to ±30˚.
The ergonomic 2" knob adjusts the tilt angle from 90˚ to 30˚.
A) 90 interlocking teeth mesh together to form a solid, adjustable
pivot point for tilting the speakers.
B) Solid steel pin serves as a safety stop.
C) 9mm steel bolt and nut.
LOUD Technologies Inc. • 16220 Wood-Red Road NE
Woodinville • WA • 98072 • 800/258-6883
Outside the U.S. call 425/487-4333 • FAX 425/487-4337
Disclaimer:
LOUD Technologies Inc. continually engages in research related to product improvement. New material,
production methods, and design renements are introduced into existing products without notice as a routine
expression of that philosophy. For this reason, any current LOUD Technologies Inc. product may differ in
some respect from its published description, but will always equal or exceed the original design specications
unless otherwise stated.
Part No. SW0941 Rev A 09/12
© 2012 LOUD Technologies Inc. All Rights Reserved.
