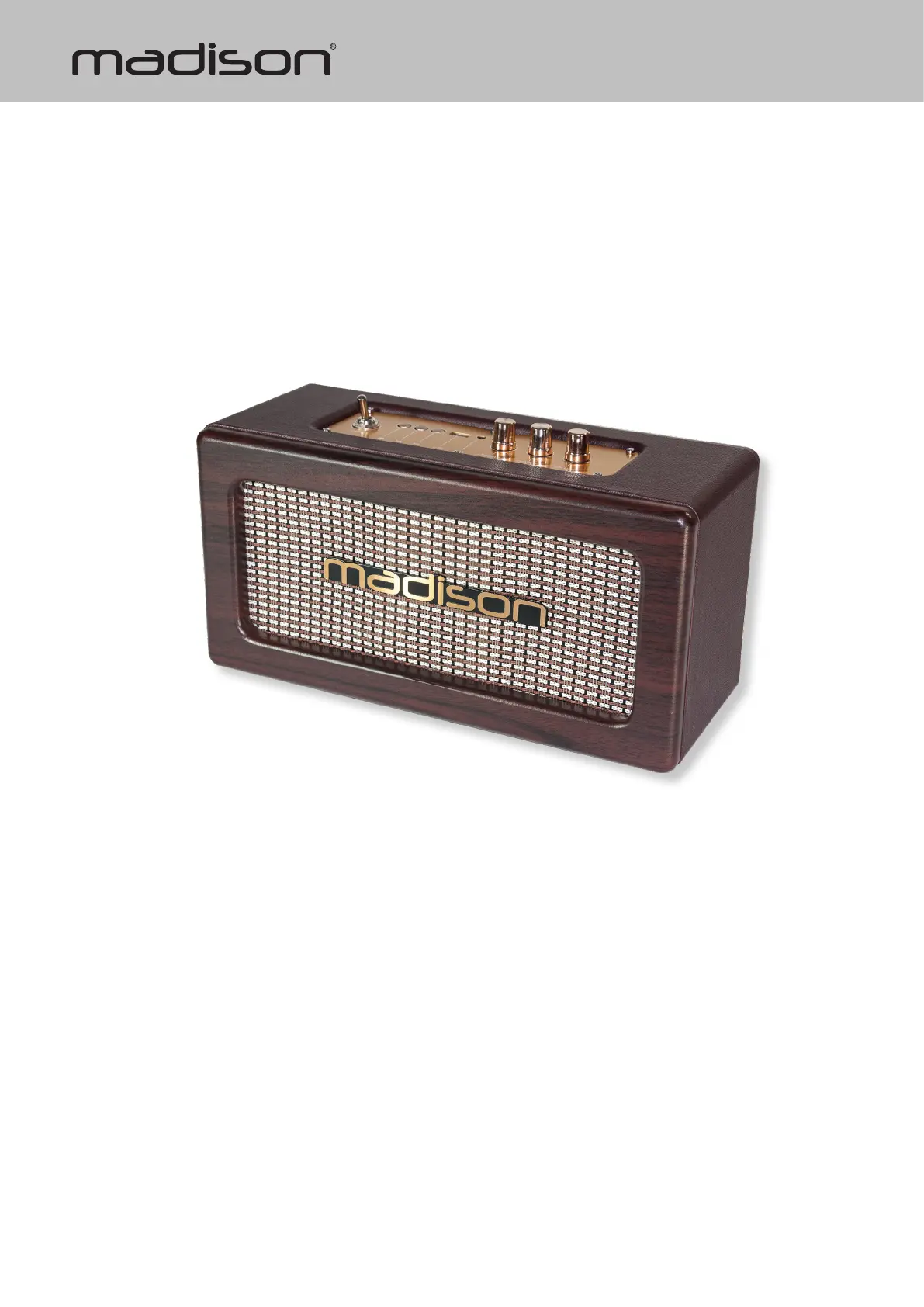

BLUETOOTH VINTAGE SPEAKER
In accordance with the requirements of UK standards
The product is for indoor use only
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for environmentally safe
recycling.
CONTENTS OF THE CARTON
• 1x Bluetooth speaker FREESOUND-VINTAGE
• 1x USB-C charger lead to charge the built-in battery
• 1x 3.5mm AUX lead
• 1x manual
WARNINGS:
• The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as
vases, shall be placed on the apparatus.
• For indoor use only
• Do not place on the apparatus as naked ame source, such as lighted candles.
• Do not use the unit in a tropical climate. Only for use in temperate climates.
IMPORTANT NOTE ON LITHIUM-ION BATTERIES
1. PRIOR to using the unit for the first time, please charge fully the battery without any interrup-
tion.
2. Charge the battery regularly after each use. Don’t wait until it is discharged!
3. DON’T allow the battery to discharge completely, otherwise it will lose 20% of its capacity or even be
totally damaged! If the voltage becomes too low, the internal circuits are not powered anymore and it will
become impossible to recharge the battery!
4. If you don’t use the unit for a longer period, it is recommended to charge it at 40% of its capacity and
check/charge it once per month.
The life time of the battery depends on the observance of these recommendations.
** BATTERIES ARE NOT COVERED BY THE WARRANTY **
We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.
CHARGING THE BLUETOOTH SPEAKER
Plug the supplied USB-C lead into the USB-C port on the rear panel of the unit and the other end into a USB
socket delivering a voltage of 5V 2A.
LOCATION OF CONTROLS
1. ON/OFF switch
2. : Previous song
3. : Play/pause music
4. : Next song
5. USB input port
6. AUX IN jack
7. Bass control
8. Treble control
9. Volume control
PAIRING THE SPEAKER WITH A BLUETOOTH ENABLED DEVICE
Keep the speaker and the Bluetooth device within 1m of each other during the pairing process. Push the ON/
OFF switch to ON position. A tone is heard and the Bluetooth LED indicator will ash blue. Set your mobile
phone or other Bluetooth enabled device to search for Bluetooth devices. When the Bluetooth device nds the
speaker, select MADISON in the list of found devices. After a successful pairing, a tone will be heard and the
Bluetooth LED indicator will slowly ash blue.
If a previously paired device is in the range when the speaker is turned on, the speaker will connect to it auto-
matically.
2
© Copyright LOTRONIC 2024
ENGLISH
