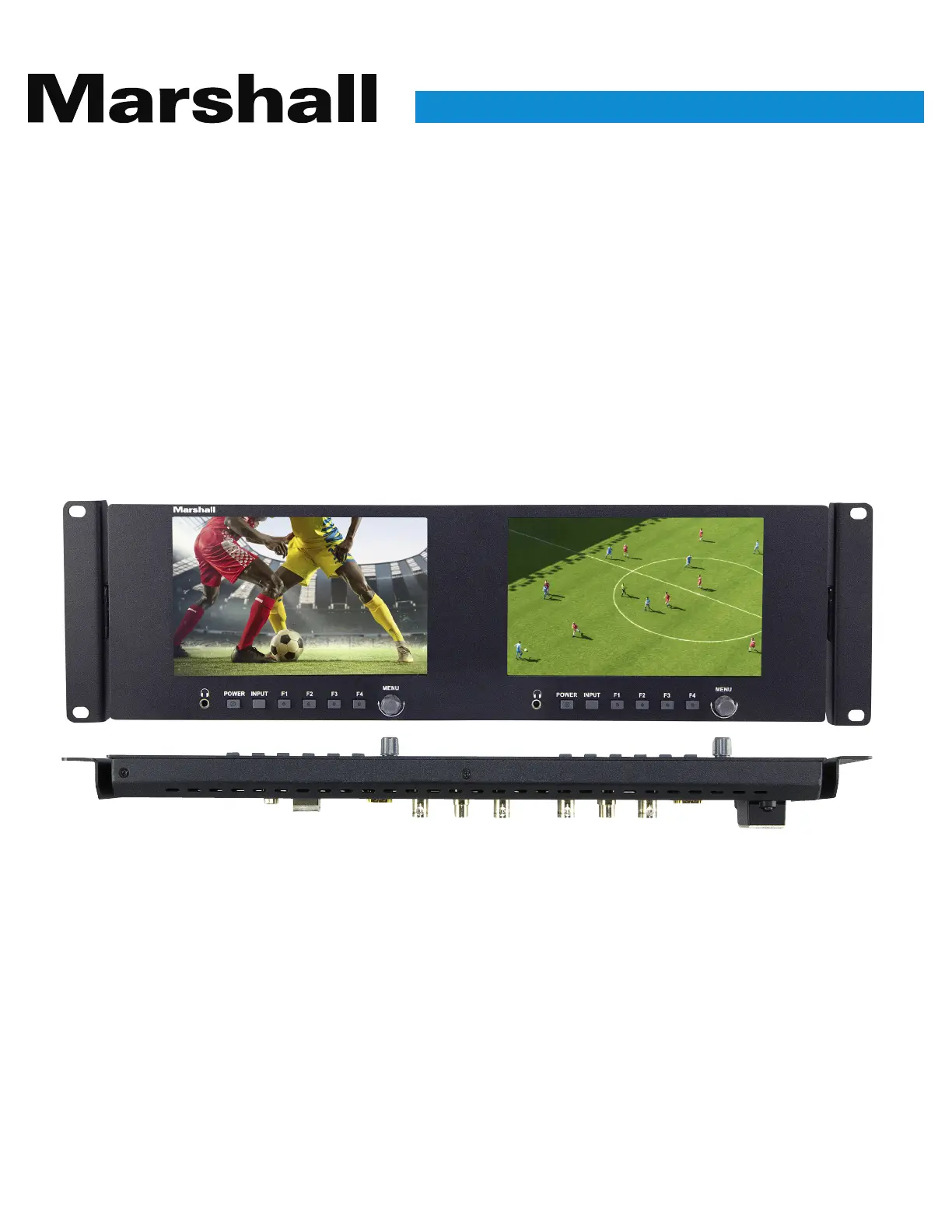

ML-702-V2 User Manual
www.marshall-usa.com
Table of Contents
Product Description .........................................................................................................................2
Menu Settings ......................................................................................................................................6
Specications .....................................................................................................................................12
Included Accessories .....................................................................................................................12
Troubleshooting ................................................................................................................................. 12
PC Set Remote Terminal Application ..................................................................................13
WARRANTY .............................................................................................................................................13
IMPORTANT SAFETY INSTRUCTIONS:
• Please read Operating Instructions (this manual) before using the product.
• Keep the manual for future reference.
• Read the cautions below to prevent possible component failure or degradation.
CAUTIONS:
• To avoid scratching the LCD surface, do NOT place the monitor on its face
• Avoid heavy impact.
• Do NOT use chemical solutions to clean this product. Simply wipe with a clean,
soft cloth to maintain the brightness of the surface.
• Do NOT block vent holes. Be aware of mounting heat-producing equipment below
this product.
• Use the following Instructions and Trouble-shooting Section (page 12) of the manual
to adjust the product. Internal adjustments or repairs must be performed only by
Marshall Electronics.
Front Panel Features
1. Rackmount ears with tilt capability.
Tilt monitor for best visibility or to improve ventilation.
2. Headphone jack. Accepts standard 3.5mm stereo mini-phone plug.
3. POWER button (Lights red in standby mode; green when operating).
4. INPUT select button cycles through SDI, HDMI and Video.
5.F1~F4user-denedshortcutbuttons(lighted when selected).
ShortCut:Accessthe[SETTING]menupagetosetuser-denedfunctions.
6. Menu Knob. Turn without pressing to adjust headphone volume.
Press to open menu system.
Product Description
