High Denition Bluetooth

5.0 Audio Streaming Module

Congratulations!

Dear Customer,

congratulations on your purchase of this high-qual ity HELIX / MATCH

EXTENSION CARD. We developed the BT HD based on state-of-

the-art engineering and this is reected in its exceptional quality and

the impressive use of sophisticated technologies.

We hope you enjoy using this product.

Yours,

AUDIOTEC FISCHER

General installation instructions for HELIX / MATCH components

To prevent damage to the unit / module and possible injury, read this

manual carefully and follow all installation instructions. This product

has been checked for proper function prior to shipping and is guaran-

teed against manufacturing defects.

Before starting your installation, disconnect the battery’s nega-

tive terminal and all cables from the device to prevent damage

to the unit / module, re and / or risk of injury. For a proper perfor-

mance and to ensure full warranty coverage, we strongly recommend

to get this product installed by an authorized HELIX / MATCH dealer.

Install the Extension Card only in the designated device and its

specic slot. Using the module in other devices or slots can re-

sult in damage of the Extension Card, the device, the head unit /

radio or other connected devices!

Technical data

Bluetooth

standard: 5.0 + EDR

Bluetooth

prole: A2DP, AVRCP, SPP

Bluetooth

codec: SBC, AAC, Qualcomm

aptX

™

and Qualcomm

aptX

™

Number of paired devices: 8

Wireless frequency range: 2402 ~ 2480 MHz

Range: Up to 10 m

Digital optical output: SPDIF with either 96 kHz / 24 Bit

or 48 kHz / 24 Bit depending on

sampling rate of the device

Status LED of BT HD

Blue LED on: 1 sec,

o󰀨: 2 secs, repeat

All profiles are in standby

but not connected with any

Bluetooth

device yet

Blue & Red LED ash alternate Enter pairing mode

Blue LED ash every 2 sec. Device is connected

Blue LED ash twice every 2 sec. Device is streaming

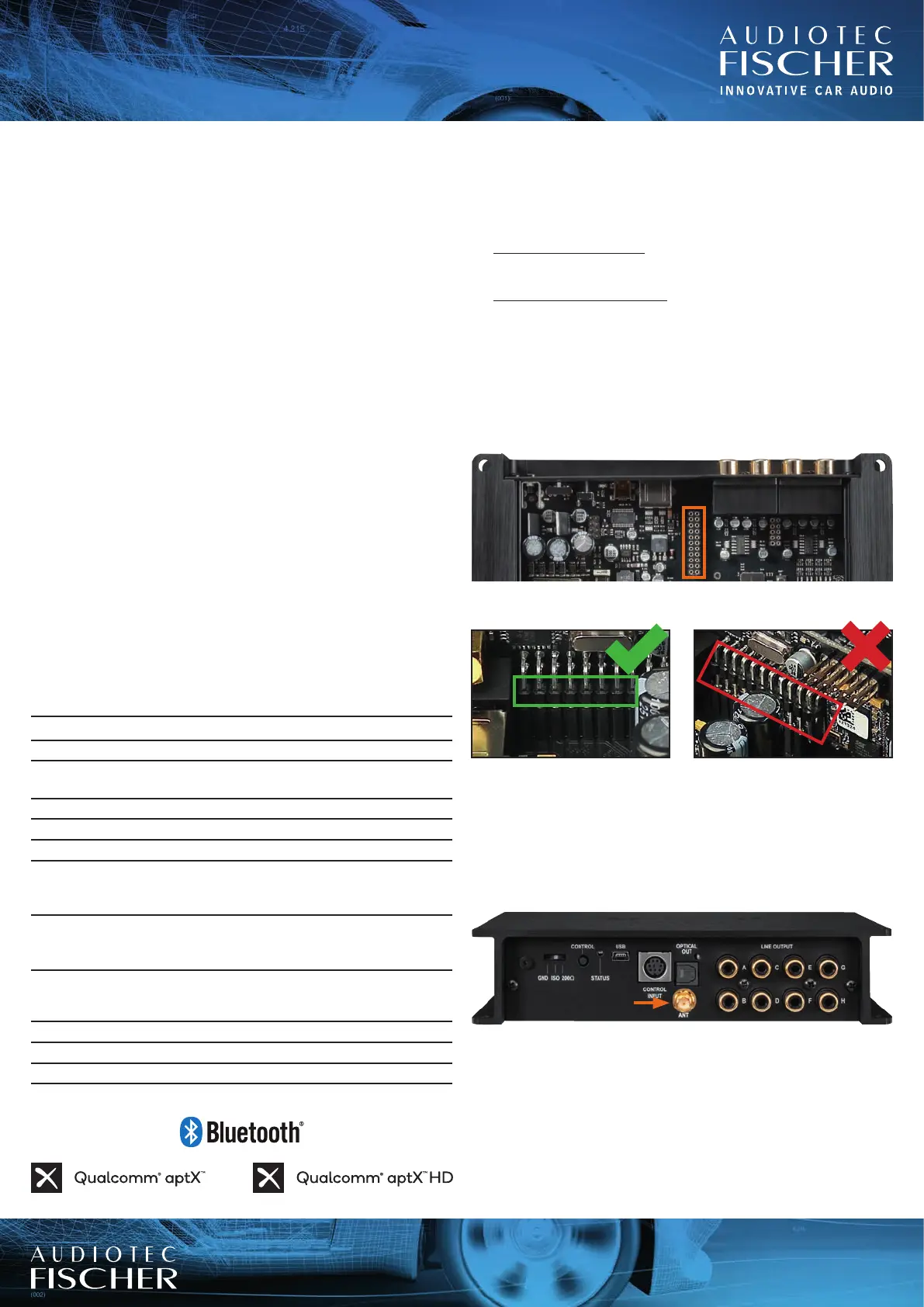

Mounting information

1. First disconnect all cables from the device.

2. Depending on the device there are two possibilities to get access

to the Extension Card slot.

1. Bottom plate is bolted: untighten the screws of the bottom plate

and remove it. Afterwards dismantle the appropriate side panel by

removing its screws.

2. Bottom plate is not bolted: dismantle the appropriate side panel

by removing its screws and pull out the bottom plate sideways.

3. Remove the nut and the washer from the antenna socket of the

Extension Card.

4. Insert the Extension Card into the specic slot of the device which

is marked in the following picture (the picture representatively dis-

plays the Extension Card slot of the HELIX DSP.3). The exact

position of the slot can be found in the manual of each device.

5. Make sure that the module is installed properly and all pins are

fully inserted into the socket:

6. If the bottom plate was bolted, x the new side panel which is

delivered with the Extension Card. Afterwards reinsert the bottom

plate and x it, too. Otherwise reinsert the bottom plate and x the

new side panel with the screws.

7. Put the washer and the nut on the antenna socket and bolt it to

the side panel.

Caution: Do not overtighten the nut as this may damage the

socket!

8. Reconnect all cables to the device.

EXTENSION CARD

HEC / MEC BT HD
