Side 1/2

Most modern vehicles have speakers that are

mounted directly to the structure of the door. Access

is achieved by the removal of the door panel. Some

vehicles may only require the removal of a small

panel around the speaker itself.

Most rear speakers are

accessed from within the

trunk. Some may require the

removal of the rear package

tray. Hatchbacks and SUV’s

will usually require the

removal of a side panel.

Once the factory speakers are

removed, check the ﬁ t and

determine if there is enough

depth clearance for the new

speaker. A good way to do this is

to roll the window down and back

up while holding the speaker in

place. If you decide to run wires,

make sure to use factory harness

boots and grommets where ever

possible.

Access and

remove factory

door speakers

Access and

removal of rear

factory speakers

Fit and Wiring

Factory speaker removal

Speaker dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new speakers. Many car manufacturers locate

speakers behind interior panels that require special tools to

remove those panels to access the speakers. Some panels will

be screwed in, some will use plastic fasteners, many will have

both. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires through

the factory boot. Do not let speaker wire make contact with

metal edges of doors or other access holes.

Congratulations on your choice of a MBQuart speaker.

This “Quick Start Installation” guide is meant to help you

“hook up” and play music. For more detailed information

on system setting, speaker and subwoofer conﬁ guration,

and full speciﬁ cations by model, visit the website at

MBQuart.com

It’s a good idea to conﬁ rm that you have purchased the correct

size speakers to ﬁ t your vehicle. If you have any reservations

about being able to complete the installation yourself, we

recommend contacting a professional. The removal of interior

panels can be tricky and may require special tools. Be careful

as you go.

A B C D E F

DK1-113 6.3”(160) 2.2”(55) 2.9”(74) 2.9”(75) 4.5”(114) 5.2”(131)

DK1-116 7.0”(177) 2.7”(68) 3.4”(87) 3.2”(81) 5.8”(146) 6.5”(166)

DK1-169 7.5”/10.5”

(191/267) 3.3”(83) 4.0”(102) 3.5”(90) 5.8”/8.6”

(151/219)

6.5”/9.3”

(164/236)

DC1-213 6.3”(160) 2.2”(55) 2.4”(62) 2.9”(75) 4.5”(114) 5.2”(131)

DC1-216 7.0”(177) 2.7”(68) 3.4”(86) 3.2”(81) 5.8”(146) 6.5”(166)

Before you start

Once you are sure the speaker

ﬁ ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace door panel.

Once you are sure the speaker

ﬁ ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace speaker cover

panel.

Some vehicles may not have a

door speaker location. While it is

possible to install the speakers in

this situation, it is more difﬁ cult.

Consider using a professional for

custom installations.

Factory location

behind door

panel

Factory location

behind small

panel

Custom location

Coax installation

Mount the speakers in same

way that the factory speaker was

mounted. Attach the positive

and negative wires to the proper

terminals. Make sure any wires

are secured properly.

Rear factory

locations

Quick Start

Installation Guide

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics USA Inc. will, at it’s discretion, repair or replace defective products during the warranty

period. Components that prove to be defective in materials and workmanship under proper installation

and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was

purchased. A photocopy of the original receipt must accompany the product being returned. The

costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics

USA Inc. This warranty is limited to defective parts and speciﬁ cally excludes any incidental or

consequential damages connected therewith. To view the full warranty, please visit the website.

MBQuart products are designed and engineered in the USA by

847-540-7700

www.maxxsonics.com MBQ Discus spk QSG 01 - rev1

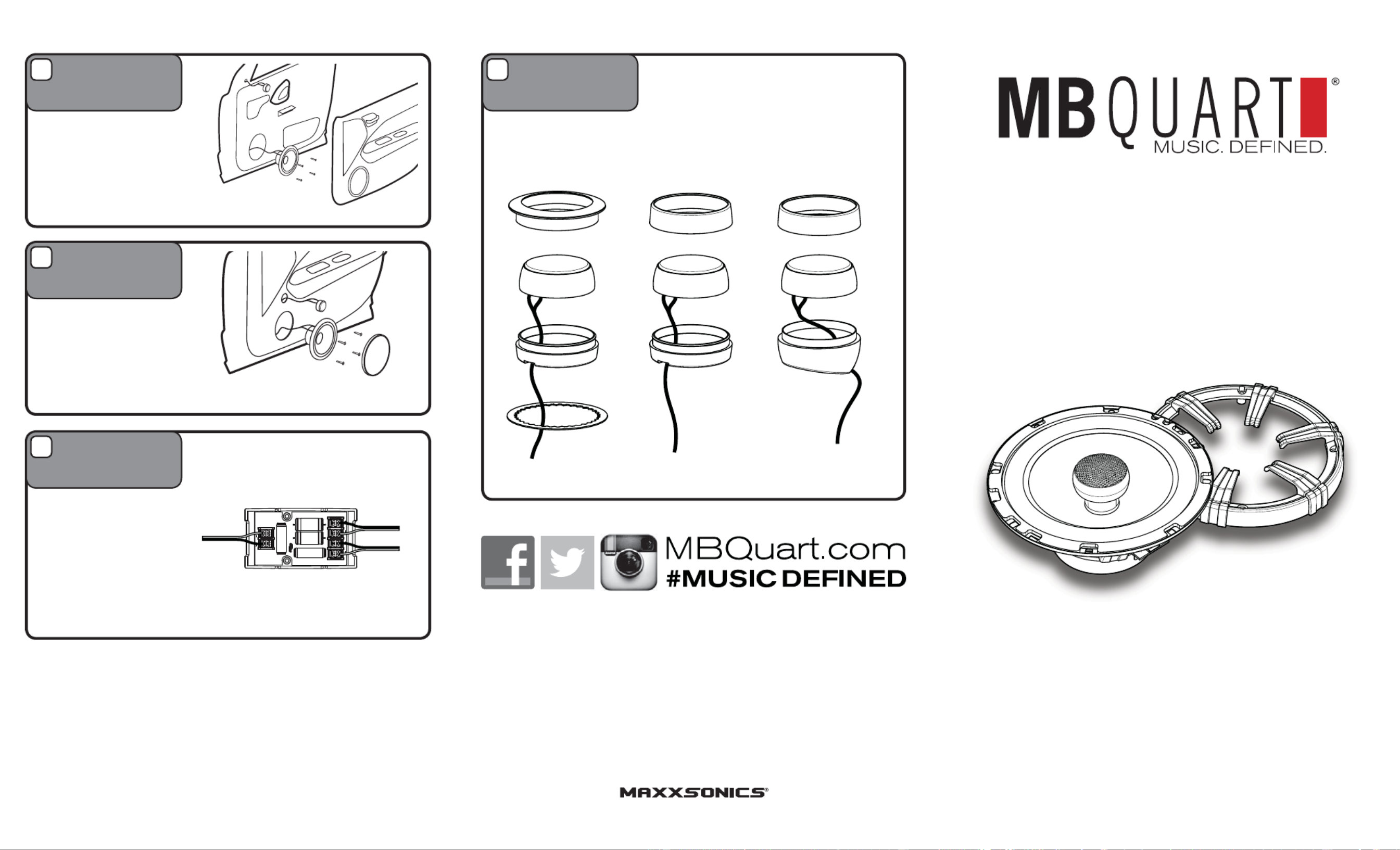

Vehicles that have premium

sound systems will often

have separate tweeters in

a dash or door location.

Try to use this location for

mounting the component

tweeter if possible.

If there is not a suitable

factory location for woofer

or tweeter to be mounted,

custom mounting may be

necessary. Before making

any permanent changes to

your vehicle make sure there

is adequate mounting depth.

There are three primary ways the tweeter can be

mounted. Surface, Flush and Angled mounting. Make

sure to check for any obstructions before cutting into

any panel.

The crossover is necessary

for the proper operation of the

component speaker system.

Make sure the wires are securely

attached and that there are no

stray strands of wire contacting

other terminals. Mount the

crossover to a secure surface

that is free of interference

from window mechanisms and

excessive moisture.

Factory location

behind door panel

Custom location

Tweeter mounting

Crossover wiring

Component installation

ISC

SCU

SDISCUS

-1

3DK1-113

-1

6DK1-116

-1

9DK1-169

1-2

-2

-21

3DC1-213

1-2

-2

-21

6DC1-216

IN IN

W WT T

Input Tweeter

Woofer

Flush Mount Surface Mount Angled Mount
