Most modern vehicles have speakers that are

mounted directly to the structure of the door. Access

is achieved by the removal of the door panel. Some

vehicles may only require the removal of a small

panel around the speaker itself.

Most rear speakers are

accessed from within the

trunk. Some may require the

removal of the rear package

tray. Hatchbacks and SUV’s

will usually require the

removal of a side panel.

Once the factory speakers are

removed, check the t and

determine if there is enough

depth clearance for the new

speaker. A good way to do this is

to roll the window down and back

up while holding the speaker in

place. If you decide to run wires,

make sure to use factory harness

boots and grommets where ever

possible.

Factory speaker removal

Speaker dimensions (in/mm)

CAUTION

Always consider consulting a professional audio installer

before installing new speakers. Many car manufacturers locate

speakers behind interior panels that require special tools to

remove those panels to access the speakers. Some panels will

be screwed in, some will use plastic fasteners, many will have

both. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires through

the factory boot. Do not let speaker wire make contact with

metal edges of doors or other access holes.

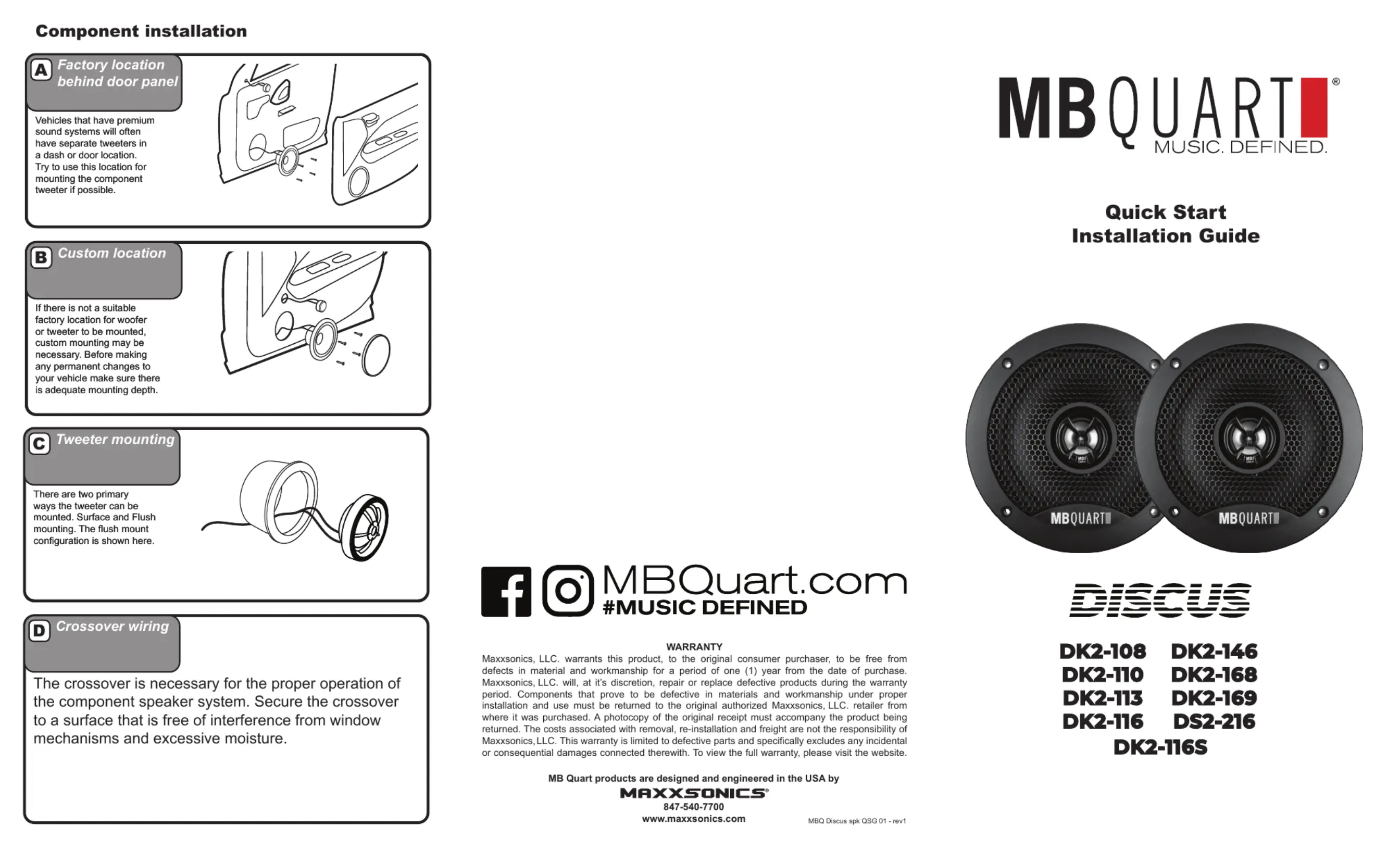

Congratulations on your choice of a MB Quart speaker.

This “Quick Start Installation” guide is meant to help you

“hook up” and play music. For more detailed information

on system setting, speaker and subwoofer conguration,

and full specications by model, visit the website at

MBQuart.com

It’s a good idea to conrm that you have purchased the correct

size speakers to t your vehicle. If you have any reservations

about being able to complete the installation yourself, we

recommend contacting a professional. The removal of interior

panels can be tricky and may require special tools. Be careful

as you go.

Model # A B C D E F

DK2-108 N/A 1.63" (41) 2.13" (54) 2.76" (70) 3.07" (78) 4.62" (117)

DK2-110 N/A 1.8" (45) 2.08" (53) 2.76" (70) 3.74" (95) 4.02" (102)

DK2-146 N/A 1.7" (43) 2.12" (54) 2.75" (70) 3.46" / 5.6"

(88/142)

3.86" / 6.02"

(98/153)

DK2-113 6.2" (158) 2" (51) 2.48" (63) 3.15" (80) 4.53" (115) 5.14" (131)

DK2-168 N/A 2.4(61)" 2.52" (64) 3.15" (80) 5" / 7.1"

(127/180)

5.48" / 8.68"

(139/220)

DK2-116S 6.91" (176) 1.87" (47) 1.92" (49) 3.15" (80) 5.64" (143) 6.49" (165)

DK2-116 6.91" (176) 2.24" (57) 2.54" (65) 3.15" (80) 5.6" (142) 6.58" (167)

DS2-216 6.91" (176) 2.24" (57) 2.54" (65) 3.15" (80) 5.6" (142) 6.58" (167)

DS2-169 7.07" / 10.24"

(180/260) 3.07" (78) 3.59" (91) 3.94" (100) 6" / 8.7"

(152/221)

6.5" / 9.25"

(165/235)

Before you start

Once you are sure the speaker

ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace door panel.

Once you are sure the speaker

ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace speaker cover

panel.

Some vehicles may not have a

door speaker location. While it is

possible to install the speakers in

this situation, it is more difcult.

Consider using a professional for

custom installations.

Factory location

behind small

panel

Coax installation

Mount the speakers in same

way that the factory speaker was

mounted. Attach the positive

and negative wires to the proper

terminals. Make sure any wires

are secured properly.

Most modern vehicles have speakers that are

mounted directly to the structure of the door. Access

is achieved by the removal of the door panel. Some

vehicles may only require the removal of a small

panel around the speaker itself.

Access and

remove factory

door speakers

Most rear speakers are

accessed from within the

trunk. Some may require the

removal of the rear package

tray. Hatchbacks and SUV’s

will usually require the

removal of a side panel.

Access and

removal of rear

factory speakers

Once the factory speakers are

removed, check the t and

determine if there is enough

depth clearance for the new

speaker. A good way to do this is

to roll the window down and back

up while holding the speaker in

place. If you decide to run wires,

make sure to use factory harness

boots and grommets where ever

possible.

Fit and Wiring

Once you are sure the speaker

ts and has adequate clearance,

connect the positive and negative

wires to the proper terminals.

Securely screw the speaker into

place. Replace door panel.

Factory location

behind door

panel

Some vehicles may not have a

door speaker location. While it is

possible to install the speakers in

this situation, it is more difcult.

Consider using a professional for

custom installations.

Custom location

Mount the speakers in same

way that the factory speaker was

mounted. Attach the positive

and negative wires to the proper

terminals. Make sure any wires

are secured properly.

Rear factory

locations
