Side 1/15

PRODUCT NAME

Electronic Disc Grinder

Models

100 mm (4”)

G 10BYEQ2

115 mm

(4-1/2")

G 12BYEQ2

125 mm (5”)

G 13BYEQ2

REPAIR GUIDE ---------------------------------------------------------------------------------------------------------------- 1

1. Precautions on disassembly and reassembly ----------------------------------------------------------- 1

• Disassembly ------------------------------------------------------------------------------------------------- 1

• Reassembly -------------------------------------------------------------------------------------------------- 4

• Lubrication point and type of lubricant ----------------------------------------------------------------- 6

• Tightening torque ------------------------------------------------------------------------------------------- 6

• Checking after reassembly ------------------------------------------------------------------------------- 6

• Insulation test ------------------------------------------------------------------------------------------------ 6

• No-load current value -------------------------------------------------------------------------------------- 7

• Connecting diagram ---------------------------------------------------------------------------------------- 7

CONTENTS

Page

CONFIDENTIAL

Oct. 2022

Overseas Sales Management Dept.

G 13BYEQ2

-1-

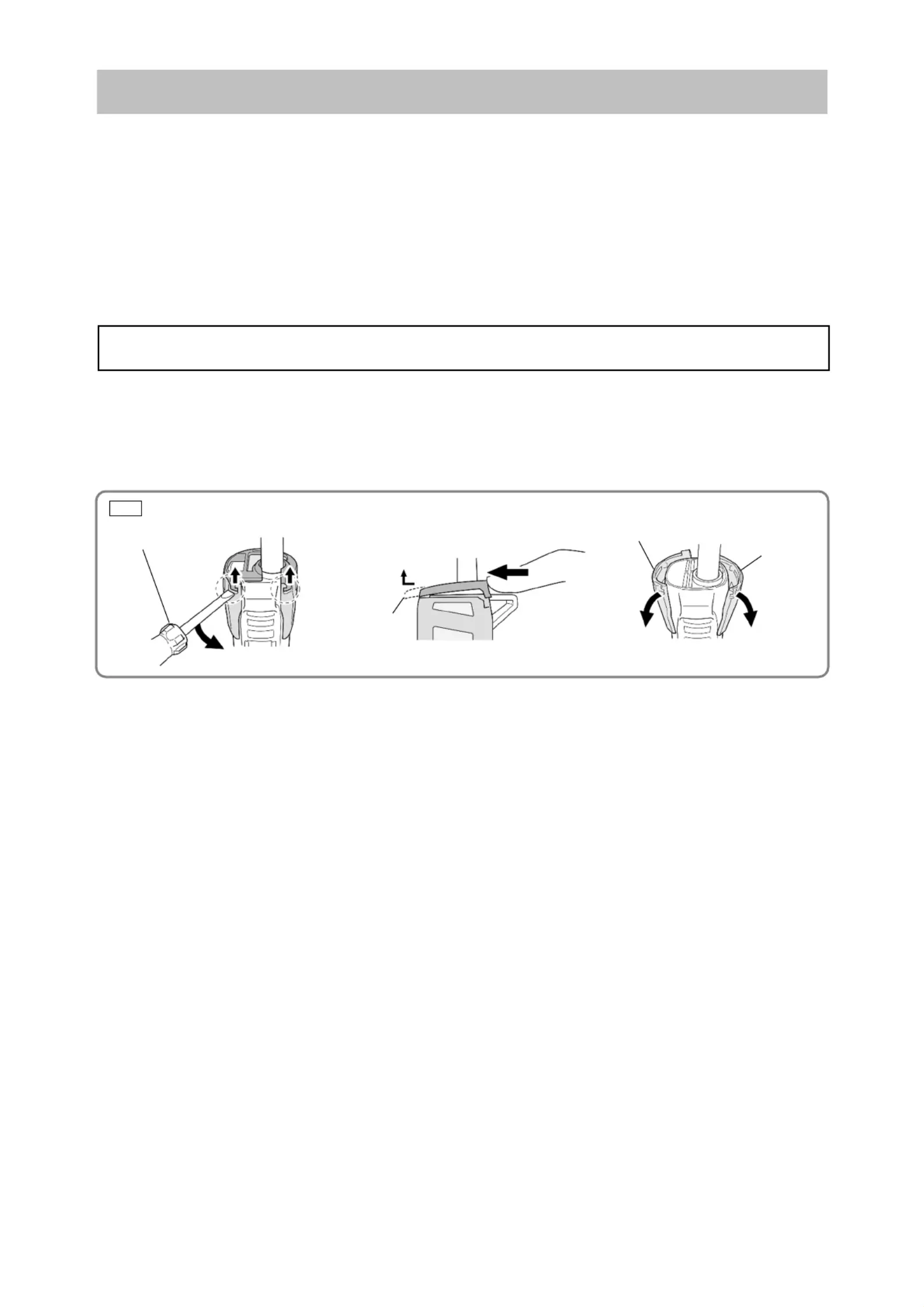

Fig. 1

WARNING: Before disassembly, be sure to turn off the power switch and disconnect the power cord

plug from the outlet.

1. Precautions on disassembly and reassembly

[Bold] numbers in the description below correspond to the item numbers in the parts list and exploded

assembly diagram of the Model G 10BYEQ2, {Bold} numbers to those of the Model G 12BYEQ2, and

<Bold> numbers to those of the Model G 13BYEQ2.

1. Disassembly of the filter set

(1) Use a flat-blade screwdriver to unclip the two clips joining the bottom and side filters of the Filter Set

[45]{48}<48>.

(2) Push out the bottom filter in the arrow direction and remove the two side filters as shown in Fig. 1.

2. Removal of the rotor, stator, and controller

(1) Loosen the Tapping Screw (W/Flange) D4 x 16 (Black) [44]{47}<47> and pull out the Tail Cover Set

[43]{46}<46>.

(2) Loosen the four Tapping Screws (W/Flange) D4 x 23 (Black) [1]{1}<1> that fix the Gear Cover Ass’y

[3]{3}<3> and remove the Rotor [7]{7}<7> from the Housing [33]{36}<36> together with the Bearing

Holder [6]{6}<6>.

(3) Loosen the Special Nut M6 [4] or Special Nut M7 {4}<4> and remove the pinion.

(4) Insert the J-204 hooks (Code No. 970983) of the J-204 bearing puller (Code No. 970982) into the

clearance between the Ball Bearing 628DD [5]{5}<5> and Bearing Holder [6]{6}<6> from both sides,

and then fix the J-204 hooks in place with the wing bolts.

(5) Put the J-204 bearing puller on an appropriate stand. Push down the rotor shaft with a hand press to

remove the Ball Bearing 628DD [5]{5}<5>. Then remove the Bearing Holder [6]{6}<6>.

(6) Remove the insulating tape from the connector between the Sensor PCB [13]{13}<13> and Controller

[37]{40}<40>, then remove the connector. Remove the Fastons [12]{12}<12> of Stator Ass’y (A)

[11]{11}<11> from the Controller [37]{40}<40>. Remove silicone rubber from the connector.

NOTE: Be careful not to damage the connectors when removing.

(7) Loosen the Tapping Screw (W/Flange) D4 x 35 (Black) [36]{39}<39> and Tapping Screw (W/Flange) D4

x 20 (Black) [38]{41}<41>. Remove the Controller [37]{40}<40> from the Housing [33]{36}<36>.

(8) Remove the Fan Guide [10]{10}<10> from the Housing [33]{36}<36>. Remove Stator Ass’y (A)

[11]{11}<11> [33]{36}<36> from the Housing .

(9) Insert the hooks of the J-204 bearing puller (Code No. 970982) into the clearance between the Ball

Bearing 608DD [9]{9}<9> and Dust Seal [8]{8}<8>, and then fix the hooks in place with the wing bolts.

REPAIR GUIDE

Disassembly

Side filter

Bottom filter

Push out.

Unclip.

Flat-blade screwdriver

Unclip.

Side filter
