Side 1/4

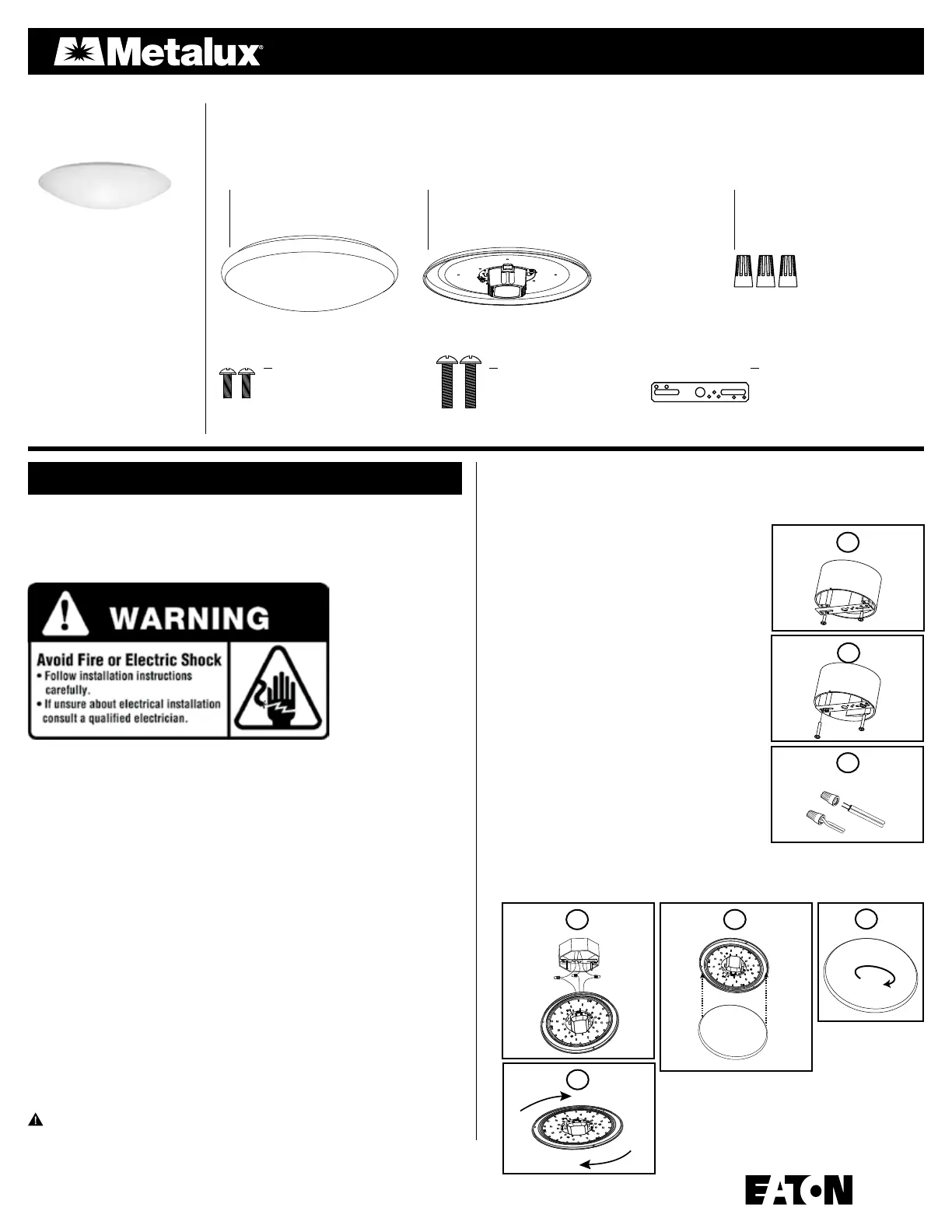

Instruction Manual/Directives/Instrucciones
Questions?/Questions/¿Preguntas? 1-800-334-6871 ConsumerProducts@eaton.com
1
LED
PACKAGING CONTENTS/CONTENU DU PAQUET/CONTENIDO DEL PAQUETE
ITEMS REQUIRED
(Purchase separately)
• Phillips Head Screwdriver
WARNINGS AND CAUTIONS
Safety Information • Read carefully for your protection
• Turn off the power at fuse or circuit breaker box before installation and maintenance.
• Wear rubber-soled shoes and work on a sturdy ladder.
• NOTE: This fixture should be used on a 120-Volt fused circuit. (Check fixture labeling)
• Fixture must be installed according to National Electric Code and local building codes.
• Ground fixture to avoid potential electric shock.
• Handle metal parts carefully to prevent cuts.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
• If you are unsure about wiring, consult a qualified electrician.
• If any part is missing or damaged, do not attempt to assemble, install or
operate the product.
• This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING: FCC Regulations state that any unauthorized changes or
modifications to this equipment not expressly approved by the manufacturer
could void the user’s authorization to operate this equipment.
SAVE THESE INSTRUCTIONS.
A. Round diuser
Diuseur acrylique
Difusor acrílico
B. Fixture housing
Boîtier du luminaire
Alojamiento del accesorio
ENGLISH
WIRING AND FIXTURE INSTALLATION
1. TURN POWER OFF AT MAIN FUSE/ BREAKER BOX. Carefully open carton, remove fixture
from carton.
2. Attach the mounting bracket to the JBOX by
inserting the short #8-32 x 9/16” screws into the
slots of the bracket and threading into JBOX.
3. Add the longer M4 x 23mm screws to the
mounting bracket in either the outer or inner thread
hole locations leaving about 1 in. of space between
the screw head and the mounting bracket.
4. Connect the fixture wires to the supply wires.
Black to black, white to white, and green to
bare / green ground wire.
5. Lift fixture pan up toward ceiling and carefully tuck
wires into outlet box. Align keyholes on fixture pan
with long screws, then twist fixture pan until the long
screws engage the narrow end of the keyholes.
Tighten long screws to secure pan.
6. Align the tabs on fixture pan with the channels on
diffuser, then insert diffuser into fixture pan. Carefully
twist the diffuser clockwise until secure.
7. To clean diffuser, use a mild detergent and water.
Wipe and allow to air dry.
8. Restore power to the electrical box. Turn the light
switch on to activate the fixture.
ENERGY STAR
®
2
3
F. Crossbar (Not to scale)
Barre transversale
(non à l’échelle)
Barra transversal (no a escala)
White Round LED Flushmount
Luminaire fluorescent DEL
rond encastré
Luminaria LED blanca, redonda
para montaje rasante
FM9WR30R
FM9WR40R
(9 inch/23 cm)
FM11WR30R
FM11WR40R
(11 inch/28 cm)
FM15WR30R
FM15WR40R
(15 inch/38 cm)
FM19WR30R
FM19WR40R
(19 inch/48 cm)
4
D. (2) Short Screw #8-32
(2) vis courtes #8-32
(2) tornillos cortos n.º 8-32
E. (2) Long Screw M4 x 23
(2) vis longues M4 x 23
(2) tornillos largos M4 x 23
C. (3) Wire connectors
(3) Serre-ls
(3) Conectores de cable
6
6
5
6
