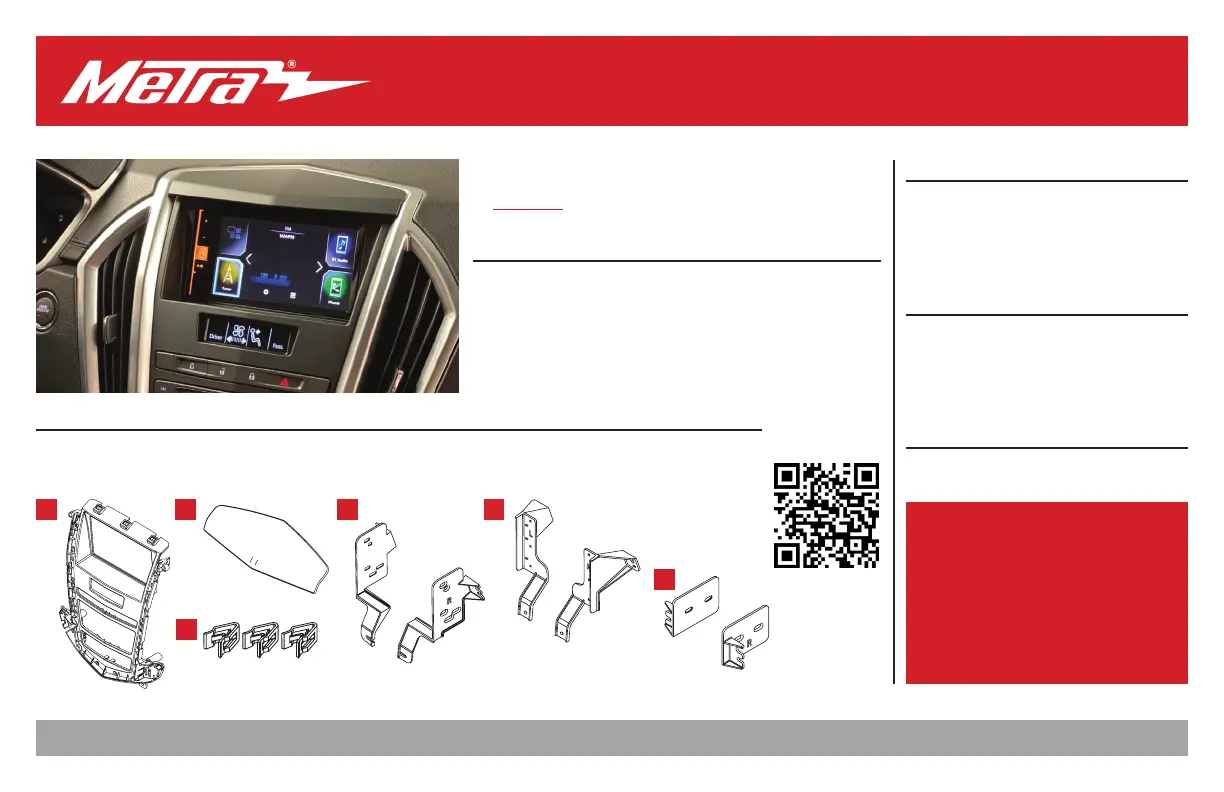

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 12/30/21 INST107-GM5B
I N S TA L L AT I O N I N S T R U C T I O N S
107-GM5B
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
KIT FEATURES (See Interface Installation section for more features)
• Designed for most shallow mount aftermarket radios and Pioneer
modular radios DMH-C2550NEX and DMH-C2500NEX.
Note: See manufacturer for current models.
• Retains factory control panel and display of climate functions and
vehicle customization menus on the 107-GM5B OLED screen.
• Retains audio control on steering wheel and radio control buttons on
the factory control panel.
KIT COMPONENTS
• A) Center dash panel • B) Top trim panel • C) Radio brackets • D) Pioneer display brackets • E) Pioneer chassis brackets
• F) Three panel clips (top panel) • G) Interface and wiring (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench • T-15 Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-6
Kit Assembly
–Shallow DDIN radio provision .............................7
–Pioneer modular DDIN radio provision .............8
Axxess Interface Installation ............................9-19
WIRING & ANTENNA CONNECTIONS
Wire harness: Axxess interface included
Antenna adapter: Included
Steering wheel control interface: Included
RGB Extension Cable: Pioneer part # CD-RGB150E
(not sold by Metra)
A CB D E
F
Cadillac SRX 2010-2012
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386-257-1187
|
MetraOnline.com
2
1. Using the panel removal tool, carefully
unclip and remove the trim panels from
both sides of the center console. (Figure
A)
2. Remove (2) 9/32" screws located on
both sides of the padded trim of the
center console. Unclip and remove the
padded trim. (Figure B)
3. Using the panel removal tool, gently
unsnap and remove the u-shaped trim
around the lower dash pocket. (Figure C)
(Figure D)
DASH DISASSEMBLY
Remove both sides
4. Remove (2) 9/32" screws securing the
lower portion of the control panel.
(Figure D)
5. Pull the pocket from the top to allow the
upper control panel to pass.
Continued on the next page
(Figure A)
(Figure B)
(Figure C)
