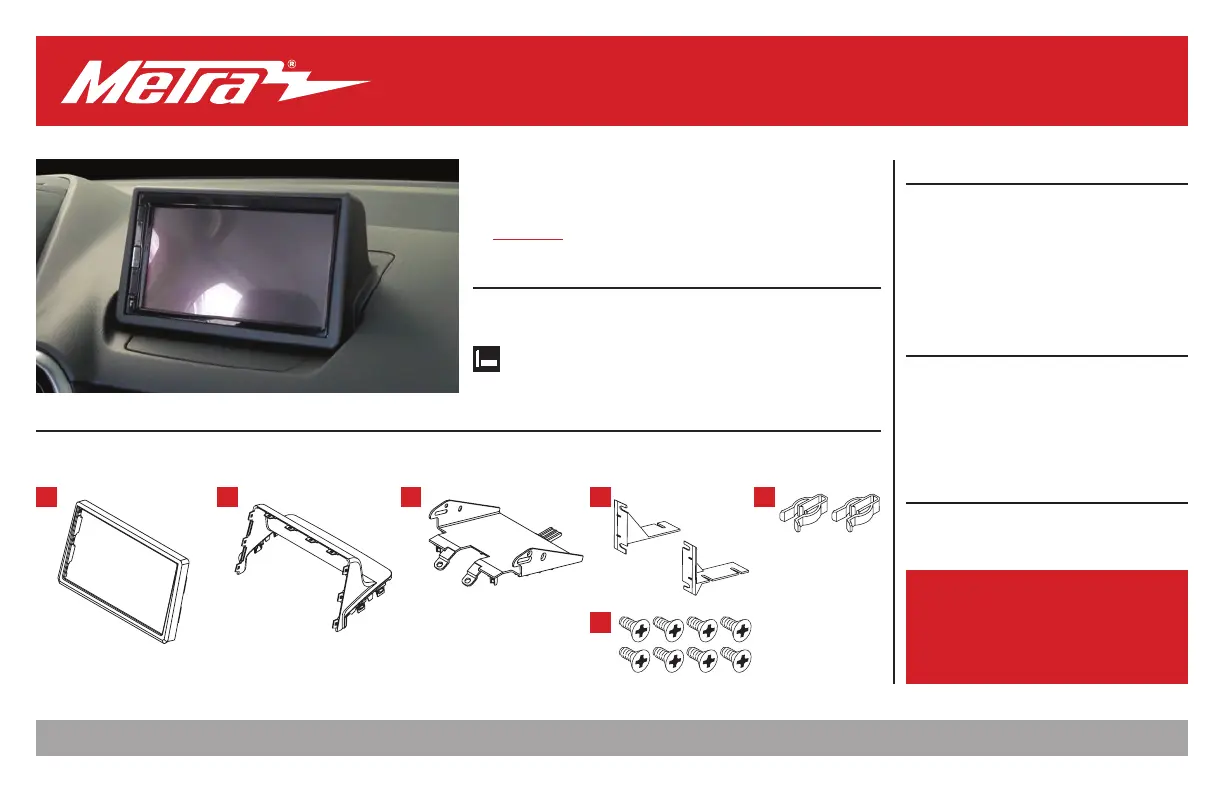

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 9/17/20 INST107-MZ1B
I N S TA L L AT I O N I N S T R U C T I O N S
107-MZ1B
U.S. Patent Pending
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision †
• Pioneer modular DDIN radio provision ‡
KIT COMPONENTS
• A) Trim panel • B) Back panel • C) Radio bracket • D) Pioneer brackets • E) Panel clips (2) • F) Flat-head radio screws (8)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DDIN radio provision .................................4-5
–Pioneer modular DDIN radio provision ......... 6-7
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wire harness: 70-7903L, 70-7905
Antenna adapter: 40-HD10L
Steering wheel control:
Go to AXXESSINTERFACES.COM for options
A B C D
F
E
Mazda CX-3 2016-2020
Toyota Yaris 2019-2020
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
† Kit designed for “L” shaped aftermarket radio, with chassis at bottom
‡ Pioneer radios DMH-C2550NEX and DMH-C2500NEX
1.800.221.0932
|
MetraOnline.com
2
1. Unclip and remove the panel on the top
of the dash behind the radio display.
(Figure A)
2. Unclip and remove the panel on the top
of the dash in front of the radio display.
(Figure B)
3. Remove (2) 10mm bolts securing the
radio. Slide the radio out, then unplug
and remove. (Figure C)
Continue to Kit Preparation
DASH DISASSEMBLY
(Figure A) (Figure B) (Figure C)
