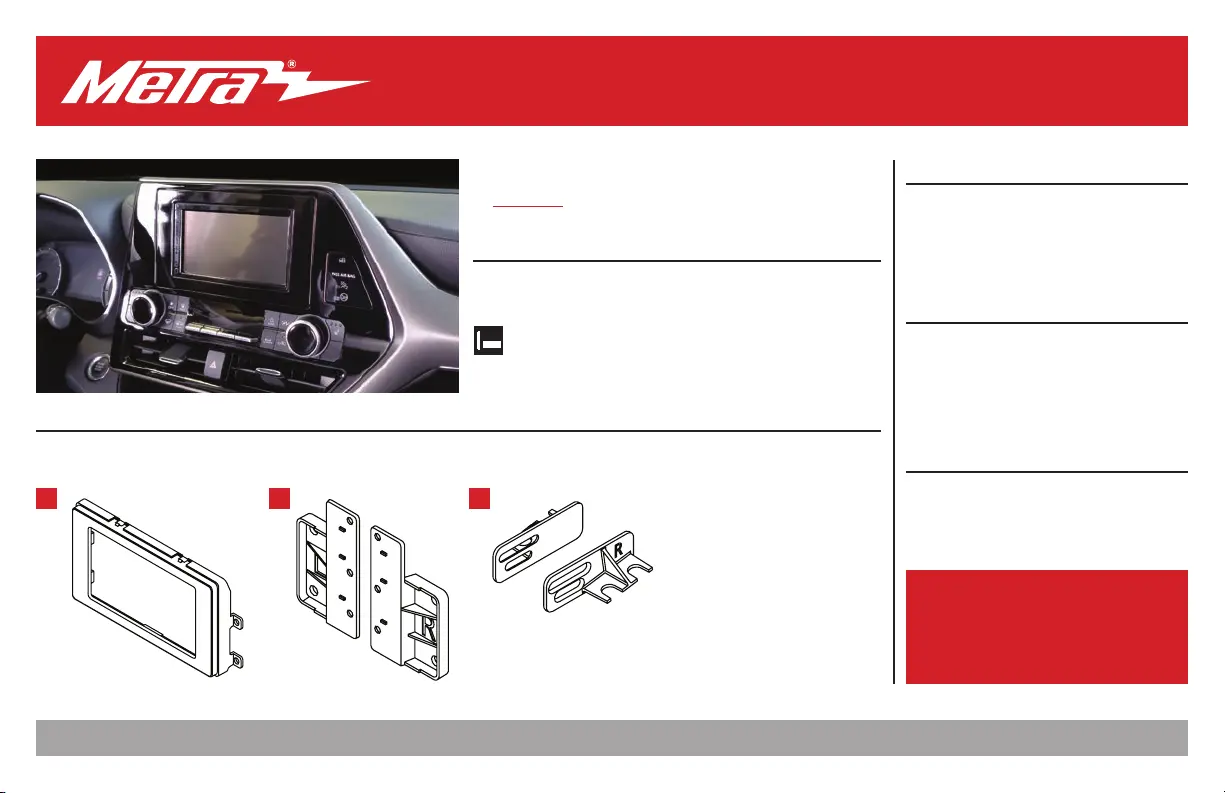

I N S TA L L AT I O N I N S T R U C T I O N S

107-TO7HG

Patent Pending

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DDIN radio provision*

• Painted gloss black

* This kit is designed for an ISO DDIN radio which have an “L” shaped chassis

design, with the radio chassis at the bottom of the screen,

or Pioneer modular 6.8” radios.

† Refer to the radio manufacturer for current models

KIT COMPONENTS

• A) Radio trim panel • B) Screen brackets • C) Radio chassis brackets TOOLS REQUIRED

• Panel removal tool • 10mm socket

• Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–ISO DDIN radio provision .....................................2

–Pioneer Modular radio provision .......................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1765 non-ampliﬁed

See metra-online.com or axxessinterfaces.com

for audio and SWC interface options

Antenna Adapter: 40-LX11

A CB

Toyota Highlander

(Without factory 12.3 inch screen)

2020

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

speciﬁc applications

1.800.221.0932

MetraOnline.com

1. Unclip and remove the trim behind

the radio. Remove (4) 10mm screws

exposed. (Figure A)

2. Unclip, unplug, and remove the radio

and panel. (Figure B)

3. Remove (4) Phillips screws securing the

factory radio to the dash panel.

(Figure C)

Continue to Kit Assembly

DASH DISASSEMBLY KIT ASSEMBLY

(Figure A)

Bottom chassis radio provision

1. Secure the radio brackets to the radio

using screws supplied with the radio.

(Figure A)

2. Slide the radio assembly into to the dash

and secure using the factory screws.

3. radio trim panel Secure the into the

factory dash panel.

4. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

5. Reassemble the dash in reverse

order of disassembly to complete the

installation.

(Figure A)

(Figure B)

(Figure C)
