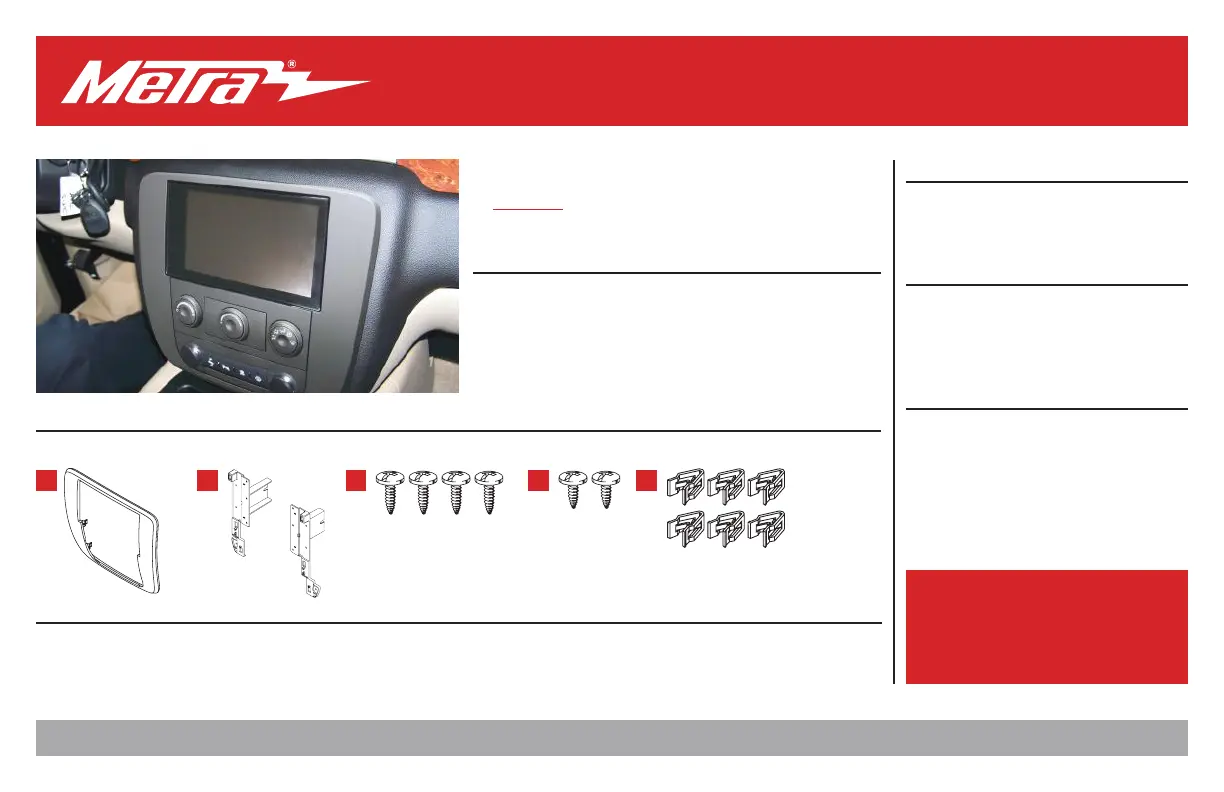

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 9/16/19 INST108-GM2B
I N S TA L L AT I O N I N S T R U C T I O N S
108-GM2B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) #8 x 1/2” Phillips screws (4) • #8 x 3/8” Phillips screws (2)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ................................................... 2
Kit Assembly .............................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Please visit metraonline.com
for wiring harness options
Antenna Adapter: • 40-CR10 • 40-EU10 (w/ nav 12-14)
A B C D
GM SUV/Truck 2007-2014
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
APPLICATIONS
Chevrolet
Avalanche .......................2007-2013
Silverado(1) (2) ...................2007-2013
Silverado 2500/3500 (2) ........... 2014
Suburban ........................2007-2014
Tahoe .............................2007-2014
GMC
Sierra(1) (2) .........................2007-2013
Sierra 2500/3500 (2) ................. 2014
Yukon/YukonXL ..............2007-2014
(1) Excluding Classic trim models
(2) With full center console
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and remove the radio trim panel.
(Figure A)
2. Remove (4) 9/32” screws securing the
switch panel and climate controls.
Unplug and remove just the switch
panel, and set the climate controls to the
side. (Figure B)
(Figure A)
(Figure E)
3. Remove (4) 9/32” screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure C)
4. Enlarge the mounting holes from the
switch panel. Reconnect the panel back
to the vehicle, then set to the side.
(Figure D)
5. Remove the upper portion of the
mounting tab on both sides of the
climate control panel. (Figure E)
Continue to Kit Assembly
Enlarge
mounting hole
Remove shaded area
(Figure C)
(Figure D)
(Figure E)
