Side 1/2

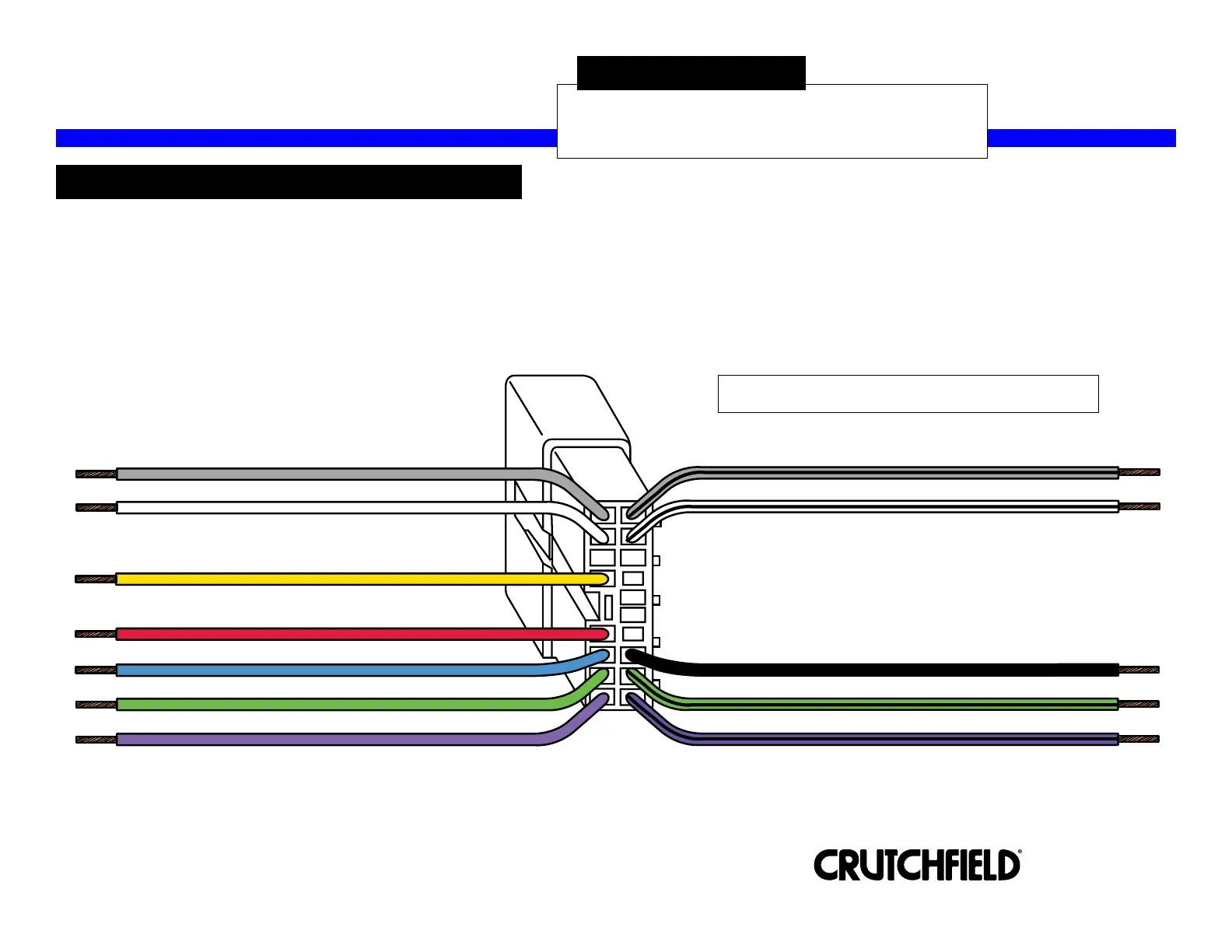

Receiver Wiring Adaptor
120 70-1720
Revision 09/05/13
Individually tape off any unused wires.
White - Left Front Speaker Positive
Violet/Black - Right Rear Speaker Negative
Red - 12 Volts Switched Power
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Yellow - 12 Volts Constant Power
Gray - Right Front Speaker Positive Gray/Black - Right Front Speaker Negative
Green/Black - Left Rear Speaker Negative
White/Black - Left Front Speaker Negative
Black - Chassis Ground (connect to ground wire of new receiver)Blue - Power Antenna
*120701720*
Copyright 2013 Crutchfield Corporation
STEP 1 -- MATCH & CONNECT WIRES
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
Before starting, compare items on your invoice with items
received. Carefully check through packaging material. If an
item is missing, please call Crutchfield at 1-888-955-6000.
IMPORTANT
Receiver Wiring Adaptor Connections
120 70-1720
Page 2
STEP 2 -- CONTINUED
A. Strip wires back 1/2”.
B. Twist wires together and
insert in crimp cap.
C. Squeeze middle of cap
for tight connection.
Copyright 2013 Crutchfield Corporation
STEP 3 -- APPLICATION
When ready to install the receiver, plug
the Wiring Adaptor from the new receiver
or receiver assembly into the factory
radio harness(es) in the vehicle dash.
D. Complete crimp connections
for all necessary wires.
E. Be sure to wrap any wires from
the Wiring Adaptor that are
not necessary (wires with no
match from the new receiver)
with electrical tape.
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts
Required
Wire Stripper/Crimp Tool Crimp Caps
Unused Wire (tape over bare wires)
Receiver Wiring Adaptor
Generic Illustration
Generic Illustration
