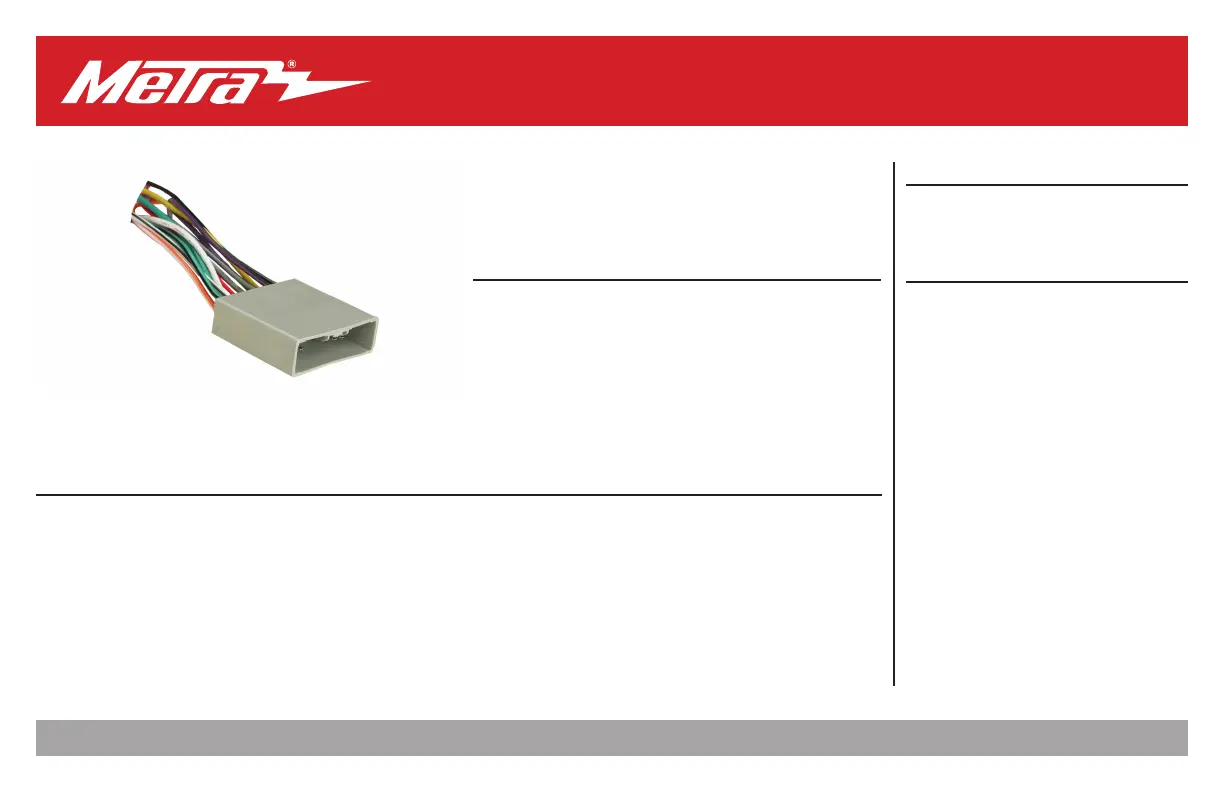

I N S TA L L AT I O N I N S T R U C T I O N S

70-1722

HARNESS FEATURES

• Wiring harness for installation of an aftermarket radio

• Provides power and four speakers

• Retains balance and fade

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Honda Wiring Harness 2006-2014

APPLICATIONS

Honda

Civic * 2009-2011

Civic 2006-2008

CR-V * 2010-2011

CR-V 2007-2009

Fit 2007-2008

Insight * 2010-2014

Odyssey 2008-2010

* Without NAV

I N S TA L L AT I O N I N S T R U C T I O N S

70-1722

CONNECTIONS

From the 70-1722 harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• Connect the wire to the accessory wire.Red

• Connect the Orange/White wire to the illumination wire, if applicable.

• Connect the wire to the right front positive speaker wire.Gray

• Connect the Gray/Black wire to the right front negative speaker wire.

• Connect the wire to the left front positive speaker wire.White

• Connect the wire to the left front negative speaker wire.White/Black

• Connect the wire to the left rear positive speaker wire.Green

• Connect the wire to the left rear negative speaker wire.Green/Black

• Connect the wire to the right rear positive speaker wire.Purple

• Connect the to the right rear negative speaker wire.Purple/Black

For vehicles

with

a factory ampliﬁer:

Models

without

factory NAV:

•

Civic 06-11: Locate the 20-pin harness that was connected to the factory radio. Locate pin-16,

a wire, then connect that wire to the amp turn-on wire from the aftermarket radioLight Blue

• CR-V 07-11: Locate the 20-pin harness that was connected to the factory radio. Locate pin-

15, a

Red

wire, then connect that wire to the amp turn-on wire from the aftermarket radio.

• Odyssey 08-10: Locate the 20-pin harness that was connected to the factory radio.

Locate pin-16, a Yellow/Green wire, then connect that wire to the amp turn-on wire from

the aftermarket radio.

Models

with

factory NAV:

•

Civic 06-08: Locate the 22-pin harness that was connected to the factory radio. Locate pin-20,

a wire, then connect that wire to the amp turn-on wire from the aftermarket radioLight Blue

• CR-V 07-09: Locate the 20-pin harness that was connected to the factory radio. Locate pin-

15, a wire, then connect that wire to the amp turn-on wire from the aftermarket radio.Red

• Odyssey 08-10: Locate the 20-pin harness that was connected to the factory radio.

Locate pin-16, a Yellow/Green wire, then connect that wire to the amp turn-on wire from

the aftermarket radio.
