Side 1/2

Amplifier Bypass Adaptor

120 70-1728

Revision 04/27/10

Red - 12 Volts Switched Power

Green - Left Rear Speaker Positive

Yellow - 12 Volts Constant Power

Orange/White - Dimmer

Black - Chassis Ground

Match wires below to the matching function of each wire on your receiver (refer to instructions

supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors

of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

STEP 2 -- INSTALL

Plug harness into factory harness in vehicle.

*120701728*

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call:

Crutchfield

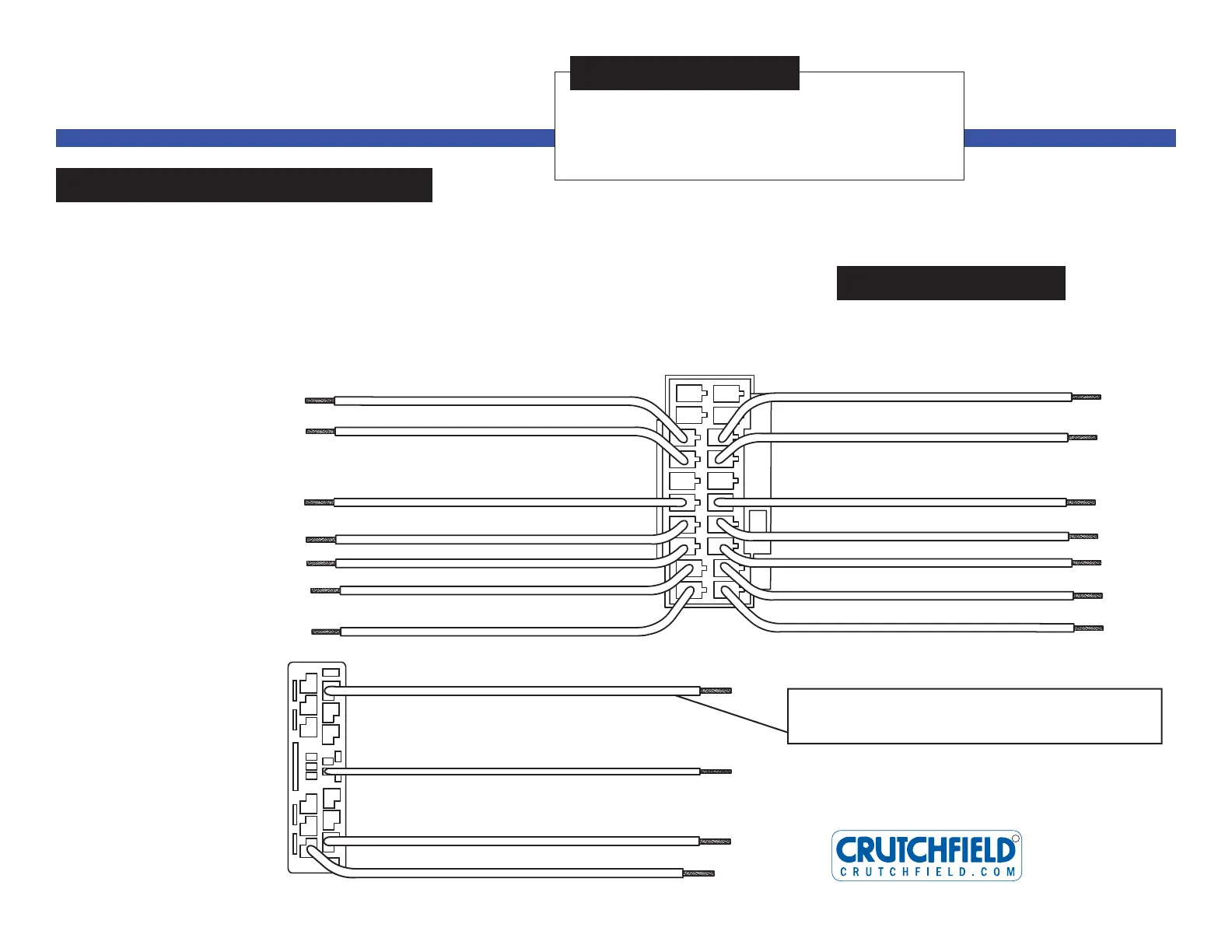

Wires in the adaptor

are much longer than

shown in illustration.

This harness

connects at

the receiver.

White - Left Front Speaker Positive

Violet/Black - Right Rear Speaker Negative Violet - Right Rear Speaker Positive

Yellow/Blue - Left Front Tweeter Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

Green/Black - Left Rear Speaker Negative

White/Black - Left Front Speaker Negative

White/Red - Subwoofer Negative

Yellow/Black - Left Front Tweeter Negative

Yellow/Orange - Right Front Tweeter Negative

Green/White - Subwoofer Positive

Yellow/Red - Right Front Tweeter Positive

Run this

harness

to the

amplifier

location.



STEP 1 -- CONNECT WIRES



If your receiver does not have a dimmer or

illumination wire, tape off the Orange/White wire.

IMPORTANT

at 1-888-955-6000

Tools Required

Soldering

Iron

Solder

(Rosin Core

Suggested)

Electrical

Tape

Amplifier Bypass Adaptor

Connections

120 70-1728

C. Solder:

1. Heat wire.

2. Touch solder to wire, not to iron.

Page 2

CRIMP METHOD SOLDER METHOD

Tools Required

Crimp Tool/

Wire Stripper

Crimp Caps

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

A. Strip wires back 1/2”.

B. Twist wires together.

D. Tape


