Receiver Wiring Adaptor

120 70-1741

Revision 11/27/17

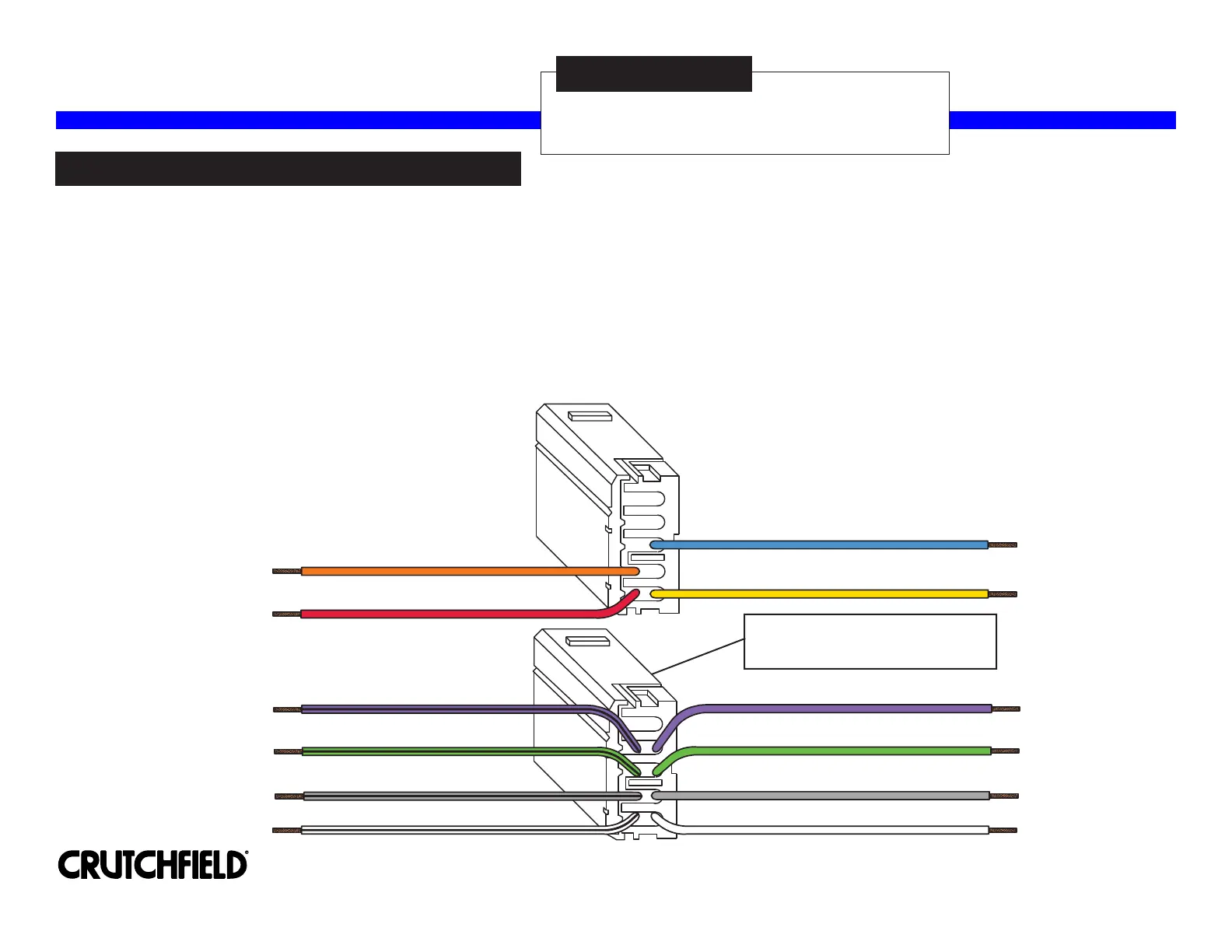

STEP 1 -- MATCH & CONNECT WIRES

*120701741*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Orange - Illumination

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

White - Left Front Speaker Positive

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Violet/Black - Right Rear Speaker Negative

Green/Black - Left Rear Speaker Negative

Blue - Power Antenna

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness

by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Connect Ground wire from new receiver to vehicle chassis.

Wires in the Speaker Harness must be

extended to reach the amplifier which is

located under the passenger's seat.

120 70-1741

Page 2

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adaptor that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adaptor

Generic Illustration

Receiver Wiring Adaptor Connections

A. When ready to install the

receiver, plug the wiring

Adaptor from the new receiver,

or receiver assembly into the

factory radio harness(es) in the

vehicle dash.
