Note: Not all Toyota pickups have factory installed rear speaker wiring

harnesses. If present, it will be taped to the power/front speaker

harness.

Receiver Wiring Adaptor

120 70-1761

Revision 07/10/17

Connect wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver).

IMPORTANT: The wire colors of your new receiver may, or may not, match the wire colors of the adaptor.

Match adaptor and receiver wires by function, disregarding color.

Make final wiring connections following instructions on the next page.

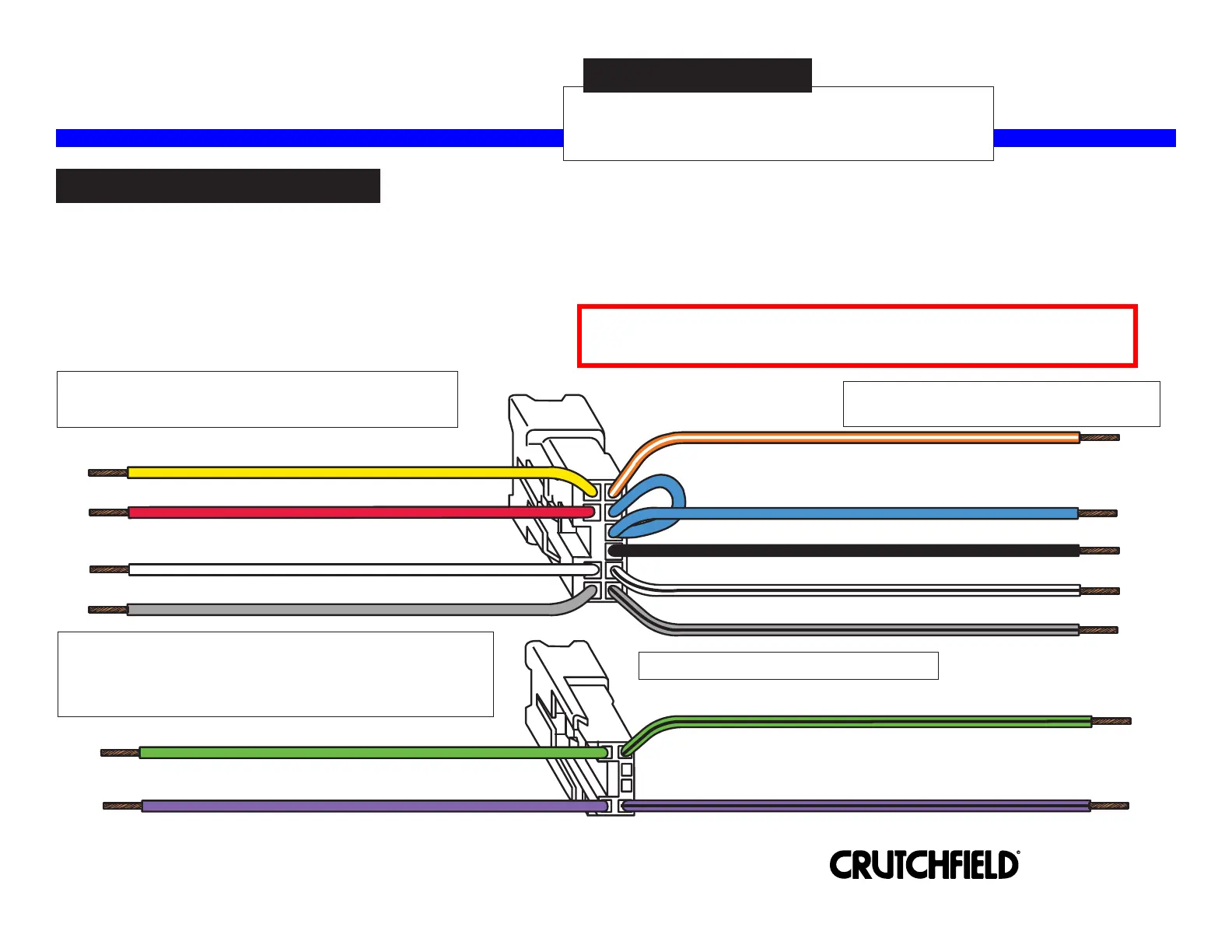

STEP 1 -- CONNECT WIRES

Individually tape off any unused wires.

White - Left Front Speaker Positive

Violet/Black - Right Rear Speaker Negative

Red - 12 Volts Switched Power

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Yellow - 12 Volts Constant Power

Gray/Black - Right Front Speaker Negative

Green/Black - Left Rear Speaker Negative

White/Black - Left Front Speaker Negative

Orange/White - Illumination

Black - Chassis Ground

Blue - Power Antenna

*120701761*

Gray - Right Front Speaker Positive

Note: If the adaptor harness does not match the vehicle radio harness, the matching plug may be

found below the factory radio at the amplifier. The amp must be bypassed by unplugging the

matching plug from the factory amp and plugging it into the adaptor harness.

If your receiver does not have an illumination

wire, tape off the Orange/White wire.

Note: In 1998-2000 Lexus GS vehicles, these harnesses connect at the

amplifier location behind the passenger's side kickpanel. The 12 Volts

Constant power, chassis ground and speaker wires must be lengthened in

order to reach the kickpanel area. The power antenna and 12 Volts Switched

power leads must be spliced at the radio location.

Before starting, compare items on your invoice with items

received. Carefully check through packaging material. If an

item is missing, please call Crutchfield at 1-888-955-6000.

IMPORTANT

Receiver Wiring Adaptor Connections

120 70-1761

Page 2

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

When ready to install the receiver, plug

the Wiring Adaptor from the new receiver

or receiver assembly into the factory

radio harness(es) in the vehicle dash.

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adaptor that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adaptor

Generic Illustration
