Receiver Wiring Adaptor

120 70-1770

Revision 10/17/16

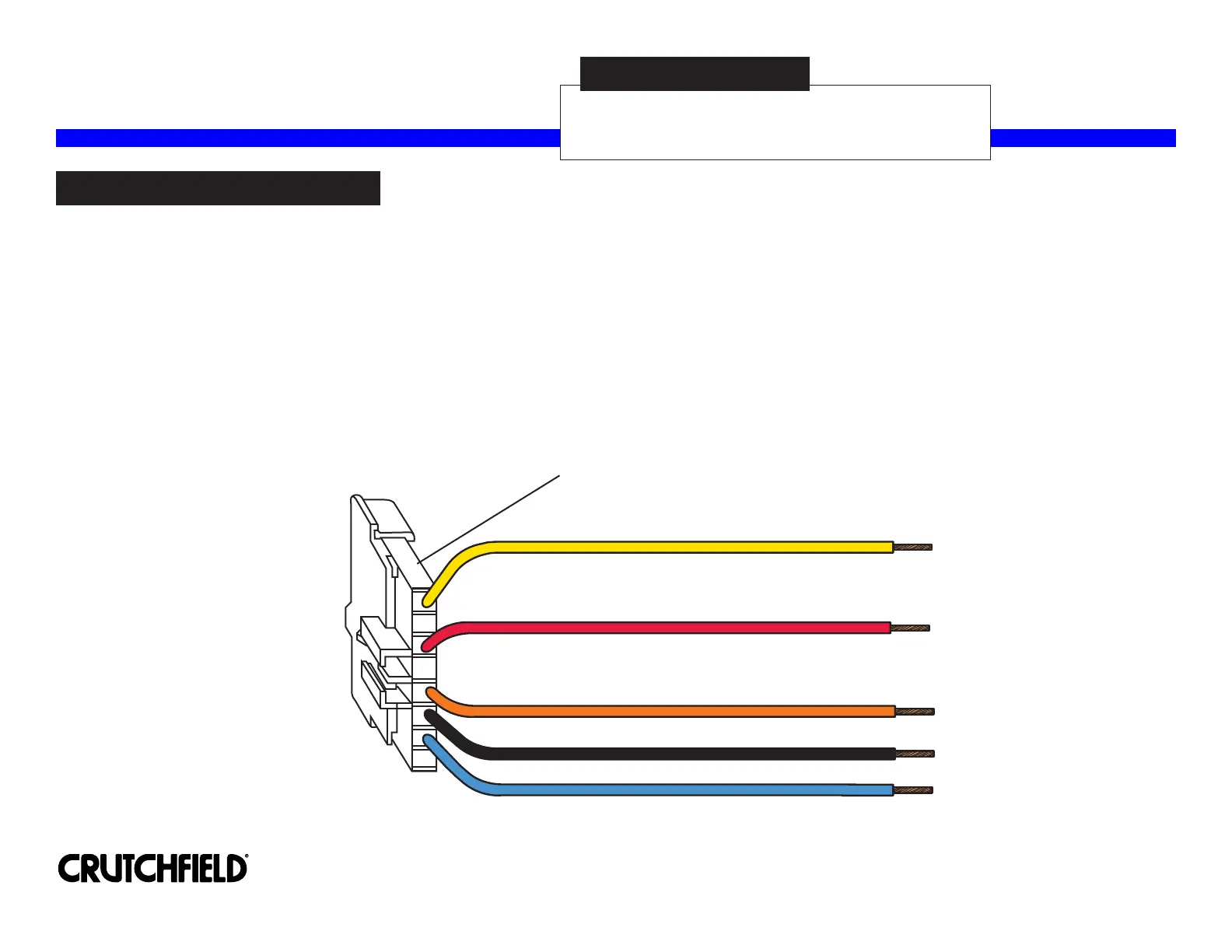

Red - 12 Volts Switched Power

Yellow - 12 Volts Constant Power

Black - Chassis Ground

Blue - Power Antenna

STEP 1 -- CONNECT WIRES

Connect wires below to the matching function of each wire on your receiver (refer to instruction supplied with receiver).

The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver

wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire

in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

If there is no Ground wire in the factory harness, connect new receiver’s Ground wire to vehicle chassis.

Individually tape off any unused wires.

Make final connections following instructions on page 3.

Power Plug of Harness Set

(see speaker plug instructions on page 2)

*120701770*

Orange - Illumination

Before starting, compare items on your invoice with items

received. Carefully check through packaging material. If an

item is missing, please call Crutchfield at 1-888-955-6000.

IMPORTANT

Receiver Wiring Adaptor

120 70-1770

STEP 1 -- CONNECT WIRES (continued)

Speaker Plug of Harness Set

White - Left Front Speaker Positive

Violet/Black - Right Rear Speaker Negative

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

Green/Black - Left Rear Speaker Negative

White/Black - Left Front Speaker Negative

Page 2

The speaker plug in this harness set may not be directly

compatible with your vehicle’s wiring if the vehicle is equipped

with a JBL, or Premium Sound amplifier. An additional adaptor

may be needed to correctly interface an aftermarket receiver

with a JBL or Premium Sound amplifier.

In some cases, Ford’s front speaker negative leads (wires) are

reversed. To test, plug in the wiring harness. Touch the

positive and negative leads of the left speaker to a “C” or “D”

cell battery (1.5 volts). If you hear a “pop”, your vehicle is

wired normally. If “pop” is heard, connect the front speaker no

negative leads in reverse. Left front speaker negative

becomes right front speaker negative.

Individually tape off any unused wires.

Make final connections following instructions on page 3.
