Receiver Wiring Adaptor
120 70-1776
Revision 06/11/15
STEP 1 -- MATCH & CONNECT WIRES
*120701776*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.

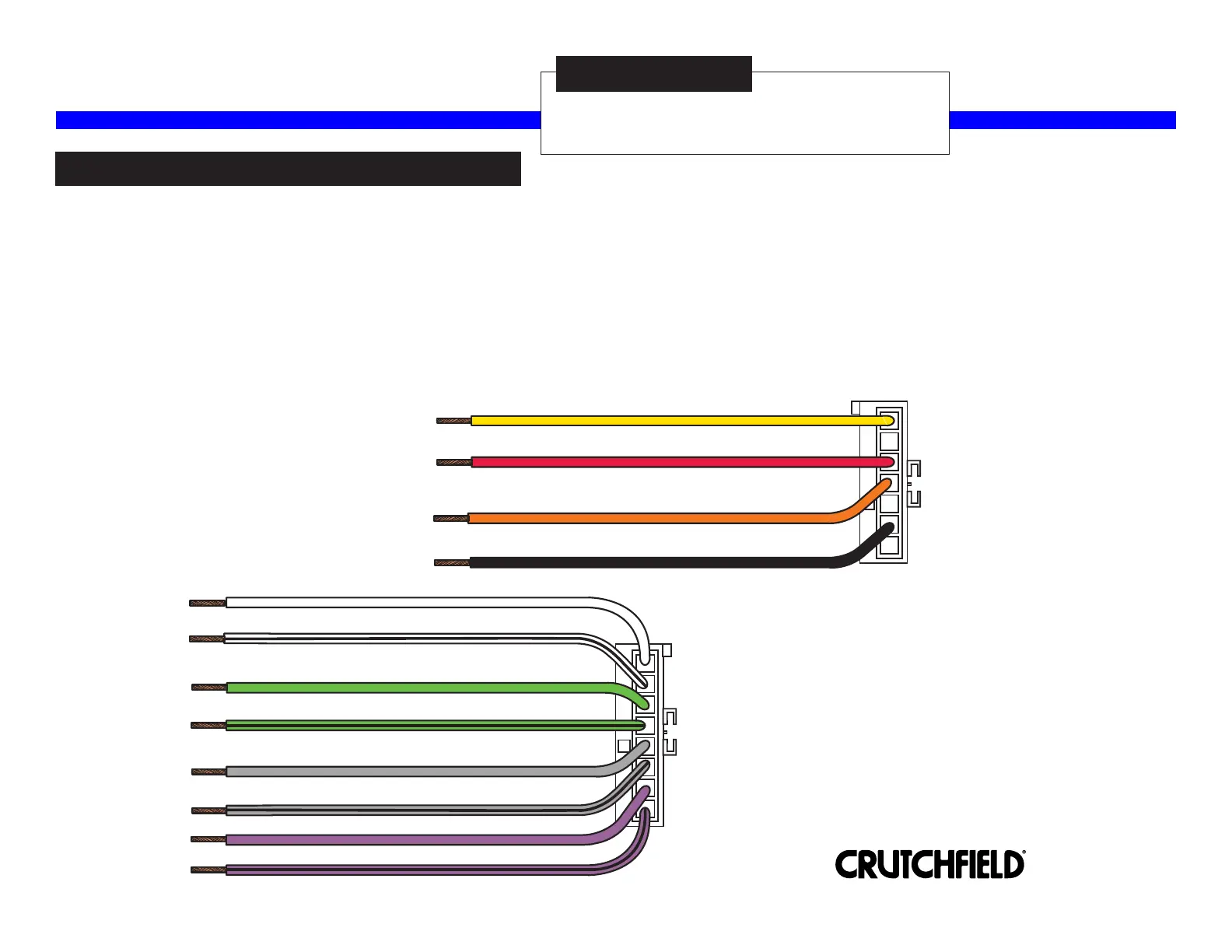

Black - Chassis Ground
Red - 12 Volts Switched Power
Yellow - 12 Volts Constant Power
Orange - Illumination
POWER HARNESS
White - Left Front Speaker Positive
Gray - Right Front Speaker Positive
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
SPEAKER HARNESS
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by
function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
See the next page for navigation, rear seat entertainment and subwoofer harnesses. Make final wiring connections following instructions
on page 3.
A.
B.
C.
D.
Copyright 2015 Crutchfield Corporation
Receiver Wiring Adaptor
STEP 1 -- MATCH & CONNECT WIRES (continued)
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Make final wiring connections following instructions on the next page.
E.
F.
SUBWOOFER HARNESS
REAR SEAT ENTERTAINMENT
(RSE) HARNESS
Red - Right Rear Speaker Channel
White - Left Rear Speaker Channel Black/White - RSE Ground
Blue/White - RSE Turn-on
Black/White - Amplifier Ground
Blue/White - Amplifier Turn-on
120 70-1776
Page 2
Green/Violet - Reverse
Gray/Red - Steering Wheel Controls
Blue/Pink - Vehicle Speed Sensor
NAVIGATION HARNESS
To retain RSE system audio, connect these
to the AUX input of the new receiver.
Subwoofer
Copyright 2015 Crutchfield Corporation
