Receiver Wiring Adaptor

120 70-1777

Revision 03/04/19

STEP 1 -- MATCH & CONNECT WIRES

*120701777

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

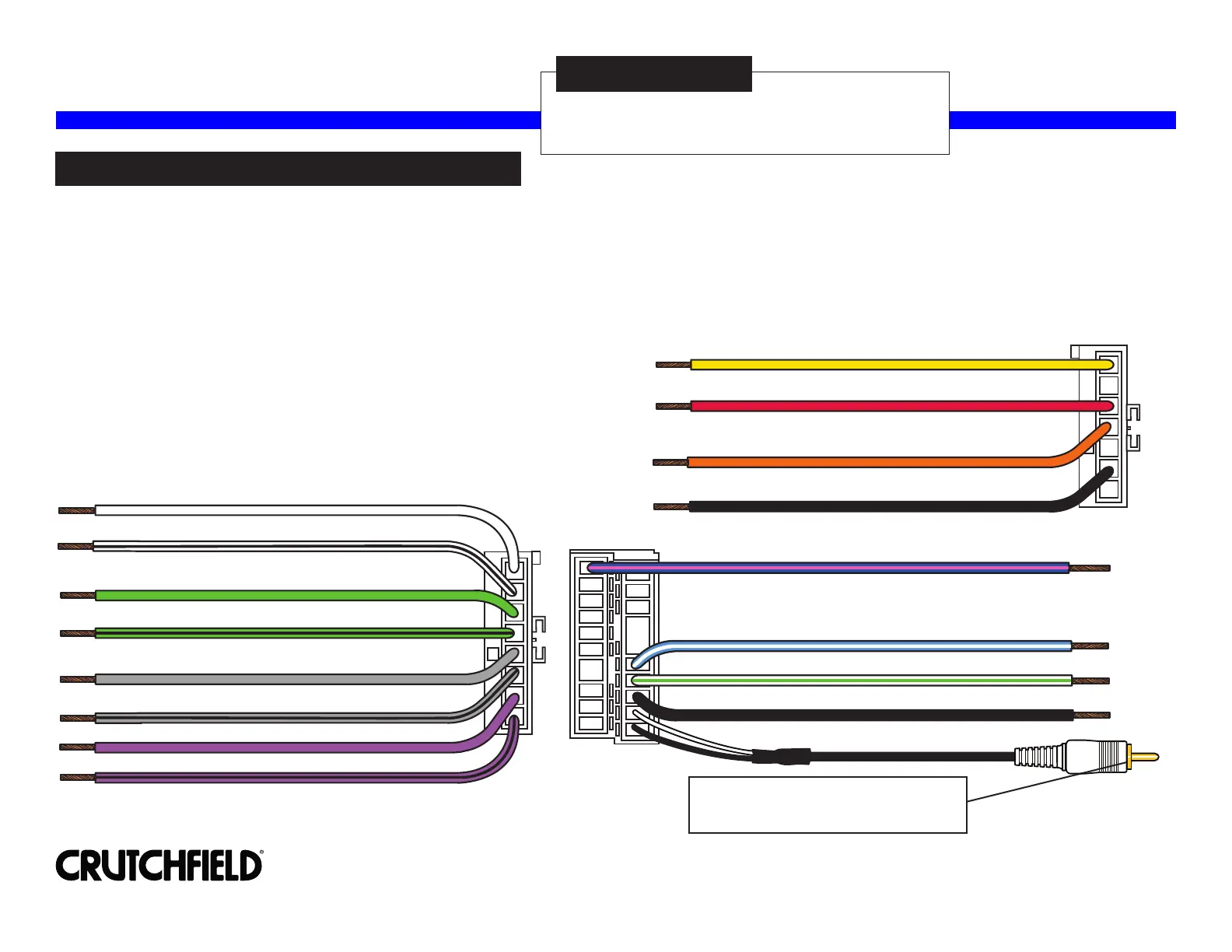

Violet/Black - Right Rear Speaker Negative

White - Left Front Speaker Positive

Gray - Right Front Speaker Positive

Green - Left Rear Speaker Positive

Violet - Right Rear Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Green/Black - Left Rear Speaker Negative

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness

by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Orange - Illumination

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

Black - Chassis Ground

Blue/Pink - Vehicle Speed Sensor

Blue/White - Sub Amplifier Turn-On

White/Green - SWC Signal

Subwoofer Input

Black - SWC Ground (connect with ground wire on power harness)

For best results, the RCA plug should

be connected to the subwoofer preamp

output on the new receiver.
